Place of Origin:
CHINA
Brand Name:
ZH NTN KOYO
Model Number:
30202

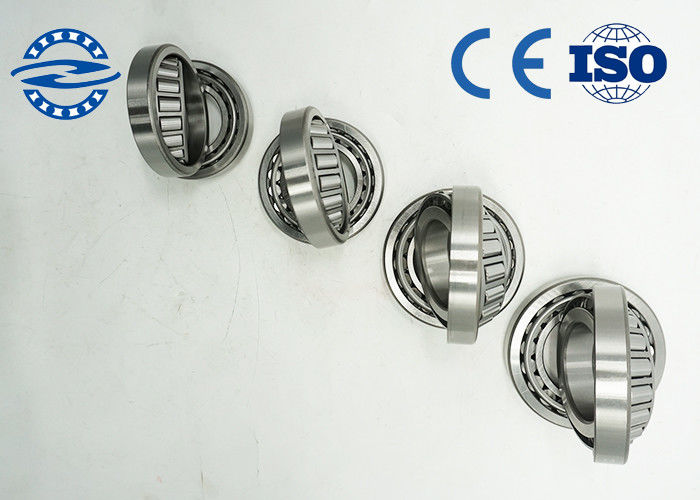

Electric Front Fork Bearings 30202 , Tapered Thrust Bearing For Car Differential 15*35*11mm
Product Details
Dear my friend, our company has thousands of products, and we cannot display them all at the moment. If you need to leave a message or send an email to us, we will serve you as quickly as possible, thanks! ! !
1. The tapered roller bearing is assembled through a rolling element . Guided by the sidewall of an inner ring , it can bear radial load and axial load in one direction .
2 . As a kind of thrust bearing, this product is mostly applied in the car differential , front wheel , rear wheel , machine tool , axle , construction machinery , various vehicle transmission systems , the hoisting and conveying machinery , and more .
Single row cone roller bearing :
Inner diameter range : 20mm ~ 1270mm
Size range : 40mm ~ 1465mm
Width range : 15mm ~ 240mm
| Single-Row Tapered Roller Bearings (metric) | |||||||||||
| Bearing No. | Boundary dimensions (mm) | Basic load ratings (KN) | Limiting speeds (rpm) | ||||||||
| d | D | T | B | C | r min | r1 min | Cr(KN) | Cor(KN) | Grease lub. | Oil lub | |
| 30302 | 15 | 42 | 14.25 | 13 | 11 | 1 | 1 | 21.9 | 19.2 | 10000 | 14000 |
| 30202 | 15 | 35 | 11.75 | 11 | 10 | 0.6 | 0.6 | 14.9 | 13.4 | 12000 | 16000 |
| 30203 | 17 | 40 | 13.25 | 16 | 11 | 1 | 1 | 20.8 | 20.7 | 10000 | 14000 |
| 30303 | 17 | 47 | 17.25 | 14 | 12 | 1 | 1 | 27.4 | 24.5 | 9200 | 12000 |
| 32303 | 17 | 47 | 15.25 | 19 | 16 | 1 | 1 | 31.9 | 29.9 | 9400 | 13000 |
| 32004 | 20 | 42 | 15 | 15 | 12 | 0.6 | 0.6 | 27.3 | 31.5 | 9700 | 13000 |
| 30204 | 20 | 47 | 15.25 | 14 | 12 | 1 | 1 | 27 | 27.2 | 8700 | 12000 |
| 32204 | 20 | 47 | 19.25 | 18 | 15 | 1 | 1 | 33.1 | 34.7 | 8900 | 12000 |
| 30304 | 20 | 52 | 16.25 | 15 | 13 | 1.5 | 1.5 | 35 | 33.5 | 7500 | 10000 |
| 32304 | 20 | 52 | 22.25 | 21 | 18 | 1.5 | 1.5 | 45.1 | 46.7 | 8400 | 11000 |
| 320/22 | 22 | 44 | 15 | 15 | 11.5 | 0.6 | 0.6 | 28.3 | 33.6 | 9100 | 12000 |
| 30305 | 25 | 62 | 18.25 | 17 | 15 | 1.5 | 1.5 | 48.2 | 46.9 | 6800 | 9000 |
| 30305D | 25 | 62 | 18.25 | 17 | 13 | 1.5 | 1.5 | 41.5 | 45 | 5700 | 8000 |
| TR0506R | 25 | 62 | 18.25 | 17 | 14 | 1.5 | 1.5 | 45 | 45.8 | 6700 | 9000 |
| 33205 | 25 | 52 | 22 | 22 | 18 | 1 | 1 | 48.9 | 58.5 | 7900 | 1000 |
| 30205 | 25 | 52 | 16.25 | 15 | 13 | 1 | 1 | 31.5 | 33.7 | 7800 | 10000 |
| 32005 | 25 | 47 | 15 | 15 | 11.5 | 0.6 | 0.6 | 30.2 | 37.7 | 8300 | 11000 |
| 33005 | 25 | 47 | 17 | 17 | 14 | 0.6 | 0.6 | 27.5 | 37 | 8000 | 10700 |
3 . FAQ
Q : Are you a trader or manufacturer?
A : We are factory specializing in all kind of bearings . We can give you the best price and better service .
Q : What is your delivery time ?
A : Sample order: Immediate delivery , bulk order : usually 30 days .
Q : Can i request sample?
A : Of course , sample is ok and we can give you a sample
Q : What's the shipping way ?
A : According to YOUR demands .
Q : Can you accept OEM or ODM ?
A : Yes , of course . logo is also acceptable .
4 . Our advantage
1 . Direct China factory / Manufacturer with strong Capability
We are direct bearing factory on shandong , China for more than 10 years . 300 bearing types , 5 million sets items and produced yearly and the output value more than 5 million US dollars last year .
2 . Product quality high quality the delivery time is quick , reasonable price
Rich in stock throughout the year for general bearing types , such as self-aligning ball bearing , Tapered Roller Bearing , cylindrical roller Bearing , etc .
Based on the above advantages , we can make prompt delivery according to your requirement .
Warehouse items would Delivery of the goods within 5 - 8 days .
By courier /air or by cargo /sea
5 . Packaging
1 . Single box packing , then in carton then in Pallet .
2 . Standard export packing .
3 . According customer demand .
Send your inquiry directly to us
