Place of Origin:
CHINA
Brand Name:
ZH NTN KOYO
Model Number:
31319

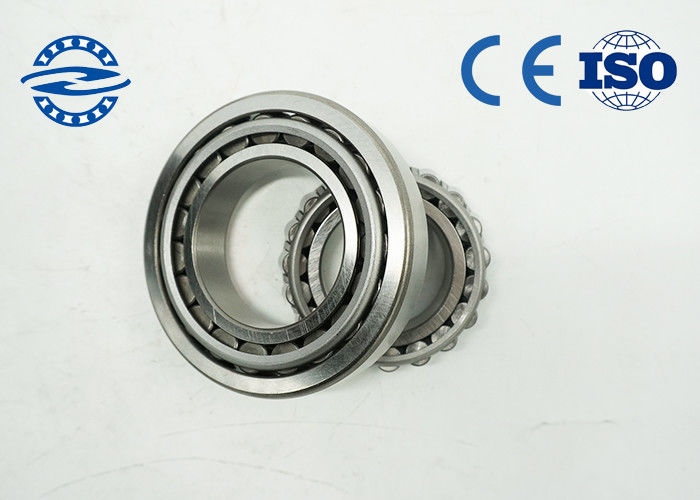

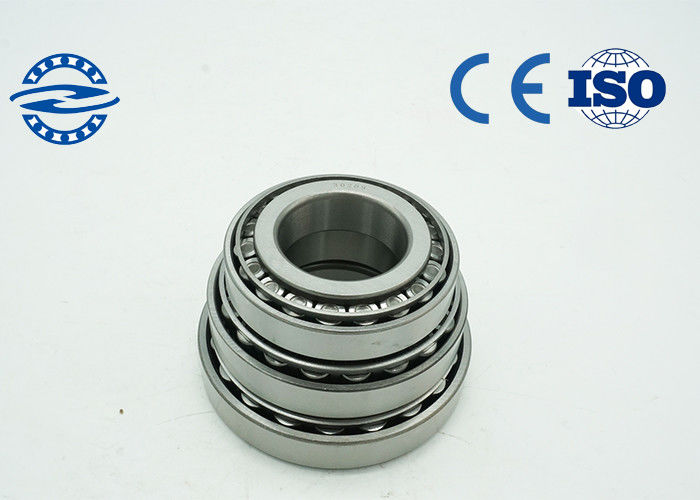

Tapered roller bearing 31319 Specifiexcavatorion with Free Sample
1 . Product quality high quality the delivery time is quick , reasonable price
production range
Inner diameter : 15 mm ~ 1560 mm
Outer diameter : 42 mm ~ 1800 mm
Height : 14 mm ~ 460 mm
1 . The tapered roller bearing is assembled through a rolling element . Guided by the sidewall of an inner ring , it can bear radial load and axial load in one direction .
2 . Manufacturer's direct selling specifiexcavatorions are complete
Because we are factory direct selling directly to consumers
Waterproof and rust proof
Innovate ZH Bearing , and Rotate the Peak of Bearing World!
Low friction high speed machine tool bearing can be customized
Reasonable price , timely delivery
| Product name | Tapered roller bearing 31319 |
| Type | Roller bearing |
| Width | 45 mm |
| Brand | ZH |
| Service | OEM&ODM |
| Number of row | Single , double |
| Size | 95*200*45 mm |
| Precision | P0,P6,P5,P4,P2 |
| Payment term | L/C, D/A, D/P, T/T |
| Clearance | C2,C0,C3,C4,C5 |
|
Appliexcavatorion |
Tapered roller bearing 31319 can be uesd for Conveyor, transfer equipment, motor, pump, agricultural machinery, office equipment |
| Single-Row Tapered Roller Bearings (metric) | ||||||||||
| Bearing No. | Boundary dimensions (mm) | Basic load ratings (KN) | ||||||||
| d | D | B | C | T | R min | rmin | Cr(KN) | Cor(KN) | Weight(KG) | |
| 31319 | 95 | 200 | 45 | 32 | 49.5 | 4 | 3 | 399.8 | 311.4 | 6.46 |
| 31320 | 100 | 215 | 51 | 35 | 56.5 | 4 | 3 | 488.2 | 372.9 | 8.59 |
| 32004X | 20 | 42 | 15 | 12 | 15 | 0.6 | 0.6 | 28.2 | 25. | 0.0952 |
| 320/22X | 22 | 44 | 15 | 11.5 | 15 | 0.6 | 0.6 | 30.3 | 26 | 0. 0999 |
| 320025X | 25 | 47 | 15 | 11.5 | 15 | 0.6 | 0.6 | 34.1 | 28 | 0.1116 |
| 320/28X | 28 | 52 | 16 | 12 | 16 | 1 | 1 | 40.4 | 31.4 | 0.142 |
| 32006X | 30 | 55 | 17 | 13 | 17 | 1 | 1 | 46.8 | 35.7 | 0.17 |
| 320/32X | 32 | 58 | 17 | 13 | 17 | 1 | 1 | 49.2 | 36.5 | 0.187 |
|
32007X |
35 | 62 | 18 | 14 | 18 | 1 | 1 | 59.2 | 43.2 | 0.224 |
| 32008X | 40 | 68 | 19 | 14.5 | 19 | 1 | 1 | 71.1 | 51.9 | 0.269 |
| 32009X | 45 | 75 | 20 | 15.5 | 20 | 1 | 1 | 81.4 | 58.4 | 0.337 |
| 32010X | 50 | 80 | 20 | 15.5 | 20 | 1 | 1 | 89 | 61.1 | 0.366 |
| 32011 | 55 | 90 | 23 | 17.3 | 23 | 1.5 | 1.5 | 117.2 | 80.2 | 0.551 |
| 32012 | 60 | 95 | 23 | 17.5 | 23 | 1.5 | 1.5 | 122.2 | 81.7 | 0.584 |
| 32013 | 65 | 100 | 23 | 17.5 | 23 | 1.5 | 1.5 | 127.3 | 82.8 | 0.62 |
| 32014 | 70 | 110 | 25 | 19 | 25 | 1.5 | 1.5 |
160.1 |
104.3 | 0.839 |
| 32015 | 75 | 115 | 25 | 19 | 25 | 1.5 | 1.5 | 160.2 | 103.1 | 0.875 |
| 32016X | 80 | 125 | 2* | 22 | 29 | 1.5 | 1.5 | 220 | 141 | 1.27 |
4 . Packaging
1 . Single box packing, then in carton then in Pallet .
2 . Standard export packing .
3 . According customer demand .
