Place of Origin:
China
Brand Name:
ZH
Certification:
IS09001
Model Number:
22324CA

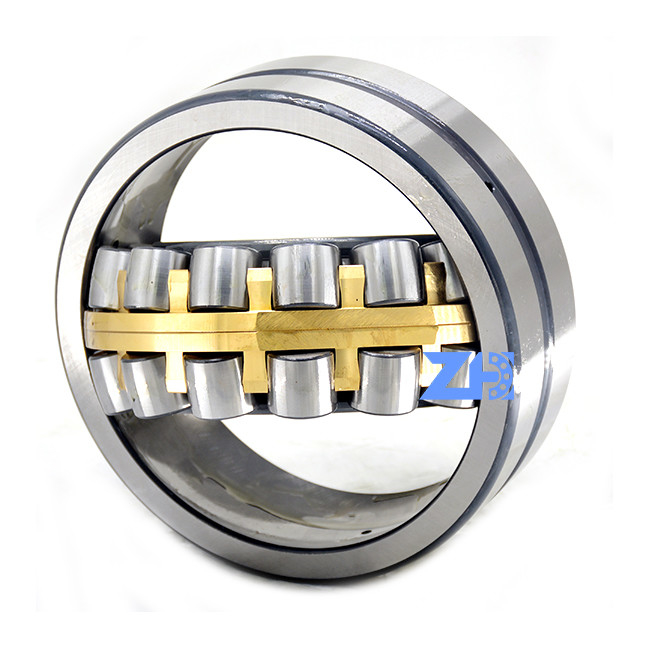

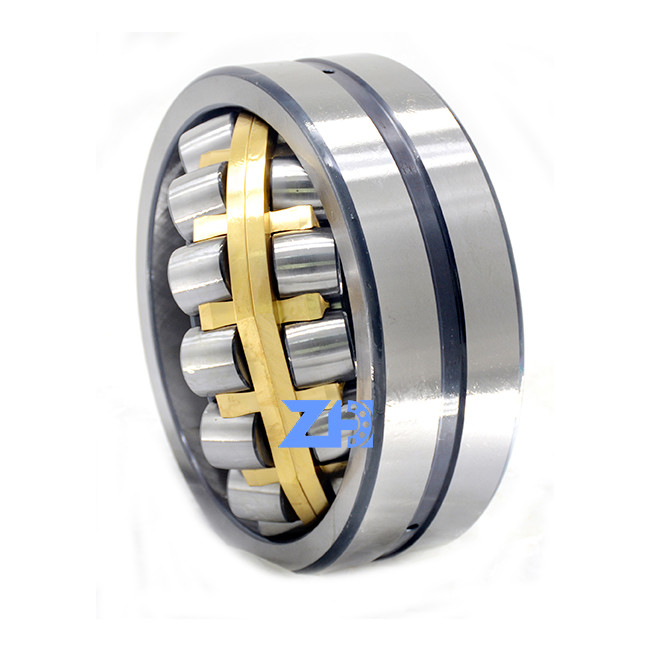

120x260x86 mm Spherical Roller Bearing 22324CA 22324CB 22324E CHROME STEEL Material
Product introduction(Hight Bearing choose ZH)
22324CAthis bearing offers exceptional strength and durability. Through hardening is a heat treatment process that ensures uniform hardness throughout the bearing, enhancing its resistance to wear, fatigue, and impact. The through hardened steel construction guarantees longevity and reduces the risk of premature failure, making it suitable for demanding industrial environments. The 22324CA is a spherical roller bearing, designed to accommodate misalignment and axial loads. This allows for smooth operation even in applications with dynamic or oscillating movements. The spherical design helps distribute the load evenly across the bearing, minimizing stress and increasing its load-bearing capacity. With its 120 mm size, this spherical roller bearing is versatile and suitable for various applications, including heavy machinery, conveyor systems, and industrial equipment. It provides reliable support for rotating shafts, reducing friction and ensuring efficient operation. Manufactured by ZH,a trusted brand renowned for their high-quality bearings and components,
| Bore diameter | 120 mm |
| Outside diameter | 260 mm |
| Width | 86 mm |
| Number of rows | 2 |
| Locating feature, bearing outer ring | Without |
| Bore type | Cylindrical |
| Cage | Sheet metal |
| Radial internal clearance | CN |
| Tolerance class for dimensions | Normal |
| Tolerance class for run-out | P5 |
| Sealing | Without |
| Lubricant | None |
| Relubrication feature | With |
| Candidate for remanufacturing | Yes mm |
| d |
120 mm
|
Bore diameter |
|---|---|---|
| D |
260 mm
|
Outside diameter |
| B |
86 mm
|
Width |
| d2 |
≈152 mm
|
Shoulder diameter of inner ring |
| D1 |
≈216 mm
|
Shoulder/recess diameter of outer ring |
| b |
13.9 mm
|
Width of lubrication groove |
| K |
7.5 mm
|
Diameter of lubrication hole |
| r1,2 |
min.3 mm
|
Chamfer dimension |
| da |
min.134 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max.246 mm
|
Diameter of housing abutment |
| ra |
max.2.5 mm
|
Radius of fillet |
| d |
120 mm
|
Bore diameter |
|---|---|---|
| D |
260 mm
|
Outside diameter |
| B |
86 mm
|
Width |
| d2 |
≈152 mm
|
Shoulder diameter of inner ring |
| D1 |
≈216 mm
|
Shoulder/recess diameter of outer ring |
| b |
13.9 mm
|
Width of lubrication groove |
| K |
7.5 mm
|
Diameter of lubrication hole |
| r1,2 |
min.3 mm
|
Chamfer dimension |
22324CA Collection
| NUP207 | KMF160-PC360-7 | 15578 | NUP309 | NUP206=100 | NUP2211=250 | 30309D=110 | T7FC055=300 | NUP309 |
| HMS072 | MSG-27P | NUP306 | NUP206 | NUP2208=210 | NUP207 | NUP207/NUP306 | NUP309 | T7FC055 |
| AP5S67 | AP5S53 | NUP307 | 6305M | NUP307=110 | NUP307 | 30309D | 30312D | T7FC055 |
| 11749/11710 | M5X130 | NUP205E | TM09 | M2X146 | NUP307 | 30312D | 30314D | NUP310 |
| NUP2310 | M5X180 | NUP207=120 | GM18VL | M2X150 | NUP2208 | NUP2209 | 30312D | JMF250 |
| 30312D | 32205 | NUP2209=160 | KMF125 | M2X170 | NUP2211 | NUP2209 | 6008 | M2X55 |
| 30312D | T7FC060 | NUP2207=140 | HMK3525+IR | M2X210 | NUP308 | NUP2209 | NUP307 | M2X63 |
| NUP308 | NUP207 | NUP2206=130 | 30309D | HMGF57 | NUP309 | NUP2212 | 30311D | MAG85 |
| DNB50/60 | 6213 | NUP309=180 | 30210 | SG08 | NUP309 | NUP2212 | T7FC055 | MAG120 |
| HMGF35 | NUP308 | NUP309=180 | 30210 | GM17VA | NUP2212 | NUP2211 | NIP2310 | |
| HMGF36 | NUP309 | NUP310 | 30311D | JMV-44/22 | 30312D=155 | 30312D=155 | NUP208E | |
| HMGC48 | JMF29 | NUP2206 | SG04 | GM35VA | M2X96 | M2X120 | NUP308=140 | |
| 4T-30307 | JMF23 | NUP2207 | SG025 | GM35VL | MCB172 | 32207 | SG20 | |
| NUP306 | JMF151 | NUP2207 | SG02 | GM38VB | HMT36FA | 30312 | KMF41-PC60-7 | |
| NUP307 | JMF195 | JMV-53/31 | SG15 | MAG150 | HMGC32 | MAG150 | KMF90-PC200-6 |
