Place of Origin:
China
Brand Name:
ZH
Certification:
IS09001
Model Number:
22315CA
22315CA 22315E 22315W33 Spherical Roller Bearing P0,P2,P4,p5,p6 Quality Level CHROME STEEL Material
Product introduction(buy High quality Bearing come to ZH)
22315CA is the leading brand of bearings manufacturing and supply. The organization is dedicated to offering high-quality products that are essential for various equipment and industrial works. It offers a wide range of products such as Linear Motion, Ball Bearing, Roller Bearings and Angular Contact Reduction Bearings.
| d |
75 mm
|
Bore diameter |
|---|---|---|
| D |
160 mm
|
Outside diameter |
| B |
55 mm
|
Width |
| d2 |
≈92.8 mm
|
Shoulder diameter of inner ring |
| D1 |
≈135 mm
|
Shoulder/recess diameter of outer ring |
| b |
8.3 mm
|
Width of lubrication groove |
| K |
4.5 mm
|
Diameter of lubrication hole |
| r1,2 |
min.2.1 mm
|
Chamfer dimension |
| da |
min.87 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max.148 mm
|
Diameter of housing abutment |
| ra |
max.2 mm
|
Radius of fillet |
| Basic dynamic load rating | C |
462 kN
|
|---|---|---|
| Basic static load rating | C0 |
475 kN
|
| Fatigue load limit | Pu |
48 kN
|
| Reference speed |
3 200 r/min
|
|
| Limiting speed |
4 300 r/min
|
|
| Limiting value | e |
0.35
|
| Calculation factor | Y1 |
1.9
|
| Calculation factor | Y2 |
2.9
|
| Calculation factor | Y0 |
1.8
|
| da |
min.87 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max.148 mm
|
Diameter of housing abutment |
| ra |
max.2 mm
|
Radius of fillet |
22315CA Collection
| 4T-30307 | JMF23 | NUP2207 | SG025 | GM35VL | MCB172 | 32207 | SG20 | NUP2206=130 |
| NUP306 | JMF151 | NUP2207 | SG02 | GM38VB | HMT36FA | 30312 | MAG85 | NUP309=180 |
| NUP307 | JMF195 | JMV-53/31 | SG15 | MAG150 | HMGC32 | MAG150 | MAG120 | NUP2209=160 |
| T7FC065 | KMF125-PC200-8 | NUP206E | NUP309=180 | NUP2212=220 | 6305 | NUP308 | NUP308=140 | NUP2207=140 |
| NUP207 | KMF160-PC360-7 | 15578 | NUP309 | NUP206=100 | NUP2211=250 | 30309D=110 | T7FC055=300 | M5X180 |
| HMS072 | MSG-27P | NUP306 | NUP206 | NUP2208=210 | NUP207 | NUP207/NUP306 | NUP309 | 32205 |
| AP5S67 | AP5S53 | NUP307 | 6305M | NUP307=110 | NUP307 | 30309D | 30312D | T7FC060 |
| 11749/11710 | M5X130 | NUP205E | TM09 | M2X146 | NUP307 | 30312D | 30314D | NUP207 |
| NUP2310 | 30314D=250 | NUP207=120 | GM18VL | M2X150 | NUP2208 | NUP2209 | 30312D | 6213 |
| 30312D | NUP309 | KMF125 | M2X170 | NUP2211 | NUP2209 | 6008 | NUP308 | |
| 30312D | T7FC055 | HMK3525+IR | M2X210 | NUP308 | NUP2209 | NUP307 | KMF41-PC60-7 | |
| NUP308 | T7FC055 | 30309D | HMGF57 | NUP309 | NUP2212 | 30311D | M2X63 | |
| DNB50/60 | NUP310 | 30210 | SG08 | NUP309 | NUP2212 | T7FC055 | ||
| HMGF35 | JMF250 | NUP309=180 | 30210 | GM17VA | NUP2212 | NUP2211 | NIP2310 | |
| HMGF36 | NUP309 | NUP310 | 30311D | JMV-44/22 | 30312D=155 | 30312D=155 | NUP208E | |
| HMGC48 | JMF29 | NUP2206 | SG04 | GM35VA | M2X96 | M2X120 | NUP308=140 |

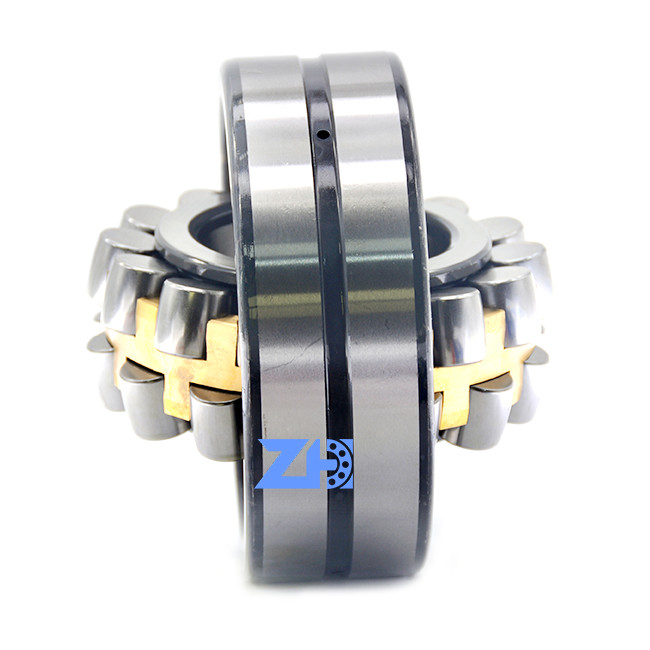

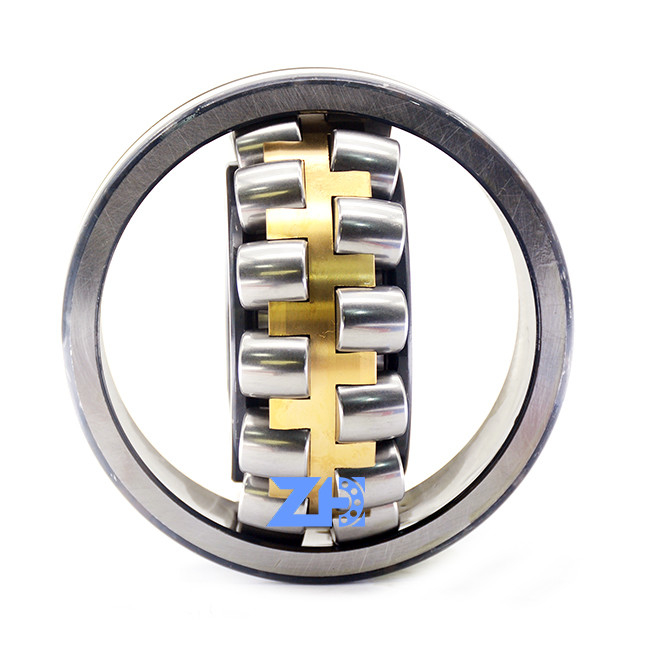

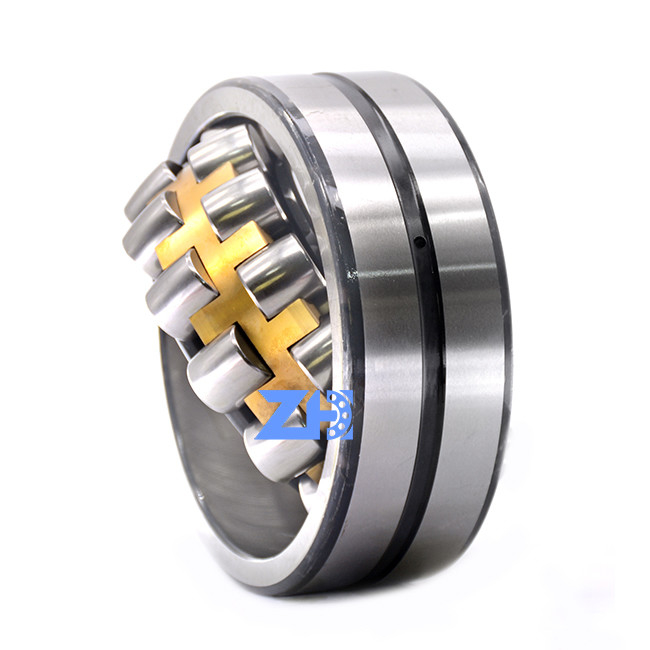

Picture show
