Place of Origin:
China
Brand Name:
ZH
Certification:
IS09001
Model Number:
30205

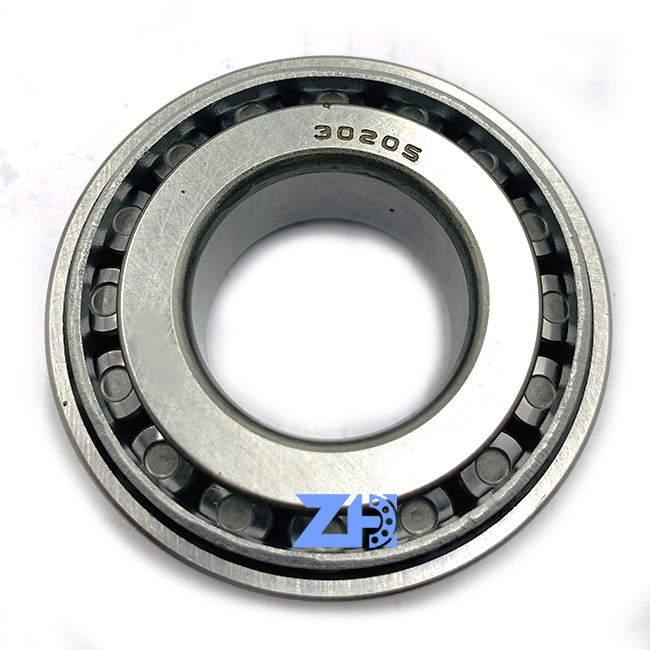

30205 Taper Roller Bearing, with an inner diameter of 25 mm and outer diameter of 52 mm and a width of 15 mm, is a metal bearing.
It is commonly used for industrial applications. We are a Delhi-based Manufacturer and Supplier of Taper Roller Bearings. Owing to the same, the quality of Taper Roller Bearings is fully ensured. To top it,
these Industrial Bearings are quality-analyzed, so that the bearings out of the lot reach us only after they pass all the quality checks.
We have a large client base in India as well as abroad. Our clients include some of the leading companies that manufacture industrial equipment as well as automobiles. Our Taper Roller Bearings are also used in different household appliances like fans and washing machines etc.
|
Product model |
30205 |
specification |
Standard - Dust proof |
Inner and outer ring material |
steel |
Oil lubrication speed |
9000 |
|
Product type |
TAPPER ROLLER BEARING |
Rolling element material |
steel |
Size specifications |
metric system |
Model |
30205 |
|
General shipping date |
Inquiry |
Seal part structure |
Open type |
Inner diameter d |
25 |
Internal clearance symbol |
CM |
|
Load direction |
radial |
Internal clearance symbol |
CM |
Outer diameter D |
52 |
Accuracy (JIS) |
Level 0 |
|
Raceway wheel shape |
Ball |
Accuracy (JIS) |
Level 0 |
Width B(mm) |
16.25 |
Grease lubrication speed |
70 |
| Bore diameter | 25 mm |
| Outside diameter | 52 mm |
| Width, total | 16.25 mm |
| Width, inner ring | 15 mm |
| Width, outer ring | 13 mm |
| Contact angle | 14.036 ° |
| Bearing part | Complete bearing |
| Number of rows | 1 |
| Locating feature, bearing outer ring | None |
| Bore type | Cylindrical |
| Cage | Sheet metal |
| Arrangement of contact angle (double-row bearing) | Not applicable |
| Matched arrangement | No |
| Coating | Without |
| Sealing | Without |
| Lubricant | None |
| Relubrication feature | Without |
| Basic dynamic load rating | 38.1 kN |
| Basic static load rating | 33.5 kN |
| Reference speed | 11 000 r/min |
| Limiting speed | 13 000 r/min |
| MOQ | 1PCS |
| 30200series | ||
| Bearing Number | Dimension | Weight(kg) |
| 30205 | 25*52*16.5 | 0.15 |
| 30206 | 30*62* 17.5 | 0.232 |
| 30207 | 35*72*18.5 | 0.31 |
| 30208 | 40*80*20 | 0.4 |
| 30209 | 45*85*21 | 0.474 |
| 30210 | 50*90*22 | 0.522 |
| 30211 | 55*100*23 | 0.709 |
| 30212 | 60*110*24 | 0.901 |
| 30213 | 65*120*25 | 1.1 |
| 30214 | 70*125*26.5 | 1.27 |
| 30215 | 75*130*27.5 | 1.35 |
| 30216 | 80*140*28.5 | 1.65 |
| 30217 | 85*150*31 | 2.1 |
| 30218 | 90*160*33 | 2.52 |
| 30210 | 95*170*35 | 3.17 |
| 30220 | 100*180*37.5 | 3.8 |
| 30221 | 105*190*39.5 | 4.5 |
| 30222 | 110*200*41.5 | 5.16 |
| 30224 | 120*215*44 | 6.27 |
| 30226 | 130*230*44.5 | 7.43 |
| 30228 | 140*250*46.5 | 8.81 |
| 30230 | 150*270*50 | 10.2 |
| 30232 | 1600*2900*53 | 13.4 |
| 30234 | 170*310*52 | 16.6 |
| 30236 | 180*320*58 | 17.8 |
| 30300series | ||
| Bearing Number | Dimension | Weight(kg) |
| 30305 | 25*62*18.5 | 0.25 |
| 30306 | 30*72*21 | 0.393 |
| 30307 | 35*80*23 | 0.496 |
| 30308 | 40*90*25.5 | 0.7 |
| 30309 | 45*100*27.5 | 0.954 |
| 30310 | 50*110*29.5 | 1.33 |
| 30311 | 55*120*32 | 1.61 |
| 30312 | 60*130*34 | 2 |
| 30313 | 65*140*36.5 | 2.53 |
| 30314 | 70*150*38.5 | 3.09 |
| 30315 | 75*160*40.5 | 3.54 |
| 30316 | 80*170*43 | 4.5 |
| 30317 | 85*130*45 | 5.25 |
| 30318 | 90*190*47 | 5.79 |
| 30319 | 95*200*50 | 7.2 |
| 30320 | 100*215*52 | 8.27 |
| 30321 | 105*225*54 | 10.5 |
| 30322 | 110*240*55 | 11.4 |
| 30324 | 120*260*60 | 13.8 |
| 30326 | 130*280*64 5 | 20.5 |
| 30328 | 140*300*68.5 | 21.2 |
| 30330 | 150*320*73 | 27.4 |
| 31300series | ||
| Bearing Number | Dimension | Weight(kg) |
| 31308 | 40*90*25.5 | 0.66 |
| 31309 | 45*100*27.5 | 0.974 |
| 31310 | 50*110*29.5 | 1.23 |
| 31311 | 55*120*32 | 1.5 |
| 31312 | 60*130*34 | 1.92 |
| 31313 | 65*140*36.5 | 2.29 |
