Place of Origin:
CHINA
Brand Name:
ZH
Certification:
IS09001
Model Number:
22307CA

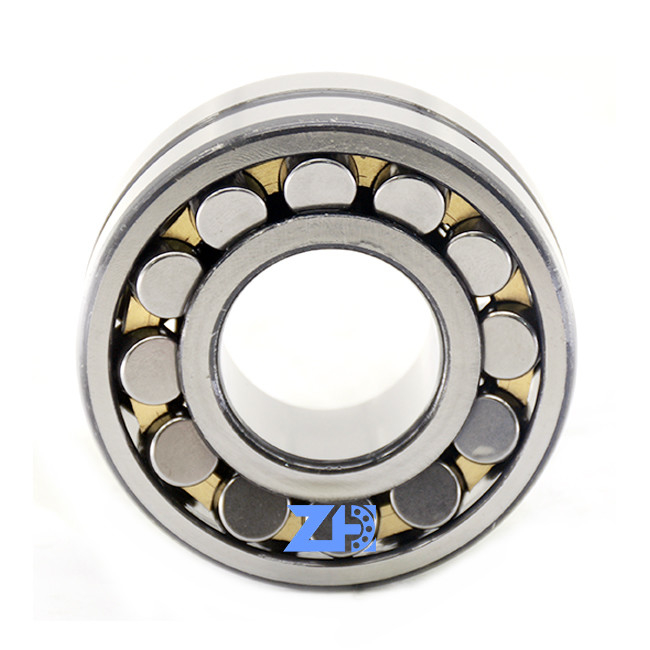

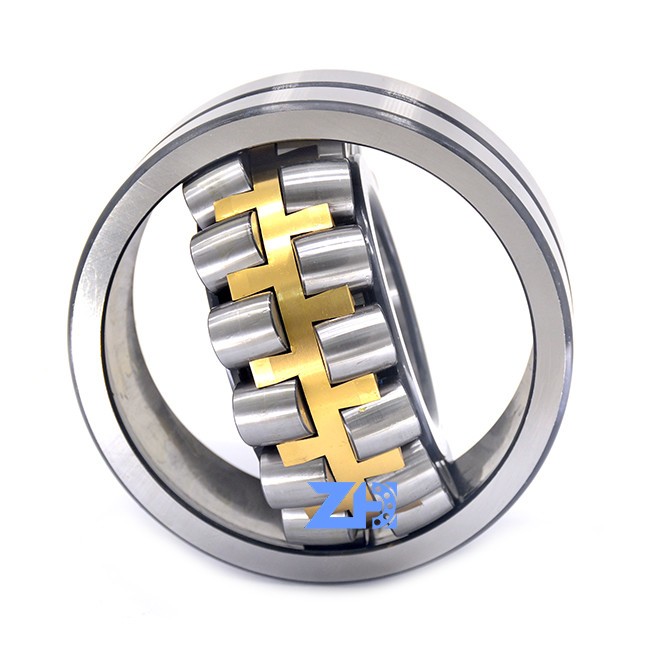

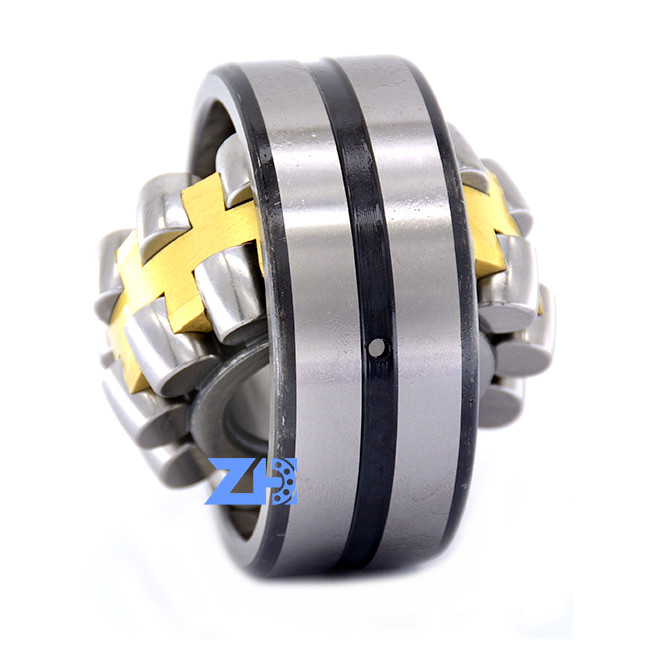

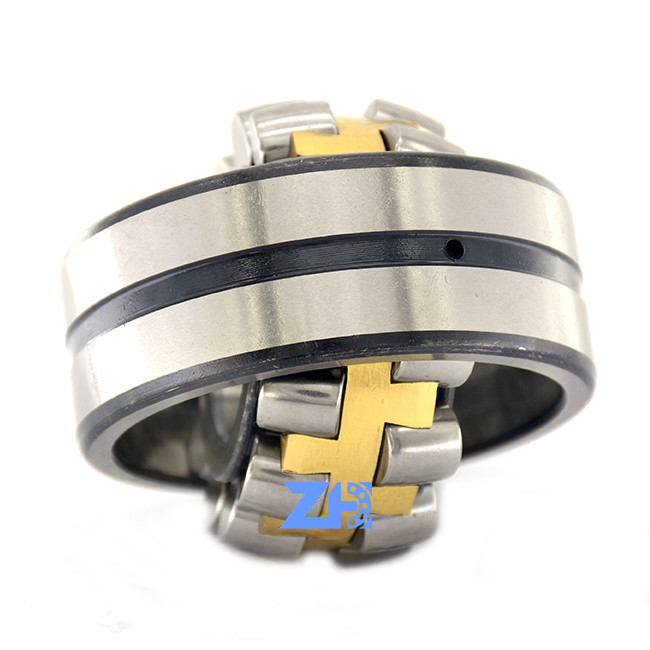

22307CA 22307W33 22307JCN P0 P5 P4 Quality ank Spherical Roller Bearing 35*80*31mm
Product introduction(Buy Bearing come to ZH factory)
22307CA is the leading brand of bearings manufacturing and supply. The organization is dedicated to offering high-quality products that are essential for various equipment and industrial works. It offers a wide range of products such as Linear Motion, Ball Bearing, Roller Bearings and Angular Contact Reduction Bearings . The company has expertise in designing technologically advanced products made from high-quality raw materials. This ensures smooth rolling motion and reduces the risk of issues while using the product.
| Item Name | Spherical Roller Bearing 22307 |
| d | 35mm |
| D | 80mm |
| B | 31mm |
| Bearing Weight | 0.87kg |
| Precision | P5 |
| Material | Chrome steel, Gcr15 steel |
| Guarantee | One year |
| Delivery Detail | 1-2 days upon receipt of deposit |
| Shipping | Express/By Plane /By Sea |
| Bearing Advantage | 1).Excellent and high quality control |
| 2).Prompt delivery | |
| 3).Competitive price | |
| 4).Small order accepted | |
| 5).Customers' drawing or samples accepted | |
| 6). service |
| d |
35 mm
|
Bore diameter |
|---|---|---|
| D |
80 mm
|
Outside diameter |
| B |
31 mm
|
Width |
| d2 |
≈47.2 mm
|
Shoulder diameter of inner ring |
| D1 |
≈65.6 mm
|
Shoulder/recess diameter of outer ring |
| r1,2 |
min.1.5 mm
|
Chamfer dimension |
| da |
min.44 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max.71 mm
|
Diameter of housing abutment |
| ra |
max.1.5 mm
|
Radius of fillet |
| d |
35 mm
|
Bore diameter |
|---|---|---|
| D |
80 mm
|
Outside diameter |
| B |
21 mm
|
Width |
| d2 |
≈47.2 mm
|
Shoulder diameter of inner ring |
| D1 |
≈65.6 mm
|
Shoulder/recess diameter of outer ring |
| r1,2 |
min.1.5 mm
|
Chamfer dimension |
| Basic dynamic load rating | C |
79.2 kN
|
|---|---|---|
| Basic static load rating | C0 |
72 kN
|
| Fatigue load limit | Pu |
8 kN
|
| Reference speed |
8 500 r/min
|
|
| Limiting speed |
12 000 r/min
|
|
| Limiting value | e |
0.28
|
| Calculation factor | Y1 |
2.4
|
| Calculation factor | Y2 |
3.6
|
| Calculation factor | Y0 |
2.5
|
The parameters of the series
|
Model No.
|
Dimension
|
Weight : kg
|
|
22308 CAW33/CCW33
|
40×90×33mm
|
1.05
|
|
22309 CAW33/CCW33
|
45×100×36mm
|
1.56
|
|
22310 CAW33/CCW33
|
50×110×40mm
|
2.1
|
|
22311 CAW33/CCW33
|
55×120×43mm
|
2.72
|
|
22312 CAW33/CCW33
|
60×130×46mm
|
3.25
|
|
22313 CAW33/CCW33
|
65×140×48mm
|
3.97
|
|
22314 CAW33/CCW33
|
70×150×51mm
|
4.48
|
|
22315 CAW33/CCW33
|
75×160×55mm
|
5.55
|
|
22316 CAW33/CCW33
|
80×170×58mm
|
6.79
|
|
22317 CAW33/CCW33
|
85×180×60mm
|
8
|
|
22318 CAW33/CCW33
|
90×190×64mm
|
10.1
|
|
22319 CAW33/CCW33
|
95×200×67mm
|
10.4
|
|
22320 CAW33/CCW33
|
100×215×73mm
|
13.8
|
|
22322 CAW33/CCW33
|
110×240×80mm
|
18.9
|
|
22324 CAW33/CCW33
|
120×260×86mm
|
23
|
|
22326 CAW33/CCW33
|
130×280×93mm
|
27.4
|
|
22328 CAW33/CCW33
|
140×300×102mm
|
34.9
|
|
22330 CAW33/CCW33
|
150×320×108mm
|
42
|
|
22332 CAW33/CCW33
|
160×340×114mm
|
51.8
|
|
22334 CAW33/CCW33
|
170×360×120mm
|
58.5
|
|
22336 CAW33/CCW33
|
180×380×126mm
|
68.5
|
|
22338 CAW33/CCW33
|
190×400×132mm
|
80.8
|
|
22340 CAW33/CCW33
|
200×420×138mm
|
95
|
|
22344 CAW33/CCW33
|
220×460×145mm
|
120
|
|
22348 CAW33/CCW33
|
240×500×155mm
|
153
|
|
22352 CAW33/CCW33
|
260×540×165mm
|
190
|
|
22356 CAW33/CCW33
|
280×580×175mm
|
235
|
|
22360 CAW33/CCW33
|
340×710×212mm
|
265
|
|
22372 CAW33/CCW33
|
360×750×224mm
|
466.1
|
|
22380 CAW33/CCW33
|
400×820×243mm
|
644
|
| T7FC065 | JMF23 | NUP206E | NUP309=180 | NUP2212=220 | 6305 | NUP308 | NUP308=140 | HMK3525+IR |
| NUP207 | JMF151 | 15578 | NUP309 | NUP206=100 | KMF41-PC60-7 | 30309D=110 | T7FC055=300 | 30309D |
| HMS072 | JMF195 | NUP306 | NUP206 | KMF90-PC200-6 | M2X63 | NUP207/NUP306 | NUP309 | 30210 |
| AP5S67 | MCB172 | NUP307 | 6305M | M5X180 | NUP308=140 | 30309D | 30312D | 30210 |
| 11749/11710 | M5X130 | NUP205E | TM09 | 32205 | NUP307 | 30312D | 30314D | 30311D |
| NUP2310 | 30314D=250 | NUP207=120 | KMF125-PC200-8 | T7FC060 | NUP2208 | NUP2209 | 30312D | SG04 |
| 30312D | NUP309 | NUP2209=160 | KMF160-PC360-7 | NUP207 | NUP2211 | NUP2209 | 6008 | SG025 |
| 30312D | T7FC055 | NUP2207=140 | MSG-27P | 6213 | NUP308 | JMF250 | NUP307 | SG02 |
| NUP308 | T7FC055 | NUP2206=130 | HMGF57 | NUP308 | NUP309 | NUP309 | 30311D | 30312D=155 |
| DNB50/60 | NUP310 | NUP309=180 | HMT36FA | SG08 | NUP309 | JMF29 | T7FC055 | M2X96 |
| HMGF35 | NUP2209 | NUP309=180 | M2X210 | GM17VA | NUP2211=250 | NUP2208=210 | NIP2310 | |
| HMGF36 | NUP2212 | NUP310 | AP5S53 | JMV-44/22 | NUP207 | NUP307=110 | NUP208E | |
| HMGC48 | NUP2212 | NUP2206 | NUP2212 | GM35VA | M2X150 | M2X120 | NUP307 | |
| 4T-30307 | NUP2211 | NUP2207 | GM18VL | GM35VL | M2X170 | 32207 | SG20 | |
| NUP306 | 30312D=155 | NUP2207 | KMF125 | GM38VB | 30312 | MAG85 | ||
| NUP307 | M2X146 | JMV-53/31 | SG15 | MAG150 | HMGC32 | MAG150 | MAG120 |
Q1: I want to buy your products, how can I pay?
A :You can pay via T/T , L/C , WEST UNION , ESCROW , PAYPAL , ETC. Especially ESCROW, which is guaranteed by Alibaba.com. It is safe and effective.
Q2: How can you guarantee the quality?
A: If you meet with quality problem, we promise to replace goods or return your funds.
Q3: If we don’t find what we want on your website, what should we do?
A: You can email us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month, and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.
Q4: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to send 1pc for quality testing if we have the item you need in stock.
