Place of Origin:
China
Brand Name:
ZHC
Certification:
IS09001
Model Number:
32318J2Q
32318J2Q 32318ECJ 32318X P6 P5 P3 P4 P2 Quality LEVEL CHROME STEEL tapered roller bearing
32318J2Q Taper Roller Bearing, with an inner diameter of 90 mm and outer diameter of 190 mm and a width of 67.5 mm, is a metal bearing. It is commonly used for industrial applications. We are a Delhi-based Manufacturer and Supplier of Taper Roller Bearings.
(If you want to spend less money, this is the place to come)
Owing to the same, the quality of Taper Roller Bearings is fully ensured. To top it, these Industrial Bearings are quality-analyzed, so that the bearings out of the lot reach us only after they pass all the quality checks.
We have a large client base in India as well as abroad. Our clients include some of the leading companies that manufacture industrial equipment as well as automobiles. Our Taper Roller Bearings are also used in different household appliances like fans and washing machines etc.
The 32318J2Q taper roller bearing is a highly reliable, compact and low-friction component that is widely used in many applications. The bearing is used to provide a smooth and consistent motion of parts at the interface between two surfaces or shafts.
|
max.109 mm
|
||
| db |
min.105.5 mm
|
Diameter of shaft abutment |
| Da |
min.157 mm
|
Diameter of housing abutment |
| Da |
max.177.5 mm
|
Diameter of housing abutment |
| Db |
min.177 mm
|
Diameter of housing abutment |
| Ca |
min.7 mm
|
Minimum width of space required in housing on large side face |
| Cb |
min.14.5 mm
|
Minimum width of space required in housing on small side face |
| ra |
max.4 mm
|
Radius of shaft fillet |
| rb |
max.3 mm
|
Radius of housing fillet |
| Basic dynamic load rating | C |
487 kN
|
|---|---|---|
| Basic static load rating | C0 |
610 kN
|
| Fatigue load limit | Pu |
65.5 kN
|
| Reference speed |
2 600 r/min
|
|
| Limiting speed |
3 600 r/min
|
|
| Limiting value | e |
0.35
|
| Calculation factor | Y |
1.7
|
| Calculation factor | Y0 |
0.9
|
| d |
90 mm
|
Bore diameter |
|---|---|---|
| D |
190 mm
|
Outside diameter |
| T |
67.5 mm
|
Total width |
| d1 |
≈133.9 mm
|
Shoulder diameter of inner ring |
| B |
64 mm
|
Width of inner ring |
| C |
53 mm
|
Width of outer ring |
| r1,2 |
min.4 mm
|
Chamfer dimension of inner ring |
| r3,4 |
min.3 mm
|
Chamfer dimension of outer ring |
| a |
44.3
|
With these bearings, it's like adding wings to the tiger
| NUP308 | NUP309 | NUP2206 | NUP206 | NUP2208=210 | NUP207 | NUP207/NUP306 | NUP310 |
| 30309D=110 | T7FC055 | NUP2207 | 6305M | NUP307=110 | NUP307 | 30309D | T7FC065 |
| 6305 | T7FC055 | NUP2207 | 4T-30307 | NUP207=120 | NUP307 | 30312D | 30312D |
| NUP206=100 | T7FC060 | NUP2209 | HMK3525+IR | NUP2206=130 | NUP308 | 30312D | |
| NUP2212=220 | 32205 | NUP2209 | NUP307 | NUP2207=140 | NUP2211 | 30312D | |
| NUP2211=250 | 32207 | NUP2209 | NUP306 | NUP2209=160 | NUP2208 | 30312 | |
| NUP309=180 | NUP207 | NUP2212 | 30309D | NUP309=180 | NUP309 | NUP310 | |
| NUP309 | 6213 | NUP2212 | 30210 | NUP309=180 | NUP309 | NUP308 | |
| NUP206E | NUP308 | NUP2211 | 30210 | 30312D=155 | 30314D | NUP306 | |
| 15578 | NUP309 | T7FC055=300 | 30311D | 30312D=155 | 30312D | NUP307 | |
| 11749/11710 | NIP2310 | NUP308=140 | 30311D | 30314D=250 | 6008 | NUP205E |

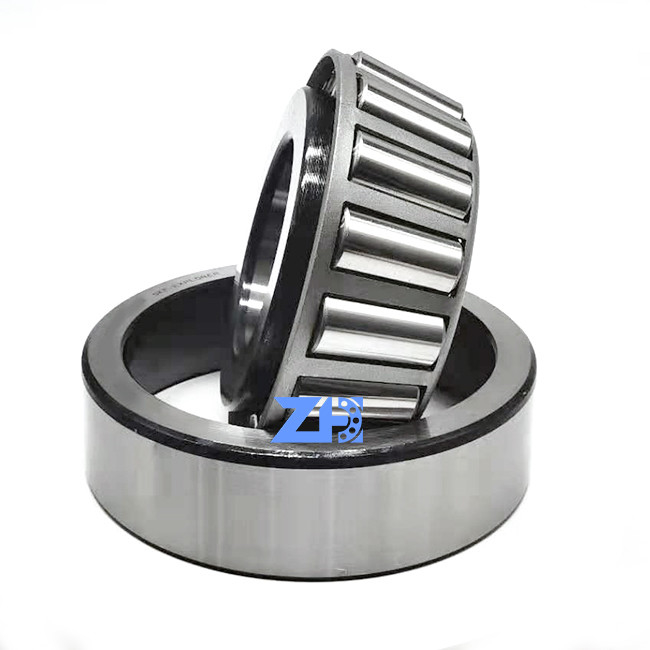

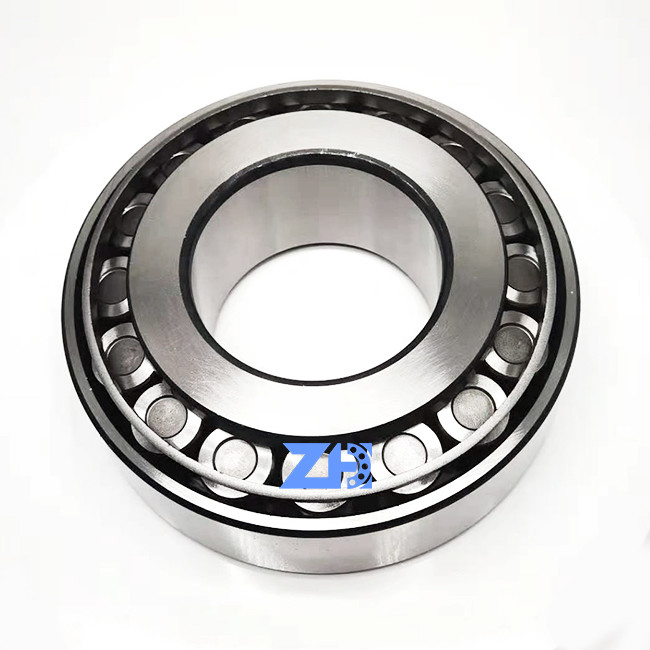

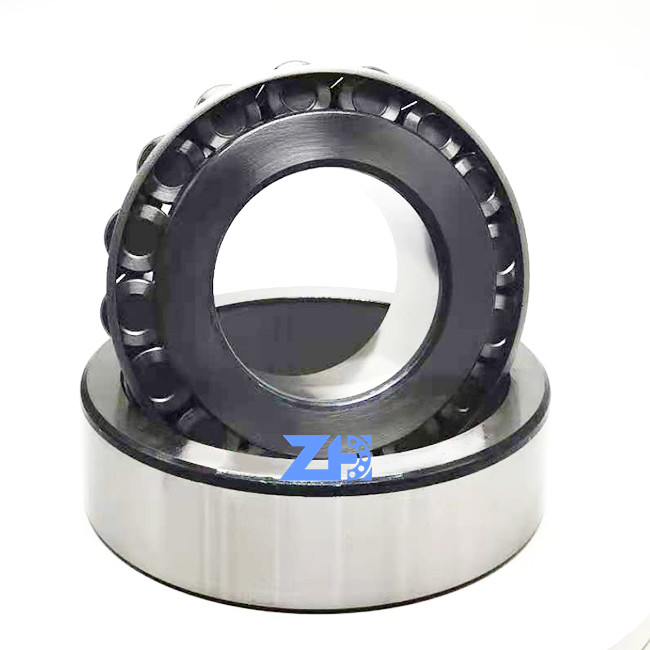

Picture show
FAQ
Q1: I want to buy your products, how can I pay?
A :You can pay via T/T , L/C , WEST UNION , ESCROW , PAYPAL , ETC. Especially ESCROW, which is guaranteed by Alibaba.com. It is safe and effective.
Q2: How can you guarantee the quality?
A: If you meet with quality problem, we promise to replace goods or return your funds.
Q3: If we don’t find what we want on your website, what should we do?
A: You can email us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month, and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.
Q4: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to send 1pc for quality testing if we have the item you need in stock.
Why choose us?
1. Let’s talk—we have NO barrier in language
2. Request for more item information---there are nearly 2000 products for your option!
3. Write us for quotation---reply you within 24 hours,one quotation could be ready in 2mins for a ready produ
