Place of Origin:
China Fujian
Brand Name:
ZH
Certification:
IS09001
Model Number:
22313CA
Professional production CHROME STEEL 22313CA 22313W33 22313E Spherical Roller Bearing 65*140*48mm
P0 P5 P4 P3 P2 Quality Level
Product introduction
22313 CA Spherical Roller Bearing are dedicated to extremely severe applications and must support high loads, severe misalignment, contaminated environments, shocks, and vibrations. The performance of these spherical is achieved through the use of very high quality raw materials and optimized rolling element geometry. The unique design also leads to: Reduced friction torque (as much as 30% less), offering lower operating temperature, with lower power and lubricant consumption. Appreciably increased operating speed, allowing an extended scope of applications. Spherical roller bearings are due to their design subjected to significant axial and radial loads.
| d |
65 mm
|
Bore diameter |
|---|---|---|
| D |
140 mm
|
Outside diameter |
| B |
48 mm
|
Width |
| d2 |
≈81.6 mm
|
Shoulder diameter of inner ring |
| D1 |
≈118 mm
|
Shoulder/recess diameter of outer ring |
| b |
8.3 mm
|
Width of lubrication groove |
| K |
4.5 mm
|
Diameter of lubrication hole |
| r1,2 |
min.2.1 mm
|
Chamfer dimension |
| Da |
max.128 mm
|
Diameter of housing abutment |
|---|---|---|
| ra |
max.2 mm
|
Radius of fillet |
| Basic dynamic load rating | C |
357 kN
|
|---|---|---|
| Basic static load rating | C0 |
360 kN
|
| Fatigue load limit | Pu |
38 kN
|
| Reference speed |
3 800 r/min
|
|
| Limiting speed |
5 000 r/min
|
|
| Limiting value | e |
0.35
|
| Calculation factor | Y1 |
1.9
|
| Calculation factor | Y2 |
2.9
|
| Calculation factor | Y0 |
1.8
|
| Da |
max.128 mm
|
Diameter of housing abutment |
|---|---|---|
| ra |
max.2 mm
|
Radius of fillet |
22313CA Collection
| NUP306 | NUP307=110 | NUP2207 | SG02 | GM38VB | HMT36FA | 30312 | MAG85 | JMF151 |
| NUP307 | M2X146 | JMV-53/31 | SG15 | MAG150 | HMGC32 | MAG150 | MAG120 | JMF195 |
| T7FC065 | M2X150 | NUP206E | NUP309=180 | NUP2212=220 | 6305 | NUP308 | NUP308=140 | KMF125-PC200-8 |
| NUP207 | M2X170 | 15578 | NUP309 | NUP206=100 | KMF41-PC60-7 | 30309D=110 | T7FC055=300 | KMF160-PC360-7 |
| HMS072 | M2X210 | NUP306 | NUP206 | KMF90-PC200-6 | M2X63 | NUP207/NUP306 | NUP309 | MSG-27P |
| AP5S67 | AP5S53 | NUP307 | 6305M | M5X180 | NUP308=140 | 30309D | 30312D | HMGF57 |
| 11749/11710 | M5X130 | NUP205E | TM09 | 32205 | NUP307 | 30312D | 30314D | NUP2211=250 |
| NUP2310 | 30314D=250 | NUP207=120 | GM18VL | T7FC060 | NUP2208 | NUP2209 | 30312D | NUP207 |
| 30312D | NUP309 | NUP2209=160 | KMF125 | NUP207 | NUP2211 | NUP2209 | 6008 | |
| 30312D | T7FC055 | NUP2207=140 | HMK3525+IR | 6213 | NUP308 | NUP2209 | NUP307 | |
| NUP308 | T7FC055 | NUP2206=130 | 30309D | NUP308 | NUP309 | NUP2212 | 30311D | |
| DNB50/60 | NUP310 | NUP309=180 | 30210 | SG08 | NUP309 | NUP2212 | T7FC055 | |
| HMGF35 | JMF250 | NUP309=180 | 30210 | GM17VA | NUP2212 | NUP2211 | NIP2310 | |
| HMGF36 | NUP309 | NUP310 | 30311D | JMV-44/22 | 30312D=155 | 30312D=155 | NUP208E | |
| HMGC48 | JMF29 | NUP2206 | SG04 | GM35VA | M2X96 | M2X120 | NUP307 |

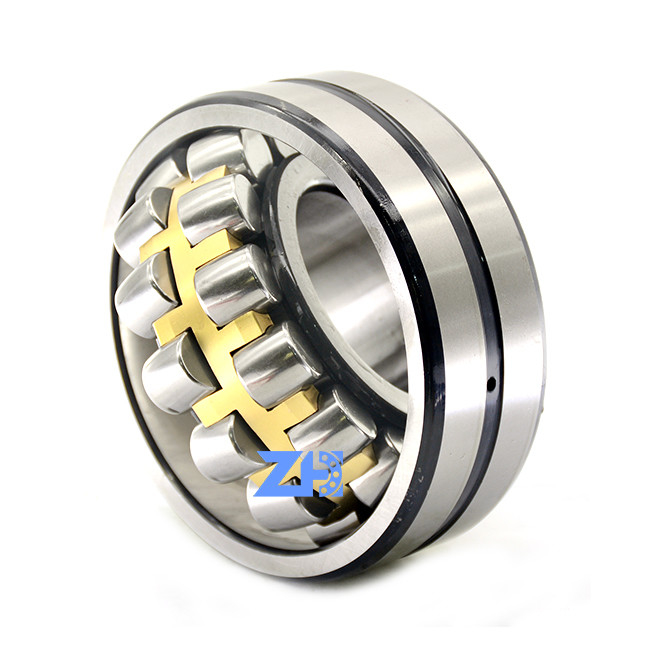

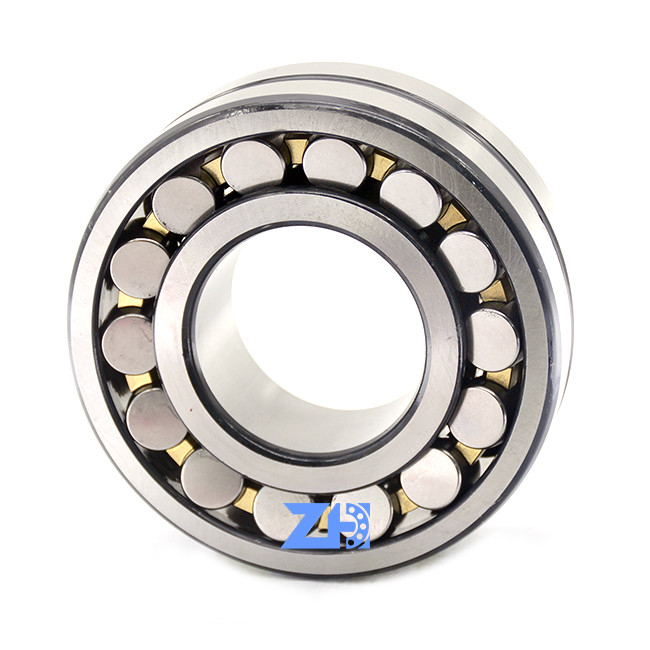

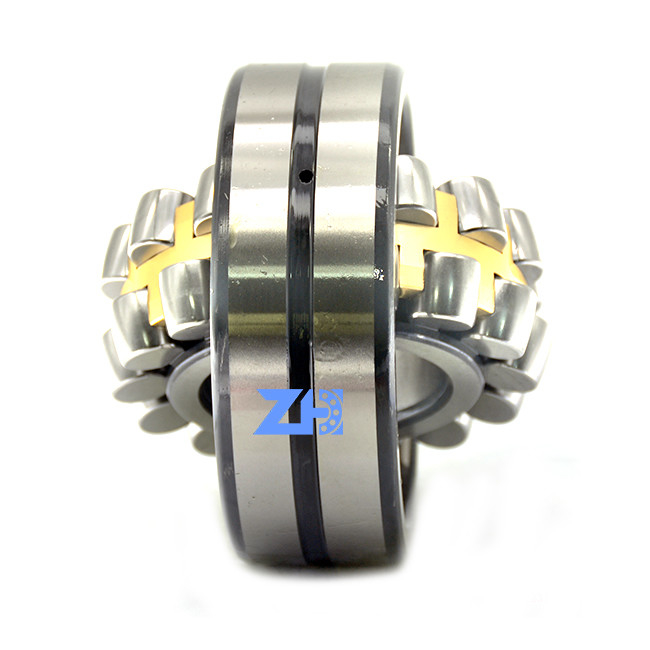

Picture show
