Place of Origin:
China
Brand Name:
CN & ZH
Model Number:
30222

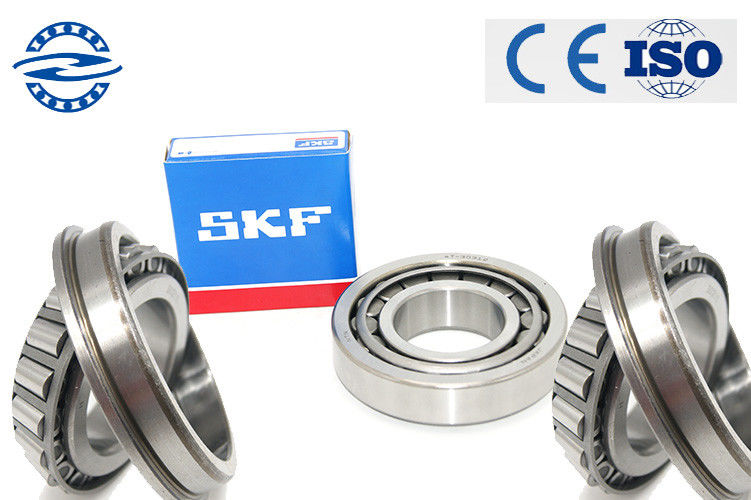

GCR15 Material Steel Taper Roller Bearing 30222 For Auto Truck Long Life 110 * 200 * 41.5 mm
Product Details
Dear my friend, our company has thousands of products, and we cannot display them all at the moment. If you need to leave a message or send an email to us, we will serve you as quickly as possible, thanks! ! !
Different model data
| Bearing No. | Boundary dimensions (mm) | |||||
| New models | old models | d | D | T | ||
| 30305 | 7305E | 25 | 62 | 18.5 | ||
| 30306 | 7306E | 30 | 72 | 21 | ||
| 30307 | 7307E | 35 | 80 | 23 | ||
| 30308 | 7308E | 40 | 90 | 25.5 | ||
| 30309 | 7309E | 45 | 100 | 27.5 | ||
| 30310 | 7310E | 50 | 110 | 29.5 | ||
| 30311 | 7311E | 55 | 120 | 32 | ||
| 30312 | 7312E | 60 | 130 | 34 | ||
| 30313 | 7313E | 65 | 140 | 36.5 | ||
| 30314 | 7314E | 70 | 150 | 38.5 | ||
| 30315 | 7315E | 75 | 160 | 40.5 | ||
| 30316 | 7316E | 80 | 170 | 43 | ||
| 30317 | 7317E | 85 | 180 | 45 | ||
| 30318 | 7318E | 90 | 190 | 47 | ||
| 30319 | 7319E | 95 | 200 | 50 | ||
| 30320 | 7320E | 100 | 215 | 52 | ||
| 30321 | 7321E | 105 | 225 | 54 | ||
| 30322 | 7322E | 110 | 240 | 55 | ||
| 30324 | 7324E | 120 | 260 | 60 | ||
| 30326 | 7326E | 130 | 280 | 64.5 | ||
| 30328 | 7328E | 140 | 300 | 68.5 | ||
| 30330 | 7330E | 150 | 320 | 73 | ||
Product description
Tapered roller bearing is highly accurate product and high quality product .
It has many different model , we have all the model which you need .
1 . Tapered roller bearing have three parts , there are the inner , outer diameter and the roller.
2 . The raceway angle of bearing outer ring is determined by the load carrying capacity , the greater the raceway angle , the greater the load capacity
3 . Tapered roller bearing can be divided into single row , double row and four row
4 . Tapered roller bearing have a intermediate shaft who are called cage type , they can fix the roller and reduce friction
5 . The type of bearing is separable
Details
The clearance of single row tapered roller bearing can be adjusted when install by you . Its lubriexcavatorion is oil lubriexcavatorion , if you don't need too much light , you can choose low precision rating P6 ,P5 , P4 . Low and high the precision depend on the dimension .
