Place of Origin:
China
Brand Name:
ZH
Model Number:
30302

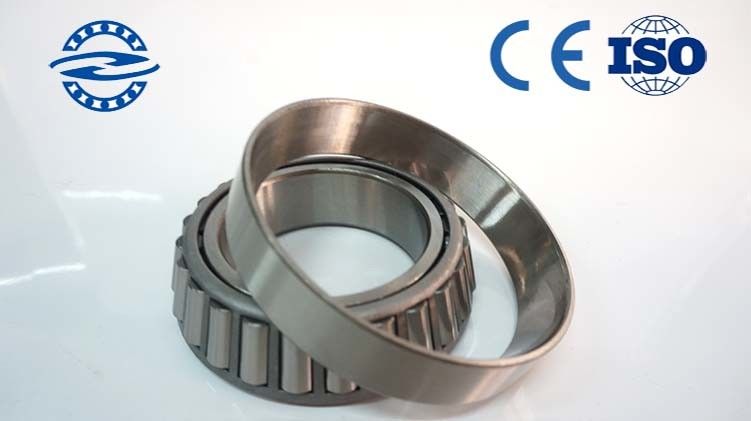

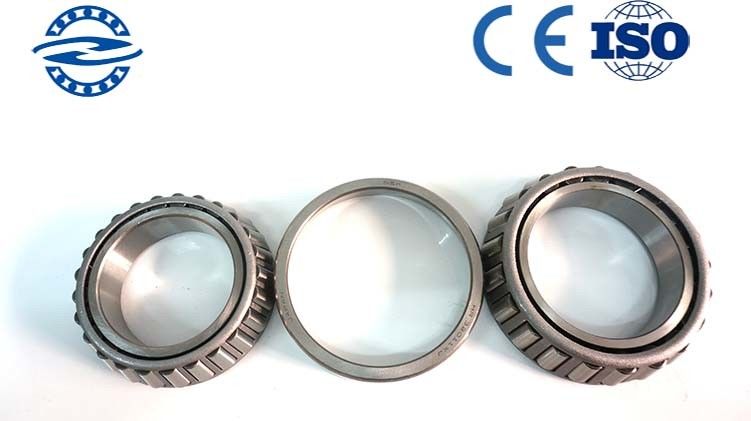

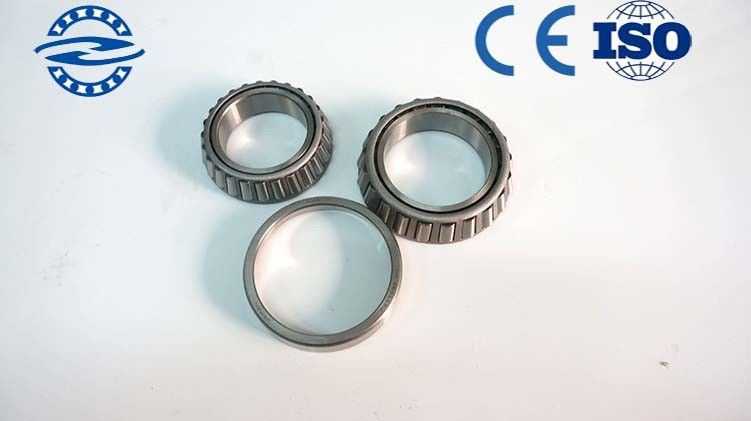

Front And Rear Wheels Taper Roller Bearing 30302 15mm * 42mm * 13mm
Product Details
Dear my friend, our company has thousands of products, and we cannot display them all at the moment. If you need to leave a message or send an email to us, we will serve you as quickly as possible, thanks! ! !
|
Product model |
Bearing Type | Bore Diameter (d) (mm) | Outer Diameter (D) (mm) | Inner Width (Bi) (mm) | Outer Width (Bo) (mm) | Width (B) (mm) |
| 30202 | single row | 15 | 35 | 11 | 10 | 11.75 |
| 30302 | single row | 15 | 42 | 13 | 11 | 14.25 |
| 30203 | single row | 17 | 40 | 12 | 11 | 13.25 |
| 30303 | single row | 17 | 47 | 14 | 12 | 15.25 |
| 32303 | single row | 17 | 47 | 19 | 16 | 20.25 |
| 30204 | single row | 20 | 47 | 14 | 12 | 15.25 |
| 30204 | single row | 20 | 47 | 14 | 12 | 15.25 |
| 32204 | single row | 20 | 47 | 18 | 15 | 19.25 |
| 30304 | single row | 20 | 52 | 15 | 13 | 16.25 |
| 30304C | single row | 20 | 52 | 16 | 12 | 16.25 |
| 32304 | single row | 20 | 52 | 21 | 18 | 22.25 |
| 32005 | single row | 25 | 47 | 15 | 11.5 | 15 |
| 30205 | single row | 25 | 52 | 15 | 13 | 16.25 |
| 32205 | single row | 25 | 52 | 18 | 16 | 19.25 |
| 33205 | single row | 25 | 52 | 22 | 18 | 22 |
| 31305 | single row | 25 | 62 | 17 | 13 | 18.25 |
| 30305 | single row | 25 | 62 | 17 | 15 | 18.25 |
| 32305 | single row | 25 | 62 | 24 | － | － |
Advantage of tapered roller bearing have ad follow :
1.They can reduce the coefficient of friction
2.Their noise is low
3.Their speed is high
4.Their quality is high
5.Their stock is enough
6.They can speed up rotating
7.They have a long life
Small size tapered ball bearing
