Place of Origin:
CHINA Japan
Brand Name:
QIEAL ZH
Model Number:
69349 69310

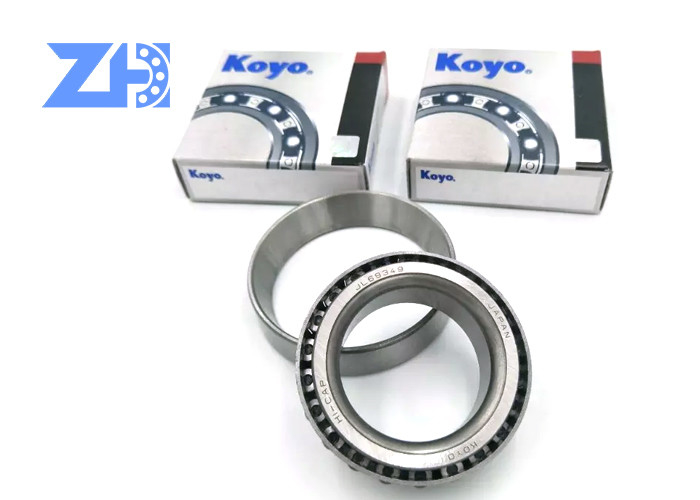

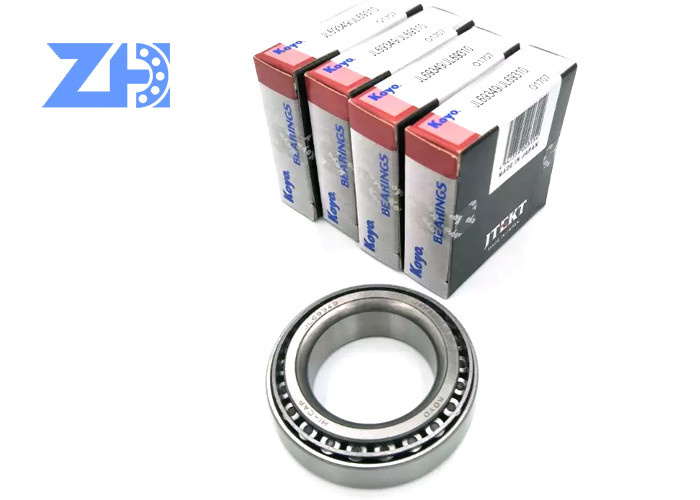

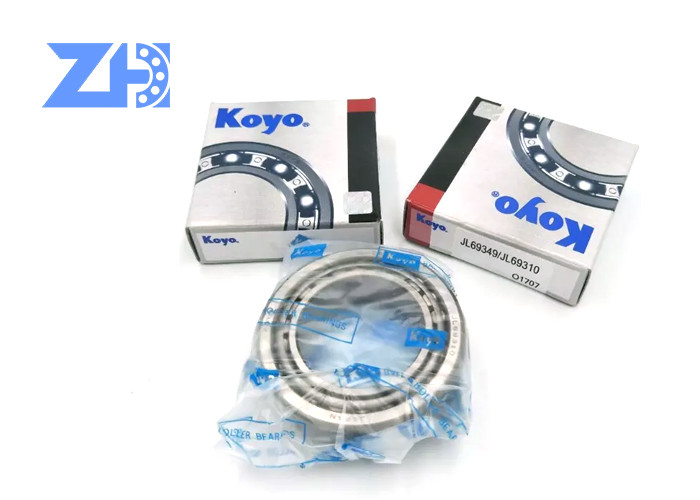

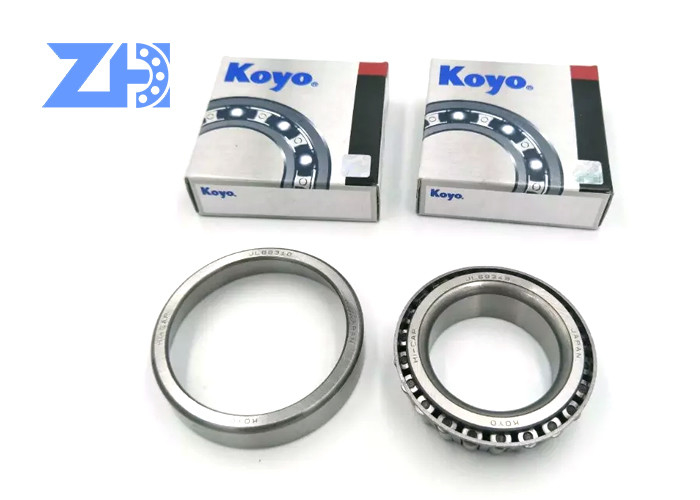

KOYO Inch Bearing 69349/10 Taper Roller Bearing 69349/69310 Roller Bearing
Inch Tapered Roller Bearings are designed according to the ANSI/ABMA standard. Metric bearings belonging to the same series of relatives retain the same cross section irrespective of their size. This is not the case with inch bearings. All inch bearings within a series use the same cage and roller assembly but the inner and outer rings can be different sizes and designs. Any cone (inner ring with cage and roller assembly) can be mounted with any cup (outer ring) belonging to the same series of bearings. For this reason the cone and cup are individually designated and can be supplied separately or as complete bearings. The designations of the cones and cups as well as the series consist of a three to six-figure number which may be preceded by one of the following letters or combination of letters: EL, LL, L, LM, M, HM, H, HH and EH. The prefixes feature a series of extra heavy duty extra light bearings.
| Model | Self bearing SET18 JL69349/JL69310 bearing |
| Specifiexcavatorion | 38*63* 17mm |
| bearing type | tapered roller bearing |
| inner ring/cup | JL69349 |
| outer ring/cone | JL69310 |
| Weight | 0.186 kg |
| SEP50 02872/02820 | |
| SEP51 15106/15245 | |
| SET52 25580/25520 | |
| SET53 25580/25523 | |
| SET54 25590/25520 | |
| SET55 25590/25523 | |
| SET56 LM29748/LM29710 | |
| SEP57 31594/31520 | |
| SET58 LM48548A/LM48510 | |
| SET59 LM48548A/LM48511A | |
| SET60 LM48548/LM48511A | |
| SET61 11590/11520 | |
| SET62 17887/17831 | |
| SET63 M88048/M88010 | |
| SET64 HM903249/HM903210 | |
| SET65 M86647/M86610 | |
| SET66 368S/362 | |
| SET67 HM88649/HM88610 | |
| SEP68 497/493 | |
| SET69 LM501349/LM501314 | |
| SET70 LM29749/LM29710 | |
| SET71 LM67049A/LM67010 | |
| SET73 15101/15245 | |
| SET74 387A/382A | |
| SET75 387A/382S | |
| SET76 387AS/382A | |
| SET77 388A/382 | |
| SET78 55200C/55437 | |
| SET79 56425/56650 | |
| SET80 U497/U460L + R | |
| SET81 HM88542/HM88510 | |
| SET82 JLM104949/JLM104910 | |
| SET83 HM803149/HM803110 | |
| SET84 HM807040/HM807010 | |
| SET85 25880/25820 | |
| SET86 399A/394A (seal) | |
| SET87 07100/07196 | |
| SET88 LM11949/LM11910 (seal) | |
| SET89 M12649/M12610 (seal) | |
| SET90 13658/13621 (seal) | |
| SET91 LM29748/LM29710 (seal) | |
| SET92 L44643/L44610 (seal) | |
| SET93 LM48548/LM48510 (seal) | |
| SET94 LM67048/LM67010 (seal) | |
| SEP95 2580/2523 | |
| SEP98 3984/3920 |
| SET200 LM451349/LM451310 | |
| SET201 368A/362A | |
| SET202 LM545849/LM545810 | |
| SEP203 475/472A | |
| SEP204 570/563 | |
| SET205 469/453X | |
| SEP206 482/472 | |
| SEP207 495A/493 | |
| SEP208 497/492A | |
| SEP209 498/492A | |
| SEP210 527/522 | |
| SEP211 528/522 | |
| SET212 537/532X | |
| SEP213 539/532A | |
| SET214 559/552A | |
| SET215 575/572X | |
| SEP216 594/592A | |
| SET217 598A/593X | |
| SEP218 641/632 | |
| SET219 M88046/M88010 | |
| SEP220 681/672 | |
| SET222 HM88649HP/HM88610P | |
| SET223 750A/742 | |
| SEP224 855/854 | |
| SEP225 861/854 | |
| SEP226 1380/1328 | |
| SEP228 2689/2631 | |
| SEP229 2780/2720 | |
| SEP230 2788/2720 | |
| SEP231 2789/2720 | |
| SEP232 835/832 | |
| SEP233 3381/3320 | |
| SEP234 3382/3320 | |
| SEP235 3478/3420 | |
| SET236 L305649/L305610 | |
| SEP237 3975/3920 | |
| SET238 JF4049/JF4010 | |
| SET239 A4050/A4138 | |
| SET240 JW5049/JW5010 | |
| SET241 6386/6320 | |
| SET242 M88043/M88010 | |
| SET244 JF7049A/JF7010 | |
| SET245 JP10049/JP10010 | |
| SET247 JP12049/JP12010 | |
| SET249 14125A/14174 | |
| SET250 14138A/14274 |
| SET358 65385/65320 | |
| SET359 78215C/78551 | |
| SET360 LM78349A/LM78310C | |
| SET361 JM716649/JM716610 | |
| SET362 02474/02420 | |
| SET363 55175C/55437 | |
| SET364 37431A/37625 | |
| SET365 395A/394A | |
| SET367 72212AC/72487 | |
| SET401 580/572 | |
| SEP402 582/572 | |
| SET403 594A/592A | |
| SET404 598A/592A | |
| SET405 663/653 | |
| SET406 3782/3720 | |
| SET407 28682/28622 | |
| SET408 39590/39520 | |
| SET409 45280/45220 | |
| SET410 45284/45220 | |
| SET411 47686/47620 | |
| SET412 HM212047/HM212011 | |
| SET413 HM212049/HM212011 | |
| SET414 HM218248/HM218210 | |
| SET415 HM518445/HM518410 | |
| SET416 45291/45220 | |
| SET417 47890/47820 | |
| SET418 H715334/H715311 | |
| SET419 H715343/H715311 | |
| SET420 H715345/H715311 | |
| SET421 HM516449A/HM516410 | |
| SET422 HM516449C/HM516410 | |
| SET423 6461A/6420 | |
| SET424 555S/552A | |
| SET425 567/563 | |
| SET426 47679/47620 | |
| SET427 NP899357/NP026773 | |
| SET428 NP874005/NP435398 | |
| SET429 NP034946/NP363298 | |
| SET430 NP840302/NP053874 | |
| SET431 NP965350/NP503727 | |
| SET432 NP174964/NP593561 | |
| SET433 NP431952/NP378092 | |
| SET434 NP555065/NP720703 | |
| SET435 NP568900/NP107783 | |
| SET436 NP577914/NP975161 | |
| SET437 NP022333/NP250023 | |
| SET438 NP417549/NP156827 | |
| SET439 HM212049X/HM212011 | |
| SET440 NP454049/NP454011 | |
| SET502 29675/29630 | |
| SET506 72225C/72487 | |
| SET509 HM516448/HM516414-B | |
| SET511 H715345/H715313W | |
| SET512 47687/47623A |
Bearing packages:
1) Inner Plastic Bag + Carton + Paper Box (+ Pallet);
2) small sizes: Plastic Tube+Carton
3) big sizes: Wooden Case
1) Tapered roller bearings are separable and have the following components: outer ring, inner ring, and roller assembly (containing rollers and a cage).
2) The nonseparable inner ring and roller assembly is called the cone, and the outer ring is called the cup. Internal clearance is established during assembly by the axial position of the cone relative to the cup. 3) Tapered roller bearing included cup and cone has two parts. cup is the outer ring, Cone rollers comprise, cage, inner ring. and the inner ring with cage rollers and can be mounted separately from the outer ring.
4) Tapered roller bearings are generally used to support the comnined load which mainly consists of radial load. The axial load capacity depends on the outer ring raceway contact angle. The larger the contact angle is, the strongerr the capacity will be.
Tapered roller bearings are used for heavyduty, moderate speed appliexcavatorions. Typical appliexcavatorions that will benefit from these durable bearings include:
