Place of Origin:
China
Brand Name:
CN&ZH
Model Number:
6205

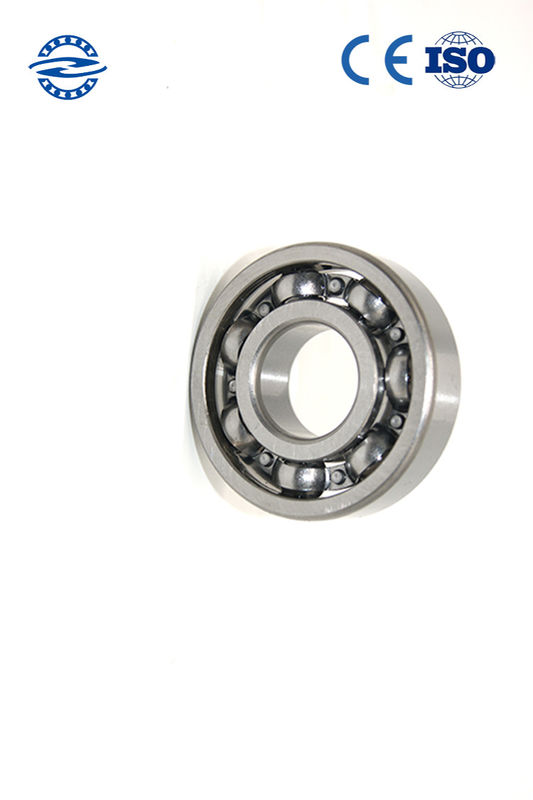

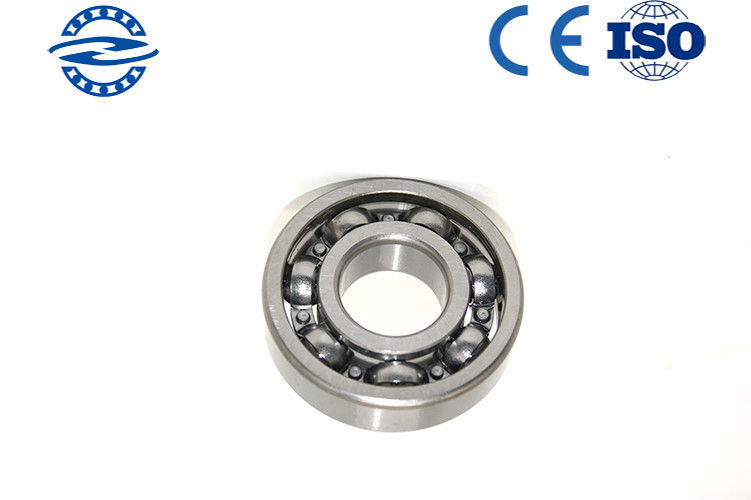

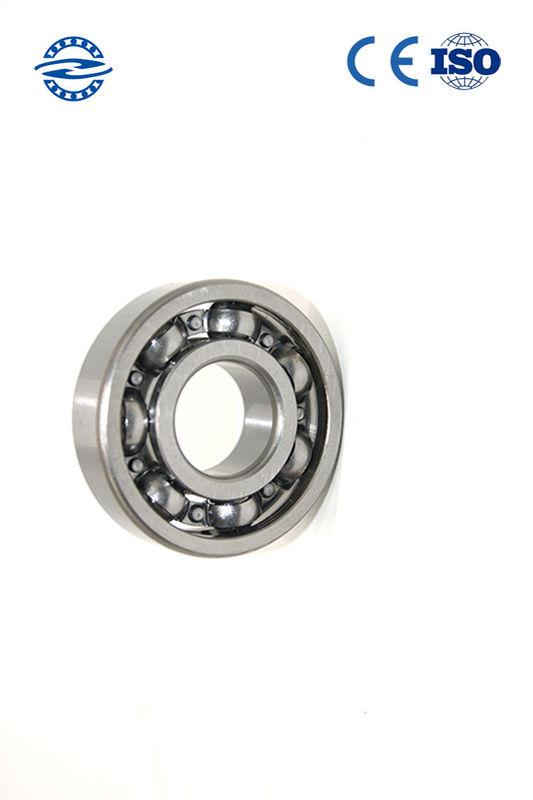

Single Row Low Friction Coefficient And Good Grease 6205 Deep Groove Ball Bearing
Deep groove ball bearing of working principle
deep groove ball bearings are mainly subjected to radial loads and can also withstand radial loads and axial loads at the same time. When it is only subjected to radial loads, the contact angle is zero. When the deep groove ball bearing has the large radial clearance, has the angular contact bearing performance, can withstand the large axial load, the deep groove ball bearing's friction coefficient is very small, the limit speed is also very high.
We can produce other products according to your request:
1.Deep Groove Ball Bearings
2.Angular Contact Ball Bearings
3.Self-aligning Ball Bearing
4.Thrust Ball Bearings
5.Cylindrical Roller Thrust Bearings
6.Taper Roller Bearings
7.Spherical Roller Bearings
8.Cylindrical Roller Thrust Bearings
9.Spherical Roller Thrust Bearings
10.Needle Roller Bearings
11.Ceramic Ball Bearings
12.Joint Bearings
13.Pillow Block Bearings
14.Auto Bearings
15.Slewing Bearings
16.Wheel Bearings
Other model
| Type | Open type | Rubber sealed | d | D | B | Weight(Kg) | |
| 61802 | 61802 | 61802RS | 61802-2RS | 15 | 24 | 5 | 0.0076 |
| 61902 | 61902 | 61902RS | 61902-2RS | 15 | 28 | 7 | 0.019 |
| 16002 | 16002 | — | — | 15 | 32 | 8 | 0.027 |
| 6002 | 6002 | 6002RS | 6002-2RS | 15 | 32 | 9 | 0.032 |
| 63002-2RS | — | — | 63002-2RS | 15 | 32 | 13 | 0.044 |
| 6202 | 6202 | 6202RS | 6202-2RS | 15 | 35 | 11 | 0.045 |
| 62202-2RS | — | — | 62202-2RS | 15 | 35 | 14 | 0.056 |
| 6302 | 6302 | 6302RS | 6302-2RS | 15 | 42 | 13 | 0.082 |
| 62302-2RS | — | — | 62302-2RS | 15 | 42 | 17 | 0.106 |
| 61803 | 61803 | 61803RS | 61803-2RS | 17 | 26 | 5 | 0.0082 |
| 61903 | 61903 | 61903RS | 61903-2RS | 17 | 30 | 7 | 0.02 |
| 16003 | 16003 | — | — | 17 | 35 | 8 | 0.032 |
| 6003 | 6003 | 6003RS | 6003-2RS | 17 | 35 | 10 | 0.039 |
| 63003-2RS | — | — | 63003-2RS | 17 | 35 | 14 | 0.055 |
| 6203 | 6203 | 6203RS | 6203-2RS | 17 | 40 | 12 | 0.065 |
| 62203-2RS | — | — | 62203-2RS | 17 | 40 | 16 | 0.086 |
| 6303 | 6303 | 6303RS | 6303-2RS | 17 | 47 | 14 | 0.115 |
| 62303-2RS | — | — | 62303-2RS | 17 | 47 | 19 | 0.147 |
| 61804 | 61804 | — | — | 20 | 32 | 7 | 0.018 |
| 61904 | 61904 | — | — | 20 | 37 | 9 | |
FAQ
Q1 . How well do they need to be lubriexcavatored ?
A : It's well lubriexcavatored , Don't be afraid of bad riding when using transportation .
Q2 . Their roller will be hard to fix ?
A : No , they are easy install , his fixity is good .
Q2 . Is it really selling well ?
A : Yes , because the price of bearing are cheaper than our peers and they have a high accuracy data
