Place of Origin:
China
Brand Name:
ZH
Certification:
ISO
Model Number:
32213

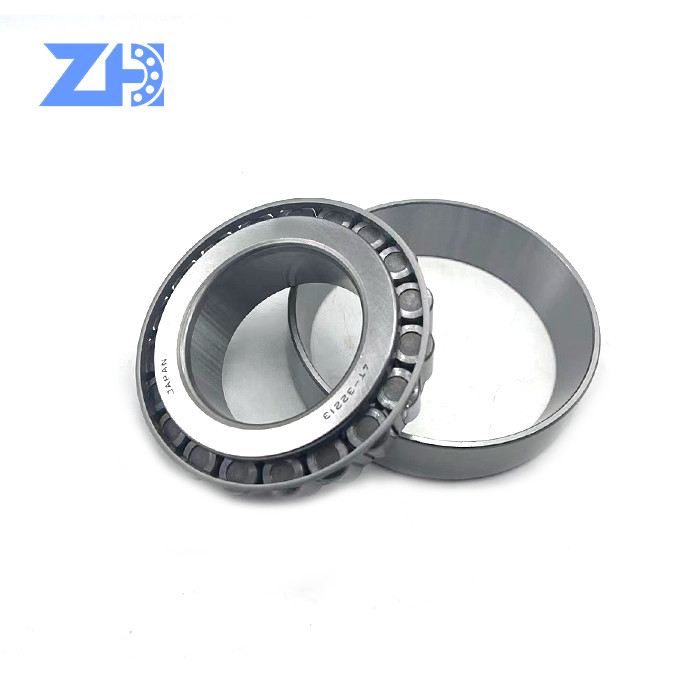

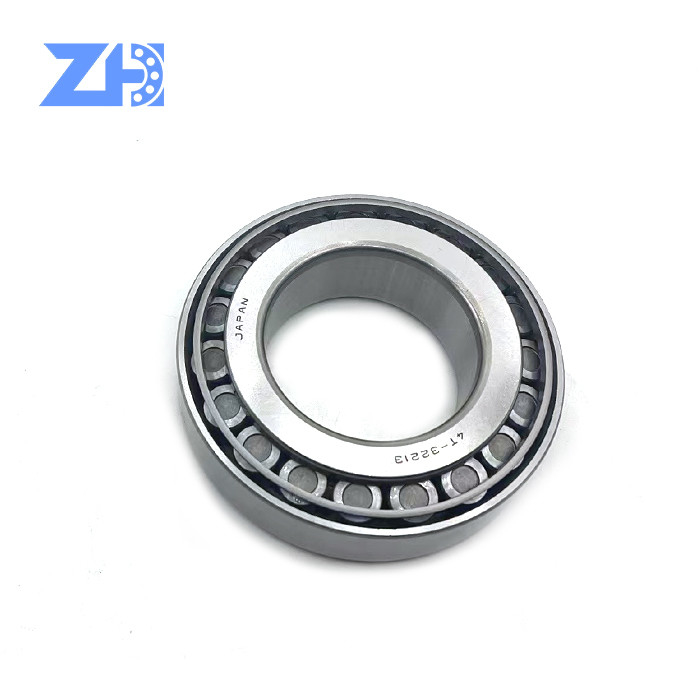

32213 65x120x32.75 32213 Tapered Roller Bearing 32213 J2/Q Tapered Roller Bearing
Detailed information of original 32213 J2Q:
ID: 65 MM
OD: 120 MM
Thickness: 32.75 mm
Mass: 1.50 kg
Limited speed: 5600 r/min
Reference speed: 4000 r/min
Static load: 193 KN
Dynamic load: 151 KN
Some stock list of SKF bearings are shown as follows:
72212/2/72487/2/Q |
33012/Q * |
33213/Q |
32011 X/Q |
33112/Q |
T7FC 065/QCL7C |
33011/Q * |
30212 J2/Q * |
30313 J2/Q |
33111/Q |
32212 J2/Q |
30313 RJ2 |
30211 J2/Q * |
33212/Q |
31313 J2/QCL7C |
32211 J2/Q |
T2EE 060/Q |
32313 BJ2/QU4CL7CVQ267 |
33211/Q |
T7FC 060/QCL7C |
32313 J2/Q |
T2ED 055/QCLN |
30312 J2/Q |
6379/K-6320/Q |
T7FC 055/QCL7C |
31312 J2/Q |
39590/39520/Q |
30311 J2/Q * |
32312 BJ2/QCL7C |
3984/2/3920/2/Q |
31311 J2/QCL7C |
32312 J2/Q |
39590/39528/Q |
32311 BJ2/QCL7C * |
HM 911245/W/2/210/2/QCL7C |
6386/K-6320/Q |
32311 BRJ2/QCL7C * |
HM 911245/W/210/QV001 |
29675/29620/3/Q |
32311 J2 |
H 913842/810/QCL7C |
482/472/Q |
387 A/382 A/Q |
H 913843/810/QCL7C |
47487/47420 |
387/382 A |
3982/3920 |
47487/47420 A/Q |
387 A/382 S/Q |
32013 X/Q * |
566/563/Q |
387 A/382/Q |
33013/Q * |
32014 X/Q |
462/453 X |
JM 511946/910/Q |
33014/Q |
39580/39520/Q |
T2DD 065/Q |
33114/Q |
39581/39520/Q |
33113 R/Q |
30214 J2/Q |
39580/39528/Q |
33113/Q |
32214 J2/Q |
39581/39528/Q |
30213 J2/Q * |
33214/Q |
32012 X/QCL7C * |
32213 J2/Q |
T2ED 070/QCLNVB061 |
Precision Rating: P0, P6, P5, P4, P2
Material: Bearing steel
Delivery time: 3-15days
Function: :Rolling mill, mine, metallurgy, plastics machinery industry.
The kinds of tapered roller bearing and models
Metric single row tapered roller bearing
Inch single row tapered roller bearing
Double row tapered roller bearing
Four row tapered roller bearings
Paired single row tpered roller bearings
| boundary dimensions(mm) | basic load ratings(kn) | limiting speeds(rpm) | bearing no. | ||||||
| d | d | t | r | r1 | cr | cor | grease lub. | oil lub. | |
| min. | min. | ||||||||
| 45 | 75 | 20 | 1 | 1 | 62.8 | 86.5 | 5000 | 6600 | 32009 |
| 45 | 75 | 24 | 1 | 1 | 69.6 | 101 | 5000 | 6700 | 33009 |
| 45 | 80 | 26 | 1.5 | 1.5 | 87.5 | 120 | 4800 | 6400 | 33109 |
| 45 | 85 | 20.75 | 1.5 | 1.5 | 67.2 | 77.4 | 4600 | 6100 | 30209 |
| 45 | 85 | 24.75 | 1.5 | 1.5 | 84.2 | 104 | 4600 | 6100 | 32209 |
| 45 | 85 | 32 | 1.5 | 1.5 | 112 | 149 | 4600 | 6200 | 33209 |
| 45 | 100 | 27.25 | 2 | 1.5 | 113 | 128 | 4100 | 5400 | 30309 |
| 45 | 100 | 38.25 | 2 | 1.5 | 146 | 180 | 4100 | 5500 | 32309 |
| 50 | 80 | 20 | 1 | 1 | 65.7 | 94.5 | 4600 | 6100 | 32010 |
| 50 | 80 | 24 | 1 | 1 | 73 | 110 | 4600 | 6100 | 33010 |
| 50 | 85 | 26 | 1.5 | 1.5 | 89.4 | 127 | 4400 | 5900 | 33110 |
| 50 | 90 | 21.75 | 1.5 | 1.5 | 76.5 | 91.7 | 4300 | 5700 | 30210 |
| 50 | 90 | 24.75 | 1.5 | 1.5 | 85 | 105 | 4300 | 5700 | 32210 |
| 50 | 90 | 32 | 1.5 | 1.5 | 119 | 167 | 4300 | 5700 | 33210 |
| 50 | 110 | 29.25 | 2.5 | 2 | 137 | 152 | 3700 | 4900 | 30310 |
| 50 | 110 | 42.25 | 2.5 | 2 | 176 | 220 | 3700 | 5000 | 32310 |
| 55 | 90 | 23 | 1.5 | 1.5 | 84.6 | 121 | 4100 | 5500 | 32011 |
| 55 | 90 | 27 | 1.5 | 1.5 | 96.5 | 145 | 4100 | 5400 | 33011 |
| 55 | 95 | 30 | 1.5 | 1.5 | 116 | 161 | 4000 | 5300 | 33111 |
| 55 | 100 | 22.75 | 2 | 1.5 | 94.6 | 113 | 3900 | 5200 | 30211 |
| 55 | 100 | 26.75 | 2 | 1.5 | 107 | 133 | 3900 | 5200 | 32211 |
| 55 | 100 | 35 | 2 | 1.5 | 142 | 189 | 3900 | 5200 | 33211 |
| 55 | 120 | 31.5 | 2.5 | 2 | 149 | 170 | 3300 | 4500 | 30311 |
| 55 | 120 | 45.5 | 2.5 | 2 | 200 | 250 | 3400 | 4500 | 32311 |
| 60 | 95 | 23 | 1.5 | 1.5 | 86.1 | 127 | 3900 | 5200 | 32012 |
| 60 | 95 | 27 | 1.5 | 1.5 | 101 | 162 | 3900 | 5200 | 33012 |
| 60 | 100 | 30 | 1.5 | 1.5 | 118 | 170 | 3700 | 5000 | 33112 |
| 60 | 110 | 23.75 | 2 | 1.5 | 106 | 127 | 3500 | 4700 | 30212 |
| 60 | 110 | 29.75 | 2 | 1.5 | 132 | 167 | 3500 | 4700 | 32212 |
| 60 | 110 | 38 | 2 | 1.5 | 174 | 239 | 3600 | 4700 | 33212 |
| 60 | 130 | 33.5 | 3 | 2.5 | 173 | 201 | 3100 | 4100 | 30312 |
| 60 | 130 | 48.5 | 3 | 2.5 | 244 | 315 | 3100 | 4200 | 32312 |
| 65 | 100 | 23 | 1.5 | 1.5 | 90 | 137 | 3600 | 4800 | 32013 |
| 65 | 100 | 27 | 1.5 | 1.5 | 103 | 169 | 3600 | 4800 | 33013 |
| 65 | 110 | 34 | 1.5 | 1.5 | 152 | 223 | 3400 | 4600 | 33113 |
| 65 | 120 | 24.75 | 2 | 1.5 | 128 | 156 | 3200 | 4300 | 30213 |
| 65 | 120 | 32.75 | 2 | 1.5 | 157 | 203 | 3200 | 4300 | 32213 |
| 65 | 120 | 41 | 2 | 1.5 | 200 | 277 | 3200 | 4300 | 33213 |
| 65 | 140 | 36 | 3 | 2.5 | 204 | 239 | 2800 | 3800 | 30313 |
| 70 | 110 | 25 | 1.5 | 1.5 | 108 | 163 | 3300 | 4400 | 32014 |
| 70 | 110 | 31 | 1.5 | 1.5 | 134 | 208 | 3300 | 4400 | 33014 |
| 70 | 120 | 37 | 2 | 1.5 | 181 | 266 | 3100 | 4200 | 33114 |
| 70 | 125 | 26.25 | 2 | 1.5 | 138 | 173 | 3100 | 4100 | 30214 |
| 70 | 125 | 33.25 | 2 | 1.5 | 169 | 225 | 3100 | 4100 | 32214 |
| 70 | 125 | 41 | 2 | 1.5 | 206 | 294 | 3100 | 4100 | 33214 |
| 70 | 150 | 38 | 3 | 2.5 | 230 | 273 | 2600 | 3500 | 30314 |
| 70 | 150 | 54 | 3 | 2.5 | 317 | 414 | 2700 | 3600 | 32314 |
| 75 | 115 | 25 | 1.5 | 1.5 | 110 | 169 | 3100 | 4200 | 32015 |
| 75 | 115 | 31 | 1.5 | 1.5 | 141 | 225 | 3200 | 4200 | 33015 |
| 75 | 125 | 37 | 2 | 1.5 | 186 | 280 | 3000 | 4000 | 33115 |
| 75 | 130 | 27.25 | 2 | 1.5 | 142 | 181 | 2900 | 3900 | 30215 |
| 75 | 130 | 33.25 | 2 | 1.5 | 174 | 234 | 2900 | 3900 | 32215 |
| 75 | 130 | 41 | 2 | 1.5 | 212 | 310 | 2900 | 3900 | 33215 |
| 75 | 160 | 40 | 3 | 2.5 | 260 | 311 | 2500 | 3300 | 30315 |
| 75 | 160 | 58 | 3 | 2.5 | 363 | 481 | 2500 | 3300 | 32315 |
| 71425/71751D | HM124649/HM124618XD |
| 936/932CD | 74472/74851CD |
| HH224340/HH224310CD | M224748/M224710DC |
| 37431/37626DC | M224748/M224710D |
| 37431/37626D | L624549/L624514D |
| 71432/71751D | L225842/L225812D |
| H924043/H924010D | M224749/M224710D |
| LM522548/LM522510D | 48282/48220DC |
| LM522549/LM522510D L | 48282/48220D |
| 64433/64700D | 795/792CD |
| 942/932CD | 95475/95927CD |
| 71437/71751D | 48286/48220DC |
| H924045/H924010D | 48286/48220D |
| HH924349/HH924310D | 95491/95927CD |
| L623149/L623110D | HM926745/HM926710D |
| 64450/64700DC | HM127440/HM127415XD |
| 64450/64700D | L225849/L225812D |
| 71450/71751DC | 48290/48220DC |
| 71450/71751D | 48290/48220D |
| 938/932CD | 67388/67322DC |
| HH224346/HH224310CD | 67388/67322D |
| HM926740/HM926710D | 67388/67325D |
| 64452A/64700D | 74500/74851CD |
| HH224349/HH224310CD | 97500/97901D |
| 71453/71751D | HM926747/HM926710DC |
| HM124646/HM124616XD | HM926747/HM926710D |
| HM124646/HM124618XD | 95500/95927CD |
We can provide you all kinds of excavator turbocharger , for example :
We could supply various roller bearing, ball bearing and auto bearing, including angular contact ball bearing, deep groove ball bearing, spherical roller bearing, self-aligning ball bearing, taper roller bearing, cylindrical roller bearing.
Brands: SKF NSK NACHI KOYO NTN IKO and OEM service
