Place of Origin:
China
Brand Name:
ZH
Certification:
IS09001
Model Number:
22324MA
22324MA 22324E 22324CS P0 P 5P 4 P3 Quality Ank CHROME STEEL Spherical Roller Bearing
Product introduction(Good Bearing choose ZH factory)
22324MA The self-aligning roller bearing has a double row of rollers, the outer ring has a common spherical raceway, the inner ring has two raceways and is tilted at an Angle relative to the bearing axis. This clever structure makes it have automatic aligning performance, so it is not easy to be affected by the Angle of shaft and bearing box seat on the error or shaft bending, and is suitable for installation error or shaft deflection caused by Angle error occasions. In addition to the radial load, the bearing can also bear the axial load of bidirectional action.
| Bore diameter | 120 mm |
| Outside diameter | 260 mm |
| Width | 86 mm |
| d |
120 mm
|
Bore diameter |
|---|---|---|
| D |
260 mm
|
Outside diameter |
| B |
86 mm
|
Width |
| d2 |
≈152 mm
|
Shoulder diameter of inner ring |
| D1 |
≈216 mm
|
Shoulder/recess diameter of outer ring |
| b |
13.9 mm
|
Width of lubrication groove |
| K |
7.5 mm
|
Diameter of lubrication hole |
| r1,2 |
min.3 mm
|
Chamfer dimension |
| da |
min.134 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max.246 mm
|
Diameter of housing abutment |
| ra |
max.2.5 mm
|
Radius of fillet |
| Basic dynamic load rating | C |
1 019 kN
|
|---|---|---|
| Basic static load rating | C0 |
1 120 kN
|
| Fatigue load limit | Pu |
100 kN
|
| Reference speed |
2 000 r/min
|
|
| Limiting speed |
2 600 r/min
|
|
| Limiting value | e |
0.35
|
| Calculation factor | Y1 |
1.9
|
| Calculation factor | Y2 |
2.9
|
| Calculation factor | Y0 |
1.8
|
| Number of rows | 2 |
| Locating feature, bearing outer ring | Without |
| Bore type | Cylindrical |
| Cage | Sheet metal |
| Radial internal clearance | CN |
| Tolerance class for dimensions | Normal |
| Tolerance class for run-out | P5 |
| Sealing | Without |
| Lubricant | None |
| Relubrication feature | With |
| Candidate for remanufacturing | Yes mm |
22324MA Collection
| T7FC065 | KMF125-PC200-8 | NUP206E | NUP309=180 | NUP2212=220 | 6305 | NUP308 | NUP308=140 | 30314D=250 |
| NUP207 | KMF160-PC360-7 | 15578 | NUP309 | NUP206=100 | NUP2211=250 | 30309D=110 | T7FC055=300 | NUP309 |
| HMS072 | MSG-27P | NUP306 | NUP206 | NUP2208=210 | NUP207 | NUP207/NUP306 | NUP309 | T7FC055 |
| AP5S67 | AP5S53 | NUP307 | 6305M | NUP307=110 | NUP307 | 30309D | 30312D | T7FC055 |
| 11749/11710 | M5X130 | NUP205E | TM09 | M2X146 | NUP307 | 30312D | 30314D | NUP310 |
| NUP2310 | M5X180 | NUP207=120 | GM18VL | M2X150 | NUP2208 | NUP2209 | 30312D | JMF250 |
| 30312D | 32205 | NUP2209=160 | KMF125 | M2X170 | NUP2211 | NUP2209 | 6008 | M2X55 |
| 30312D | T7FC060 | NUP2207=140 | HMK3525+IR | M2X210 | NUP308 | NUP2209 | NUP307 | M2X63 |
| NUP308 | NUP207 | NUP2206=130 | 30309D | HMGF57 | NUP309 | NUP2212 | 30311D | MAG85 |
| DNB50/60 | 6213 | NUP309=180 | 30210 | SG08 | NUP309 | NUP2212 | T7FC055 | MAG120 |
| HMGF35 | NUP308 | NUP309=180 | 30210 | GM17VA | NUP2212 | NUP2211 | NIP2310 | |
| HMGF36 | NUP309 | NUP310 | 30311D | JMV-44/22 | 30312D=155 | 30312D=155 | NUP208E | |
| HMGC48 | JMF29 | NUP2206 | SG04 | GM35VA | M2X96 | M2X120 | NUP308=140 | |
| 4T-30307 | JMF23 | NUP2207 | SG025 | GM35VL | MCB172 | 32207 | SG20 | |
| NUP306 | JMF151 | NUP2207 | SG02 | GM38VB | HMT36FA | 30312 | KMF41-PC60-7 | |
| NUP307 | JMF195 | JMV-53/31 | SG15 | MAG150 | HMGC32 | MAG150 | KMF90-PC200-6 |

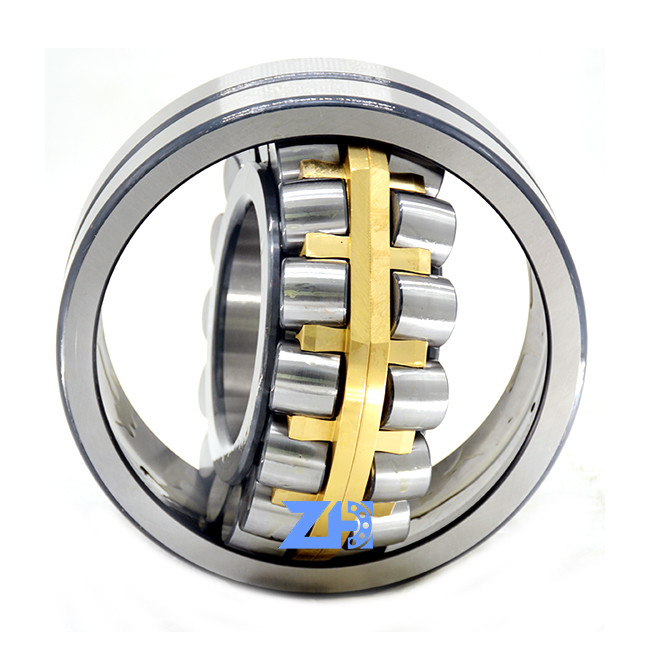

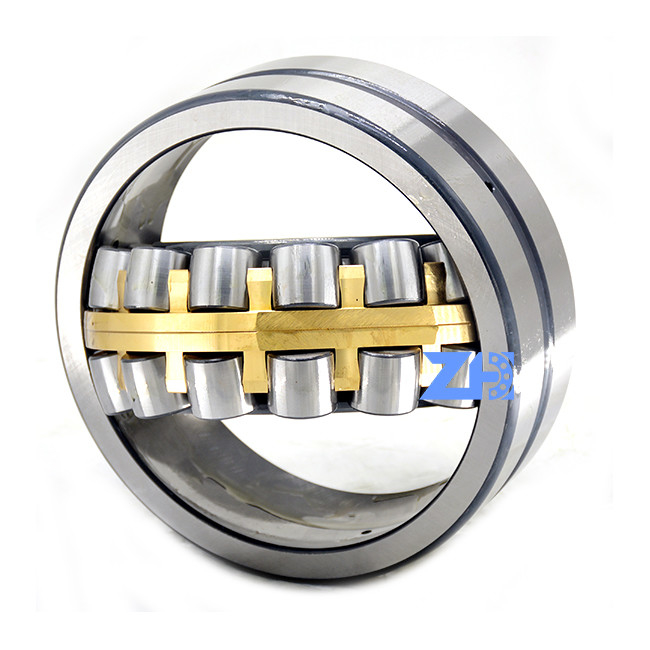

Photo show
