Place of Origin:
China
Brand Name:
ZH
Certification:
IS09001
Model Number:
33022

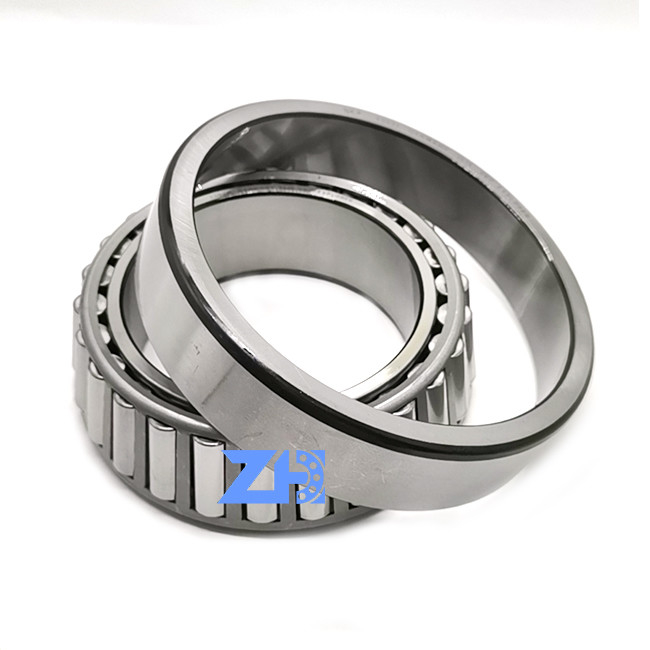

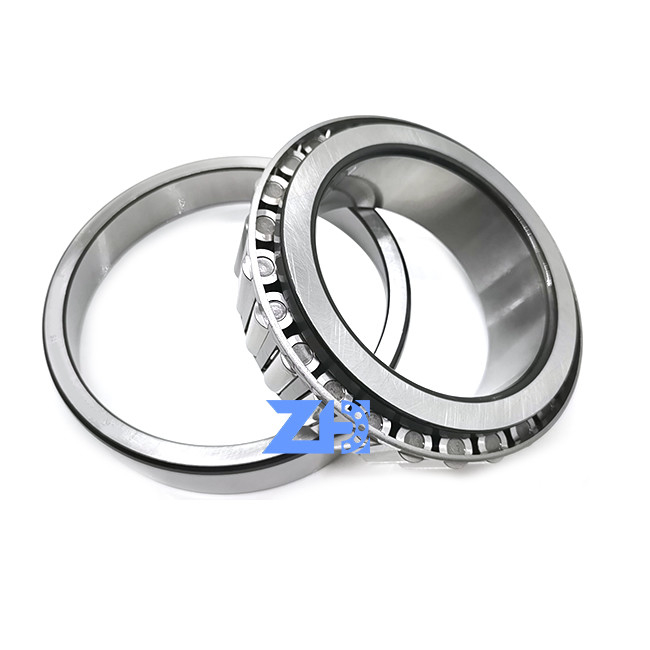

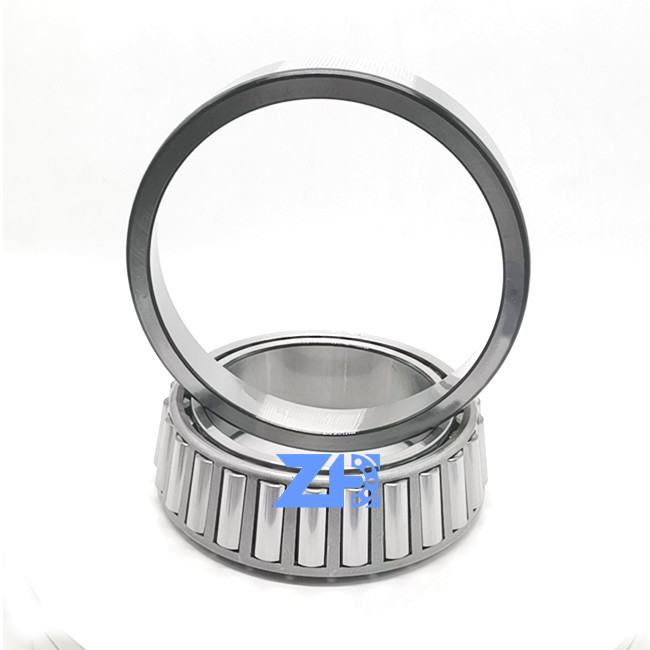

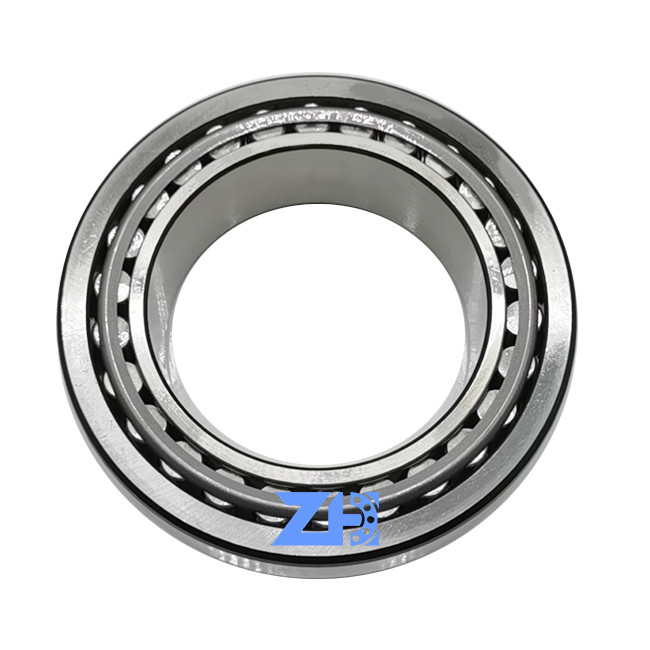

110*170*47mm 33022 33022C5 33022C3 TAPPER ROLLER BEARING CHROME STEEL
Product introduction
33022Tapered roller bearings feature a cup and cone assembly. The cup is comprised of the outer ring and the cone assembly consists of inner ring, rollers, and cage. This bearing construction accommodates combined loads and provides low friction during operation.
|
| d |
110 mm
|
Bore diameter |
|---|---|---|
| D |
170 mm
|
Outside diameter |
| T |
47 mm
|
Total width |
| d1 |
≈139.3 mm
|
Shoulder diameter of inner ring |
| B |
47 mm
|
Width of inner ring |
| C |
37 mm
|
Width of outer ring |
| r1,2 |
min.2.5 mm
|
Chamfer dimension of inner ring |
| r3,4 |
min.2 mm
|
Chamfer dimension of outer ring |
| a |
33.6 mm
|
Distance side face to pressure point |
| da |
max.123 mm
|
Diameter of shaft abutment |
|---|---|---|
| db |
min.122.5 mm
|
Diameter of shaft abutment |
| Da |
min.152 mm
|
Diameter of housing abutment |
| Da |
max.159.5 mm
|
Diameter of housing abutment |
| Db |
min.161 mm
|
Diameter of housing abutment |
| Ca |
min.7 mm
|
Minimum width of space required in housing on large side face |
| Cb |
min.10 mm
|
Minimum width of space required in housing on small side face |
| ra |
max.2.5 mm
|
Radius of shaft fillet |
| rb |
max.2 mm
|
Radius of housing fillet |
| da |
max.123 mm
|
Diameter of shaft abutment |
|---|---|---|
| db |
min.122.5 mm
|
Diameter of shaft abutment |
| Da |
min.152 mm
|
Diameter of housing abutment |
| Da |
max.159.5 mm
|
Diameter of housing abutment |
| Db |
min.161 mm
|
Diameter of housing abutment |
| Ca |
min.7 mm
|
Minimum width of space required in housing on large side face |
| Cb |
min.10 mm
|
Minimum width of space required in housing on small side face |
| ra |
max.2.5 mm
|
Radius of shaft fillet |
| rb |
max.2 mm
|
Radius of housing fillet |
