Place of Origin:
China
Brand Name:
ZH
Certification:
IS09001
Model Number:
32318

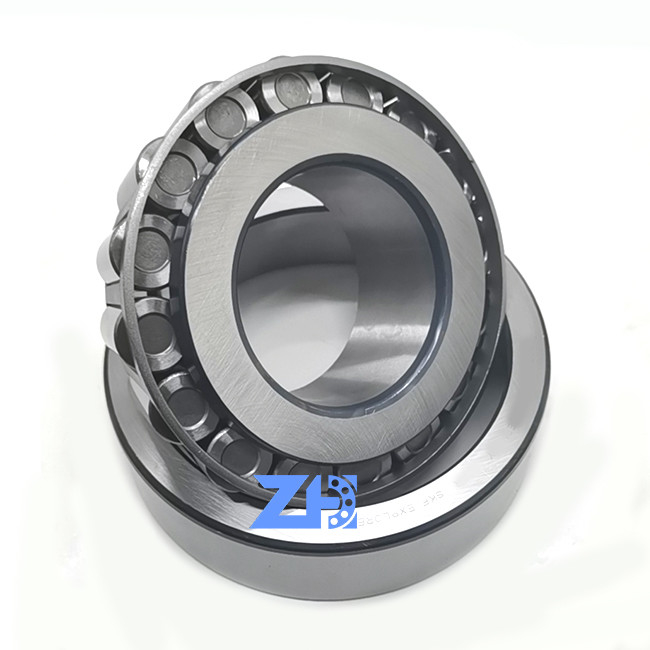

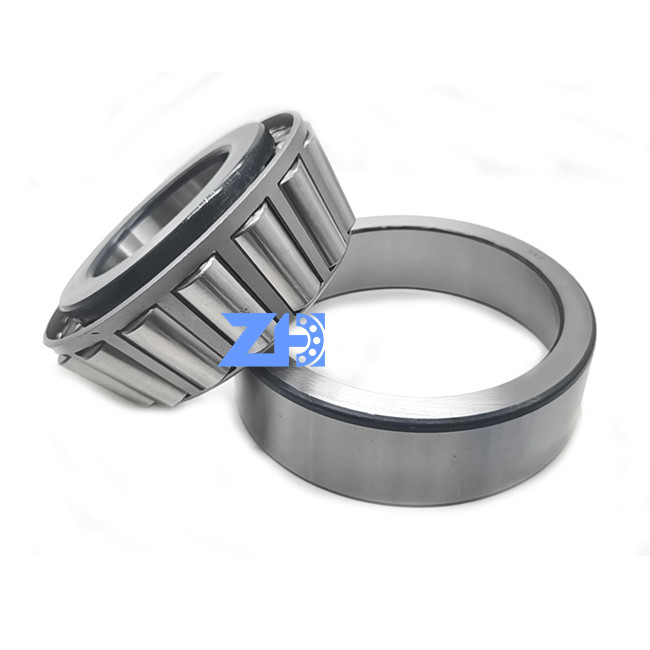

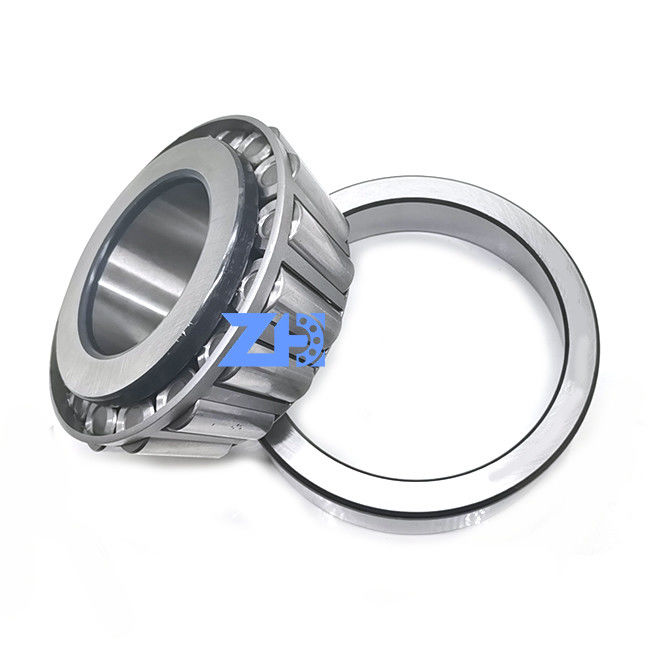

TAPPER ROLLER BEARING 32318 32318C5 32318C3 90*190*67.5mm CHROME STEEL
Product introduction
Tapered roller bearings are mainly used to bear radial and axial combined loads based on radial loads, generally not suitable to bear axial loads alone, such bearings can be installed respectively the inner ring (with a full set of rollers and retainers) and the outer ring.
| d |
90 mm
|
Bore diameter |
|---|---|---|
| D |
190 mm
|
Outside diameter |
| T |
67.5 mm
|
Total width |
| d1 |
≈133.9 mm
|
Shoulder diameter of inner ring |
| B |
64 mm
|
Width of inner ring |
| C |
53 mm
|
Width of outer ring |
| r1,2 |
min.4 mm
|
Chamfer dimension of inner ring |
| r3,4 |
min.3 mm
|
Chamfer dimension of outer ring |
| a |
44.3 mm
|
Distance side face to pressure point |
| da |
max.109 mm
|
Diameter of shaft abutment |
|---|---|---|
| db |
min.105.5 mm
|
Diameter of shaft abutment |
| Da |
min.157 mm
|
Diameter of housing abutment |
| Da |
max.177.5 mm
|
Diameter of housing abutment |
| Db |
min.177 mm
|
Diameter of housing abutment |
| Ca |
min.7 mm
|
Minimum width of space required in housing on large side face |
| Cb |
min.14.5 mm
|
Minimum width of space required in housing on small side face |
| ra |
max.4 mm
|
Radius of shaft fillet |
| rb |
max.3 mm
|
Radius of housing fillet |
| Basic dynamic load rating | C |
487 kN
|
|---|---|---|
| Basic static load rating | C0 |
610 kN
|
| Fatigue load limit | Pu |
65.5 kN
|
| Reference speed |
2 600 r/min
|
|
| Limiting speed |
3 600 r/min
|
|
| Limiting value | e |
0.35
|
| Calculation factor | Y |
1.7
|
| Calculation factor | Y0 |
0.9
|
|
Bearing No.
|
Boundary dimensions
|
Basic load rating(kN)
|
Limiting speed
|
Mass
|
||||||||
|
mm
|
Dynamic
|
Static
|
rpm
|
Kg
|
||||||||
|
d
|
D
|
T
|
B
|
C
|
Rmin
|
rmin
|
Cr
|
Cor
|
Grease
|
Oil
|
≈
|
|
|
32303
|
17
|
47
|
20.25
|
19
|
16
|
1
|
1
|
35.4
|
36.6
|
8000
|
11000
|
0.174
|
|
32304
|
20
|
52
|
22.25
|
21
|
18
|
1.5
|
1.5
|
42.7
|
46.4
|
7500
|
10000
|
0.231
|
|
32305
|
25
|
62
|
25.25
|
24
|
20
|
1.5
|
1.5
|
61.7
|
68.9
|
6000
|
8000
|
0.367
|
|
32306
|
30
|
72
|
28.75
|
27
|
23
|
1.5
|
1.5
|
81.7
|
97.6
|
5300
|
7000
|
0.56
|
|
32307
|
35
|
80
|
32.75
|
31
|
25
|
2
|
1.5
|
99.1
|
119
|
4800
|
6300
|
0.77
|
|
32308
|
40
|
90
|
35.25
|
33
|
27
|
2
|
1.5
|
115
|
149
|
4000
|
5300
|
1.05
|
|
32309
|
45
|
100
|
38.25
|
36
|
30
|
2
|
1.5
|
145
|
191
|
3600
|
4800
|
1.4
|
|
32310
|
50
|
110
|
42.25
|
40
|
33
|
2.5
|
2
|
177
|
239
|
3200
|
4300
|
1.89
|
|
32311
|
55
|
120
|
45.5
|
43
|
35
|
2.5
|
2
|
203
|
274
|
3000
|
4000
|
2.37
|
|
32312
|
60
|
130
|
48.5
|
46
|
37
|
3
|
2.5
|
226
|
306
|
2600
|
3600
|
2.9
|
|
32313
|
65
|
140
|
51
|
48
|
39
|
3
|
2.5
|
259
|
353
|
2400
|
3400
|
3.51
|
|
32314
|
70
|
150
|
54
|
51
|
42
|
3
|
2.5
|
298
|
413
|
2000
|
3000
|
4.35
|
|
32315
|
75
|
160
|
58
|
55
|
45
|
3
|
2.5
|
346
|
488
|
2000
|
3000
|
5.34
|
|
32316
|
80
|
170
|
61.5
|
58
|
48
|
3
|
2.5
|
387
|
549
|
1900
|
2800
|
6.38
|
|
32317
|
85
|
180
|
63.5
|
60
|
49
|
4
|
3
|
421
|
599
|
1800
|
2600
|
7.3
|
|
32318
|
90
|
190
|
67.5
|
64
|
53
|
4
|
3
|
477
|
690
|
1700
|
2400
|
8.78
|
|
32319
|
95
|
200
|
71.5
|
67
|
55
|
4
|
3
|
515
|
745
|
1700
|
2400
|
10.7
|
|
32320
|
100
|
215
|
77.5
|
73
|
60
|
4
|
3
|
572
|
780
|
1600
|
2200
|
3
|
|
32321
|
105
|
225
|
81.5
|
77
|
63
|
4
|
3
|
646
|
955
|
1500
|
2000
|
14.5
|
|
32322
|
110
|
240
|
84.5
|
80
|
65
|
4
|
3
|
722
|
1070
|
1400
|
1900
|
17.8
|
|
32324
|
120
|
260
|
90.5
|
86
|
69
|
4
|
3
|
824
|
1240
|
1300
|
1800
|
21.7
|
|
32334
|
170
|
360
|
128
|
120
|
100
|
3.7
|
1.3
|
1300
|
1760
|
850
|
1100
|
59.5
|
