Place of Origin:
China
Brand Name:
ZH
Certification:
IS09001
Model Number:
32310

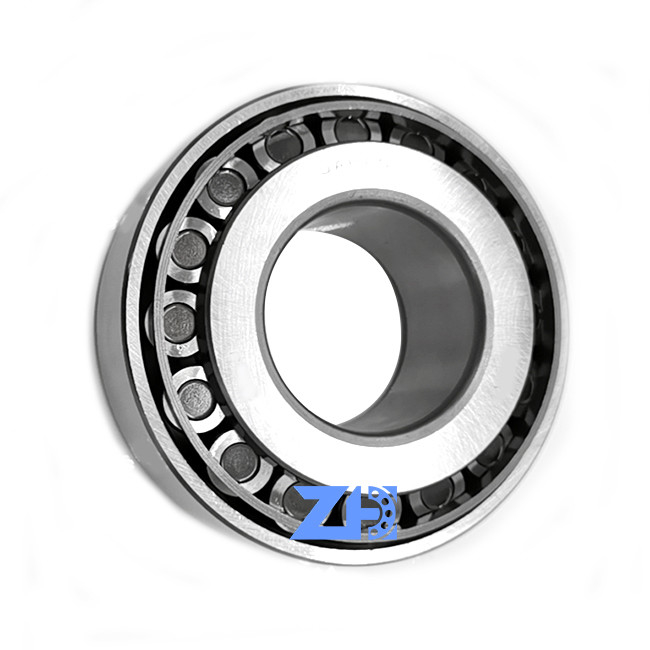

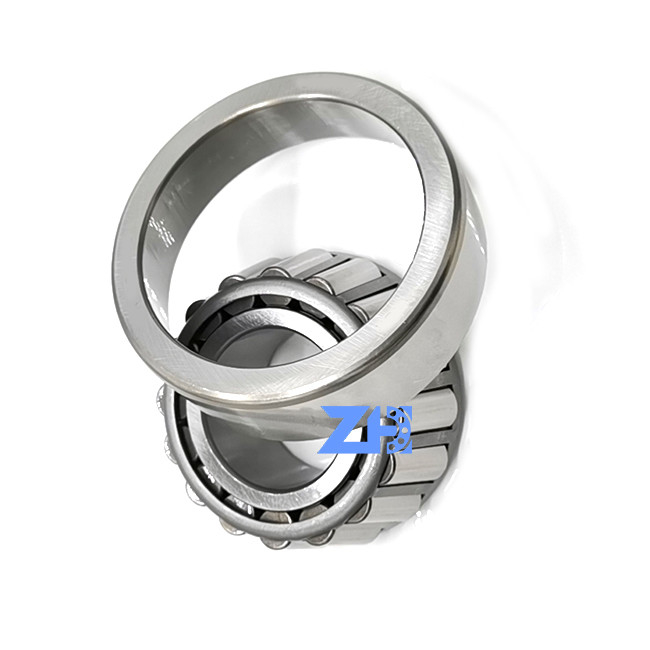

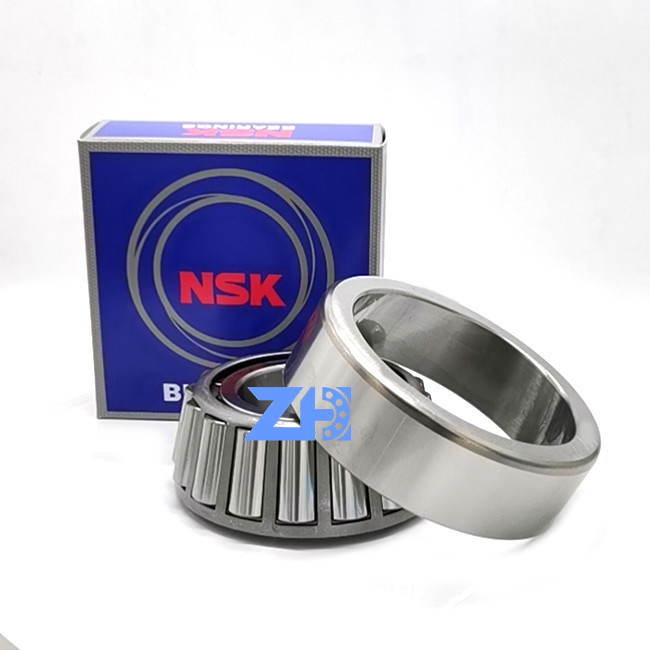

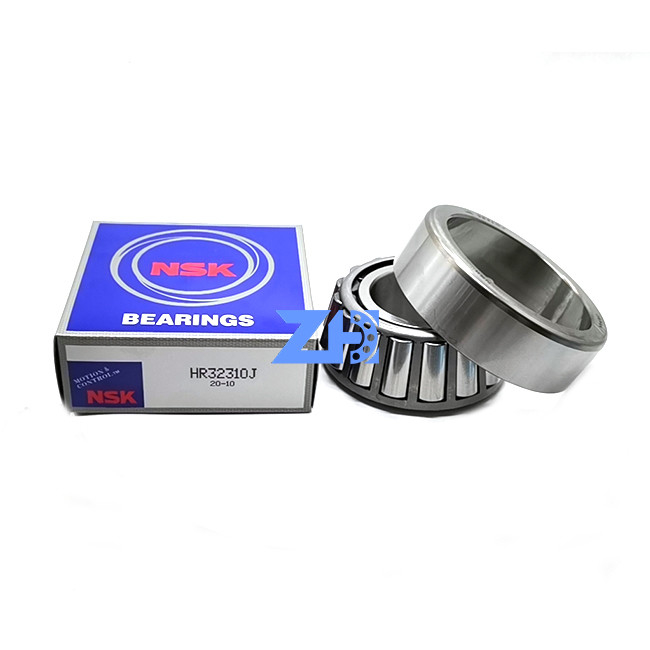

High precision 32310 32310RS 32310C3 TAPPER ROLLER BEARING 50*110*42.25mm
Product introduction
Tapered roller bearing is a separable bearing. The inner and outer rings of the bearing have tapered raceways. This type of bearing is divided into single row, double row and four row tapered roller bearings according to the number of rows of rollers installed. Single-row tapered roller bearing can bear radial load and axial load in single direction. When the bearing bears the radial load, it will produce an axial component.
| d |
50 mm
|
Bore diameter |
|---|---|---|
| D |
110 mm
|
Outside diameter |
| T |
42.25 mm
|
Total width |
| d1 |
≈77.7 mm
|
Shoulder diameter of inner ring |
| B |
40 mm
|
Width of inner ring |
| C |
33 mm
|
Width of outer ring |
| r1,2 |
min.2.5 mm
|
Chamfer dimension of inner ring |
| r3,4 |
min.2 mm
|
Chamfer dimension of outer ring |
| a |
27.45 mm
|
Distance side face to pressure point |
| da |
max.63 mm
|
Diameter of shaft abutment |
|---|---|---|
| db |
min.61 mm
|
Diameter of shaft abutment |
| Da |
min.90 mm
|
Diameter of housing abutment |
| Da |
max.101 mm
|
Diameter of housing abutment |
| Db |
min.102 mm
|
Diameter of housing abutment |
| Ca |
min.5 mm
|
Minimum width of space required in housing on large side face |
| Cb |
min.9 mm
|
Minimum width of space required in housing on small side face |
| ra |
max.2.5 mm
|
Radius of shaft fillet |
| rb |
max.2 mm
|
Radius of housing fillet |
| Basic dynamic load rating | C |
211 kN
|
|---|---|---|
| Basic static load rating | C0 |
212 kN
|
| Fatigue load limit | Pu |
24 kN
|
| Reference speed |
4 800 r/min
|
|
| Limiting speed |
6 300 r/min
|
|
| Limiting value | e |
0.35
|
| Calculation factor | Y |
1.7
|
| Calculation factor | Y0 |
0.9
|
| Bearing No. | I.D | O.D | WIDTH |
| (mm) | (mm) | (mm) | |
| 30310 | 50 | 110 | 27 |
| 31310 | 50 | 110 | 27 |
| 32310 | 50 | 110 | 42.5 |
| 32911 | 55 | 80 | 17 |
| 32011X2 | 55 | 90 | 22 |
| 32011 | 55 | 90 | 23 |
| 33011 | 55 | 90 | 27 |
| 33111 | 55 | 95 | 30 |
| 30211 | 55 | 100 | 21 |
| 32211 | 55 | 100 | 25 |
| 33211 | 55 | 100 | 35 |
| 30311 | 55 | 120 | 29 |
| 31311 | 55 | 120 | 29 |
| 32311 | 55 | 120 | 43 |
| 32912X2 | 60 | 85 | 16 |
| HMK3525+IR | T7FC055 | SG02 | GM38VB | HMT36FA | NUP307 |
| NUP2209 | NUP310 | SG15 | MAG150 | GM18VL | 30312D |
| NUP2209 | NUP308 | SG20 | TM09 | AP5S53 | NIP2310 |
| NUP2212 | 30314D=250 | 30311D | NUP2212=220 | NUP2207 | NUP208E |
| M2X146 | NUP309 | T7FC055 | DNB50/60 | NUP2207 | NUP308=14 |
| NUP309 | T7FC055 | MAG120 | NUP207 | NUP309=180 | T7FC065 |
| NUP2212 | 30312D | MAG150 | 6213 | HMGF36 | JMF151 |
| I84M5X130 | 30314D | NUP309 | 30312D=155 | NUP206=100 | 11749/11710 |
| M5X180 | 30312D | NUP308 | M2X120 | NUP2208 | NUP309=180 |
| 32205 | 30309D | GM35VL | 32207 | NUP2211 | NUP309 |
| T7FC060 | NUP2207=140 | NUP2206=130 | NUP205E | HMGC48 | NUP310 |
| M2X150 | 30312D | 6008 | NUP207=120 | NUP309 | KMF90-PC200-6 |
| M2X170 | NUP2209 | NUP307 | NUP2209=160 | 30312D | NUP2206 |
| M2X210 | JMF23 | 30210 | 6305 | GM35VA | 30309D=110 |
| HMGF57 | 15578 | 30311D | NUP2211=250 | 30312D=155 | NUP207/NUP306 |
| NUP306 | NUP306 | 30210 | KMF160-PC360-7 | SG04 | JMV-53/31 |
| NUP307 | NUP308 | KMF125-PC200-8 | MSG-27P | SG025 | MAG85 |
| KMF41-PC60 | NUP207 | M2X96 | NUP207 | HMGC32 | 30312 |
| NUP308 | NUP206 | MCB172 | HMS072 | HMGF35 | NUP309=180 |
| JMF29 | 6305M | NUP206E | AP5S67 | M2X63 | JMV-44/22 |
| NUP2310 | 4T-30307 | M2X55 | NUP308=140 | NUP2208=210 | KMF125-PC200-7 |
| 30309D | SG08 | NUP307 | T7FC055=300 | NUP307=110 | NUP2212 |
| NUP2211 | GM17VA | NUP307 | NUP309 | JMF195 | JMF250 |
