Place of Origin:
China
Brand Name:
ZH
Certification:
IS09001
Model Number:
32207
Product introduction

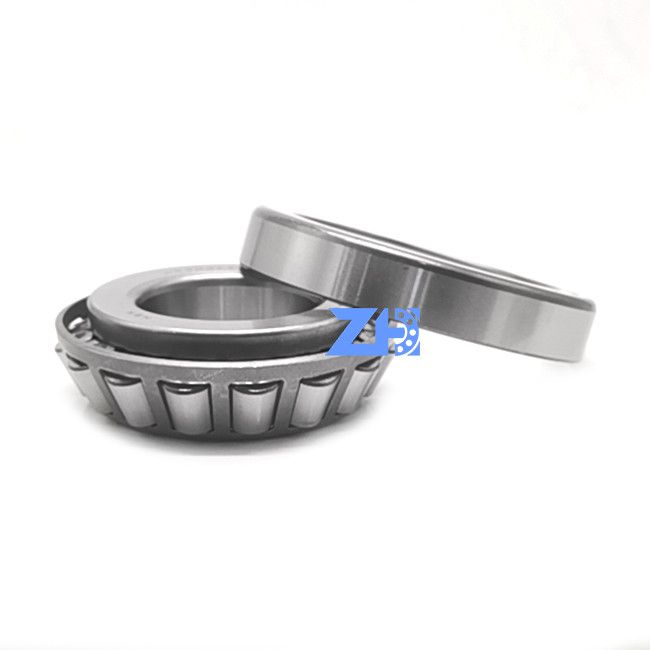

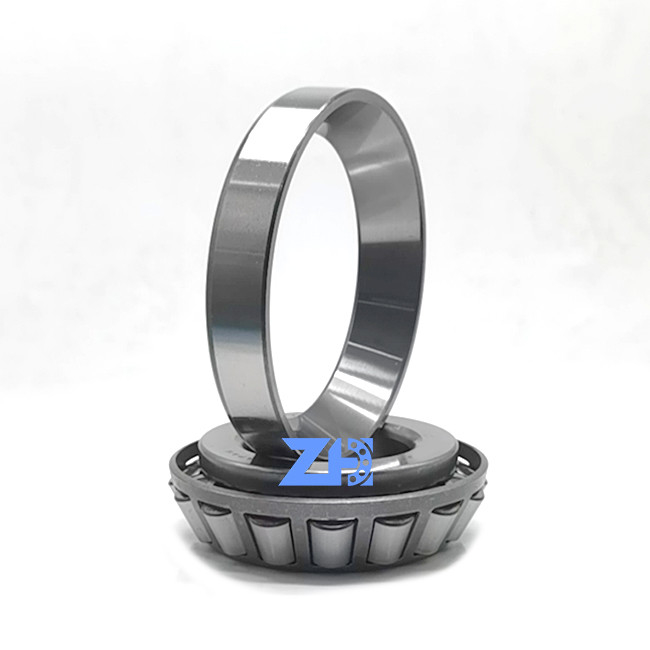

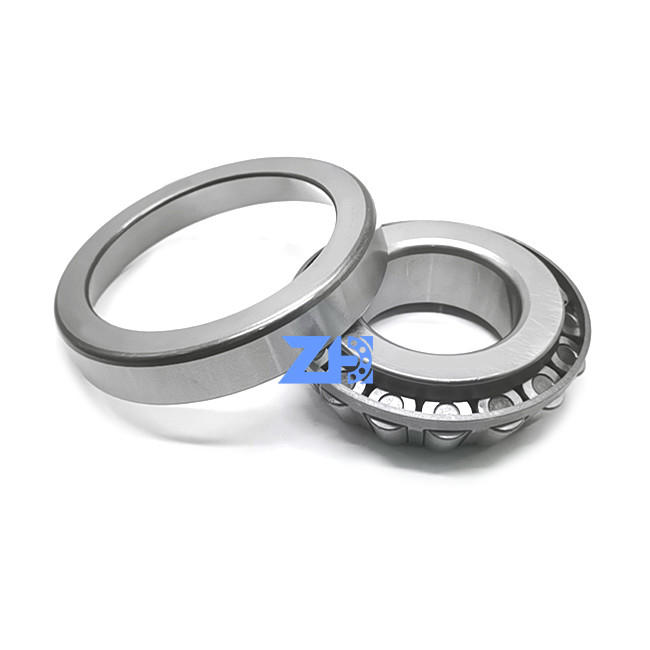

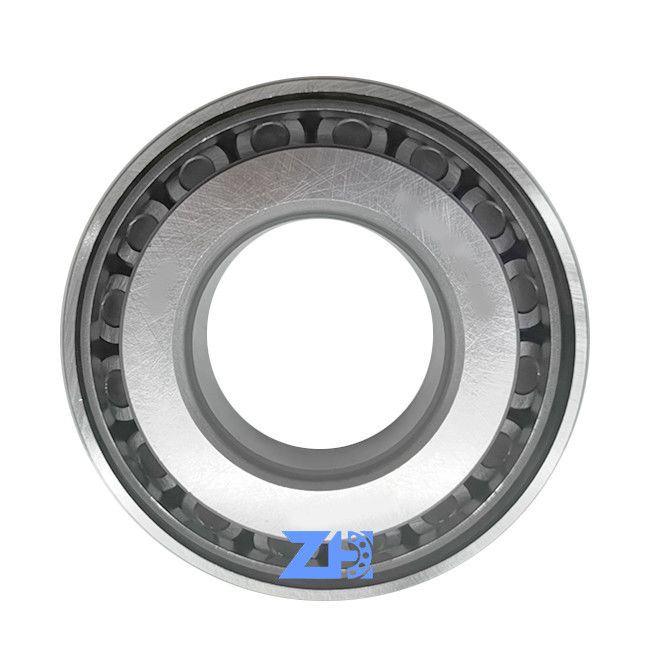

Tapered roller bearings are mainly used to radial and axial combined loads based on radial load s,
generally not suitable to bear axial loads alone, such bearings can be installed respectively the inner ring (with a full set of rollers and retainers) and the outer ring.
| d |
35 mm
|
Bore diameter |
|---|---|---|
| D |
72 mm
|
Outside diameter |
| T |
24.25 mm
|
Total width |
| d1 |
≈52.4 mm
|
Shoulder diameter of inner ring |
| B |
23 mm
|
Width of inner ring |
| C |
19 mm
|
Width of outer ring |
| r1,2 |
min.1.5 mm
|
Chamfer dimension of inner ring |
| r3,4 |
min.1.5 mm
|
Chamfer dimension of outer ring |
| a |
17.45 mm
|
Distance side face to pressure point |
| da |
max.43 mm
|
Diameter of shaft abutment |
|---|---|---|
| db |
min.43.5 mm
|
Diameter of shaft abutment |
| Da |
min.61 mm
|
Diameter of housing abutment |
| Da |
max.64.5 mm
|
Diameter of housing abutment |
| Db |
min.67 mm
|
Diameter of housing abutment |
| Ca |
min.3 mm
|
Minimum width of space required in housing on large side face |
| Cb |
min.5 mm
|
Minimum width of space required in housing on small side face |
| ra |
max.1.5 mm
|
Radius of shaft fillet |
| rb |
max.1.5 mm
|
Radius of housing fillet |
| da |
max.43 mm
|
Diameter of shaft abutment |
|---|---|---|
| db |
min.43.5 mm
|
Diameter of shaft abutment |
| Da |
min.61 mm
|
Diameter of housing abutment |
| Da |
max.64.5 mm
|
Diameter of housing abutment |
| Db |
min.67 mm
|
Diameter of housing abutment |
| Ca |
min.3 mm
|
Minimum width of space required in housing on large side face |
| Cb |
min.5 mm
|
Minimum width of space required in housing on small side face |
| ra |
max.1.5 mm
|
Radius of shaft fillet |
| rb |
max.1.5 mm
|
Radius of housing fillet |
| d |
35 mm
|
Bore diameter |
|---|---|---|
| D |
72 mm
|
Outside diameter |
| T |
24.25 mm
|
Total width |
| d1 |
≈52.4 mm
|
Shoulder diameter of inner ring |
| B |
23 mm
|
Width of inner ring |
| C |
19 mm
|
Width of outer ring |
| r1,2 |
min.1.5 mm
|
Chamfer dimension of inner ring |
| r3,4 |
min.1.5 mm
|
Chamfer dimension of outer ring |
| a |
17.45 mm
|
Distance side face to pressure point |
| M5X180 | 30312D | NUP308 | M2X120 | NUP2208 |
| 32205 | 30309D | GM35VL | 32207 | NUP2211 |
| T7FC060 | NUP2207=140 | NUP2206=130 | NUP205E | HMGC48 |
| M2X150 | 30312D | 6008 | NUP207=120 | NUP309 |
| M2X170 | NUP2209 | NUP307 | NUP2209=160 | 30312D |
| M2X210 | JMF23 | 30210 | 6305 | GM35VA |
| HMGF57 | JMF151 | 30311D | NUP2211=250 | 30312D=155 |
| NUP306 | 11749/11710 | 30210 | KMF160-PC360-7 | SG04 |
| NUP307 | NUP309=180 | KMF125-PC200-8 | MSG-27P | SG025 |
| KMF41-PC60 | NUP309 | M2X96 | NUP207 | HMGC32 |
| NUP308 | NUP206 | MCB172 | HMS072 | HMGF35 |
| JMF29 | 6305M | NUP206E | AP5S67 | M2X63 |
| NUP307 | 4T-30307 | M2X55 | NUP308=140 | NUP2208=210 |
| 30312D | SG08 | NUP307 | T7FC055=300 | NUP307=110 |
| NIP2310 | GM17VA | NUP307 | NUP309 | JMF195 |
| NUP208E | JMV-44/22 | NUP309=180 | JMF250 | NUP2212 |
| NUP308=14 | KMF125-PC200-7 | JMV-53/31 | 15578 | |
| T7FC065 | NUP2310 | NUP310 | MAG85 | NUP306 |
| 30309D=110 | 30309D | KMF90-PC200-6 | 30312 | NUP308 |
| NUP207/NUP306 | NUP2211 | NUP2206 | NUP207 |
