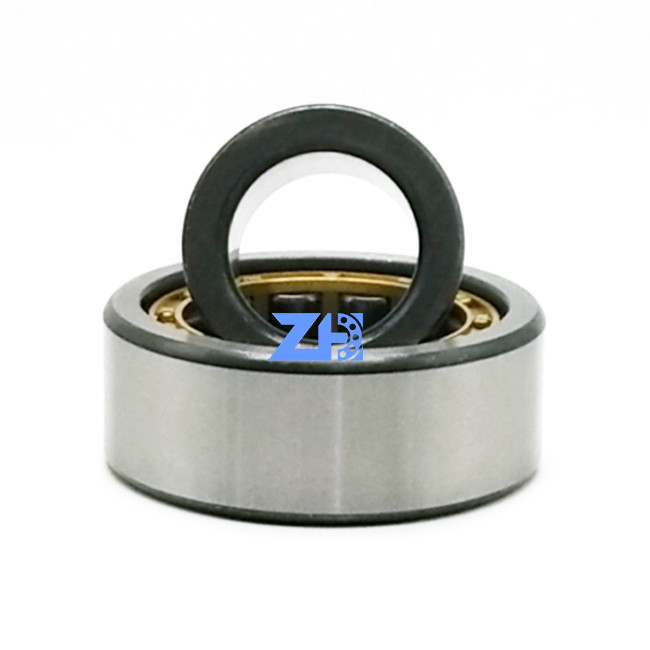

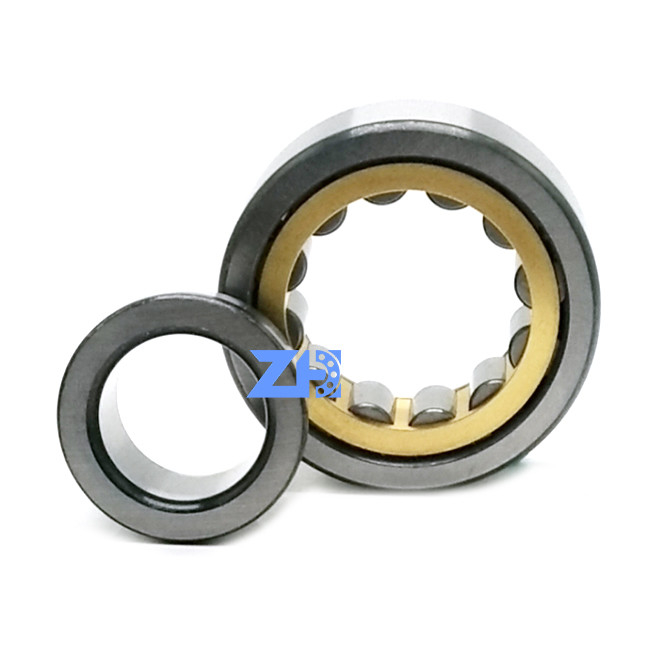

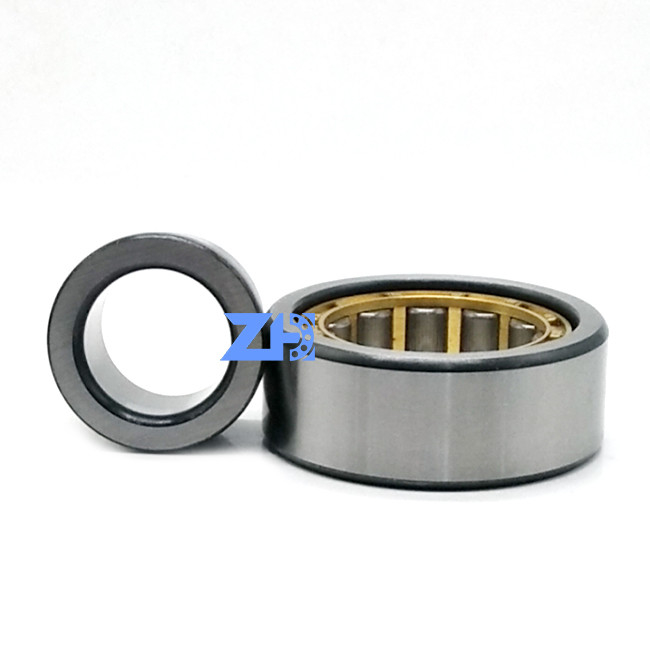

30*72*27mm NJ2306 NJ2306RS NJ2306ZZ Cylindrical roller bearing CHROME STEEL
Product introduction
The roller and raceway surface of cylindrical roller bearing is line contact,so the bearing
has high carrying radial load capacity,applicable to carrying heavy load and shock load.
Besides,owing to its structure,it's easy to high accuracy processing,applicable to highrate
rotary.Inner ring and orter ring are separable,convenient for mounting and dismounting.
| d |
40 mm
|
Bore diameter |
|---|---|---|
| D |
90 mm
|
Outside diameter |
| B |
23 mm
|
Width |
| d1 |
≈57.5 mm
|
Shoulder diameter of inner ring |
| D1 |
≈75.18 mm
|
Shoulder diameter of outer ring |
| F |
52 mm
|
Raceway diameter of inner ring |
| r1,2 |
min.1.5 mm
|
Chamfer dimension |
| r3,4 |
min.1.5 mm
|
Chamfer dimension |
| s |
max.1.4 mm
|
Permissible axial displacement |
| Product |
NJ2306-E-TVP2 Different Types Of Bearings 30x72x27 mm Cylindrical Roller Bearing NJ2306 |
| Precision Rating | ABEC1,ABEC3,ABEC5 |
| Clearance | C0,C2,C3,C4,C5 is available |
| Number of row | Single row |
| Paypal | Acceptable |
| OEM | Accept |
| Vibration Level code | V1,V2.V3 |
| Material | Gcr15 |
| Seals Type | Open |
| Mass | --kg |
| Bore Size | 30 mm |
| Outside Diameter | 72mm |
| Thickness | 27mm |
| MOQ | 1 pcs |
| Delivery Time | 3-7 days after receiving your payment |
| Payment Terms | L/C,T/T,Western Union,MoneyGram,Paypal |
| Place of Origin | ,China |
| Samples | Available |
Part of the bearing specification :
| Bearing No. | d | D | B |
| mm | mm | mm | |
| NJ2304-E-TVP2 | 20 | 52 | 21 |
| NJ2305-E-TVP2 | 25 | 62 | 24 |
| NJ2306-E-TVP2 | 30 | 72 | 27 |
| NJ2307-E-TVP2 | 35 | 80 | 31 |
| NJ2308-E-TVP2 | 40 | 90 | 33 |
| NJ2309-E-TVP2 | 45 | 100 | 36 |
| NJ2310-E-TVP2 | 50 | 110 | 40 |
| NJ2311-E-TVP2 | 55 | 120 | 43 |
| NJ2312-E-TVP2 | 60 | 130 | 46 |
| NJ2313-E-TVP2 | 65 | 140 | 48 |
| NJ2314-E-TVP2 | 70 | 150 | 51 |
| NJ2315-E-TVP2 | 75 | 160 | 55 |
| NJ2316-E-TVP2 | 80 | 170 | 58 |
| NJ2317-E-TVP2 | 85 | 180 | 60 |
| NJ2318-E-TVP2 | 90 | 190 | 64 |
| NJ2319-E-TVP2 | 95 | 200 | 67 |
| NJ2320-E-TVP2 | 100 | 215 | 73 |
| NJ2322-E-TVP2 | 110 | 240 | 80 |
| NJ2324-E-M1 | 120 | 260 | 86 |
| NJ2326-E-M1 | 130 | 280 | 93 |
| NJ2328-E-M1 | 140 | 300 | 102 |
| NJ2330-E-M1 | 150 | 320 | 108 |
| NJ2332-E-M1 | 160 | 340 | 114 |
| NJ2334-EX-TB-M1 | 170 | 360 | 120 |
| NJ2336-EX-TB-M1 | 180 | 380 | 126 |
| NJ2338-EX-TB-M1 | 190 | 400 | 132 |
| NJ2340-EX-TB-M1 | 200 | 420 | 138 |
| d |
40 mm
|
Bore diameter |
|---|---|---|
| D |
90 mm
|
Outside diameter |
| B |
23 mm
|
Width |
| d1 |
≈57.5 mm
|
Shoulder diameter of inner ring |
| D1 |
≈75.18 mm
|
Shoulder diameter of outer ring |
| F |
52 mm
|
Raceway diameter of inner ring |
| r1,2 |
min.1.5 mm
|
Chamfer dimension |
| r3,4 |
min.1.5 mm
|
Chamfer dimension |
| s |
max.1.4 mm
|
Permissible axial displacement |
| Product |
NJ2306-E-TVP2 Different Types Of Bearings 30x72x27 mm Cylindrical Roller Bearing NJ2306 |
| Precision Rating | ABEC1,ABEC3,ABEC5 |
| Clearance | C0,C2,C3,C4,C5 is available |
| Number of row | Single row |
| Paypal | Acceptable |
| Vibration Level code | V1,V2.V3 |
| Material | Gcr15 |
| Seals Type | Open |
| Mass | --kg |
| Bore Size | 30 mm |
| Outside Diameter | 72mm |
| Thickness | 27mm |
| MOQ | 1 pcs |
| Delivery Time | 3-7 days after receiving your payment |
| Payment Terms | L/C,T/T,Western Union,MoneyGram,Paypal |
| Place of Origin | , China |
| Samples | Available |
| HMK3525+IR | T7FC055 | SG02 | GM38VB | HMT36FA |
| NUP2209 | NUP310 | SG15 | MAG150 | GM18VL |
| NUP2209 | NUP308 | SG20 | TM09 | AP5S53 |
| NUP2212 | 30314D=250 | 30311D | NUP2212=220 | NUP2207 |
| M2X146 | NUP309 | T7FC055 | DNB50/60 | NUP2207 |
| NUP309 | T7FC055 | MAG120 | NUP207 | NUP309=180 |
| NUP2212 | 30312D | MAG150 | 6213 | HMGF36 |
| I84M5X130 | 30314D | NUP309 | 30312D=155 | NUP206=100 |
| M5X180 | 30312D | NUP308 | M2X120 | NUP2208 |
| 32205 | 30309D | GM35VL | 32207 | NUP2211 |
| T7FC060 | NUP2207=140 | NUP2206=130 | NUP205E | HMGC48 |
| M2X150 | 30312D | 6008 | NUP207=120 | NUP309 |
| M2X170 | NUP2209 | NUP307 | NUP2209=160 | 30312D |
| M2X210 | JMF23 | 30210 | 6305 | GM35VA |
| HMGF57 | JMF151 | 30311D | NUP2211=250 | 30312D=155 |
| NUP306 | 11749/11710 | 30210 | KMF160-PC360-7 | SG04 |
| NUP307 | NUP309=180 | KMF125-PC200-8 | MSG-27P | SG025 |
| KMF41-PC60 | NUP309 | M2X96 | NUP207 | HMGC32 |
| NUP308 | NUP206 | MCB172 | HMS072 | HMGF35 |
| JMF29 | 6305M | NUP206E | AP5S67 | M2X63 |
| NUP307 | 4T-30307 | M2X55 | NUP308=140 | NUP2208=210 |
| 30312D | SG08 | NUP307 | T7FC055=300 | NUP307=110 |
| NIP2310 | GM17VA | NUP307 | NUP309 | JMF195 |
| NUP208E | JMV-44/22 | NUP309=180 | JMF250 | NUP2212 |
| NUP308=14 | KMF125-PC200-7 | JMV-53/31 | 15578 | |
| T7FC065 | NUP2310 | NUP310 | MAG85 | NUP306 |
| 30309D=110 | 30309D | KMF90-PC200-6 | 30312 | NUP308 |
| NUP207/NUP306 | NUP2211 | NUP2206 | NUP207 |
