Place of Origin:
China
Brand Name:
ZH
Model Number:
55206/55437

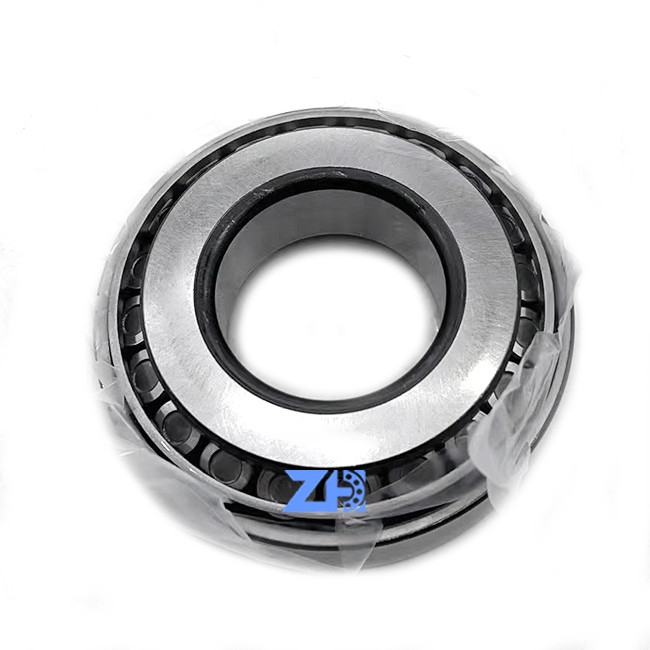

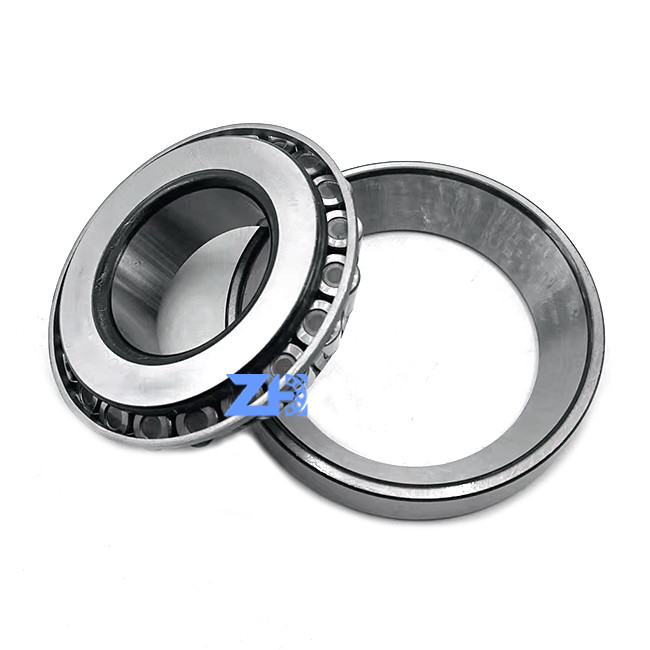

55206/55437 tapered roller bearing steel cage consists of a conical outer ring 52.388mm*111.125mm*26.909mm
| Product name | 55206/55437 |
| Material | CHROME STEEL |
| Number Of Row | single column |
| Packing | Neutral packing |
| quality | Good quality |
| Place of Origin | China |
| Payment | T/T Paypal Western Union Trade assurance |
| Packing | bags,carcon box,wooden case or as requested |
| 245BA35 | BA345-1SA |
| BA246-1SA | 150BA-182 |
| BA246-2SA/SF4903 | BA135-6(135BA-16) |
| SF4860PX1 | BN230-7 |
| 151BA179VS | SF2912PX1 |
| BA152-2036 | 150BA20V-2 |
| SF2912PX1 | BD135-6 |
| 150BA20V-2 | 135BA-6 |
| 150BA18VS | 135BA-16 |
| 151BA179VS | SF2812VPX |
| BA152-2036 | BD140-1PX1 |
| SF2907VPX1 | 140BA-18 |
| BD185-6A | BD130-2SA(DE2622) |
| 200BA27V-2 | BA130-1SA |
| SF4007PX1 | BD130-16SA |
| SF4007PX1 | BD135-6 |
| SF4019PX1 | 135BA-6 |
| BA200-6A(SF4021) | 135BA-16 |
| SF3227PX1/SF3215 | SF2812VPX |
| 165BA210/AC3321 | BD140-1PX1 |
| d - Bore | 2.0625 in 52.388 mm |
| D - Cup Outer Diameter | 4.3750 in 111.125 mm |
| B - Cone Width | 1.0594 in 26.909 mm |
| C - Cup Width | 0.8125 in 20.638 mm |
| T - Bearing Width | 1.1875 in 30.163 mm |
| R - Cone Backface "To Clear" Radius1 | 0.14 in 3.600 mm |
| r - Cup Backface "To Clear" Radius2 | 0.13 in 3.3 mm |
| da - Cone Frontface Backing Diameter | 2.51 in 63.9 mm |
| db - Cone Backface Backing Diameter | 2.83 in 72 mm |
| Da - Cup Frontface Backing Diameter | 4.15 in 105.40 mm |
| Db - Cup Backface Backing Diameter | 3.62 in 91.95 mm |
| Ab - Cage-Cone Frontface Clearance | 0.16 in 4.1 mm |
| Aa - Cage-Cone Backface Clearance | 0.16 in 4.1 mm |
| a - Effective Center Location3 | 0.28 in 7.1 mm |
We can provide different types of deep groove ball bearings, including bearings, cylindrical roller deep groove ball bearings, tapered roller deep groove ball bearings, self-aligning ball deep groove ball bearings, angular contact ball deep groove ball bearings, thrust ball deep Groove ball bearings, thrust roller deep groove ball bearings, deep groove ball bearings with housings, needle roller deep groove ball bearings, joint deep groove ball bearings, high temperature resistant deep groove ball bearings, stainless steel deep groove ball bearings, plastic Deep groove ball bearings, ceramic deep groove ball bearings, adapter sleeves, linear deep groove ball bearings
