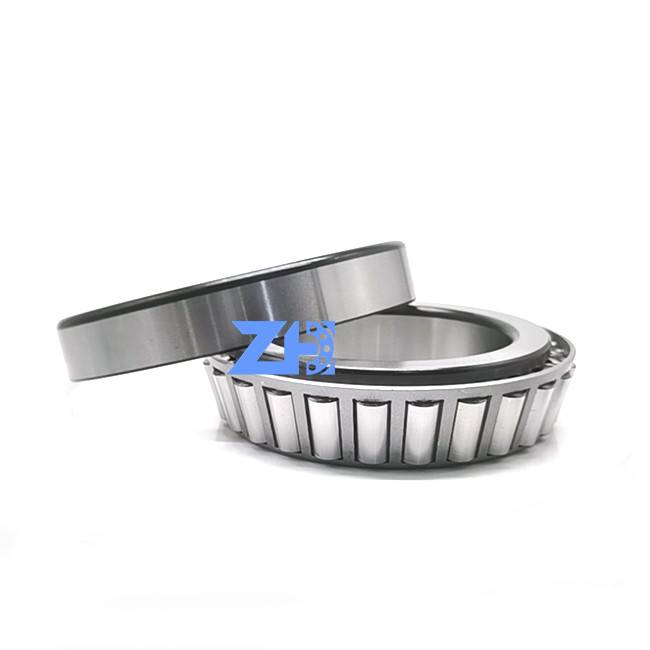

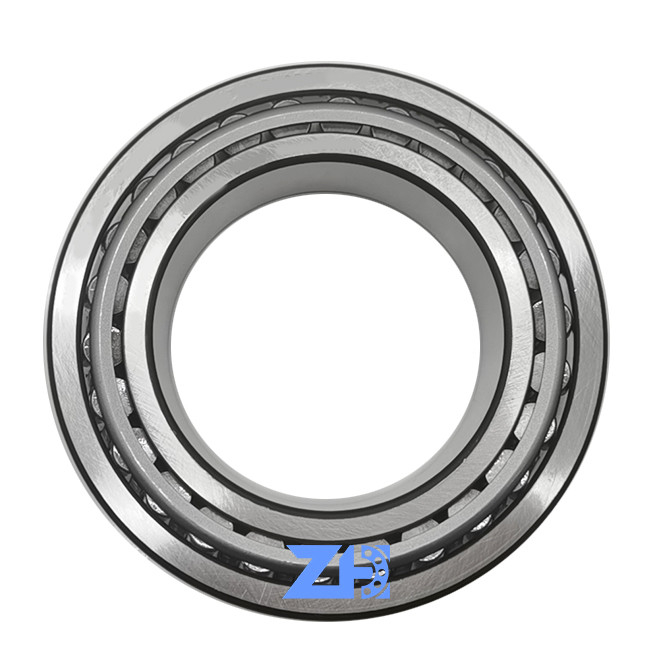

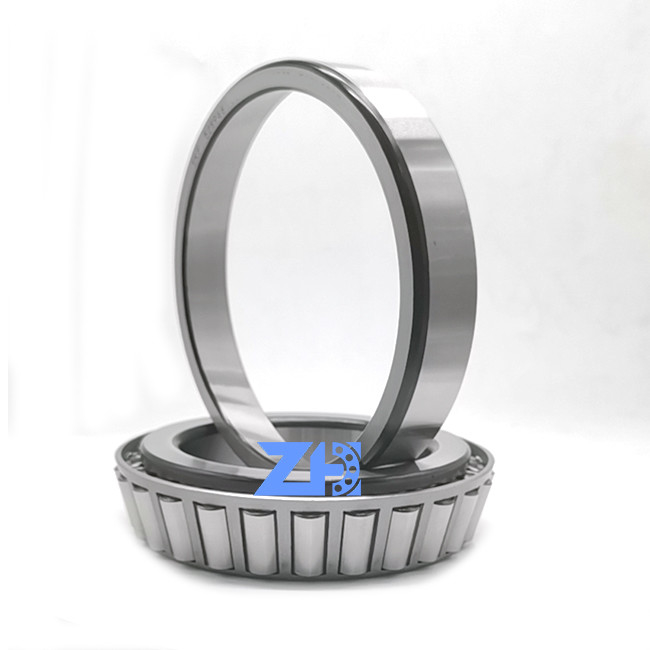

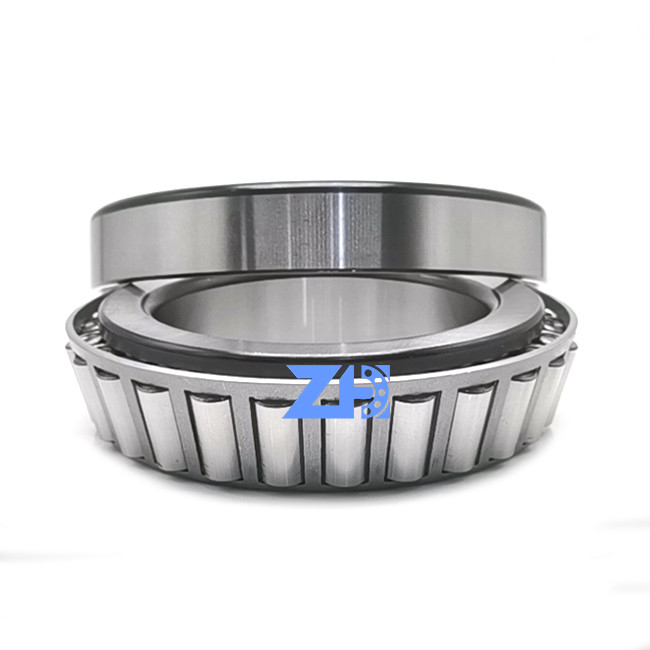

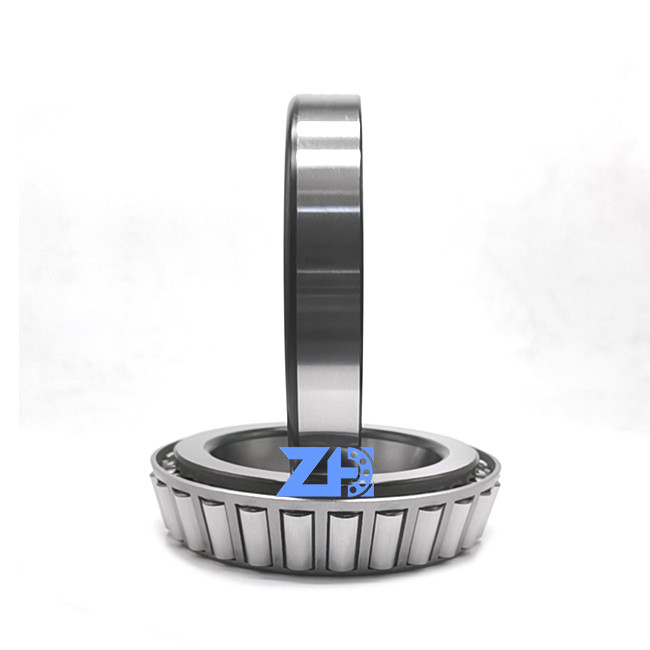

528946 528946VA 528946C3 p0 p5 p3 Quality Level 105*170*38mm Taper Roller Bearing
Product introduction
508946 Tapered roller bearings consist of four interdependent components: the cone (inner ring), the cup (outer ring), the tapered rollers (rolling elements) and the cage (roller retainer). Tapered roller bearings are uniquely designed to manage both thrust and radial loads between a rotating and non-rotating member.
|
Weight
|
3.360 kg
|
|
Manufacturer
|
ZH
|
|
Bearing Type
|
TAPERED ROLLER BEARING
|
|
Bearing Warranty
|
Unbiased 100,000 mile / 2 years warranty*
|
|
Linked Vehicle
|
MERCEDES
|
|
Inner Diameter
|
105.00mm
|
|
Outer Diameter
|
170.00mm
|
|
Width
|
38.00mm
|
Tapered roller bearing size chart:
|
Bearing Number
|
d(mm)
|
D(mm)
|
T(mm)
|
W(KG)
|
|
HR32004XJ
|
20
|
42
|
15
|
0.097
|
|
HR32005XJ
|
25
|
47
|
15
|
0.11
|
|
HR32006XJ
|
30
|
55
|
17
|
0.17
|
|
HR32007XJ
|
35
|
62
|
18
|
0.22
|
|
HR32008XJ
|
40
|
68
|
19
|
0.27
|
|
HR32009XJ
|
45
|
75
|
20
|
0.34
|
|
HR32010XJ
|
50
|
80
|
20
|
0.37
|
|
HR32011XJ
|
55
|
90
|
23
|
0.55
|
|
HR32012XJ
|
60
|
95
|
23
|
0.59
|
|
HR32013XJ
|
65
|
100
|
23
|
0.63
|
|
HR32014XJ
|
70
|
110
|
25
|
0.84
|
|
HR32015XJ
|
75
|
115
|
25
|
0.90
|
|
HR32016XJ
|
80
|
125
|
29
|
1.30
|
|
HR32017XJ
|
85
|
130
|
29
|
1.35
|
|
HR32018XJ
|
90
|
140
|
32
|
1.75
|
|
HR32019XJ
|
95
|
145
|
32
|
1.80
|
|
HR32020XJ
|
100
|
150
|
32
|
1.90
|
|
HR32021XJ
|
105
|
160
|
35
|
2.40
|
|
HR32022XJ
|
110
|
170
|
38
|
3.05
|
|
HR32024XJ
|
120
|
180
|
38
|
3.25
|
|
HR32026XJ
|
130
|
200
|
45
|
4.95
|
|
HR32028XJ
|
140
|
210
|
45
|
5.25
|
|
HR32030XJ
|
150
|
225
|
48
|
6.35
|
528946 Collection
| NUP2212 | 30314D=250 | 30311D | NUP2212=220 | NUP2207 | NUP208E |
| M2X146 | NUP309 | T7FC055 | DNB50/60 | NUP2207 | NUP308=14 |
| NUP309 | T7FC055 | MAG120 | NUP207 | NUP309=180 | T7FC065 |
| NUP2212 | 30312D | MAG150 | 6213 | HMGF36 | JMF151 |
| I84M5X130 | 30314D | NUP309 | 30312D=155 | NUP206=100 | 11749/11710 |
| M5X180 | 30312D | NUP308 | M2X120 | NUP2208 | NUP309=180 |
| 32205 | 30309D | GM35VL | 32207 | NUP2211 | NUP309 |
| T7FC060 | NUP2207=140 | NUP2206=130 | NUP205E | HMGC48 | NUP310 |
| M2X150 | 30312D | 6008 | NUP207=120 | NUP309 | KMF90-PC200-6 |
| M2X170 | NUP2209 | NUP307 | NUP2209=160 | 30312D | NUP2206 |
| M2X210 | JMF23 | 30210 | 6305 | GM35VA | 30309D=110 |
| HMGF57 | 15578 | 30311D | NUP2211=250 | 30312D=155 | NUP207/NUP306 |
| NUP306 | NUP306 | 30210 | KMF160-PC360-7 | SG04 | JMV-53/31 |
| NUP307 | NUP308 | KMF125-PC200-8 | MSG-27P | SG025 | MAG85 |
| KMF41-PC60 | NUP207 | M2X96 | NUP207 | HMGC32 | 30312 |
| NUP308 | NUP206 | MCB172 | HMS072 | HMGF35 | NUP309=180 |
| JMF29 | 6305M | NUP206E | AP5S67 | M2X63 | JMV-44/22 |
| NUP2310 | 4T-30307 | M2X55 | NUP308=140 | NUP2208=210 | KMF125-PC200-7 |
| 30309D | SG08 | NUP307 | T7FC055=300 | NUP307=110 | NUP2212 |
| NUP2211 | GM17VA | NUP307 | NUP309 | JMF195 | JMF250 |
