Place of Origin:
China
Brand Name:
CNZH
Model Number:
30205

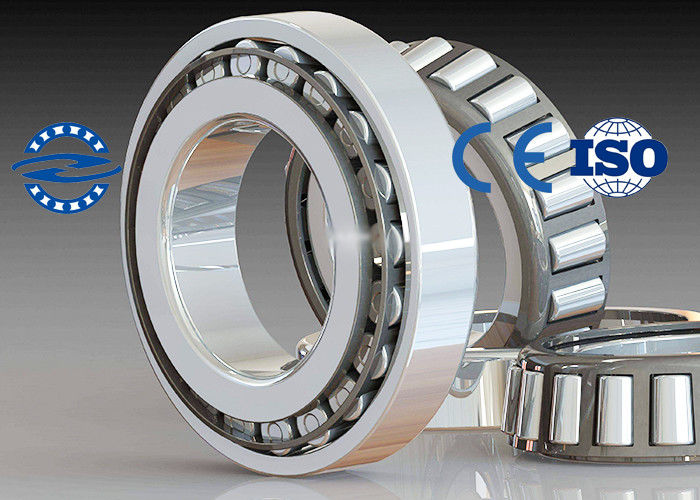

High precision bearing 30205 one way taper roller bearing
Characteristics
| Product name | Taper roller bearing |
| Model | 30205 |
| Size | 25*52*16.5mm |
| Weight | 0.15kg |
| Number of row | Single Row |
| Material | GCR15 |
| Appliexcavatorion | Machinery |
| Cage | Steel Cage |
| Vibration | V1 V2 V3 |
Tapered roller bearings mainly bear combined loads in radial and axial, with radial chiefly. Their load capacity depends on the outer nng raceway angle The greater the angle is, the more bearing can carry. These bearings are separable bearings, and can be divided into single row. double row and tour row tapered roiler bearings according to the number of columns of rolling elements. Single row tapered roller bearing clearance is to be adjusted during installation by the users. Double row and four row tapered roller bearing clearances have been given based on user requirements in the factory, and are unnecessary to be adjusted for users.

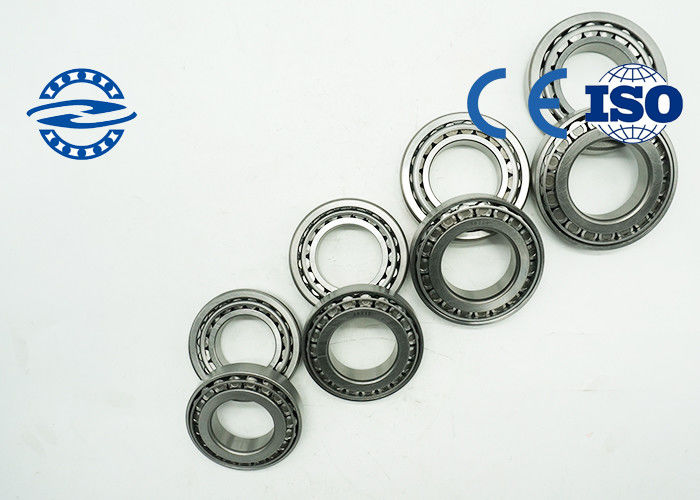

More size
| 30200series | ||
| Bearing Number | Dimension | Weight(kg) |
| 30205 | 25*52*16.5 | 0.15 |
| 30206 | 30*62* 17.5 | 0.232 |
| 30207 | 35*72*18.5 | 0.31 |
| 30208 | 40*80*20 | 0.4 |
| 30209 | 45*85*21 | 0.474 |
| 30210 | 50*90*22 | 0.522 |
| 30211 | 55*100*23 | 0.709 |
| 30212 | 60*110*24 | 0.901 |
| 30213 | 65*120*25 | 1.1 |
| 30214 | 70*125*26.5 | 1.27 |
| 30215 | 75*130*27.5 | 1.35 |
| 30216 | 80*140*28.5 | 1.65 |
| 30217 | 85*150*31 | 2.1 |
| 30218 | 90*160*33 | 2.52 |
| 30210 | 95*170*35 | 3.17 |
| 30220 | 100*180*37.5 | 3.8 |
| 30221 | 105*190*39.5 | 4.5 |
| 30222 | 110*200*41.5 | 5.16 |
| 30224 | 120*215*44 | 6.27 |
| 30226 | 130*230*44.5 | 7.43 |
| 30228 | 140*250*46.5 | 8.81 |
| 30230 | 150*270*50 | 10.2 |
| 30232 | 1600*2900*53 | 13.4 |
| 30234 | 170*310*52 | 16.6 |
| 30236 | 180*320*58 | 17.8 |
| 30300series | ||
| Bearing Number | Dimension | Weight(kg) |
| 30305 | 25*62*18.5 | 0.25 |
| 30306 | 30*72*21 | 0.393 |
| 30307 | 35*80*23 | 0.496 |
| 30308 | 40*90*25.5 | 0.7 |
| 30309 | 45*100*27.5 | 0.954 |
| 30310 | 50*110*29.5 | 1.33 |
| 30311 | 55*120*32 | 1.61 |
| 30312 | 60*130*34 | 2 |
| 30313 | 65*140*36.5 | 2.53 |
| 30314 | 70*150*38.5 | 3.09 |
| 30315 | 75*160*40.5 | 3.54 |
| 30316 | 80*170*43 | 4.5 |
| 30317 | 85*130*45 | 5.25 |
| 30318 | 90*190*47 | 5.79 |
| 30319 | 95*200*50 | 7.2 |
| 30320 | 100*215*52 | 8.27 |
| 30321 | 105*225*54 | 10.5 |
| 30322 | 110*240*55 | 11.4 |
| 30324 | 120*260*60 | 13.8 |
| 30326 | 130*280*64 5 | 20.5 |
| 30328 | 140*300*68.5 | 21.2 |
| 30330 | 150*320*73 | 27.4 |
| 31300series | ||
| Bearing Number | Dimension | Weight(kg) |
| 31308 | 40*90*25.5 | 0.66 |
| 31309 | 45*100*27.5 | 0.974 |
| 31310 | 50*110*29.5 | 1.23 |
| 31311 | 55*120*32 | 1.5 |
| 31312 | 60*130*34 | 1.92 |
| 31313 | 65*140*36.5 | 2.29 |
PACKING&Delivery time
1.industrial packing+industrial cartons+pallets
2.follow customer's requests: Customized logo /Customized packaging
a.3-5days for samples
b.10-15days
Our company
Linqing zhonghong bearing co., LTD. Is a company with bearing production and sales, our company has many years of bearing support and industrial service experience in the industrial field. The company specializes in imported bearings, including Swedish bearing, German FAG bearing. INA bearing, Japan NSK bearing, NTN bearing, IKO bearing, KOYO bearing, American TIMKEN bearing, etc. Domestic brands include: ZWZ bearing. Harbin HRB bearing, luoyang LYC bearing, etc. Involving type: deep groove ball bearings, self-aligning ball bearings, cylindrical roller bearing, spherical roller bearings, angular contact bearings, tapered roller bearings, thrust ball bearings, thrust roller bearings, needle roller bearings, joint bearings, outer spherical bearings, bearing special appliexcavatorions.
We seek development by reputation, benefit from management, and use service to compete with customers. In the face of increasingly fierce market competition, we constantly improve ourselves and grow stronger. We have a group of professional and technical personnel. and fusion
international well-known large companies operating management mode, actively explore the market, easy to provide users from all walks of life from product introduction to technical communiexcavatorion and product after-sales service one-stop service. Over the years,with good reputation and excellent quality, a complete set of sales system has been established, which has established long-term cooperative relations with hundreds of customers throughout the country.
We sincerely welcome you to visit our factory, you may fly to Jinan airport and we provide pick-up service.
FAQ
1. How long can the inquiry be answered?
If we got you inquiry list will feedback within 2-6 hours. Urgent will be faster.
2. How about your quality of bearings?
Strictly follow ISO9001 standard for production.
3. What is the MOQ of your products?
Usually >1,depending on the model.
4. How about the Delivery time?
About 3・ 15days. (According tothequantity.)
5. How do you check the quality before delivery?
Our company has a professional quality inspect!on department,
which strictly controls the quality of products.
6. if there is a problem with the products we receive, how can you solve it?
If have any questions, please con tact us in time.
We will deal with them immediately.
7. How long will our question be answered?
We will respond within 1 hour and solve it within 24 hours.
