Place of Origin:
China
Brand Name:
CNZH NTN NSK Koyo
Model Number:
6005

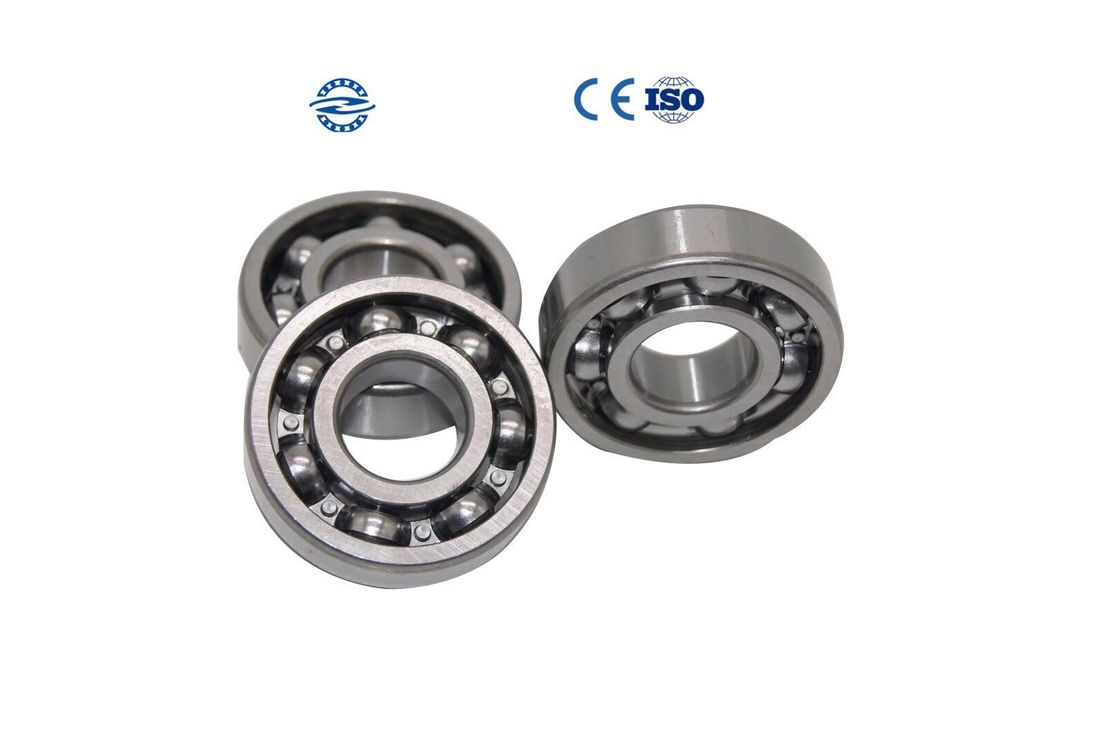

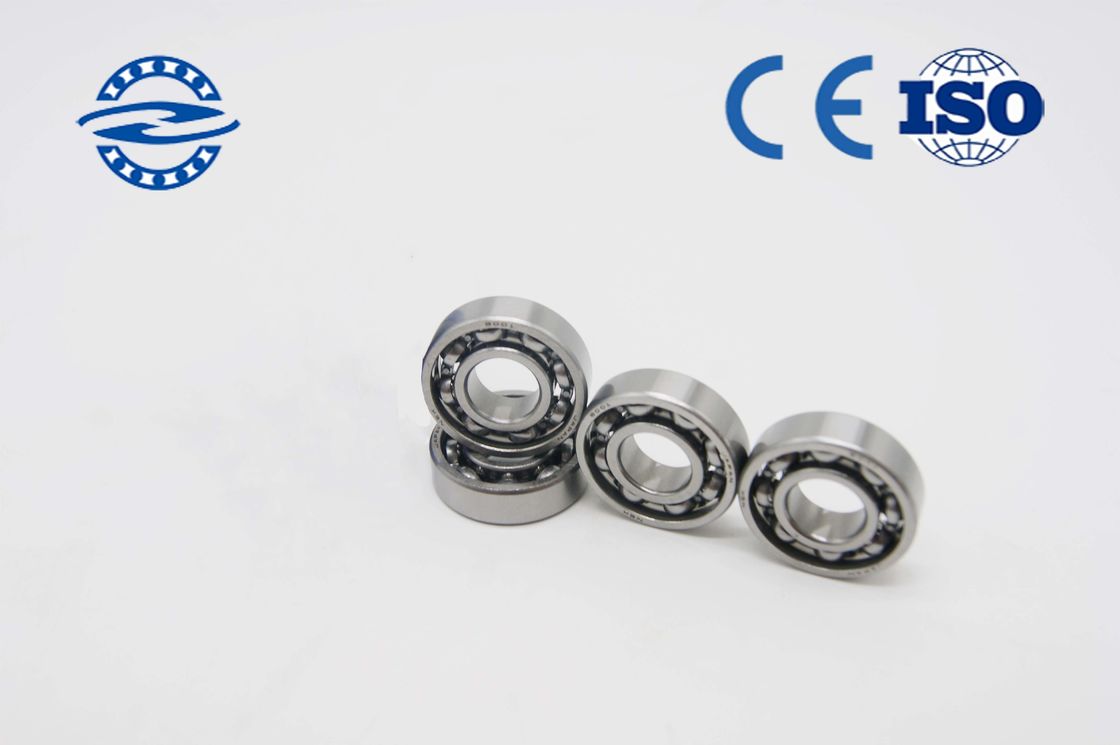

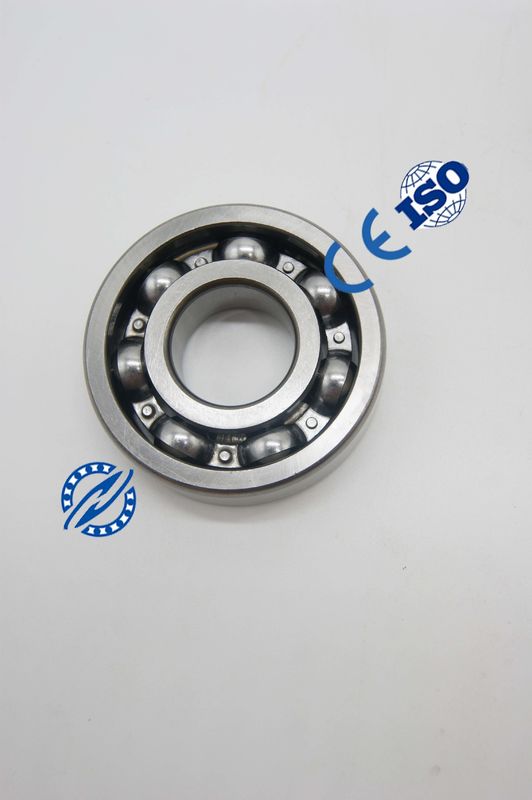

Chrome steel 6005zz/rs deep groove bearing axial load size 25*47*12
Introduction
Ball Bearingcosist of rings with raceway(an inner ring and ourter ring),rolling elements (balls ) and a retainer.
The retainer that separates the rolling elements at regular intervals holds them in place within the inner and outer raceways and allows them to rotate freely.
The retainer only serves to hold the balls at equal distances from one another.
Balls geometrically contact the raceway surfaces of the inner&ourter ring at points.
| Structure | deep groove | Model Number | 6000 | |
| Type | Ball | Precision Rating | P0 P6 P5 | |
| Brand Name | CNZH | Seals Type | OPEN /SEALED | |
| Material | GCR15 | Number of Row | Single Row Double row | |
| Cage | steel/brass | Place of Origin | Shandong, China (Mainland) | |
| Clearance | C2, C3,C4,C5 | Samples | Free | |
| Hardness | HRC58-62 | Certifiexcavatore | IS09001:2008 | |
| Bore Size | 10 - 140 mm | OEM service | available | |
| Outside Diameter | 35 - 300 mm | Supplying ability | great number with stock and new products | |
| Bearing Number | Dimension(mm) | Weight(kg) | ||
| 6004 | 20X42X12 | 0.069 | ||
| 6005 | 25X47X12 | 0.0743 | ||
| 6006 | 30X55X13 | 0.112 | ||
| 6007 | 35X62X14 | 0.146 | ||
| 6008 | 40X68X15 | 0.182 | ||
| 6009 | 45X75X16 | 0.229 | ||
| 6010 | 50X80X16 | 0.249 | ||
| 6011 | 55X90X18 | 0.374 | ||
| 6012 | 60X95X18 | 0.38 | ||
| 6013 | 65X100X18 | 0.43 | ||
| 6014 | 70X110X20 | 0.586 | ||
| 6015 | 75X115X20 | 0.63 | ||
| 6016 | 80X125X22 | 0.858 | ||
| 6017 | 85X130X22 | 0.88 | ||
| 6018 | 90X140X24 | 1.16 | ||
| 6019 | 95X145X24 | 1.18 | ||
| 6020 | 100X150X24 | 1.22 | ||
| 6021 | 105X160X26 | 1.56 | ||
| 6022 | 110X170X28 | 1.95 | ||
| 6024 | 120X180X28 | 1.99 | ||
| 6026 | 130X200X33 | 3.08 | ||
| 6028 | 140X210X33 | 3.17 | ||
| 6030 | 150X225X35 | 3.903 | ||
| 6032 | 160X240X38 | 4.83 | ||
| 6034 | 170X260X42 | 6.5 | ||
| 6036 | 180X280X46 | 8.51 | ||
| 6038 | 190X290X46 | 8.865 | ||
| 6040 | 200X310X51 | 11.64 | ||
| 6044 | 220X340X56 | 19 | ||
| 6048 | 240X360X56 | 20 | ||
| 6052 | 260X400X65 | 28.8 | ||
Material
1.CA: Integral brass cage, double row symmetrical rollers,inner ring ride
2.MA: Integral brass cage, double row symmetrical rollers ,outer ring ride
3.MB: Two piece brass cage,double row asymmetrical rollers, inner ring ride
4.CC: Two piece steel cage, double row symmetrical rollers,inner ring ride
5.W33: With lubriexcavatorion groove in outer ring,with three oil holes
6.C2/C3/C4: Internal clearance series: C2,C0,C3, and C4
Appliexcavatorion
Our products are mainly used in industrial fields, such as cement equipment, mining equipment, mill equipment, power plant equipment, paper making equipment, oil field equipment, metallurgical equipment, and so on. Large size bearing is our advantage.
Our Warehouse
We have many large size bearings in stock. Most of the common bearings model is in stock.
A: Plastic tube + out carton box +pallets
B: Single box+outer carton+pallets
C: According to your requirement
FAQ
Q: Why do we choose your company?
A: We always insist quality first. We have our bearing factory, therefore we have advantage in quality control and price of one way clutch bearing.
Q:What is the delivery time?
A: Most of the bearing we have stock. For small quantity, we will arrange delivery within 15 days.
Q: What is your payment term?
A: Our payment term include L/C, T/T, Western Union, Paypal etc.
Q: Can you send bearing samples first?
A: Yes, we can send bearing samples of one way clutch bearing to check quality first.
