Place of Origin:
CHINA
Brand Name:
NSK NTNKOYO CNZH
Model Number:
30209

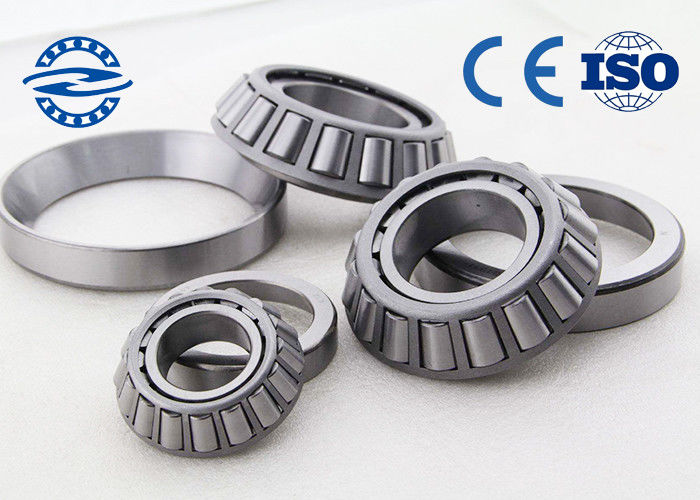

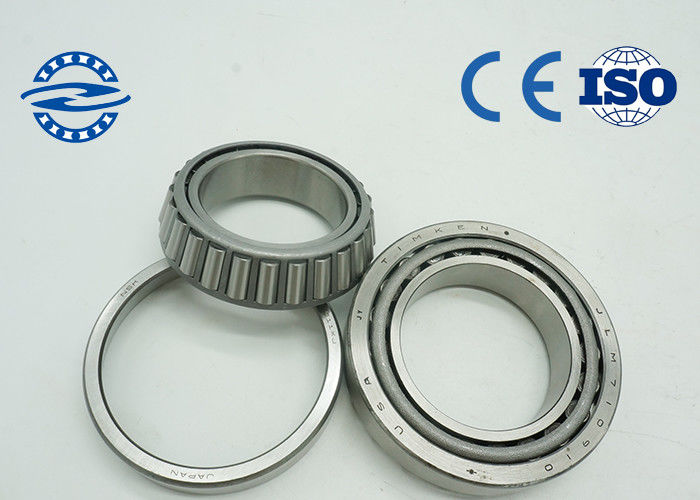

Tapered Roller Bearing 30209 Single Row Double Row with V1 V2 V3 Vibration

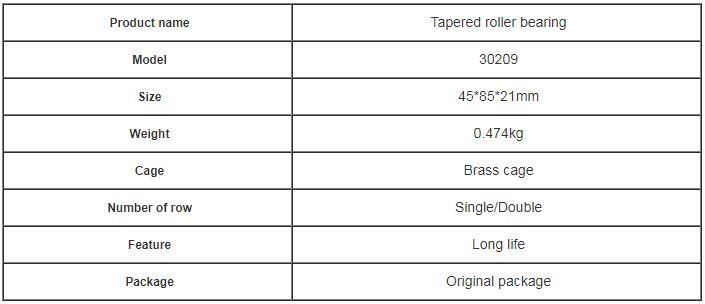

| Product name | Tapered roller bearing |
| Model | 30209 |
| Size | 45*85*21mm |
| Weight | 0.474kg |
| Cage | Brass cage |
| Number of row | Single/Double |
| Feature | Long life |
| Package | Original package |
1 . Basic info
a.The tapered roller bearing is assembled through a rolling element . Guided by the sidewall of an inner ring , it can bear radial load and axial load in one direction .
b.As a kind of thrust bearing , this product is mostly applied in the car differential, front wheel , rear wheel , machine tool , axle , construction machinery , various vehicle transmission systems , the hoisting and conveying machinery , and more .
2 . Package
1 . Neutral Packing : White Plastic bag/Outer Carton / Pallet
2 . ZH Brand packing : ZH Plastic bag / outer carton/Pallet
3. Other models
| 30200series | ||
| Bearing Number | Dimension | Weight(kg) |
| 30205 | 25*52*16.5 | 0.15 |
| 30206 | 30*62* 17.5 | 0.232 |
| 30207 | 35*72*18.5 | 0.31 |
| 30208 | 40*80*20 | 0.4 |
| 30209 | 45*85*21 | 0.474 |
| 30210 | 50*90*22 | 0.522 |
| 30211 | 55*100*23 | 0.709 |
| 30212 | 60*110*24 | 0.901 |
| 30213 | 65*120*25 | 1.1 |
| 30214 | 70*125*26.5 | 1.27 |
| 30215 | 75*130*27.5 | 1.35 |
| 30216 | 80*140*28.5 | 1.65 |
| 30217 | 85*150*31 | 2.1 |
| 30218 | 90*160*33 | 2.52 |
| 30210 | 95*170*35 | 3.17 |
| 30220 | 100*180*37.5 | 3.8 |
| 30221 | 105*190*39.5 | 4.5 |
| 30222 | 110*200*41.5 | 5.16 |
| 30224 | 120*215*44 | 6.27 |
| 30226 | 130*230*44.5 | 7.43 |
| 30228 | 140*250*46.5 | 8.81 |
| 30230 | 150*270*50 | 10.2 |
| 30232 | 1600*2900*53 | 13.4 |
| 30234 | 170*310*52 | 16.6 |
| 30236 | 180*320*58 | 17.8 |
4 . Appliexcavatorion
They are widely used in automobile , electrical . (home appliances , electric tools , fitness
equipment , motors , medical devices , motorbikes , textile machines ) .
Tapered roller bearing have inner and outer ring raceways and tapered rollers arranged in
between . Conical surface of the projection lines of all are the same point on the
bearing axis together .
Tapered roller bearing is mainly exposed to the radial diameter , axialT load .
Load carrying capacity depends on the angle of the outer ring raceway ,
the greater the angle the greater the carrying capacity .
5.FAQ
Q : Are you a trader or manufacturer ?
A : We are factory specializing in all kind of bearings . We can give you the best price and better service .
Q : What is your delivery time ?
A : Sample order : Immediate delivery , bulk order : usually 30 days .
Q : Can i request sample ?
A : Of course , sample is ok and we can give you a sample by free .
Q : What's the shipping way ?
A : According to YOUR demands .
