Place of Origin:
CHINA
Brand Name:
Z&H
Model Number:
30211

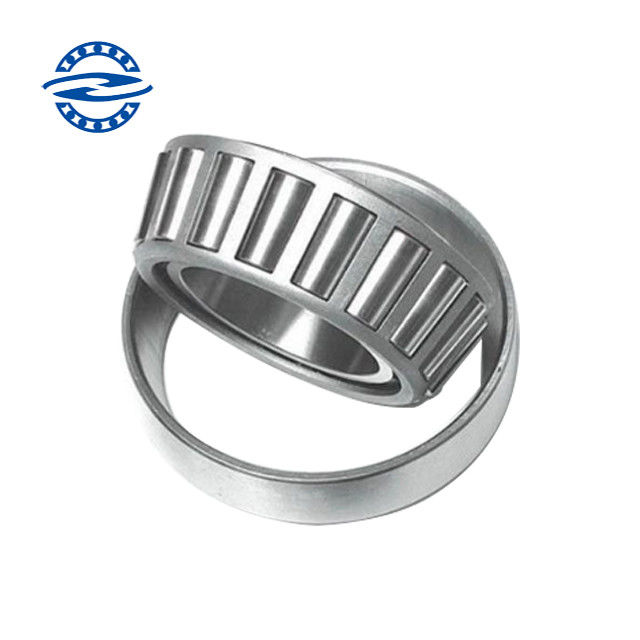

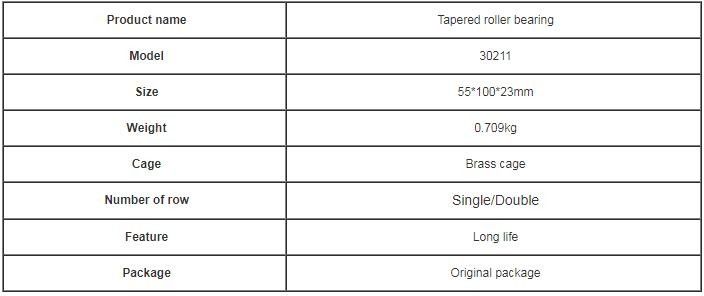

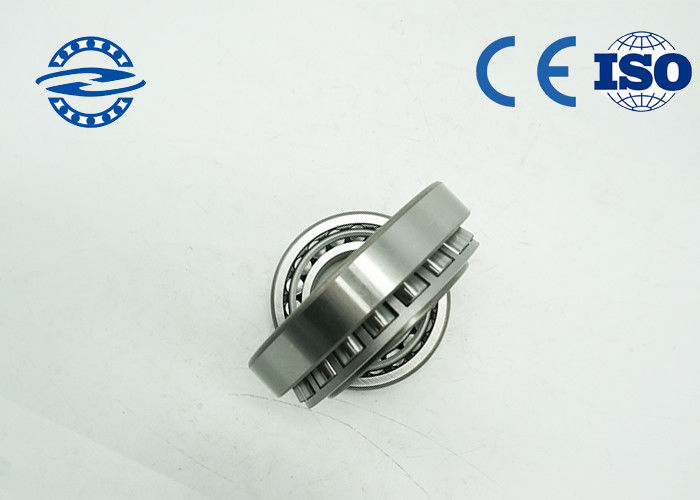

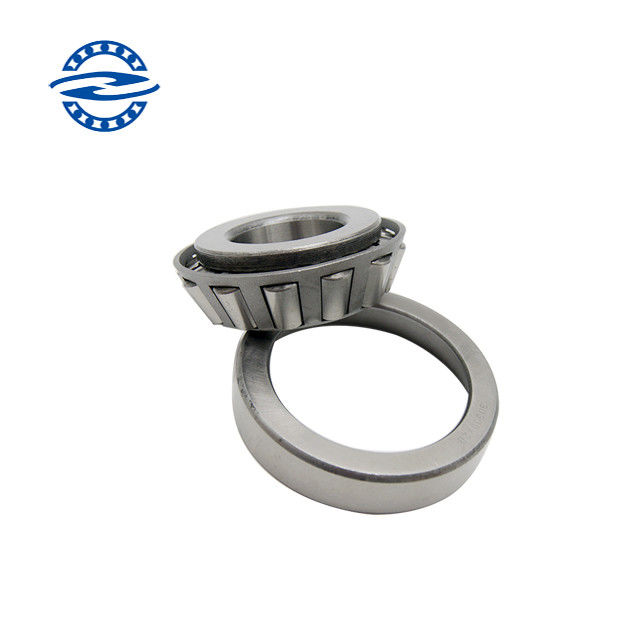

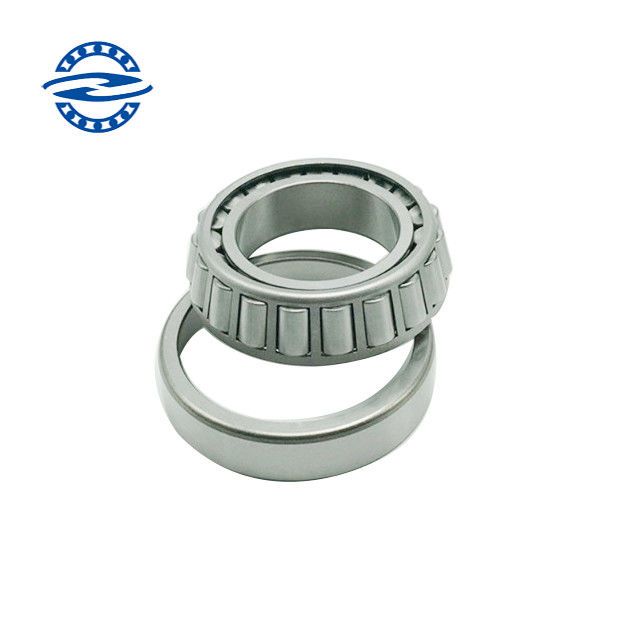

Taper Roller Bearing 30211 Size 55*100*22.75mm Weight 0.7KG
a.The tapered roller bearing is assembled through a rolling element . Guided by the sidewall of an inner ring , it can bear radial load and axial load in one direction .
b.As a kind of thrust bearing , this product is mostly applied in the car differential, front wheel , rear wheel , machine tool , axle , construction machinery , various vehicle transmission systems , the hoisting and conveying machinery , and more .
Other models
| Dimensions (mm) |
Basic load ratings (kN) |
Cone | Cup | Mass (Kg) |
Bearing No. | ||||||
| d | D | T | Cr | Cor | B | R | C | r | (Approx.) | NO | ISO 355 |
| 17 | 40 | 13.25 | 20.5 | 20.3 | 12 | 1 | 11 | 1 | 0.08 | 30203 | T2DB017 |
| 20 | 47 | 15.25 | 28.2 | 28.7 | 14 | 1 | 12 | 1 | 0.127 | 30204 | T2DB020 |
| 30 | 72 | 20.75 | 48.5 | 51.5 | 19 | 1.5 | 14 | 1.5 | 0.398 | 31306 | T7FB030 |
| 35 | 80 | 22.75 | 63.5 | 70.0 | 21 | 2 | 15 | 1.5 | 0.530 | 31307 | T7FB035 |
| 40 | 90 | 25.25 | 77.0 | 85.5 | 23 | 2 | 17 | 1.5 | 0.738 | 31308 | T7FB040 |
| 55 | 120 | 31.5 | 132 | 154 | 29 | 2.5 | 21 | 2 | 1.59 | 31311 | T7FB055 |
| 65 | 140 | 36 | 173 | 204 | 33 | 3 | 23 | 2.5 | 2.42 | 31313 | T7GB065 |
| 70 | 150 | 38 | 193 | 229 | 35 | 3 | 25 | 2.5 | 2.92 | 31314 | T7GB070 |
| 75 | 160 | 40 | 215 | 256 | 37 | 3 | 26 | 2.5 | 3.47 | 31315 | T7GB075 |
| 80 | 170 | 42.5 | 236 | 283 | 39 | 3 | 27 | 2.5 | 4.11 | 31316 | T7GB080 |
| 85 | 180 | 44.5 | 247 | 293 | 41 | 4 | 28 | 3 | 4.85 | 31317 | T7GB085 |
| 90 | 190 | 46.5 | 270 | 320 | 43 | 4 | 30 | 3 | 5.66 | 31318 | T7GB090 |
| 95 | 200 | 49.5 | 296 | 355 | 45 | 4 | 32 | 3 | 6.47 | 31319 | T7GB095 |
| 100 | 215 | 56.5 | 355 | 435 | 51 | 4 | 35 | 3 | 8.67 | 31320 | T7GB100 |
| 17 | 40 | 17.25 | 27.3 | 28.3 | 16 | 1 | 14 | 1 | 0.102 | 32203 | T2DD017 |
| 20 | 47 | 19.25 | 36.5 | 39.5 | 18 | 1 | 15 | 1 | 0.16 | 32204 | |
| 25 | 52 | 19.25 | 42.0 | 47.0 | 18 | 1 | 16 | 1 | 0.187 | 32205 | T2CD025 |
| 30 | 62 | 21.25 | 54.5 | 64.0 | 20 | 1 | 17 | 1 | 0.301 | 32206 | T3DC030 |
| 35 | 72 | 24.25 | 72.5 | 87.0 | 23 | 1.5 | 19 | 1.5 | 0.457 | 32207 | T3DC035 |
| 40 | 80 | 24.75 | 79.5 | 93.5 | 23 | 1.5 | 19 | 1.5 | 0.558 | 32208 | T3DC040 |
| 45 | 85 | 24.75 | 82.0 | 100 | 23 | 1.5 | 19 | 1.5 | 0.607 | 32209 | T3DC045 |
| 50 | 90 | 24.75 | 87.5 | 109 | 23 | 1.5 | 19 | 1.5 | 0.648 | 32210 | T3DC050 |
| 55 | 100 | 26.75 | 108 | 134 | 25 | 2 | 21 | 1.5 | 0.876 | 32211 | T3DC055 |
| 60 | 110 | 29.75 | 130 | 164 | 28 | 2 | 24 | 1.5 | 1.18 | 32212 | T3EC060 |
| 65 | 120 | 32.75 | 159 | 206 | 31 | 2 | 27 | 1.5 | 1.58 | 32213 | T3EC065 |
| 70 | 125 | 33.25 | 166 | 220 | 31 | 2 | 27 | 1.5 | 1.68 | 32214 | T3EC070 |
| 75 | 130 | 33.25 | 168 | 224 | 31 | 2 | 27 | 1.5 | 1.74 | 32215 | T4DC075 |
| 80 | 140 | 35.25 | 199 | 265 | 33 | 2.5 | 28 | 2 | 2.18 | 32216 | T3EC080 |
| 85 | 150 | 38.5 | 224 | 300 | 36 | 2.5 | 30 | 2 | 2.75 | 32217 | T3EC085 |
| 90 | 160 | 42.5 | 262 | 360 | 40 | 2.5 | 34 | 2 | 3.49 | 32218 | T3FC090 |
| 95 | 170 | 45.5 | 299 | 415 | 43 | 3 | 37 | 2.5 | 4.3 | 32219 | T3FC095 |
| 100 | 180 | 49 | 330 | 465 | 46 | 3 | 39 | 2.5 | 5.12 | 32220 | T3FC100 |
| 32 | 75 | 29.75 | 84.0 | 102 | 28 | 1.5 | 23 | 1.5 | 0.659 | 323/32X | |
| 20 | 52 | 22.25 | 46.5 | 48.5 | 21 | 1.5 | 18 | 1.5 | 0.245 | 32304 | T2FD020 |
| 25 | 62 | 25.25 | 61.5 | 64.5 | 24 | 1.5 | 20 | 1.5 | 0.381 | 32305 | T2FD025 |
| 30 | 72 | 28.75 | 81.0 | 90.0 | 27 | 1.5 | 23 | 1.5 | 0.583 | 32306 | T2FD030 |
| 35 | 80 | 32.75 | 101 | 115 | 31 | 2 | 25 | 1.5 | 0.787 | 32307 | T2EE035 |
| 40 | 90 | 35.25 | 122 | 150 | 33 | 2 | 27 | 1.5 | 1.08 | 32308 | T2FD040 |
| 45 | 100 | 38.25 | 154 | 191 | 36 | 2 | 30 | 1.5 | 1.46 | 32309 | T2FD045 |
| 50 | 110 | 42.25 | 184 | 232 | 40 | 2.5 | 33 | 2 | 1.92 | 32310 | T2FD050 |
| 55 | 120 | 45.5 | 215 | 275 | 43 | 2.5 | 35 | 2 | 2.44 | 32311 | T2FD055 |
| 60 | 130 | 48.5 | 244 | 315 | 46 | 3 | 37 | 2.5 | 3.02 | 32312 | T2FD060 |
| 65 | 140 | 51 | 273 | 350 | 48 | 3 | 39 | 2.5 | 3.66 | 32313 | T2GD065 |
| 70 | 150 | 54 | 310 | 405 | 51 | 3 | 42 | 2.5 | 4.46 | 32314 | T2GD070 |
| 75 | 160 | 58 | 355 | 470 | 55 | 3 | 45 | 2.5 | 5.35 | 32315 | T2GD075 |
| 80 | 170 | 61.5 | 395 | 525 | 58 | 3 | 48 | 2.5 | 6.41 | 32316 | T2GD080 |
| 85 | 180 | 63.5 | 405 | 525 | 60 | 4 | 49 | 3 | 7.15 | 32317 | T2GD085 |
| 90 | 190 | 67.5 | 450 | 595 | 64 | 4 | 53 | 3 | 8.57 | 32318 | T2GD090 |
| 95 | 200 | 71.5 | 505 | 670 | 67 | 4 | 55 | 3 | 10.1 | 32319 | T2GD095 |
| 100 | 215 | 77.5 | 570 | 770 | 73 | 4 | 60 | 3 | 12.7 | 32320 | T2GD100 |
