Place of Origin:
CHINA
Brand Name:
Z&H
Model Number:
7028

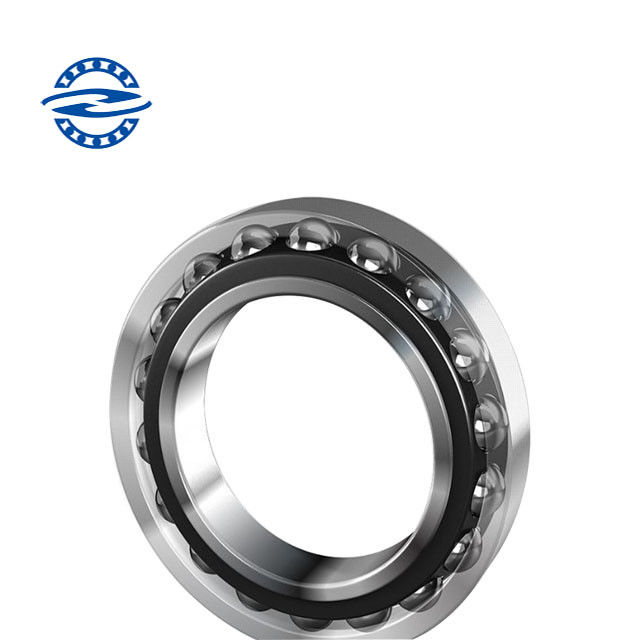

Angle Contact Ball Bearing 7028 ZZ 2ZR RZ RS Size 140x210x33mm
Structure classifiexcavatorion

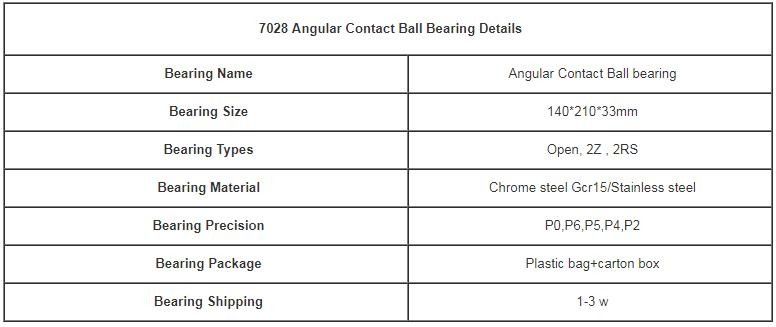

| 7028 Angular Contact Ball Bearing Details | |
| Bearing Name | Angular Contact Ball bearing |
| Bearing Size | 140*210*33mm |
| Bearing Weight | 3.85kg |
| Bearing Types | Open, 2Z , 2RS |
| Bearing Material | Chrome steel Gcr15/Stainless steel |
| Bearing Precision | P0,P6,P5,P4,P2 |
| Bearing Package | Plastic bag+carton box |
| Bearing Shipping | 1-3 w |
Size Range
| Range | Size |
| 1.miniature bearings, nominal diameter size range | 26 mm or less |
| 2.small bearings, nominal diameter size range | 28 - 55mm |
| 3. small-medium bearings, nominal diameter size range | 60-115mm |
| 4.large-medium bearings, nominal diameter size range | 120-190mm |
| 5.large bearings, nominal diameter size range | 200-430mm |
| 6.oversize bearings, nominal diameter size range | 440mm or more |
| Principal dimensions | Basic load ratings | Fatigue load limit | Attainable speeds | Mass | Designation | ||||
| dynamic | static | Grease | Oil-air | ||||||
| d | D | B | C | C0 | Pu | ||||
| mm | kN | kN | r/min | kg | |||||
| 6 | 17 | 6 | 2.03 | 0.765 | 0.032 | 120000 | 180000 | 0.006 | 706 CD/P4A |
| 6 | 17 | 6 | 2.03 | 0.765 | 0.032 | 120000 | 180000 | 0.006 | 706 CD/P4AH |
| 6 | 17 | 6 | 2.03 | 0.765 | 0.032 | 140000 | 220000 | 0.005 | 706 CD/HCP4A |
| 6 | 17 | 6 | 2.03 | 0.765 | 0.032 | 140000 | 220000 | 0.005 | 706 CD/HCP4AH |
| 6 | 17 | 6 | 1.95 | 0.75 | 0.032 | 110000 | 160000 | 0.006 | 706 ACD/P4A |
| 6 | 17 | 6 | 1.95 | 0.75 | 0.032 | 110000 | 160000 | 0.006 | 706 ACD/P4AH |
| 6 | 17 | 6 | 1.95 | 0.75 | 0.032 | 130000 | 190000 | 0.005 | 706 ACD/HCP4A |
| 6 | 17 | 6 | 1.95 | 0.75 | 0.032 | 130000 | 190000 | 0.005 | 706 ACD/HCP4AH |
| 6 | 17 | 6 | 1.56 | 0.5 | 0.022 | 140000 | 220000 | 0.006 | 706 CE/P4A |
| 6 | 17 | 6 | 1.56 | 0.5 | 0.022 | 140000 | 220000 | 0.006 | 706 CE/P4AH |
| 6 | 17 | 6 | 1.56 | 0.5 | 0.022 | 170000 | 260000 | 0.005 | 706 CE/HCP4A |
| 6 | 17 | 6 | 1.56 | 0.5 | 0.022 | 170000 | 260000 | 0.005 | 706 CE/HCP4AH |
| 6 | 17 | 6 | 1.51 | 0.49 | 0.02 | 127000 | 195000 | 0.006 | 706 ACE/P4A |
| 6 | 17 | 6 | 1.51 | 0.49 | 0.02 | 127000 | 195000 | 0.006 | 706 ACE/P4AH |
| 6 | 17 | 6 | 1.51 | 0.49 | 0.02 | 150000 | 230000 | 0.005 | 706 ACE/HCP4A |
| 6 | 17 | 6 | 1.51 | 0.49 | 0.02 | 150000 | 230000 | 0.005 | 706 ACE/HCP4AH |
| 7 | 19 | 6 | 1.86 | 0.62 | 0.026 | 133000 | 205000 | 0.006 | 707 ACE/HCP4AH |
| 7 | 19 | 6 | 1.86 | 0.62 | 0.026 | 133000 | 205000 | 0.006 | 707 ACE/HCP4A |
| 7 | 19 | 6 | 1.86 | 0.62 | 0.026 | 112000 | 175000 | 0.007 | 707 ACE/P4AH |
| 7 | 19 | 6 | 1.86 | 0.62 | 0.026 | 112000 | 175000 | 0.007 | 707 ACE/P4A |
| 7 | 19 | 6 | 1.95 | 0.64 | 0.027 | 150000 | 230000 | 0.006 | 707 CE/HCP4AH |
| 7 | 19 | 6 | 1.95 | 0.64 | 0.027 | 150000 | 230000 | 0.006 | 707 CE/HCP4A |
| 7 | 19 | 6 | 1.95 | 0.64 | 0.027 | 127000 | 190000 | 0.007 | 707 CE/P4AH |
| 7 | 19 | 6 | 1.95 | 0.64 | 0.027 | 127000 | 190000 | 0.007 | 707 CE/P4A |
| 7 | 19 | 6 | 2.42 | 0.95 | 0.04 | 110000 | 170000 | 0.007 | 707 ACD/HCP4AH |
| 7 | 19 | 6 | 2.42 | 0.95 | 0.04 | 110000 | 170000 | 0.007 | 707 ACD/HCP4A |
| 7 | 19 | 6 | 2.42 | 0.95 | 0.04 | 95000 | 140000 | 0.008 | 707 ACD/P4AH |
| 7 | 19 | 6 | 2.42 | 0.95 | 0.04 | 95000 | 140000 | 0.008 | 707 ACD/P4A |
| 7 | 19 | 6 | 2.51 | 0.98 | 0.04 | 120000 | 190000 | 0.007 | 707 CD/HCP4AH |
| 7 | 19 | 6 | 2.51 | 0.98 | 0.04 | 120000 | 190000 | 0.007 | 707 CD/HCP4A |
| 7 | 19 | 6 | 2.51 | 0.98 | 0.04 | 100000 | 160000 | 0.008 | 707 CD/P4AH |
| 7 | 19 | 6 | 2.51 | 0.98 | 0.04 | 100000 | 160000 | 0.008 | 707 CD/P4A |
| 7 | 22 | 7 | 2.96 | 1.16 | 0.049 | 80000 | 120000 | 0.013 | 727 CD/P4A |
| 7 | 22 | 7 | 2.96 | 1.16 | 0.049 | 95000 | 150000 | 0.012 | 727 CD/HCP4A |
| 7 | 22 | 7 | 2.91 | 1.12 | 0.048 | 70000 | 110000 | 0.013 | 727 ACD/P4A |
| 7 | 22 | 7 | 2.91 | 1.12 | 0.048 | 85000 | 130000 | 0.012 | 727 ACD/HCP4A |
| 8 | 19 | 6 | 1.74 | 0.63 | 0.027 | 120000 | 185000 | 0.007 | 719/8 CE/P4AH |
| 8 | 19 | 6 | 1.74 | 0.63 | 0.027 | 120000 | 185000 | 0.007 | 719/8 CE/P4A |
| 8 | 19 | 6 | 1.74 | 0.63 | 0.027 | 145000 | 220000 | 0.006 | 719/8 CE/HCP4AH |
| 8 | 19 | 6 | 1.74 | 0.63 | 0.027 | 145000 | 220000 | 0.006 | 719/8 CE/HCP4A |
| 8 | 19 | 6 | 1.68 | 0.6 | 0.026 | 109000 | 165000 | 0.007 | 719/8 ACE/P4A |
| 8 | 19 | 6 | 1.68 | 0.6 | 0.026 | 109000 | 165000 | 0.007 | 719/8 ACE/P4AH |
| 8 | 19 | 6 | 1.68 | 0.6 | 0.026 | 130000 | 200000 | 0.006 | 719/8 ACE/HCP4A |
| 8 | 19 | 6 | 1.68 | 0.6 | 0.026 | 130000 | 200000 | 0.006 | 719/8 ACE/HCP4AH |
| 8 | 22 | 7 | 2.29 | 0.765 | 0.032 | 115000 | 180000 | 0.011 | 708 ACE/HCP4AH |
| 8 | 22 | 7 | 2.29 | 0.765 | 0.032 | 115000 | 180000 | 0.011 | 708 ACE/HCP4A |
| 8 | 22 | 7 | 2.29 | 0.765 | 0.032 | 98000 | 150000 | 0.012 | 708 ACE/P4AH |
| 8 | 22 | 7 | 2.29 | 0.765 | 0.032 | 98000 | 150000 | 0.012 | 708 ACE/P4A |
| 8 | 22 | 7 | 2.34 | 0.8 | 0.034 | 130000 | 200000 | 0.011 | 708 CE/HCP4A |
| 8 | 22 | 7 | 2.34 | 0.8 | 0.034 | 130000 | 200000 | 0.011 | 708 CE/HCP4AH |
| 8 | 22 | 7 | 2.34 | 0.8 | 0.034 | 109000 | 165000 | 0.012 | 708 CE/P4A |
| 8 | 22 | 7 | 2.34 | 0.8 | 0.034 | 109000 | 165000 | 0.012 | 708 CE/P4AH |
| 8 | 22 | 7 | 3.19 | 1.34 | 0.056 | 95000 | 150000 | 0.011 | 708 ACD/HCP4A |
| 8 | 22 | 7 | 3.19 | 1.34 | 0.056 | 95000 | 150000 | 0.011 | 708 ACD/HCP4AH |
| 8 | 22 | 7 | 3.25 | 1.37 | 0.057 | 110000 | 160000 | 0.011 | 708 CD/HCP4AH |
| 8 | 22 | 7 | 3.19 | 1.34 | 0.056 | 80000 | 120000 | 0.012 | 708 ACD/P4A |
| 8 | 22 | 7 | 3.19 | 1.34 | 0.056 | 80000 | 120000 | 0.012 | 708 ACD/P4AH |
| 8 | 22 | 7 | 3.25 | 1.37 | 0.057 | 110000 | 160000 | 0.011 | 708 CD/HCP4A |
| 8 | 22 | 7 | 3.25 | 1.37 | 0.057 | 90000 | 130000 | 0.012 | 708 CD/P4A |
| 8 | 22 | 7 | 3.25 | 1.37 | 0.057 | 90000 | 130000 | 0.012 | 708 CD/P4AH |
| 8 | 24 | 8 | 3.71 | 1.37 | 0.057 | 70000 | 110000 | 0.017 | 728 CD/P4A |
| 8 | 24 | 8 | 3.71 | 1.37 | 0.057 | 85000 | 130000 | 0.015 | 728 CD/HCP4A |
Packaging
1.Single box packing, then in carton then in Pallet.
2.Standard export packing.
3. According customer demand.
Other model
FAQ
Q1: Are you manufacturer or trading company?
A1: We are manufacturer
Q2: Whafs the MOQ?
A2:Usually Your MOQ is around 3000 pcs/color. Contact us for a quotation on
orders under 3000 pieces and we will do whatever we can to accommodate you.
Q3:Can i Get samples?
A3:Of course, we usually provide existing sample for free, however you need to
cover the express charge, and if you have special request then we will charge
you for special arrangement, and this charge is refundable when order is up
to a certain quantity.
Q4: What's the delivery time of your products?
A4: Usually the delivery time is 30 days after confirming order and detail. Delivery
time depending on your purchasing quantity and production season.
Q5: How does your factory do regarding quality control.
A5: Quality is priority, we will do 100% quality inspection before shipment.
Q6: what is your terms of payment?
A6: Normally T/T, but we also accept L/C, PAYPAL.For mass production:
30% deposit before mass production,70% before shipment.
