Place of Origin:
China
Brand Name:
Z&H
Model Number:
UCP208

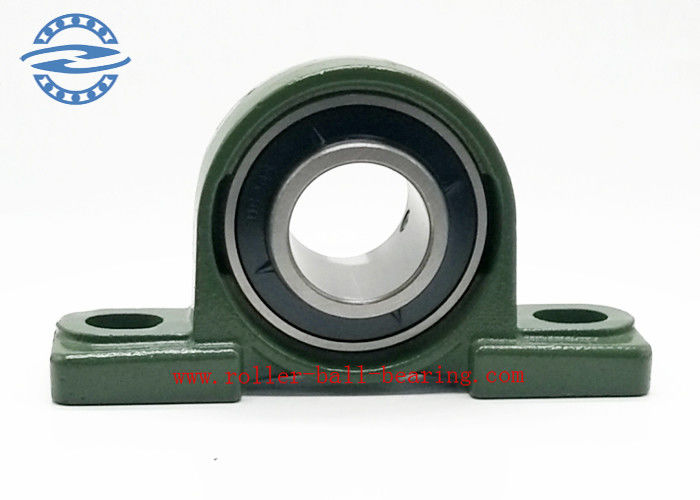

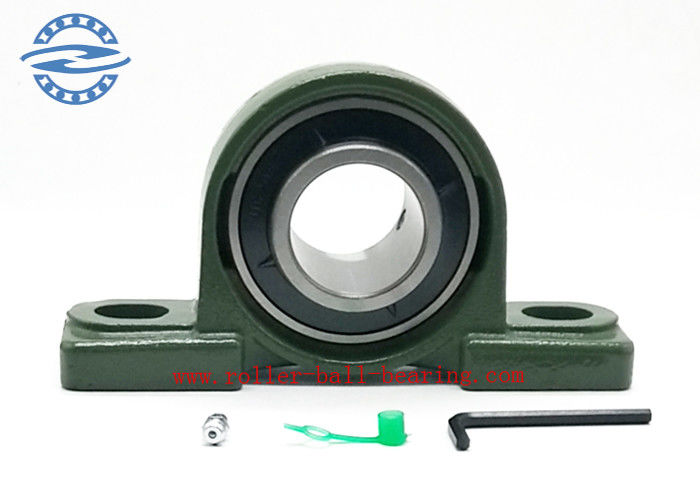

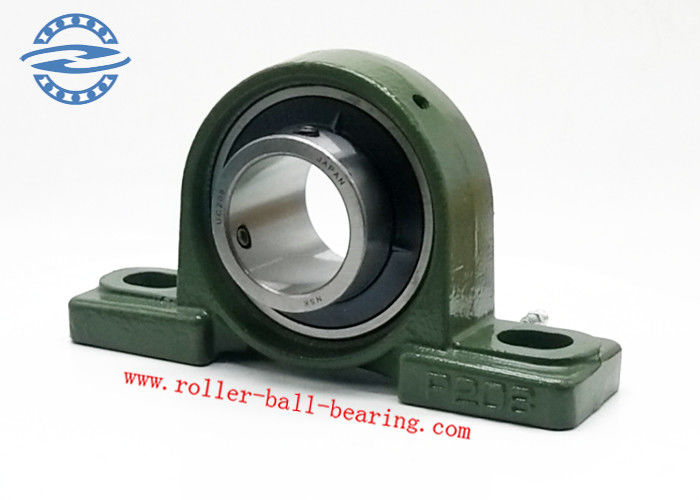

Pillow Block Bearing UCP208 Stainless Steel Units for long time high speed

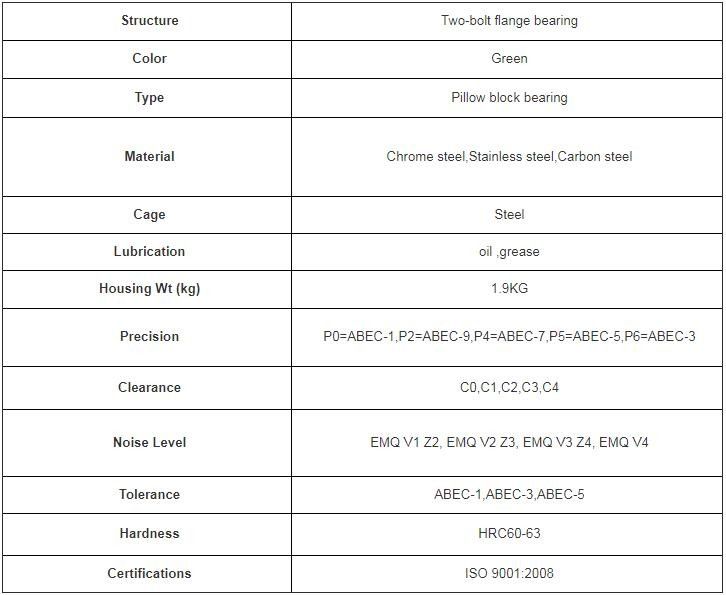

| Color | Green,OEM, Customized |
| Type | Pillow block bearing |
| Material | Chrome steel,Stainless steel,Carbon steel |
| Cage | Steel |
| Lubriexcavatorion | oil ,grease |
| Housing Wt (kg) | 2KG |
| Precision | P0=ABEC-1,P2=ABEC-9,P4=ABEC-7,P5=ABEC-5,P6=ABEC-3 |
| Clearance | C0,C1,C2,C3,C4 |
| Noise Level | EMQ V1 Z2, EMQ V2 Z3, EMQ V3 Z4, EMQ V4 |
| Tolerance | ABEC-1,ABEC-3,ABEC-5 |
| Hardness | HRC60-63 |
| Certifiexcavatorions | ISO 9001:2008 |
Performance characteristics
Pre-sealed quantitative high-quality grease, users do not need to add grease before use, so as to reduce the user's maintenance workload and reduce maintenance costs.
because there is no need to add grease, do not need to add grease tubing and other equipment, can make the equipment more compact. seals prevent grease leaks and pollute the environment.
Related Products
| Bearing Unit No. | Shaftr Dia d (mm) | Dimensions (mm) | Bolt Used (mm) | Bearing No. | Housing No. | Weight (kg) | |||||||||
| h | a | e | b | S2 | S1 | g | w | Bi | n | ||||||
| UCP305 | 25 | 45 | 175 | 132 | 45 | 20 | 17 | 16 | 85 | 38 | 15 | M14 | UCP305 | P 305 | 1.6 |
| UCP306 | 30 | 50 | 180 | 140 | 50 | 20 | 17 | 18 | 95 | 43 | 17 | M14 | UCP306 | P 306 | 2.1 |
| UCP307 | 35 | 56 | 210 | 160 | 56 | 25 | 17 | 20 | 106 | 48 | 19 | M14 | UCP307 | P 307 | 2.8 |
| UCP308 | 40 | 60 | 220 | 170 | 60 | 27 | 17 | 22 | 116 | 52 | 19 | M14 | UCP308 | P 308 | 3.6 |
| UCP309 | 45 | 67 | 245 | 190 | 67 | 30 | 20 | 24 | 129 | 57 | 22 | M16 | UCP309 | P 309 | 4.7 |
| UCP310 | 50 | 75 | 275 | 212 | 75 | 35 | 20 | 27 | 143 | 61 | 22 | M16 | UCP310 | P 310 | 6.4 |
| UCP311 | 55 | 80 | 310 | 236 | 80 | 38 | 20 | 30 | 154 | 66 | 25 | M16 | UCP311 | P 311 | 7.8 |
| UCP312 | 60 | 85 | 330 | 250 | 85 | 38 | 25 | 32 | 165 | 71 | 26 | M20 | UCP312 | P 312 | 9.4 |
| UCP313 | 65 | 90 | 340 | 260 | 90 | 38 | 25 | 35 | 176 | 75 | 30 | M20 | UCP313 | P 313 | 10.3 |
| UCP314 | 70 | 95 | 360 | 280 | 90 | 40 | 27 | 35 | 187 | 78 | 33 | M22 | UCP314 | P 314 | 11.9 |
| UCP315 | 75 | 100 | 380 | 290 | 100 | 40 | 27 | 35 | 198 | 82 | 32 | M22 | UCP315 | P 315 | 14.5 |
| UCP316 | 80 | 106 | 400 | 300 | 110 | 40 | 27 | 40 | 210 | 86 | 34 | M22 | UCP316 | P 316 | 17.1 |
| UCP317 | 85 | 112 | 420 | 320 | 110 | 45 | 33 | 40 | 220 | 96 | 40 | M27 | UCP317 | P 317 | 19.2 |
| UCP318 | 90 | 118 | 430 | 330 | 110 | 45 | 33 | 45 | 235 | 96 | 40 | M27 | UCP318 | P 318 | 21.1 |
| UCP319 | 95 | 125 | 470 | 360 | 120 | 50 | 36 | 45 | 250 | 103 | 41 | M30 | UCP319 | P 319 | 28.2 |
| UCP320 | 100 | 140 | 490 | 380 | 120 | 50 | 36 | 50 | 275 | 108 | 42 | M30 | UCP320 | P 320 | 34.8 |
| UCP322 | 110 | 150 | 520 | 400 | 140 | 55 | 40 | 50 | 296 | 117 | 46 | M33 | UCP322 | P 322 | 43.2 |
| UCP324 | 120 | 160 | 570 | 450 | 140 | 55 | 40 | 50 | 316 | 126 | 51 | M33 | UCP324 | P 324 | 54 |
| UCP326 | 130 | 180 | 600 | 480 | 140 | 55 | 40 | 50 | 355 | 135 | 54 | M33 | UCP326 | P 326 | 72.1 |
| UCP328 | 140 | 200 | 620 | 500 | 140 | 55 | 40 | 60 | 393 | 145 | 59 | ||||
6pcs/carton,48carton/pallet,22pallets/container industrial packing or individual box
Industry package: Plastic paper + Carton + Pallet / Plywood box
Single Box: Plastic paper + Plastic bag + Single box + Carton + Pallet / Plywood box
Tube + small box + carton + pallet / plywood box
According to your demand
7-30 days after confirm order.
