Place of Origin:
CHINA
Brand Name:
Z&H
Model Number:
22313

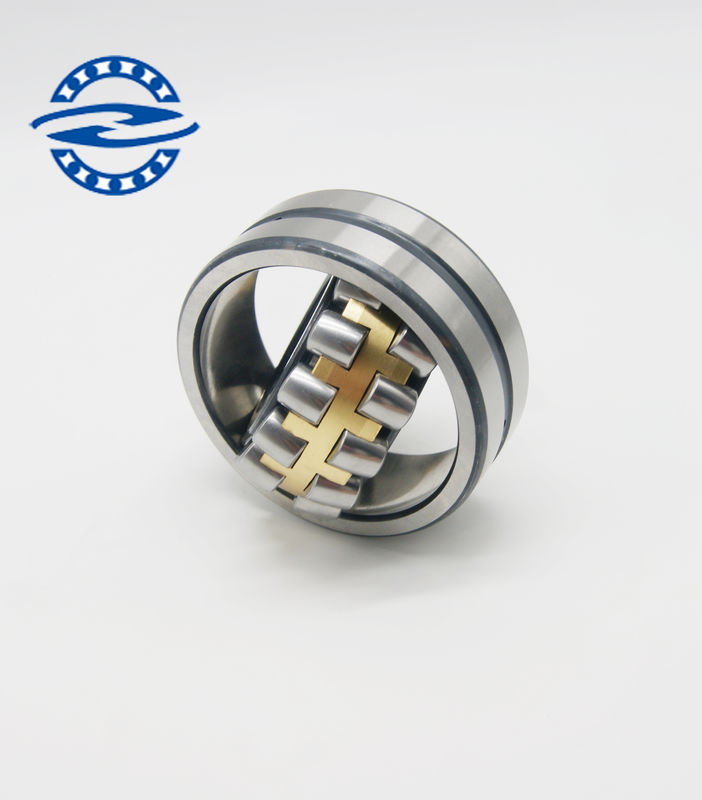

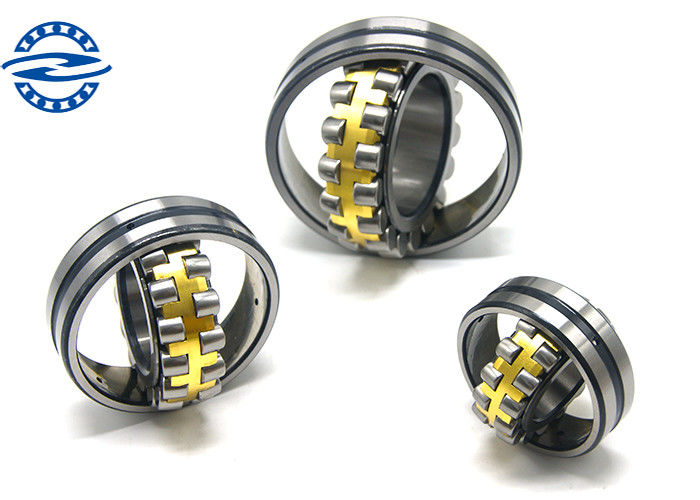

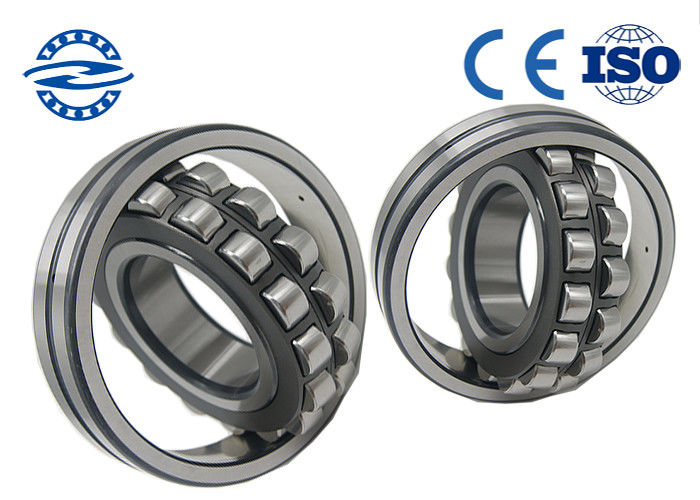

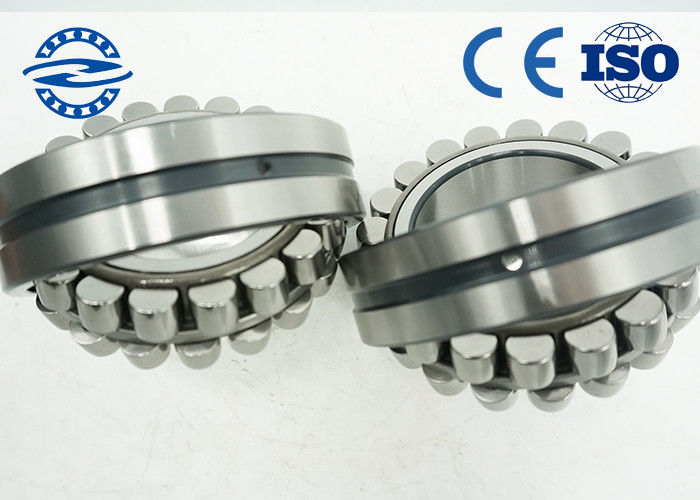

22313 CC CA E EA MB Spherical roller bearings Size 65*140*48mm
| Bearing Model | 22313 |
| Part Name | Spherical roller bearing |
| Row | Single |
| Size | 65* 140 * 48 |
| Weight | 3.65KG |
| Precision Rating | P0. P6. P5 |
| Country | China |
| Cage | Steel,Brass |
Common type
Ring roller bearing is a new radial roller bearing.
This compact automatically self-aligning roller bearings s developed, the bearing design is unique, combined with the ability of the self-aligning spherical roller bearings and cylindrical roller bearing unlimited axial displacement ability, he can also have smaller cross-sectional area, and tend to have a needle roller bearing features .
CARB ring roller bearing is used in paper machine machinery, continuous casting machine, crushing machine machinery, grinding machine, conveyor belt, textile machinery, industrial transmission and other fields.
Other models
| Bearing Na | Dimensions (mm) | Load ralings(KN) | Limiting speeds(r/min) | Mounting dimensions(mm) | ||||||
| d | D | B | Cr | Cor | Grease | Oil | da (min) | Da(max) | ra(max) | |
| 22308 | 40 | 90 | 33 | 124 | 142 | 4100 | 5000 | 49 | 81 | 1.5 |
| 22309 | 45 | 100 | 36 | 146 | 175 | 6300 | 4500 | 54 | 91 | 1.5 |
| 22310 | 50 | 110 | 40 | 180 | 216 | 3200 | 4300 | 60 | 100 | 2 |
| 22311 | 55 | 120 | 43 | 214 | 258 | 3200 | 3800 | 65 | 110 | 2.1 |
| 22312 | 60 | 130 | 46 | 245 | 294 | 2800 | 3500 | 72 | 118 | 2.1 |
| 22313 | 65 | 140 | 48 | 268 | 324 | 2500 | 3300 | 77 | 128 | 2.1 |
| 22314 | 70 | 150 | 51 | 301 | 373 | 2000 | 2700 | 82 | 138 | 2.1 |
| 22315 | 75 | 160 | 55 | 352 | 451 | 2200 | 3000 | 87 | 148 | 2.1 |
| 22316 | 80 | 170 | 58 | 397 | 513 | 2000 | 2800 | 92 | 158 | 2.1 |
| 22317 | 85 | 180 | 60 | 433 | 556 | 2000 | 2500 | 99 | 166 | 2.5 |
| 22318 | 90 | 190 | 64 | 489 | 641 | 1800 | 2200 | 104 | 176 | 2.5 |
| 22319 | 95 | 200 | 67 | 536 | 709 | 1500 | 2000 | 109 | 186 | 2.5 |
| 22320 | 100 | 215 | 73 | 626 | 840 | 1500 | 1900 | 114 | 201 | 2.5 |
| 22322 | 110 | 240 | 80 | 716 | 963 | 1400 | 1600 | 124 | 226 | 2.5 |
| 22324 | 120 | 260 | 86 | 847 | 1154 | 1300 | 1600 | 134 | 246 | 2.5 |
| 22326 | 130 | 280 | 93 | 970 | 1340 | 1000 | 1500 | 148 | 262 | 3 |
| 22328 | 140 | 300 | 102 | 1140 | 1620 | 900 | 1300 | 158 | 282 | 3 |
| 22330 | 150 | 320 | 108 | 1270 | 1850 | 850 | 1200 | 168 | 302 | 3 |
| 22332 | 160 | 340 | 114 | 1070 | 1820 | 800 | 1000 | 178 | 322 | 3 |
| 22334 | 170 | 360 | 120 | 1180 | 2120 | 800 | 1000 | 188 | 342 | 3 |
Appliexcavatorion
Spherical roller bearings for automotive, construction machinery, oil drilling, coal mining industrial, motion industrial bearing, for rear-wheel, transmission and electric equipment parts for car making; electromotor, home appliances; instrument, combustion engines, building machinery, railway vehicle, loading/unloading machine, farm machinery and various industrial usage.
FAQ
Q : .What should i do for extending the bearings life ?
A : 1). Don't allow strong impact, such as hammer striking, transfer roller pressure
2). Use the accurate installation tool, avoid to use cloth kind and short fibers
3). Lubriexcavatore the bearing to avoid rust with high quality mineral oil, especially in summer
4). General inspection, such as the surrounding temperature, vibrate, noise inspection
5). Keep bearing cleaning from dirt, dust, pollutant, moisture.
6). Bearing should not be ultra cooled.
Q : How long do I expect the goods to be sent out ?
A : (1) stock bearings can ship out within 3 days for small order ,if large order might use one week
2) for large order need about 30days .
Q : Whats the shipping method can we use ?
A : (1) Quantity not exceed 5000pcs ,can use express shiping (ups,dhl,fedex,tnt)
(2) Quantity exceed 5000pcs, can ship by sea
Q : Can I use Money Gram ?
A :Sure , we accept TT,L/C,Money Gram,Western Union ,you can use as you wish
Q : Can I request Carton Packing ?
A : Yes ,of couse , we can pack the goods as your request .either export box or wooden pallet or carton packing all is ok .
Q : How should I know if your bearings quality is ok ?
A : Thats a good question ,each person has this kind of concern ,this is quite normal .
