Place of Origin:
ShangDong China
Brand Name:
Z&H
Model Number:
3322-M-C3

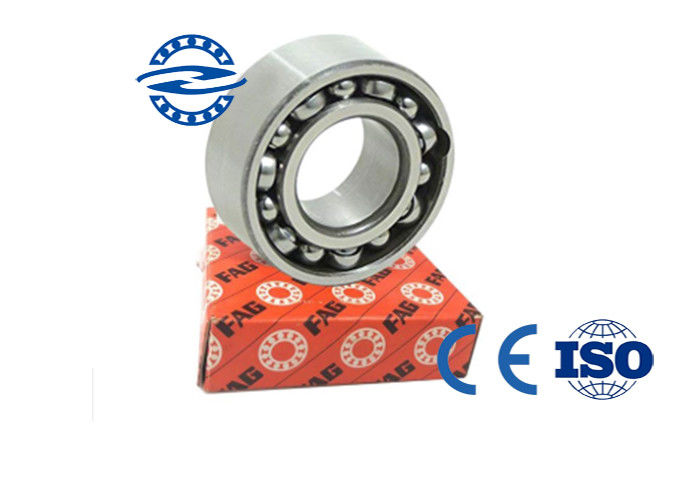

Machine Tools FAG Deep Groove Ball Bearing , Double Row Bearing 3322-M-C3 110*240*92.1MM
Product Details
Dear my friend, our company has thousands of products, and we cannot display them all at the moment. If you need to leave a message or send an email to us, we will serve you as quickly as possible, thanks! ! !
Product Description
FAG Deep Groove Ball Bearing double row bearing 3322-M-C3
3322-M-C3 – FAG Double Row Angular Contact – 110x240x92.1mm

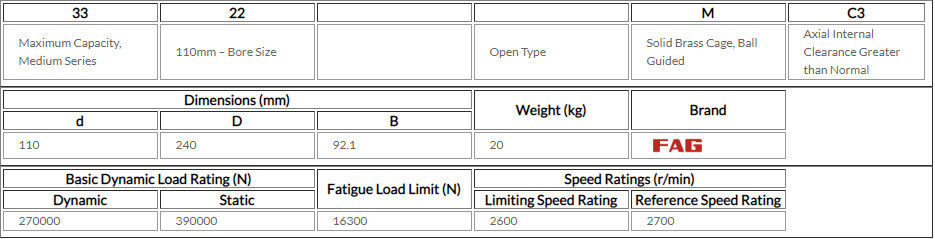

Product Description 33 22 M C3 Maximum Capacity, Medium Series 110mm – Bore Size Open Type
Solid Brass Cage, Ball Guided Axial Internal Clearance Greater than Normal Dimensions (mm) Weight
(kg) Brand d D B 110 240 92.1 20 Basic Dynamic Load Rating (N) Fatigue Load Limit (N) Speed Ratings
(r/min) Dynamic Static Limiting Speed Rating Reference Speed Rating 270000 390000 16300 2600 2700

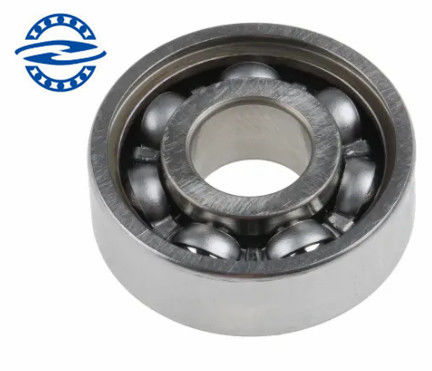

Product Picture
Deep groove ball is the most representative rolling bearing simple structure easy to use widely used
for this kind of bearing is not separable type bearing the inner and outer rings are arc groove type can
withstand radial load friction coefficient small limit high speed suitable for low rotation and low noise
low vibration requirements occasions
Other Size
| Baring number | Dimension(mm) | Weight(kg) |
| 6201 | 12*32*10 | 0.037 |
| 6202 | 15*35*11 | 0.05 |
| 6203 | 17*40*12 | 0.07 |
| 6204 | 20*47*14 | 0.102 |
| 6205 | 25*52*15 | 0.125 |
| 6206 | 30*62*16 | 0.202 |
| 6207 | 35*72*17 | 0.285 |
| 6208 | 40*80*17 | 0.37 |
| 6209 | 45*85*17 | 0.416 |
| 6210 | 50*90*20 | 0.462 |
| 6211 | 55*100*21 | 0.598 |
| 6212 | 60*110*22 | 0.8 |
| 6213 | 65*120*23 | 0.99 |
| 6214 | 70*125*27 | 1.07 |
| 6215 | 75*130*25 | 1.16 |
| 6216 | 80*140*26 | 1.448 |
| 6217 | 85*150*28 | 1.92 |
| 6218 | 90*160*30 | 2.12 |
| 6219 | 95*170*32 | 2.61 |
| 6220 | 100*180*34 | 3.19 |
| 6221 | 105*190*36 | 3.78 |
| 6222 | 110*200*38 | 4.44 |
Our Company
Zhonghong bearing manufacturing co., Ltd is a bearing production,
sales - based company, the company in the industrial field has many years of bearing
supporting and industrial service experience.
Types involved: deep groove ball bearings, joint bearings, conical bearings,
cylindrical bearings and so on Our products are widely used in machine tools, coal mine,
railway, petroleum printing, power plant, ship, aviation, automobile and other industries
Inspection Picture
Exhibition Picture
Certifiexcavatore
Our Service
1.We can produce all kinds of bearings as customer's requirement.
2.High quality bearings and the best price are provided.
3.On-time delivery service.
4.Bearing professional techincians support pre-and after sales.
5.Quality Assurance
6.Free samples service
Package
1.Single box packing, then in carton then in Pallet.
2.Standard export packing.
3. According customer demand.
