Place of Origin:
CHINA
Brand Name:
NTN
Model Number:
23134CA/W33

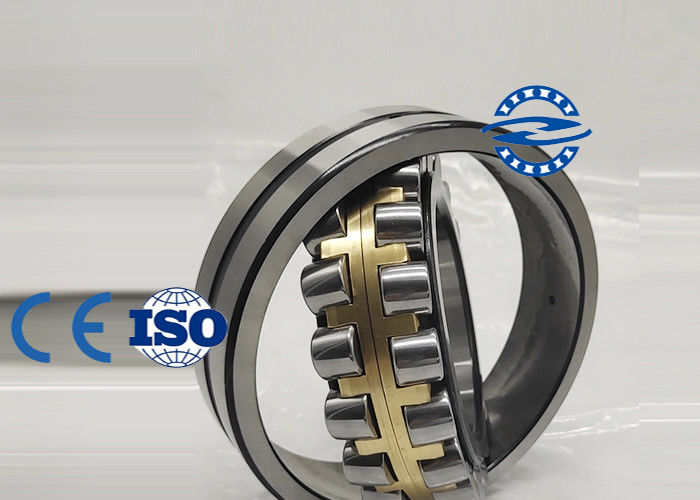

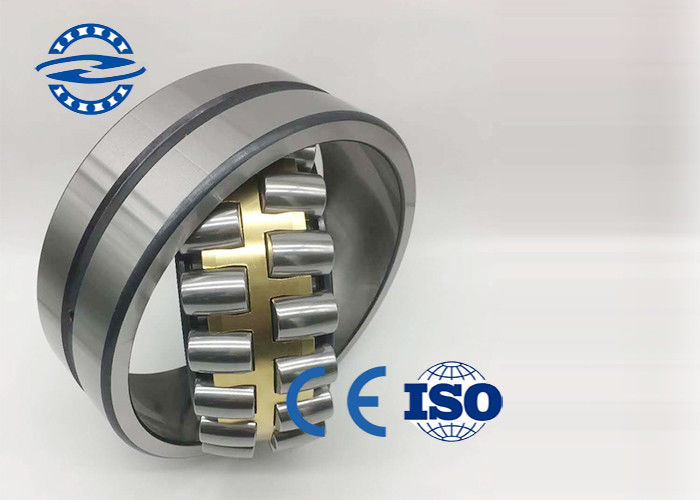

Professional 23134CA/W33 Chrome Steel Spherical Roller Bearing For Forklift 06030-23134
Spherical roller thrust bearings
| Product name | 24124 chrome steel spherical roller bearing |
| Brand | HGF,OEM |
| d(mm) | 120 |
| D(mm) | 200 |
| B(mm) | 80 |
| Weight(kg) | 10.4 |
| Cage | Steel/Brass cage |
| Precision rate | P0 P6 P4 P5 |
| Delivery time | <5000,within 10 days after payment |
1.Spherical Roller Bearing Information:
Roller bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads.
These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All roller bearings are open, shielded,
or sealed.Sealed bearings are lubriexcavatored with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubriexcavatored in place,
with periodic reappliexcavatorion of lubriexcavatorion, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan.
2.Appliexcavatorion:
agricultural machinery to conveying equipment,
robotics,
dental equipment,
elevators,
rolling mills,
ship rudder shafts,
and aggregate crushers,
among others.
3.Features:
Support radial and oscillating axial loads
C3 radial clearance allows thermal expansion for continuous operating temperatures up to 200 degrees C/392 degrees
Tapered bore with 1:12 taper for compensating for a flexing shaft or fitting to a tapered shaft
Roller-guided brass cage evenly spaces rollers for reduced friction, vibration, and noise
Open design, circumferential groove and three lubriexcavatorion holes in the outer ring allow for lubriexcavatorion in place
4.Quality&Services
Products process: Advanced producing equipment, inspection equipment and good control system to keep the product produce smoothly.
Quality guaranty: Product quality assurance period is over year 2000 miles.
Superficial finish: Carefully work in the assembly line to confirm the products in perfect appearance.Products can also be manufactured according to drawings and samples with customers requirement. We sincerely welcome our friends to visit and negotiate business.
Meanwhile, we are looking forward to finding long-term partners..
2 . Other size :
| Bearing No. | Boundary dimensions | Basic load ratings(kN) | Limiting speeds | Mass | |||||
| mm | Dynamic | Static | rpm | Kg | |||||
| d | D | B | rs min | Cr | Cor | Grease | Oil | ||
| 23130 | 150 | 250 | 80 | 2.1 | 730 | 1,190 | 1,100 | 1,700 | 15.6 |
| 23130K | 150 | 250 | 80 | 2.1 | 730 | 1,190 | 1,100 | 1,700 | 15.1 |
| 23130KW33C3 | 150 | 250 | 80 | 2.1 | 730 | 1,190 | 1,100 | 1,700 | 15.1 |
| 23130W33C3 | 150 | 250 | 80 | 2.1 | 730 | 1,190 | 1,100 | 1,700 | 15.6 |
| 23132 | 160 | 270 | 86 | 2.1 | 840 | 1,370 | 1,000 | 1,600 | 19.8 |
| 23132K | 160 | 270 | 86 | 2.1 | 840 | 1,370 | 1,000 | 1,600 | 19.2 |
| 23132KW33C3 | 160 | 270 | 86 | 2.1 | 840 | 1,370 | 1,000 | 1,600 | 19.2 |
| 23132W33C3 | 160 | 270 | 86 | 2.1 | 840 | 1,370 | 1,000 | 1,600 | 19.8 |
| 23134 | 170 | 280 | 88 | 2.1 | 885 | 1,490 | 960 | 1,500 | 21.5 |
| 23134K | 170 | 280 | 88 | 2.1 | 885 | 1,490 | 960 | 1,500 | 20.8 |
| 23134KW33C3 | 170 | 280 | 88 | 2.1 | 885 | 1,490 | 960 | 1,500 | 20.8 |
| 23134W33C3 | 170 | 280 | 88 | 2.1 | 885 | 1,490 | 960 | 1,500 | 21.5 |
| 23136 | 180 | 300 | 96 | 3 | 1,030 | 1,730 | 900 | 1,400 | 25.1 |
| 23136K | 180 | 300 | 96 | 3 | 1,030 | 1,730 | 900 | 1,400 | 24.2 |
3 . CONPANY PROFILE
ZhongHong Bearing Manufacturing Co. Ltd is a bearing production, sales - based company,
the company in the industrial field has many years of bearing supporting and industrial service experience.
Types involved: deep groove ball bearings, joint bearings, conical bearings, cylindrical bearings and so on Our products are widely used in machine tools,
coal mine, railway, petroleum printing, power plant, ship, aviation, automobile and other industries
WORKSHOP
WAREHOUSE
INSPECTION MACHINE
4. PACKAG and SHIPPING
1.Packing Details : 1. Tube+carton+pallet
2. Paper box+carton+pallet
Delivery Details : Shipped in 7 days after payment
Certifiexcavatorions
5 . FAQ
Q: Why do we choose your company?
A: We always insist quality first. We have our bearing factory, therefore we have advantage in quality control and price of one way clutch bearing.
Q:What is the delivery time?
A: Most of the bearing we have stock. For small quantity, we will arrange delivery within 15 days.
Q: What is your payment term?
A: Our payment term include L/C, T/T, Western Union, Paypal etc.
Q: Can you send bearing samples first?
A: Yes, we can send bearing samples of one way clutch bearing to check quality first.
