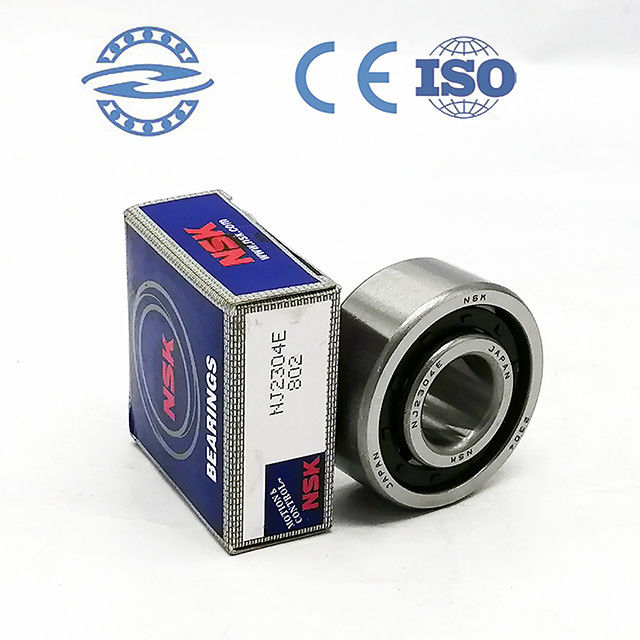

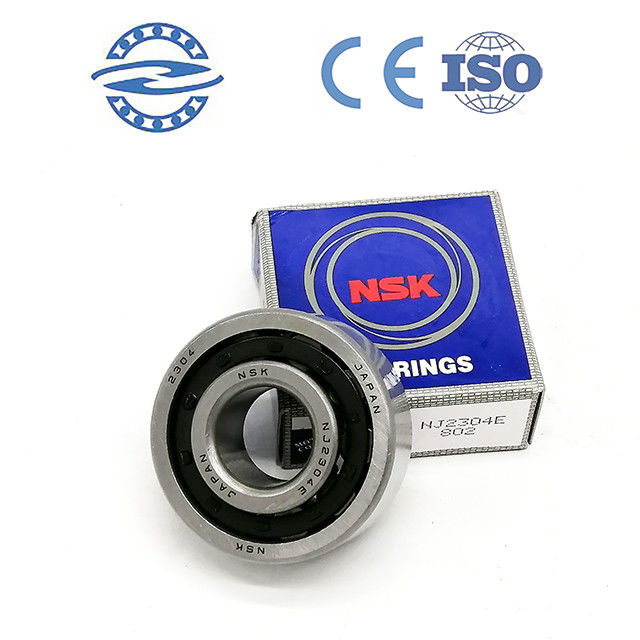

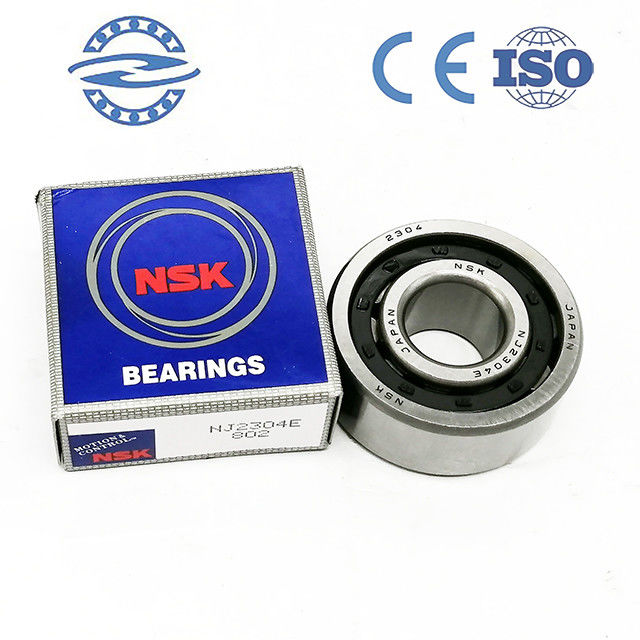

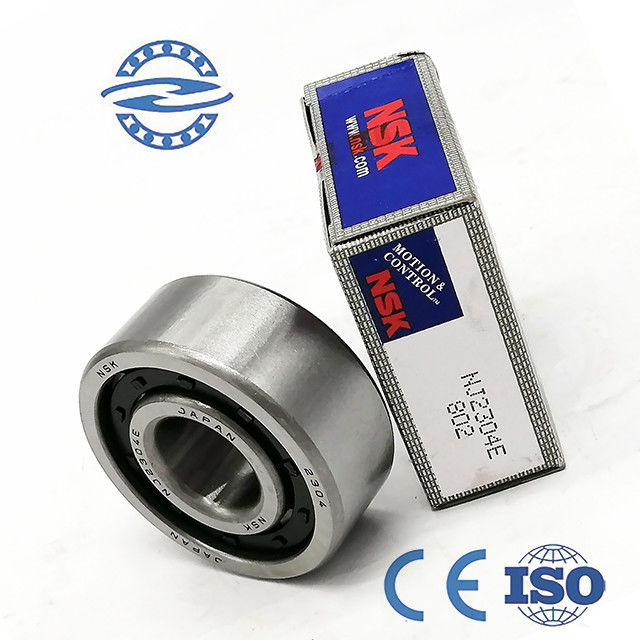

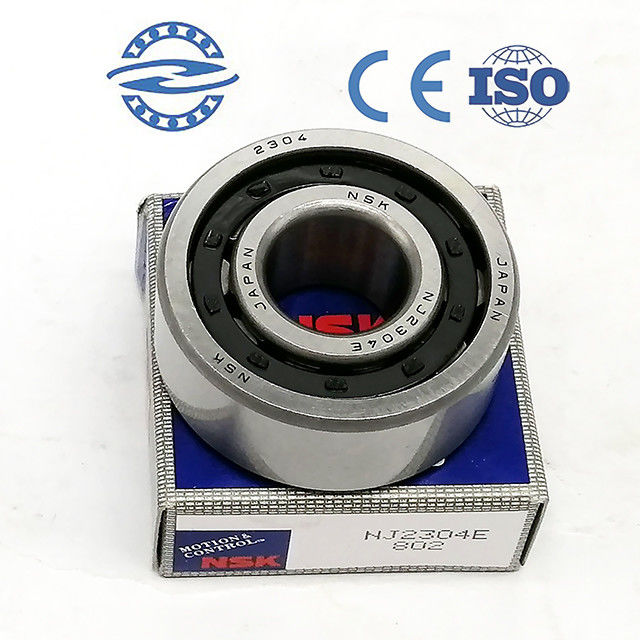

High Load P0 NJ2304E Cylindrical Roller Bearing SIZE 20x52x21mm

High Load P0 NJ2304E Cylindrical Roller Bearing SIZE 20x52x21mm

The BEARING capacity of NJ2304E is large, mainly bearing radial load.
The friction between rolling body and ring retaining edge is small, suitable for high speed rotation.
NTN NJ2304E bearings can be divided into single-row, double-row and multi-row cylindrical roller bearings according to the number of rolling body, and other different structures.
Different structure bearing is also shown in the design of the position of the edge.

1. The roller and the raceway are in line contact or off-line contact with large radial bearing capacity, which is suitable for bearing heavy load and impact load.
2. Low friction coefficient, suitable for high speed, limit speed close to deep groove ball bearing.
3. N type and NU type can be moved in axial direction, which can adapt to the change of relative position of shaft and shell caused by thermal expansion or installation error, and can be used as free end support.
4. The machining requirements for the shaft or seat hole are relatively high. After the bearing is installed, the relative deflection of the outer ring axis should be strictly controlled to avoid the concentration of contact stress.
5. The inner ring or outer ring can be separated for easy installation and disassembly.

6.NJ2304E bearing structure form

It is a separable bearing, easy to install and disassemble.
Cylindrical roller bearing can bear large radial load and is suitable for use in high-speed operation.
The Angle error (inclination) between the axis of the inner ring and the axis of the outer ring is very small, only 2 '~ 4'.
Therefore, the machining accuracy of the shaft and bearing pedestal is relatively high. Otherwise, uneven load or stress concentration is easy to occur at the contact part of raceway.
However, the stress concentration can be reduced by modifying the roller or raceway contact bus.

7.NJ2304E bearing appliexcavatorion range
Hoist bucket elevator chain conveyor on the cast iron machine slag bucket machine coal slag machine auxiliary bagged cement loading machine roller conveyor belt conveyor boiler water seal zipper machine vertical wavy guard garbage compressor vibration conveyor belt conveyor reproduced machine dumper forklift roll bending machine cold rolling mill grinding machine hot dip galvanized tin electroplating machine bending machine, straightening machine

ZhongHong Bearing Manufacturing Co.Ltd., produces a wide range of ball and roller bearings for automotive making, Ferrous Metallurgy, Chemical Machinery and Machine Manufacturing in its primary plants in China mainland. Our main bearing products include deep groove ball bearings, tapered roller bearings, cylindrical roller bearings, spherical ball bearings, spherical roller bearings, single row angular contact bearings, double row angular contact bearings, needle roller bearings, thrust ball bearings, spherical plain bearings, spherical bearings, automotive bearings, pump bearings, and many non-standard bearings are also in our product range. The annual output is more than 10 million sets.

1 . Single box packing, then in carton then in Pallet .
2 . Standard export packing .
3 . According customer demand .

Q1: Are you manufacturer or trading company?

A1: We are manufacturer

Q2: Whafs the MOQ?

A2:Usually Your MOQ is around 3000 pcs/color. Contact us for a quotation on orders under 3000 pieces and we will do whatever we can to accommodate you.

Q3:Can i Get samples?

A3:Of course, we usually provide existing sample for free, however you need to cover the express charge, and if you have special request then we will charge you for special arrangement, and this charge is refundable when order is up to a certain quantity.

Q4: What's the delivery time of your products?

A4: Usually the delivery time is 30 days after confirming order and detail. Delivery time depending on your purchasing quantity and production season.

Q5: How does your factory do regarding quality control.

A5: Quality is priority, we will do 100% quality inspection before shipment.

Q6: what is your terms of payment?

A6: Normally T/T, but we also accept L/C, PAYPAL.For mass production: 30% deposit before mass production,70% before shipment.

Q7: Can we use our own logo and design ?

A7: Yes, you can. We can follow up your request to put your logo or design on . For logo file must Al file.

Q8: When can I get the price?

A8: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or contact through Trade Manager to get prompt response. please call us or tell us in your email so that we will regard your inquiry as top priority.

1.you need to pay in advance

2.You can use west union

3.L/C at sight

4.30% T/T in advance . 70% against copy of B/L

1.Cylindrical roller bearing

2.Thrust ball bearing

3.Thrust roller bearing

4.Tapered roller bearing

5.Spherical roller bearing

6.Self-aligning ball bearing

7.Angular contact ball bearing

8.Joint bearing

1. in the same price , our quality is higher , in the same quality , our price is lower

2.high precision , long life.
