Place of Origin:
China
Brand Name:
NSK NTN Z&H
Model Number:
NUP2206E

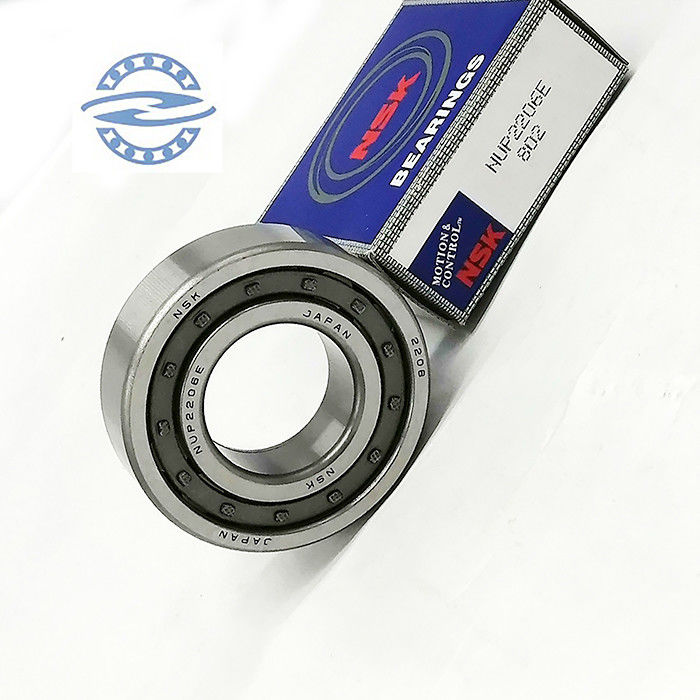

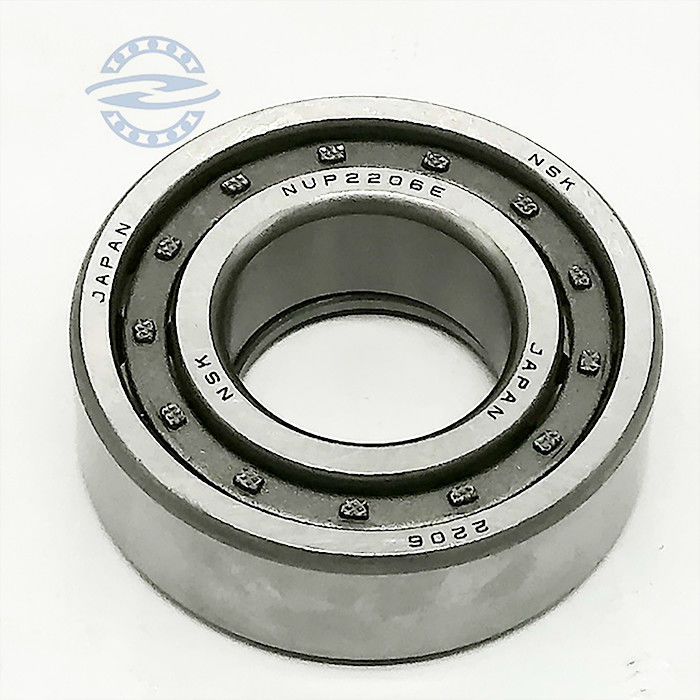

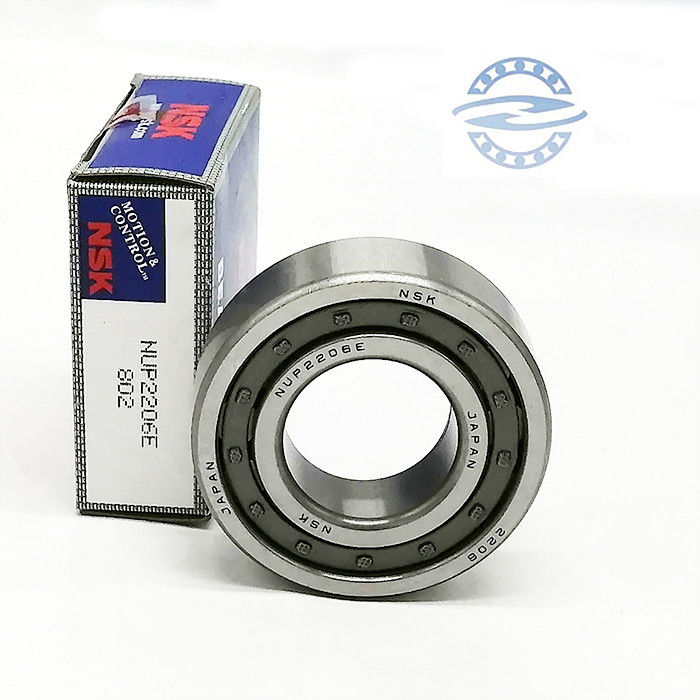

Hot sales High Performance Cylindrical Roller Bearing NUP2206E
Product Features editing
1. The roller and the raceway are in line contact or off-line contact with large radial bearing capacity, which is suitable for bearing heavy load and impact load.
2. Low friction coefficient, suitable for high speed, limit speed close to deep groove ball bearing.
3. NJ type and NU type can be moved in axial direction, which can adapt to the change of relative position of shaft and shell caused by thermal expansion or installation error, and can be used as free end support.
4. The machining requirements for the shaft or seat hole are relatively high. After the bearing is installed, the relative deflection of the outer ring axis should be strictly controlled to avoid the concentration of contact stress.
5. The inner ring or outer ring can be separated for easy installation and disassembly.
Product Feature editing
The outer ring has no flank, the inner ring has flank on both sides.
Displacement of the shaft in both axial directions relative to the bearing housing may be permitted.
The NU type bearing has two sides of outer ring, and no side of inner ring.
Displacement of the shaft in both axial directions relative to the housing may also be allowed.
Therefore, this type of structure is suitable for use as a moving end bearing.
Structural editing
It is a separable bearing, easy to install and disassemble.
Cylindrical roller bearing can bear large radial load and is suitable for use in high-speed operation.
The Angle error (inclination) between the axis of the inner ring and the axis of the outer ring is very small, only 2 '~ 4'.
Therefore, the machining accuracy of the shaft and bearing pedestal is relatively high. Otherwise, uneven load or stress concentration is easy to occur at the contact part of raceway.
However, the stress concentration can be reduced by modifying the roller or raceway contact bus.
Scope of appliexcavatorion editing
Slag eliminator Bucket lift machine coal loader belt conveyor boiler auxiliary machine heating mixer drum slag cooler vibration humidifier dust humidifier single chain rear drive type slag eliminator airplate type heavy chain slag eliminator
ZhongHong Bearing Manufacturing Co.Ltd., produces a wide range of ball and roller bearings for automotive making, Ferrous Metallurgy, Chemical Machinery and Machine Manufacturing in its primary plants in China mainland. Our main bearing products include deep groove ball bearings, tapered roller bearings, cylindrical roller bearings, spherical ball bearings, spherical roller bearings, single row angular contact bearings, double row angular contact bearings, needle roller bearings, thrust ball bearings, spherical plain bearings, spherical bearings, automotive bearings, pump bearings, and many non-standard bearings are also in our product range. The annual output is more than 10 million sets.
1.Offer bearing related consultation about technology and appliexcavatorion;
2.Help customers about bearing choice, force analysis, clearance configuration, products' life and reliability analysis;
3.Offer highly cost-effective and complete solution program according to site conditions;
4.Offer localized program on introduced equipment to save running cost
5.Design and develop non-standard bearing to support customers' technology innovation
1.Offer training about bearing installation and maintenance;
2.Offer guidance about bearing installation, adjustment and testing at site;
3.Help customers with trouble diagnosis and failure analysis;
4.Visit customers regularly and feedback their rational suggestions and requirements to company
1 . Single box packing, then in carton then in Pallet .
2 . Standard export packing .
3 . According customer demand .
Q1: Are you manufacturer or trading company?
A1: We are manufacturer
Q2: Whafs the MOQ?
A2:Usually Your MOQ is around 3000 pcs/color. Contact us for a quotation on orders under 3000 pieces and we will do whatever we can to accommodate you.
Q3:Can i Get samples?
A3:Of course, we usually provide existing sample for free, however you need to cover the express charge, and if you have special request then we will charge you for special arrangement, and this charge is refundable when order is up to a certain quantity.
Q4: What's the delivery time of your products?
A4: Usually the delivery time is 30 days after confirming order and detail. Delivery time depending on your purchasing quantity and production season.
Q5: How does your factory do regarding quality control.
A5: Quality is priority, we will do 100% quality inspection before shipment.
Q6: what is your terms of payment?
A6: Normally T/T, but we also accept L/C, PAYPAL.For mass production: 30% deposit before mass production,70% before shipment.
Q7: Can we use our own logo and design ?
A7: Yes, you can. We can follow up your request to put your logo or design on . For logo file must Al file.
Q8: When can I get the price?
A8: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or contact through Trade Manager to get prompt response. please call us or tell us in your email so that we will regard your inquiry as top priority.
1.you need to pay in advance
2.You can use west union
3.L/C at sight
4.30% T/T in advance . 70% against copy of B/L
1.Cylindrical roller bearing
2.Thrust ball bearing
3.Thrust roller bearing
4.Tapered roller bearing
5.Spherical roller bearing
6.Self-aligning ball bearing
7.Angular contact ball bearing
8.Joint bearing
1. in the same price , our quality is higher , in the same quality , our price is lower
2.high precision , long life.
