Place of Origin:
CHINA KOREA
Brand Name:
ZH
Certification:
IS09001
Model Number:
21314CC

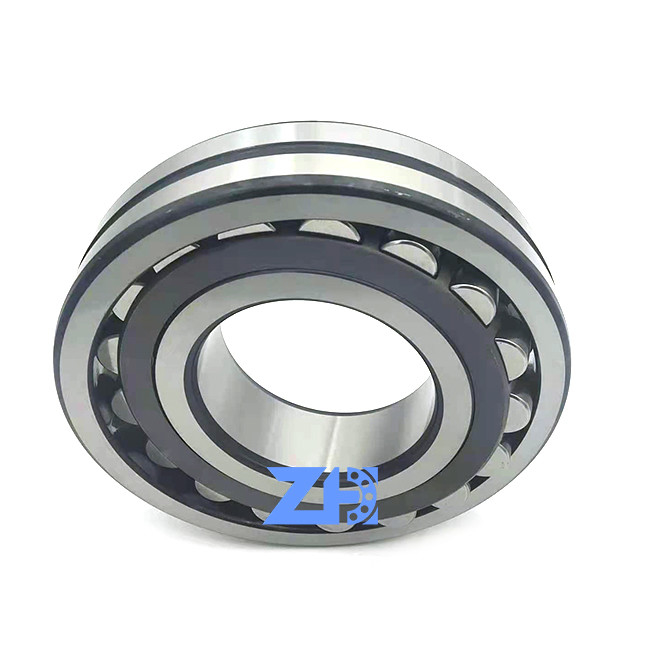

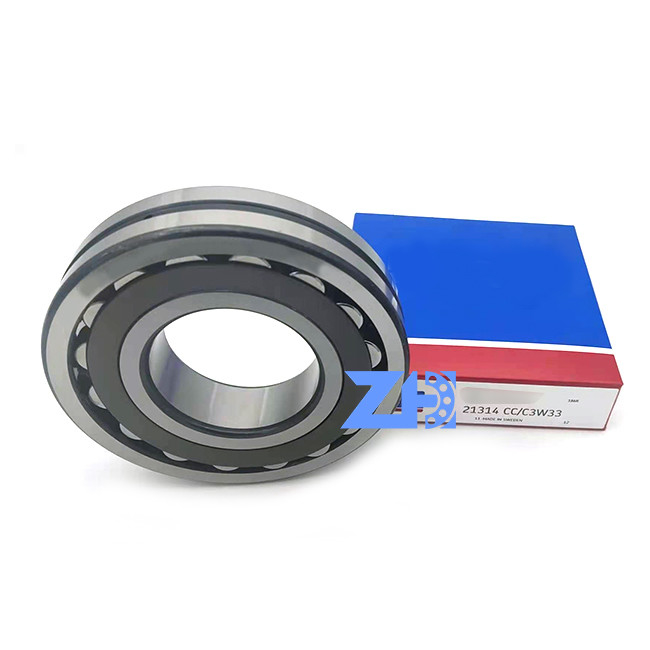

21314CC 21314 21314E 21314W P0 P6 P5 P3 P4 P2 Quality LEVEL CHROME STEEL Spherical Roller Bearing
Product introduction
21314CC Spherical roller bearings are dedicated to extremely severe applications and must support high loads, severe misalignment, contaminated environments, shocks, and vibrations.(factory price )
201314 sphericals feature the industry’s highest load rating: a full 18% higher than a standard spherical roller bearing. This level of quality means at least a 75% extension of service life.
The performance of these sphericals is achieved through the use of very high quality raw materials and optimized rolling element geometry
| d |
70 mm
|
Bore diameter |
|---|---|---|
| D |
150 mm
|
Outside diameter |
| B |
35 mm
|
Width |
| d2 |
≈101 mm
|
Shoulder diameter of inner ring |
| D1 |
≈133 mm
|
Shoulder/recess diameter of outer ring |
| b |
6 mm
|
Width of lubrication groove |
| K |
3 mm
|
Diameter of lubrication hole |
| r1,2 |
min.2.1 mm
|
Chamfer dimension |
| da |
min.82 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max.138 mm
|
Diameter of housing abutment |
| ra |
max.2 mm
|
Radius of fillet |
| Basic dynamic load rating | C |
291 kN
|
|---|---|---|
| Basic static load rating | C0 |
325 kN
|
| Fatigue load limit | Pu |
34.5 kN
|
| Reference speed |
4 000 r/min
|
|
| Limiting speed |
5 600 r/min
|
|
| Limiting value | e |
0.22
|
| Calculation factor | Y1 |
3
|
| Calculation factor | Y2 |
4.6
|
| Calculation factor | Y0 |
2.8
|
