Place of Origin:
CHINA KOREA
Brand Name:
ZH
Certification:
IS09001
Model Number:
21319CC

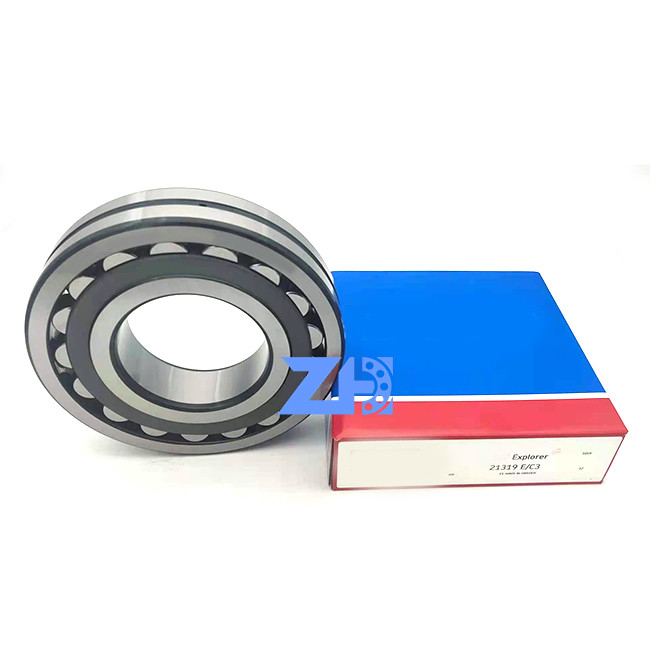

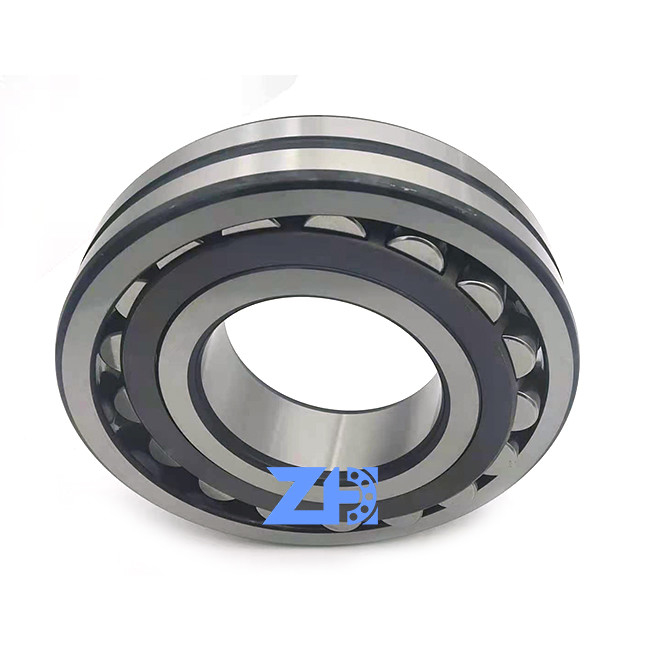

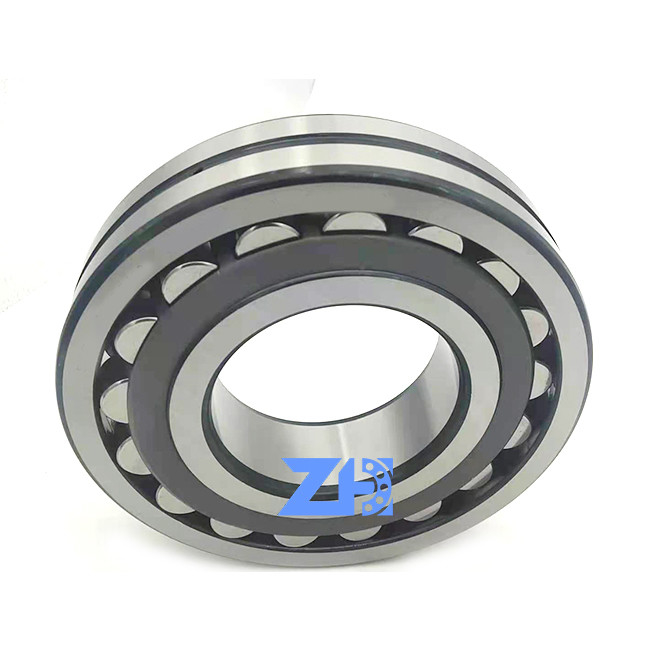

21319CC 21319 21319E 21314W P0 P6 P5 P3 P4 P2 Quality LEVEL CHROME STEEL Spherical Roller Bearing
Product introduct
21319CC Spherical roller bearings are dedicated to extremely severe applications and must support high loads, severe misalignment, contaminated environments, shocks, and vibrations.(factory prices, worth exploring)
21319CC sphericals feature the industry’s highest load rating: a full 18% higher than a standard spherical roller bearing. This level of quality means at least a 75% extension of service life.
The performance of these sphericals is achieved through the use of very high quality raw materials and optimized rolling element geometry.
The unique design also leads to: Reduced friction torque (as much as 30% less), offering lower operating temperature,
| d |
95 mm
|
Bore diameter |
|---|---|---|
| D |
200 mm
|
Outside diameter |
| B |
45 mm
|
Width |
| d2 |
≈118 mm
|
Shoulder diameter of inner ring |
| D1 |
≈159 mm
|
Shoulder/recess diameter of outer ring |
| b |
8.3 mm
|
Width of lubrication groove |
| K |
4.5 mm
|
Diameter of lubrication hole |
| r1,2 |
min.3 mm
|
Chamfer dimension |
| da |
min.109 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max.186 mm
|
Diameter of housing abutment |
| ra |
max.2.5 mm
|
Radius of fillet |
| Basic dynamic load rating | C |
433 kN
|
|---|---|---|
| Basic static load rating | C0 |
490 kN
|
| Fatigue load limit | Pu |
49 kN
|
| Reference speed |
3 400 r/min
|
|
| Limiting speed |
4 500 r/min
|
|
| Limiting value | e |
0.24
|
| Calculation factor | Y1 |
2.8
|
| Calculation factor | Y2 |
4.2
|
| Calculation factor | Y0 |
2.8
|
List of hot selling bearings
| k5v200 | K3V112BDT | K3V63BDT | SPK10/10 | HPV160 | A8V080 |
| AP12 | K3V63DT | K3VL80DTP | AP12 | HPV132 | A8V107 |
| AP2D25 | K3V63BDT | K5V80DTP | SBS140 | HPV140 | A8V115 |
| AP2D18 | HPV35 | K3V112DT | SBS120 | HPV165 | A8V0107 |
| AP2D36 | HPV75 | K3V112DP | SBS80 | HPK055K | A8V0140 |
| SDV36 | HPV95 | K3V112BDP | AP2D25 | HPV050 | A8V0160 |
| M5X180 | K3V180 | K3V140DT | AP2D36 | HPV091DW | A8V0200 |
| SG025 | k3v140 | K3V180DT | A10VD17 | HPV091EW | A10VO28 |
| SG02 | HPV102 A8V160 | K5V140DTP | A10VD43 | HPV091DS | |
| SG04 | HPV118 | K5V160DTP | A10VS063 | HPV091ES | |
| SG08 | HPV145 | K5V160DP | A10VS071 | HPV091/102 | |
| SG12 | HPV132 | K5V200DTH | A8V0107 | HPV0102 | |
| SG20 | HPV140 | K5V200DPH | K3SP36C | HPV0118 | |
| SG23 | SBS120 | NV111 | PVK-2B-505 | HPV116 | |
| M2X120 M5X130 | SBS140 | K7V63 | PVB92 | HPV145 |
FAQ
Q1: I want to buy your products, how can I pay?
A :You can pay via T/T , L/C , WEST UNION , ESCROW , PAYPAL , ETC. Especially ESCROW, which is guaranteed by Alibaba.com. It is safe and effective.
Q2: How can you guarantee the quality?
A: If you meet with quality problem, we promise to replace goods or return your funds.
Q3: If we don’t find what we want on your website, what should we do?
A: You can email us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month, and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.
Q4: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to send 1pc for quality testing if we have the item you need in stock.
Why choose us?
1. Let’s talk—we have NO barrier in language
2. Request for more item information---there are nearly 2000 products for your option!
3. Write us for quotation---reply you within 24 hours,one quotation could be ready in 2mins for a ready products!
Send your inquiry directly to us
