Place of Origin:
China
Brand Name:
ZH
Certification:
IS09001
Model Number:
22218CAK
2218CAK 22218 22218W P0 P6 P5 P3 P4 P2 Quality LEVEL CHROME STEEL Spherical Roller Bearing
Product introduction
22218CAK MBKC3W33 UBC Spherical Roller Bearing are dedicated to extremely severe applications and must support high loads, severe misalignment, contaminated environments, shocks, and vibrations.(High quality products only need factory prices)
The performance of these spherical is achieved through the use of very high quality raw materials and optimized rolling element geometry. The unique design also leads to: Reduced friction torque (as much as 30% less),
offering lower operating temperature, with lower power and lubricant consumption. Appreciably increased operating speed, allowing an extended scope of applications.
Spherical roller bearings are due to their design subjected to significant axial and radial loads. The rolling element is not just a simple cylinder, but a cone or cylindrical rollers with spherical surface.
| d |
90 mm
|
Bore diameter |
|---|---|---|
| D |
160 mm
|
Outside diameter |
| B |
40 mm
|
Width |
| d2 |
≈106 mm
|
Shoulder diameter of inner ring |
| D1 |
≈141 mm
|
Shoulder/recess diameter of outer ring |
| b |
6 mm
|
Width of lubrication groove |
| K |
3 mm
|
Diameter of lubrication hole |
| r1,2 |
min.2 mm
|
Chamfer dimension |
| da |
min.101 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max.149 mm
|
Diameter of housing abutment |
| ra |
max.2 mm
|
Radius of fillet |
| Basic dynamic load rating | C |
331 kN
|
|---|---|---|
| Basic static load rating | C0 |
375 kN
|
| Fatigue load limit | Pu |
39 kN
|
| Reference speed |
3 800 r/min
|
|
| Limiting speed |
5 300 r/min
|
|
| Limiting value | e |
0.24
|
| Calculation factor | Y1 |
2.8
|
| Calculation factor | Y2 |
4.2
|
| Calculation factor | Y0 |
2.8
|
hot sale recommendation
| AP2D36 | HPV75 | K3V112DP | SBS80 | HPK055K | A8V0140 |
| SDV36 | HPV95 | K3V112BDP | AP2D25 | HPV050 | A8V0160 |
| M5X180 | K3V180 | K3V140DT | AP2D36 | HPV091DW | A8V0200 |
| SG025 | k3v140 | K3V180DT | A10VD17 | HPV091EW | A10VO28 |
| SG02 | HPV102 A8V160 | K5V140DTP | A10VD43 | HPV091DS | |
| SG04 | HPV118 | K5V160DTP | A10VS063 | HPV091ES | |
| SG08 | HPV145 | K5V160DP | A10VS071 | HPV091/102 | |
| SG12 | HPV132 | K5V200DTH | A8V0107 | HPV0102 | |
| SG20 | HPV140 | K5V200DPH | K3SP36C | HPV0118 | |
| SG23 | SBS120 | NV111 | PVK-2B-505 | HPV116 | |
| M2X120 M5X130 | SBS140 | K7V63 | PVB92 | HPV145 |

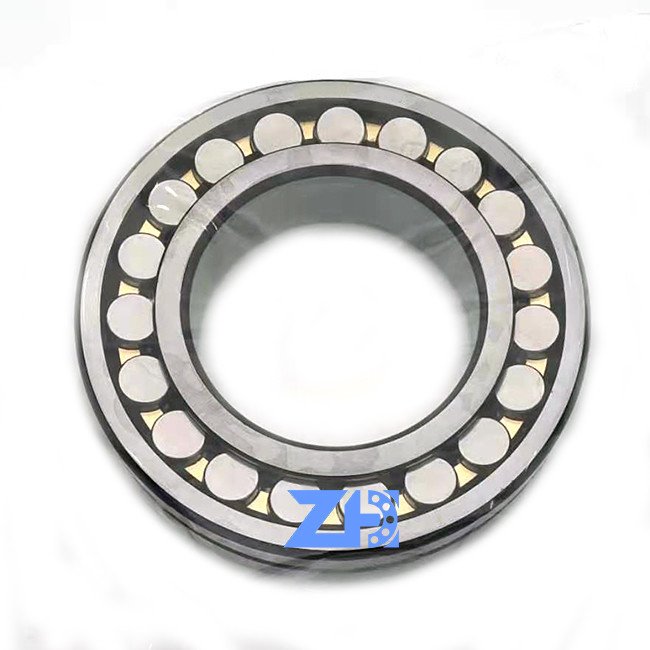

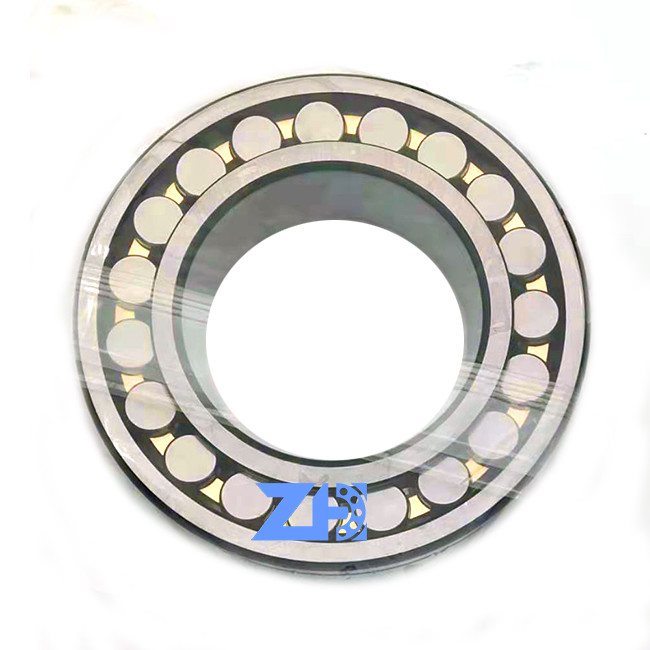

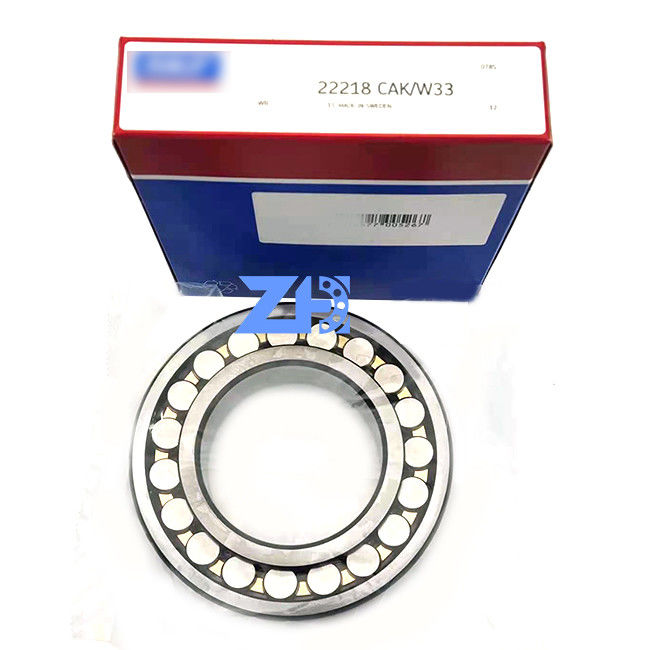

Photo show
