Place of Origin:
China
Brand Name:
ZH
Certification:
IS09001
Model Number:
22310CA
Long service time Spherical Roller Bearing 22310CA 22310E 22310W33 55*120*43mm
Product introduction(Hungry looking for food, buy bearings looking ZH)
22310CA Spherical Roller Bearing designed using a spherical outer ring in addition to the standard cylindrical inner ring with raceways. This spherical outer ring added an additional degree of freedom and enabled spherical roller bearings to accommodate misalignment and support higher loads than other common roller bearing designs. With its ability to support heavy loads while resisting misalignment, spherical roller bearings are ideal for applications where the shaft is not supported along its entire length.
Their extreme high quality and durability make them ideal for heavy-duty applications, but that doesn't mean you should be intimidated by them. They're great for any application where you need reliability and toughness—not really a lot of other options out there can compete with spherical's performance
| Bore diameter | 50 mm |
| Outside diameter | 110 mm |
| Width | 40 mm |
| d |
50 mm
|
Bore diameter |
|---|---|---|
| D |
110 mm
|
Outside diameter |
| B |
40 mm
|
Width |
| d2 |
≈63.9 mm
|
Shoulder diameter of inner ring |
| D1 |
≈91.9 mm
|
Shoulder/recess diameter of outer ring |
| b |
6 mm
|
Width of lubrication groove |
| K |
3 mm
|
Diameter of lubrication hole |
| r1,2 |
min.2 mm
|
Chamfer dimension |
| da |
min.61 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max.99 mm
|
Diameter of housing abutment |
| ra |
max.2 mm
|
Radius of fillet |
| Basic dynamic load rating | C |
228 kN
|
|---|---|---|
| Basic static load rating | C0 |
224 kN
|
| Fatigue load limit | Pu |
23.6 kN
|
| Reference speed |
4 800 r/min
|
|
| Limiting speed |
6 300 r/min
|
|
| Limiting value | e |
0.37
|
| Calculation factor | Y1 |
1.8
|
| Calculation factor | Y2 |
2.7
|
| Calculation factor | Y0 |
1.8
|
22310CA Suggest product
| HMS072 | M2X210 | NUP306 | NUP206 | KMF90-PC200-6 | M2X63 | NUP207/NUP306 | NUP309 | MSG-27P |
| AP5S67 | AP5S53 | NUP307 | 6305M | M5X180 | NUP308=140 | 30309D | 30312D | HMGF57 |
| 11749/11710 | M5X130 | NUP205E | TM09 | 32205 | NUP307 | 30312D | 30314D | NUP2211=250 |
| NUP2310 | 30314D=250 | NUP207=120 | GM18VL | T7FC060 | NUP2208 | NUP2209 | 30312D | NUP207 |
| 30312D | NUP309 | NUP2209=160 | KMF125 | NUP207 | NUP2211 | NUP2209 | 6008 | |
| 30312D | T7FC055 | NUP2207=140 | HMK3525+IR | 6213 | NUP308 | NUP2209 | NUP307 | |
| NUP308 | T7FC055 | NUP2206=130 | 30309D | NUP308 | NUP309 | NUP2212 | 30311D | |
| DNB50/60 | NUP310 | NUP309=180 | 30210 | SG08 | NUP309 | NUP2212 | T7FC055 | |
| HMGF35 | JMF250 | NUP309=180 | 30210 | GM17VA | NUP2212 | NUP2211 | NIP2310 | |
| HMGF36 | NUP309 | NUP310 | 30311D | JMV-44/22 | 30312D=155 | 30312D=155 | NUP208E | |
| HMGC48 | JMF29 | NUP2206 | SG04 | GM35VA | M2X96 | M2X120 | NUP307 |

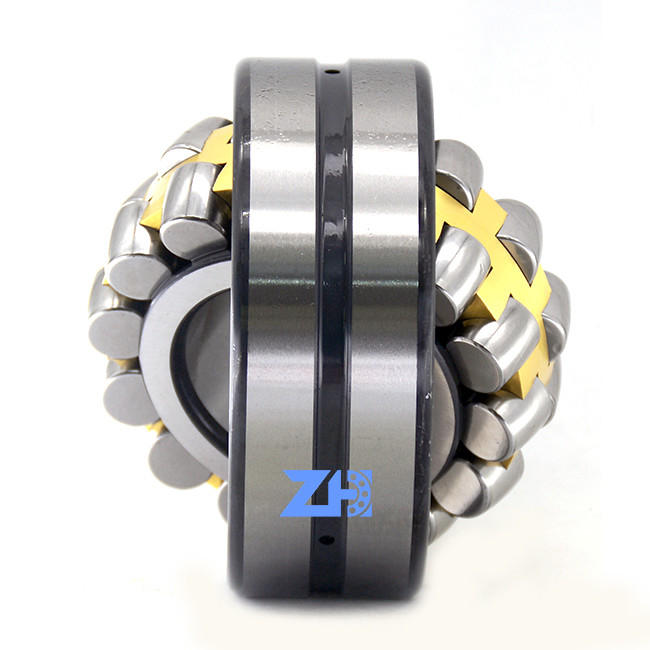

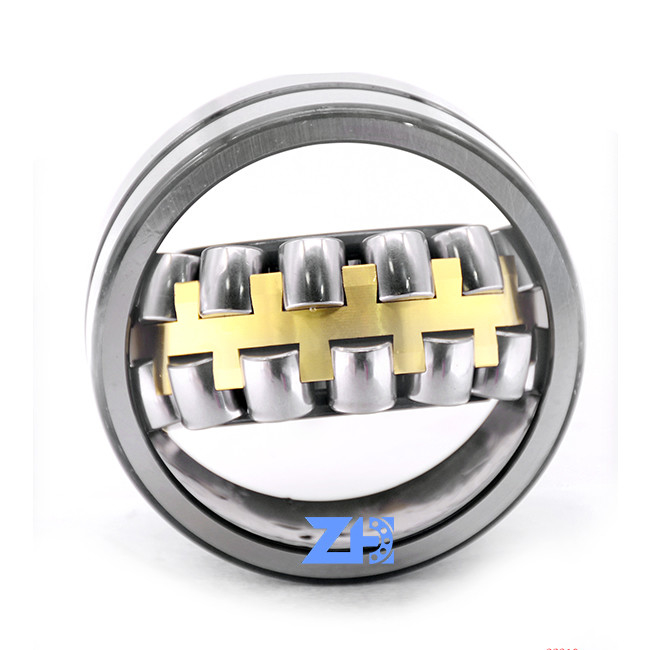

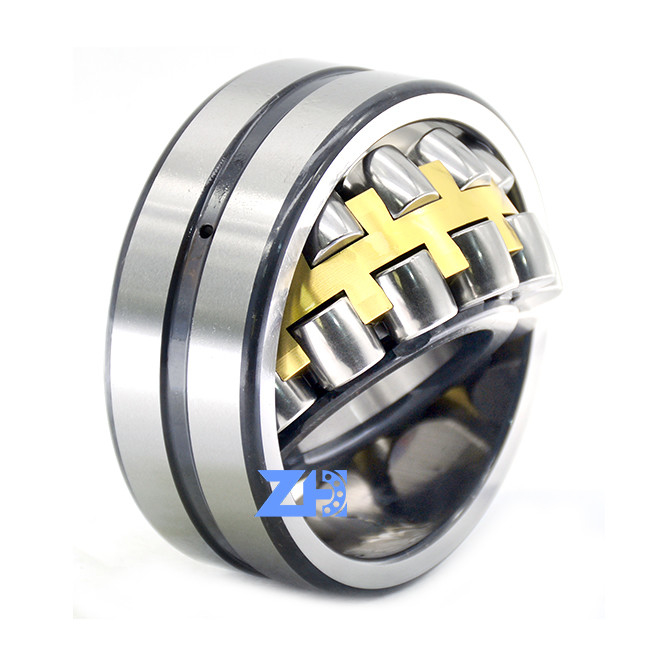

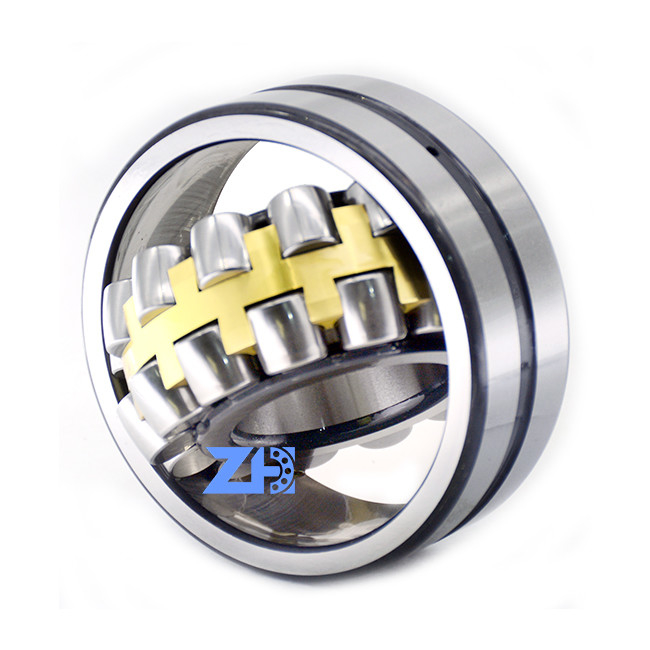

Picture show
