Place of Origin:
China
Brand Name:
ZH
Certification:
IS09001
Model Number:
29330E
29330E 29330M 29330EN1 P0 P5 P4 P3 Quality Level ank CHROME STEEL Thrust ball bearing
Choose our advantages:
19 years of experience in manufacturing bearings, is the most professional bearing manufacturing enterprises in China, geographical location, reduce production costs, close to the port and have a large number of stocks, can give customers fast delivery, 24 hours after-sales service, only to provide customers with lower prices, higher quality, better service
Production introduction(To create high-quality bearings, geographical advantages to reduce production costs)
29330E Purpose of thrust ball bearing: only suitable for bearing one axial load, low speed on the machine, such as crane hook, vertical pump, vertical centrifuge, jack, low speed reducer. The shaft ring, seat ring and rolling body of the bearing are separated and can be installed and disassembled respectively
| d |
150 mm
|
Bore diameter |
|---|---|---|
| D |
250 mm
|
Outside diameter |
| H |
60 mm
|
Height |
| d1 |
≈223 mm
|
Outside diameter of shaft washer end side face |
| D1 |
≈190 mm
|
Shoulder diameter outer ring |
| B |
38 mm
|
Width shaft washer or length of shaft washer bore diameter that fits on shaft (bearings with a stamped steel cage) |
| B1 |
54.9 mm
|
Height shaft washer + cage |
| C |
28 mm
|
Height housing washer |
| s |
87 mm
|
Distance from shaft washer end side face to pressure point |
| r1,2 |
min.2.1 mm
|
Chamfer dimension shaft washer |
| da |
min.195 mm
|
Diameter of shaft abutment |
|---|---|---|
| db1 |
max.158 mm
|
Abutment diameter of spacer ring |
| db2 |
max.163 mm
|
Outside diameter of spacer ring |
| Da |
max.219 mm
|
Diameter of housing abutment |
| ra |
max.2 mm
|
Fillet radius |
| Basic dynamic load rating | C |
1 000 kN
|
|---|---|---|
| Basic static load rating | C0 |
2 850 kN
|
| Fatigue load limit | Pu |
315 kN
|
| Reference speed |
1 500 r/min
|
|
| Limiting speed |
2 400 r/min
|
|
| Minimum axial load factor | A |
0.77
|
Part stocklist of our ZH Spherical roller thrust bearings
| 29412 E * | 29332 E * | 29356 E * | 29484 EM | 294/630 EM |
| 29413 E * | 29432 E * | 29456 E * | 29288 | 292/670 |
| 29414 E * | 29334 E * | 29260 | 29388 EM | 294/670 EM |
| 29415 E * | 29434 E * | 29360 E * | 29488 EM | 293/710 EM |
| 29416 E * | 29236 E | 29460 E | 29292 | 294/710 EF |
| 29317 E * | 29336 E * | 29264 | 29392 | 292/750 EM |
| 29417 E * | 29436 E * | 29364 E * | 29492 EM | 293/750 |
| 29318 E * | 29338 E * | 29464 E | 29296 | 294/750 EF |
| 29418 E * | 29438 E * | 29268 | 29396 | 292/800 EM |
| 29320 E * | 29240 E | 29368 | 29496 EM | 293/800 |
| 29420 E * | 29340 E * | 29468 E | 292/500 | 294/800 EF |
| 29322 E * | 29440 E * | 29272 | 293/500 | 292/850 EM |
| 29422 E * | 29244 E | 29372 | 294/500 EM | 294/850 EF |
| 29324 E * | 29344 E * | 29472 EM | 292/530 EM | 294/900 EF |
| 29424 E * | 29444 E * | 29276 | 293/530 | 292/950 EM |
| 29326 E * | 29248 | 29376 | 294/530 EM | 294/950 EF |
| 29426 E * | 29348 E * | 29476 EM | 292/560 | 292/1060 EF |
| 29328 E * | 29448 E * | 29280 | 294/560 EM | 294/1060 EF |
| 29428 E * | 29252 | 29380 | 292/600 EM | 292/1180 EF |
| 29230 E | 29352 E * | 29480 EM | 294/600 EM | 293/1250 EF |
| 29330 E * | 29452 E * | 29284 | 292/630 EM | 293/1600 EF |
29330E Collection
| KMF125-PC200-8 | NUP206E | NUP309=180 | NUP2212=220 | 6305 | NUP308 | NUP308=140 | 30314D=250 | NUP308 |
| KMF160-PC360-7 | 15578 | NUP309 | NUP206=100 | NUP2211=250 | 30309D=110 | T7FC055=300 | NUP309 | HMGF36 |
| MSG-27P | NUP306 | NUP206 | NUP2206=130 | NUP207 | NUP207/NUP306 | NUP309 | T7FC055 | |
| AP5S53 | NUP307 | 6305M | NUP309=180 | NUP307 | 30309D | 30312D | T7FC055 | |
| M5X130 | NUP205E | 4T-30307 | NUP309=180 | NUP307 | M2X55 | 30314D | NUP310 | |
| M5X180 | NUP207=120 | SG08 | NUP310 | NUP2208 | M2X63 | 30312D | NUP207 | |
| 32205 | NUP2209=160 | GM17VA | MAG120 | NUP2211 | NUP2208=210 | 6008 | 6213 | |
| T7FC060 | NUP2207=140 | JMV-44/22 | MAG150 | HMGC48 | NUP307=110 | NUP307 | NUP308 | |
| M2X150 | 30312D | KMF125-PC200-7 | KMF90-PC200-6 | NUP309 | JMF195 | 30311D | NUP309 | |
| M2X170 | NUP2209 | NUP2310 | NUP2206 | NUP309 | NUP2212 | T7FC055 | JMF29 | |
| M2X210 | NUP2209 | 30210 | NUP2207 | NUP2212 | NUP2211 | NIP2310 | JMF23 | |
| HMGF57 | NUP2209 | 30311D | NUP2207 | 30312D=155 | 30312D=155 | NUP208E | JMF151 | |
| NUP306 | NUP2212 | SG04 | GM35VA | M2X96 | M2X120 | NUP308=14 | 11749/11710 | |
| NUP307 | M2X146 | SG025 | GM35VL | MCB172 | 32207 | T7FC065 | KMF41-PC60 | |
| HMK3525+IR | JMF250 | SG02 | GM38VB | HMT36FA | 30312 | NUP207 | GM18VL | |
| 30309D | JMV-53/31 | SG15 | MAG150 | HMGC32 | 30312D | HMS072 | DNB50/60 | |
| 30210 | MAG85 | SG20 | TM09 | HMGF35 | 30312D | AP5S67 | NUP308 |

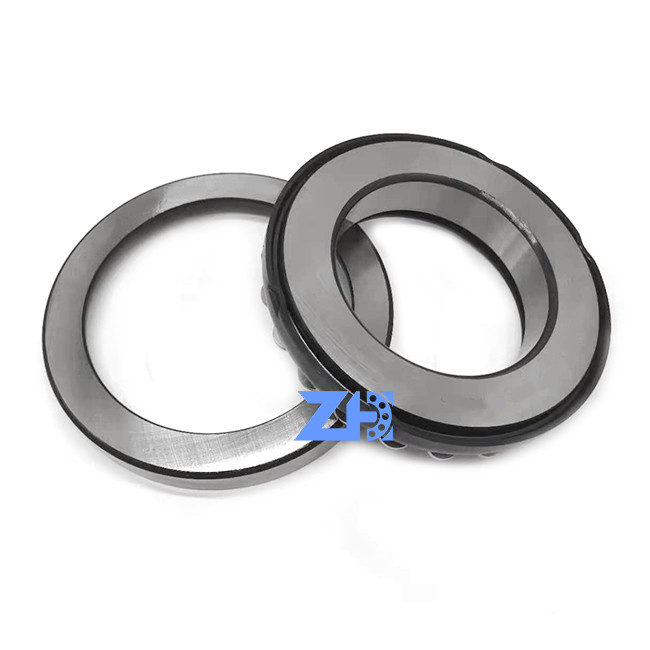

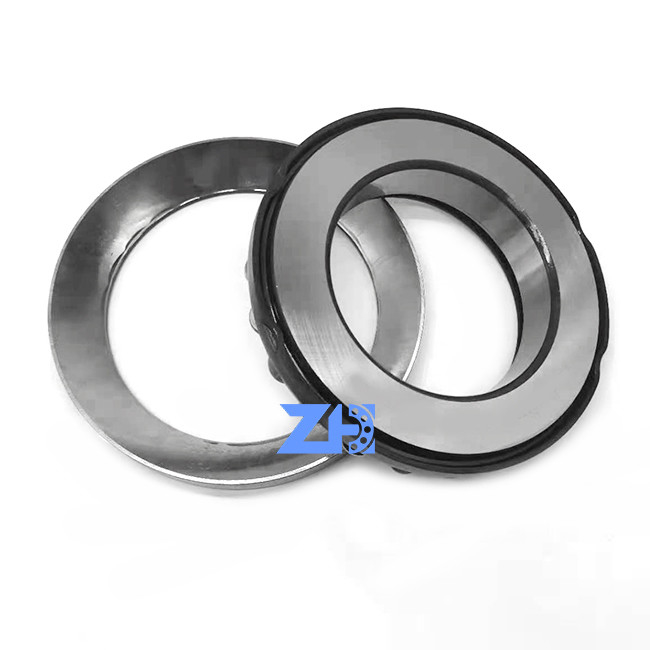

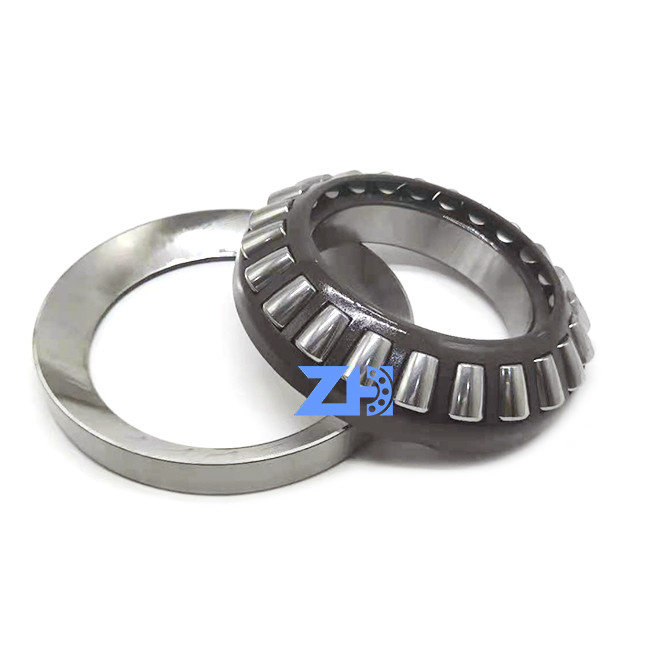

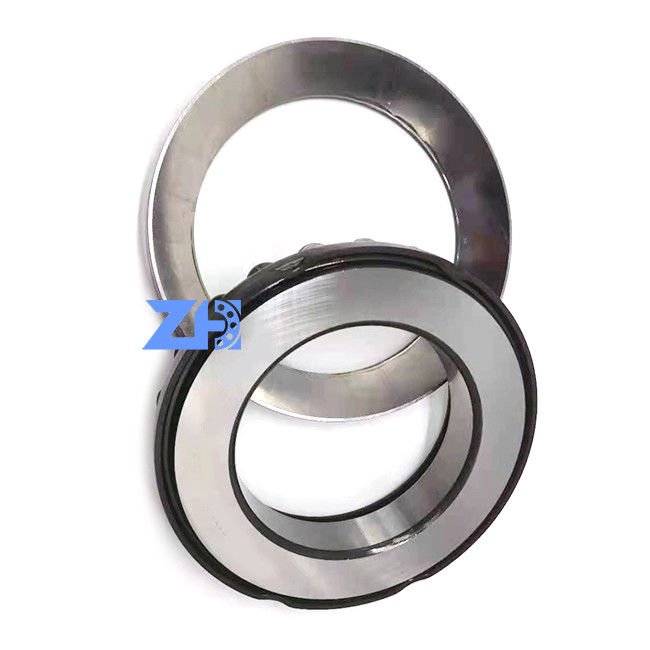

Picture show
