Place of Origin:
CHINA
Brand Name:
ZH
Certification:
IS09001
Model Number:
BR445628
BR445628 445628W 445628RS 445628JQ 445628CA 445628CAC 445628CC 445628EC 445628ECA 445628ECK P6 P5 P3 P4 P2 V1 V2 V3 V5 V4Quality LEVEL CHROME STEEL Needle Roller Bearing
Product introduction
BR405228 is an Inch Series Open Type, Single Row Machined Needle Roller Bearing with an oil groove and oil hole in the Outer Ring. This Bearing has no Inner Ring, meaning the Needle Rollers are mounted directly onto the shaft
(Hungry to find food, buy bearings to find ZH)
As such, the Bearing has better running accuracy as it isn't affected by assembling an Inner Ring with the shaft. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution.
These Bearings are designed for high load carrying capacity in radially compact arrangements and are used in most general purpose applications. The Bearing's dimensions are 2.1/2x3.1/4x1.3/4 Inches.
| Bearing No. |
-BR45628
|
|
| BOUNDARY DIMENSIONS(MM) |
69.85
|
|
| D |
88.9
|
|
| C |
44.45
|
|
| RS(MIN) |
2.03
|
|
| USED WITH INNER RING NO. |
IR-354428
|
|
| BASIC LOAD RATINGS(KN) | Cr |
44.45
|
| C0R |
245
|
|
| FATIGUE LOAD LIMIT(KN) | Cu |
38.2
|
| LIMITING SPEEDS(MIN-1) | Grease lub. |
4000
|
| OIL LUB. |
6200
|
|
| (REFER.)MASS(KG) |
0.635
|
|
| MOUNTING DIMENSION | Clearance fit S(h6)(max.) |
69.850
|
| CLEARANCE FIT S(H6)(MIN.) |
69.832
|
|
| CLEARANCE FIT H(H7)(MAX.) |
88.936
|
|
| CLEARANCE FIT H(H7)(MIN.) |
88.900
|
|
| TIGHT TRANSITION FIT S(F6)(MAX.) |
69.820
|
|
| TIGHT TRANSITION FIT S(F6)(MIN.) |
69.802
|
|
| TIGHT TRANSITION FIT H(N7)(MAX.) |
88.887
|
|
| TIGHT TRANSITION FIT H(N7)(MIN.) |
88.852
|
|
| SHOULDER DIA. | Da |
80.98
|
| Bearing No. |
HJ-445628
|
|
| BOUNDARY DIMENSIONS(MM) | Fw |
69.85
|
| D |
88.9
|
|
| C |
44.45
|
|
| RS(MIN) |
2.03
|
|
| USED WITH INNER RING NO. |
IR-354428
|
|
| BASIC LOAD RATINGS(KN) | Cr |
44.45
|
| C0R |
245
|
|
| FATIGUE LOAD LIMIT(KN) | Cu |
38.2
|
| LIMITING SPEEDS(MIN-1) | Grease lub. |
4000
|
| OIL LUB. |
6200
|
|
| (REFER.)MASS(KG) |
0.635
|
|
| MOUNTING DIMENSION | Clearance fit S(h6)(max.) |
69.850
|
| CLEARANCE FIT S(H6)(MIN.) |
69.832
|
|
| CLEARANCE FIT H(H7)(MAX.) |
88.936
|
|
| CLEARANCE FIT H(H7)(MIN.) |
88.900
|
|
| TIGHT TRANSITION FIT S(F6)(MAX.) |
69.820
|
|
| TIGHT TRANSITION FIT S(F6)(MIN.) |
69.802
|
|
| TIGHT TRANSITION FIT H(N7)(MAX.) |
88.887
|
|
| TIGHT TRANSITION FIT H(N7)(MIN.) |
88.852
|
|
| SHOULDER DIA. | Da |
80.98
|
Coke with ice, BR445628 with these
| 11749/11710 | NUP206E | NUP309=180 | NUP2212=220 | 6305 | NUP308 | NUP308=140 |
| NUP2310 | 15578 | NUP309 | NUP206=100 | NUP2211=250 | 30309D=110 | T7FC055=300 |
| NUP309 | NUP2206 | NUP206 | NUP2208=210 | NUP207 | NUP207/NUP306 | NUP309 |
| T7FC055 | NUP2207 | 6305M | NUP307=110 | NUP307 | 30309D | 30312D |
| T7FC055 | NUP2207 | 4T-30307 | NUP207=120 | NUP307 | 30312D | |
| 32207 | NUP2209 | NUP306 | NUP2209=160 | NUP2208 | 30312 | |
| 32205 | NUP2209 | NUP307 | NUP2207=140 | NUP2211 | 30312D | |
| T7FC060 | NUP2209 | HMK3525+IR | NUP2206=130 | NUP308 | 30312D |

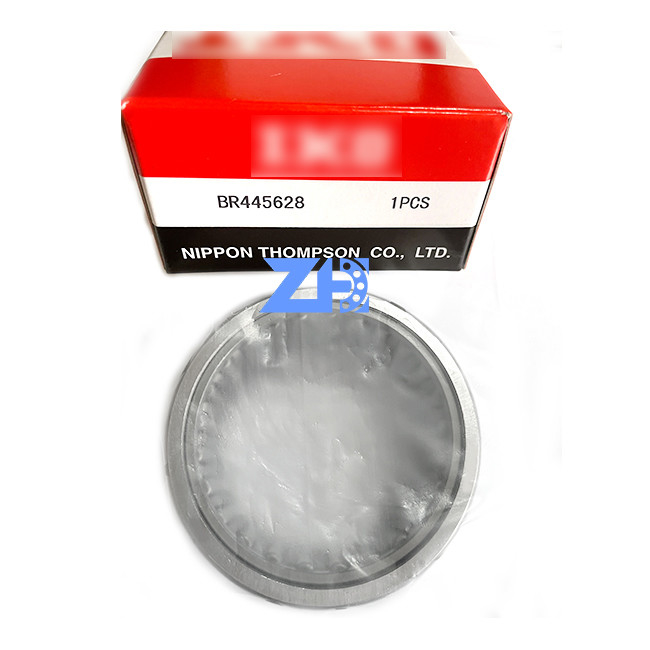

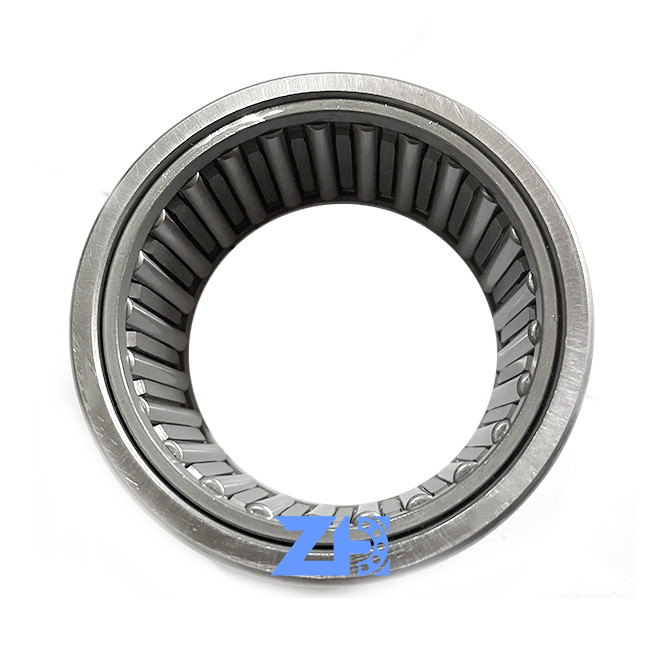

Picture show
