Place of Origin:
China
Brand Name:
ZH
Certification:
IS09001
Model Number:
BR648032
BR648032 HJ648032 648032W 648032JQ P0 P5 P3 P4 P2 Quality LEVEL CHROME STEEL Needle Roller Bearing
Product introduction
BR648032 Needle roller bearing bearing capacity is large, suitable for installation size limited support structure, the journal surface is hardened as a rolling surface, the bearing is pressed into the seat hole, no need to axial positioning it.
The bearing should be injected with the appropriate amount of grease before installation, under normal circumstances, no lubrication after assembly BK type bearings are used in the support of the journal without an extended end,
the end face closure plays a sealing role, and can withstand small axial swimming.
Bearing number : BR 648032
Size (mm) : 101.6x127x50.8
Brand : ZH
Bore Diameter (mm) : 101,6
Outer Diameter (mm) : 127
Width (mm) : 50,8
Bearing dimensions and specification in IKO catalogue:
Fw - 101,6 mm
D - 127 mm
C - 50,8 mm
Da max. - 117,8 mm
ra max. - 2,5 mm
Weight - 1,37 Kg
Basic dynamic load rating (C) - 176 kN
Basic static load rating (C0) - 368 kN
Limiting speed - 4 000 r/min
| Basic load rating | |||
| CR | 202000 | N | Dynamic load |
|---|---|---|---|
| COR | 430000 | N | Static load |
| .CR2 | 20600 | kgf | Dynamic load |
| COR2 | 43500 | kgf | Static load |
| Limiting speed | |||
| LS | 4000 | 1/min | Limiting speed |
|---|---|---|---|
| Form factor | |||
| SD | 85.725 | mm | - |
|---|---|---|---|
| B | 50.80 | mm | - |
| RS | 2.5 | mm | - |
| RA | 2.5 | mm | - |
| FW | 101.600 | mm | Inner diameter |
| D | 127.000 | Outside diameter | |
| C | 50.80 | mm | width |
| weight | |||
| MASS | 2.3 | Kg | weight |
|---|---|---|---|
Use together for better results
| T7FC055 | NUP2207 | 4T-30307 | NUP207=120 | NUP307 | 30312D | |
| 32207 | NUP2209 | NUP306 | NUP2209=160 | NUP2208 | 30312 | |
| 32205 | NUP2209 | NUP307 | NUP2207=140 | NUP2211 | 30312D | |
| T7FC060 | NUP2209 | HMK3525+IR | NUP2206=130 | NUP308 | 30312D | |
| NUP207 | NUP2212 | 30309D | NUP309=180 | NUP309 | NUP310 | |
| 6213 | NUP2212 | 30210 | NUP309=180 | NUP309 | NUP308 | |
| NUP308 | NUP2211 | 30210 | 30312D=155 | 30314D | NUP306 | |
| NUP309 | NUP310 | 30311D | 30312D=155 | 30312D | NUP307 | |
| NIP2310 | T7FC065 | 30311D | 30314D=250 | 6008 | NUP205E | |
| NUP208E | NUP207 | T7FC055 | NUP308=140 | NUP307 | NUP2212 |

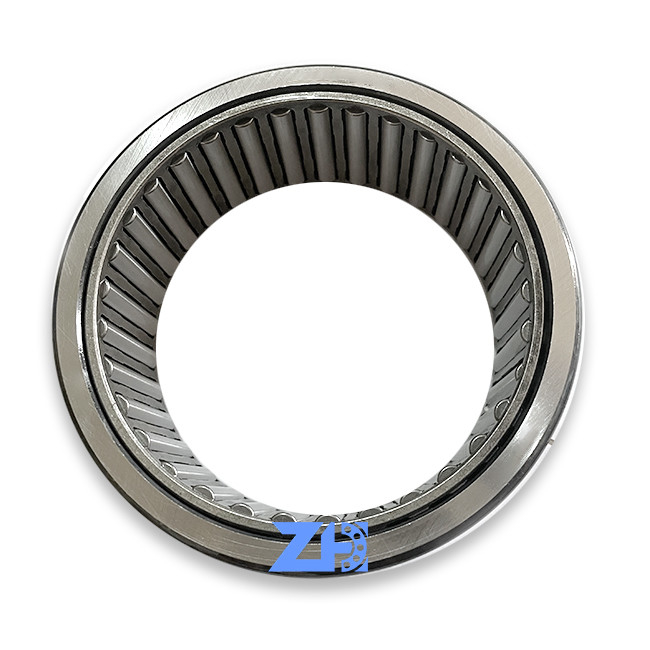

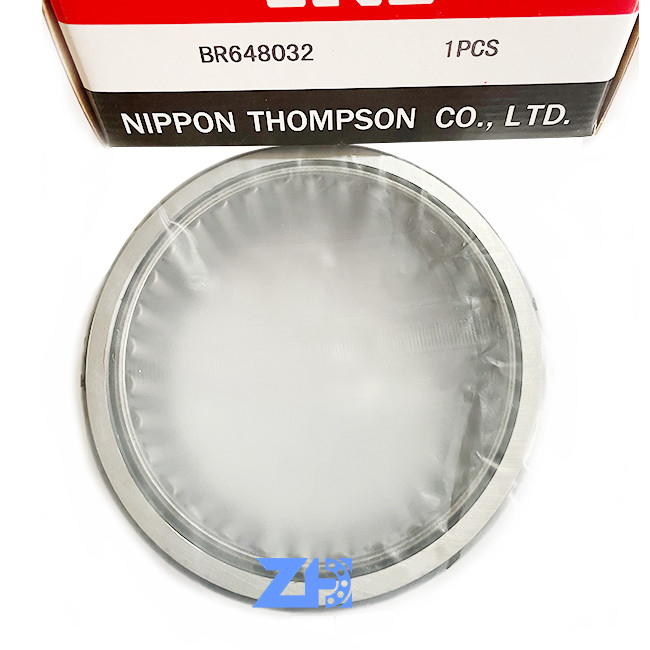

Picture show
