Place of Origin:
CHINA
Brand Name:
ZH
Certification:
IS09001
Model Number:
22208CA

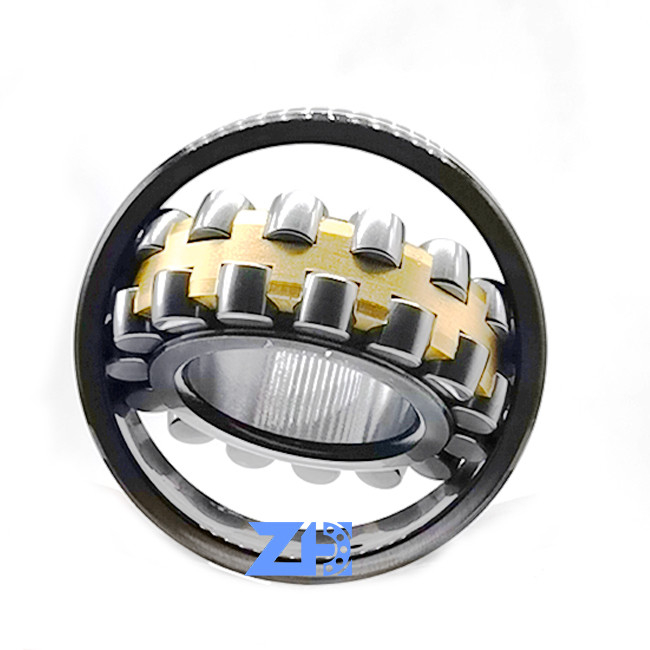

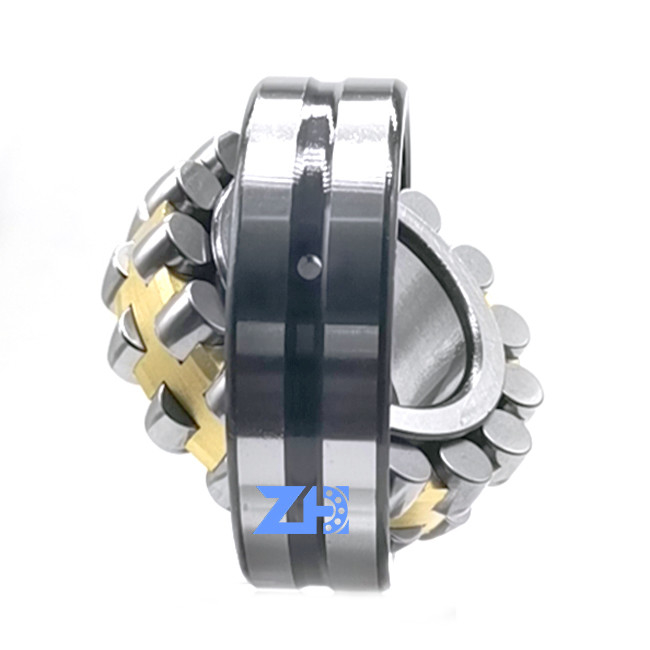

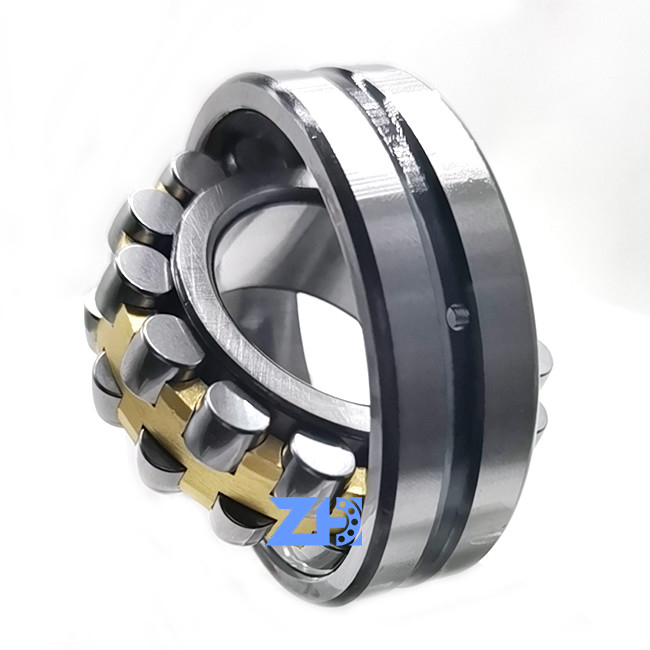

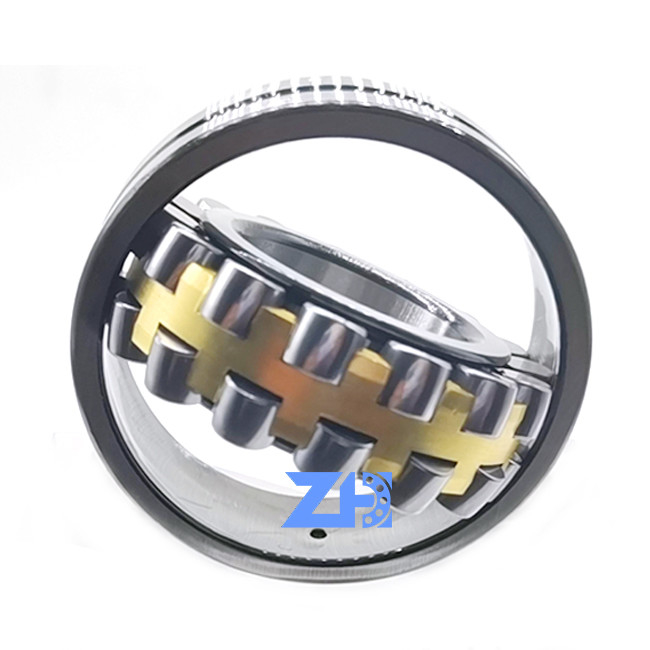

22208CA 22208C 22208E 22208JR P0 P6 P5 P3 P4 P2 Quality LEVEL CHROME Spherical Roller
Product introtion
Spherical roller bearing with relubrication features
Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
| d |
40 mm
|
Bore diameter |
|---|---|---|
| D |
80 mm
|
Outside diameter |
| B |
23 mm
|
Width |
| d2 |
≈49.6 mm
|
Shoulder diameter of inner ring |
| D1 |
≈69.4 mm
|
Shoulder/recess diameter of outer ring |
| b |
6 mm
|
Width of lubrication groove |
| K |
3 mm
|
Diameter of lubrication hole |
| r1,2 |
min.1.1 mm
|
Chamfer dimension |
| da |
min.47 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max.73 mm
|
Diameter of housing abutment |
| ra |
max.1 mm
|
Radius of fillet |
| da |
min.47 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max.73 mm
|
Diameter of housing abutment |
| ra |
max.1 mm
|
Radius of fillet |
| Basic dynamic load rating | C |
98.5 kN
|
|---|---|---|
| Basic static load rating | C0 |
91.5 kN
|
| Fatigue load limit | Pu |
10 kN
|
| Reference speed |
8 000 r/min
|
|
| Limiting speed |
11 000 r/min
|
|
| Limiting value | e |
0.28
|
| Calculation factor | Y1 |
2.4
|
| Calculation factor | Y2 |
3.6
|
| Calculation factor | Y0 |
2.5
|
