240*310*33.4 MM SF4831PX11 CHROME AUGULAR CONTACT BEARINGS F4831PX11-A SF4831PX11J2Q factory price

SF4831PX1 SF4831PX1DA SF4831PX1B P0 P6 P5 P3 P4 P2 QUALITY LEV EL CHROME AUGULAR CONTACT BEARING

Production  introduction

Installation tips

High-speed precision angular contact ball bearings are mainly used for high-speed rotating occasions with light load, requiring high accuracy, high speed, low temperature rise and low vibration of the bearing and a certain service life. The supporting parts of high-speed motorized spindle are often installed in pairs and are the key accessories of high-speed motorized spindle of internal surface grinding machine.

Installation form

Angular contact ball bearings can provide selection, angular contact ball bearings installation form, back-to-back, face to face and series arrangement of three. When the two bearings are installed back-to-back (the wide end faces of the two bearings are opposite), the contact Angle line of the bearing spreads along the direction of the rotation axis, which can increase the radial and axial support Angle rigidity and maximize the deformation resistance. When installed face to face (the narrow ends of the two bearings are opposite), the contact Angle line of the bearing converges in the direction of the rotation axis, and the rigidity of the supporting Angle is small. Because the inner ring of the bearing extends out of the outer ring, when the outer rings of the two bearings are pressed together, the original clearance of the outer ring is eliminated, and the preload of the bearing can be increased. When the series arrangement (the wide end faces of the two bearings are in one direction) is installed, the contact Angle line of the bearing is in the same direction and parallel, so that the two bearings can share the working load in the same direction. However, when using this installation form, in order to ensure the axial stability of the installation, the two pairs of bearings arranged in series must be installed at both ends of the shaft.

Industry attribute

other properties

SF4831PX1 Collection

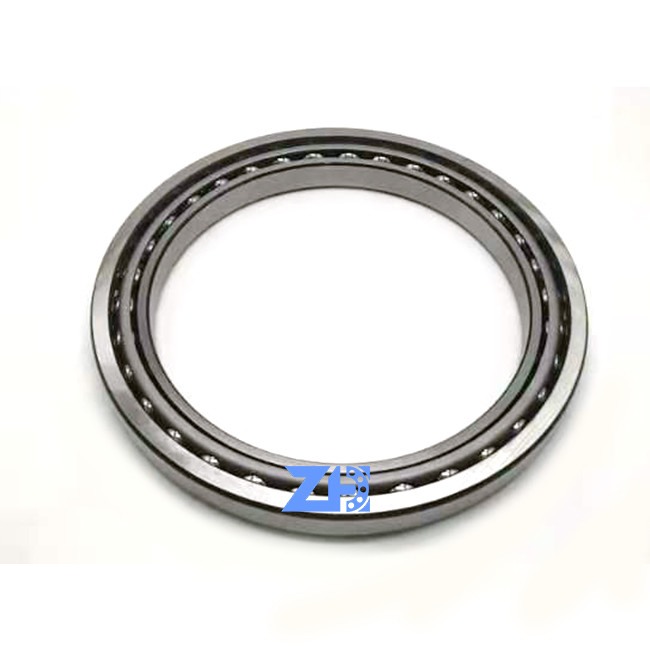

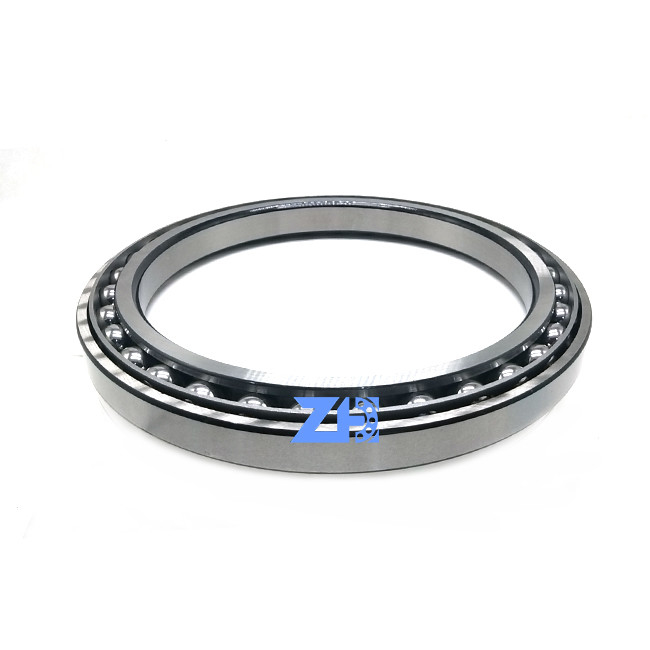

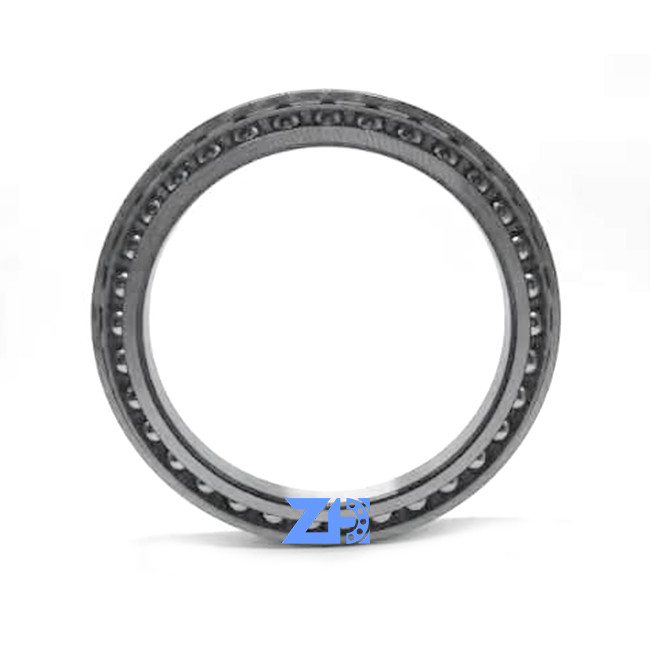

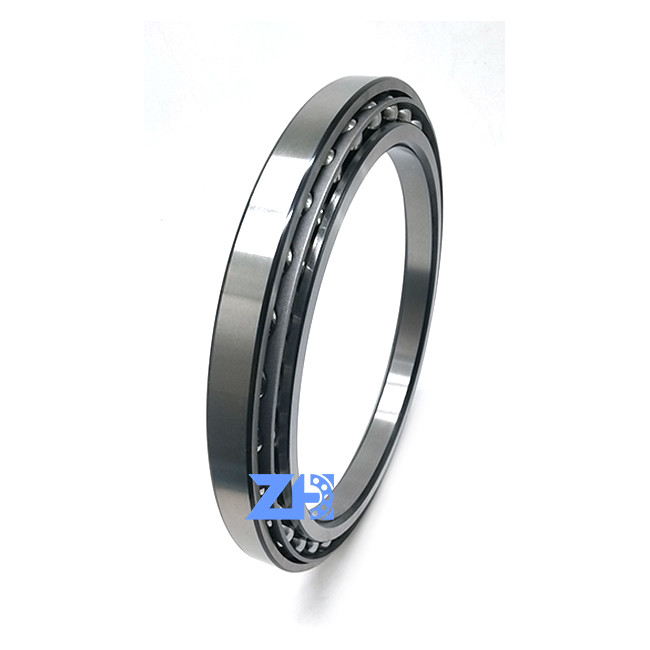

Picture show

FAQ
Q1: I want to buy your products, how can I pay?
A :You can pay via T/T , L/C , WEST UNION , ESCROW , PAYPAL , ETC. Especially ESCROW, which is guaranteed by Alibaba.com. It is safe and effective.

Q2: How can you guarantee the quality?
A: If you meet with quality problem, we promise to replace goods or return your funds.

Q3: If we don’t find what we want on your website, what should we do?
A: You can email us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month, and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.

Q4: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to send 1pc for quality testing if we have the item you need in stock.

Why choose us?
1. Let’s talk—we have NO barrier in language.
2. Request for more item information---there are nearly 2000 products for your option!
3. Write us for quotation---reply you within 24 hours,one quotation could be ready in 2mins for a ready products!
