Place of Origin:
China
Brand Name:
ZH
Certification:
IS09001
Model Number:
30311D

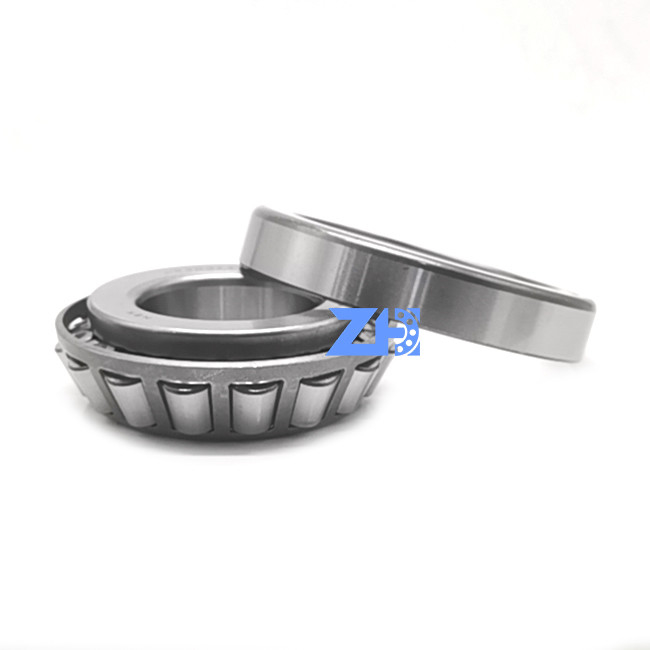

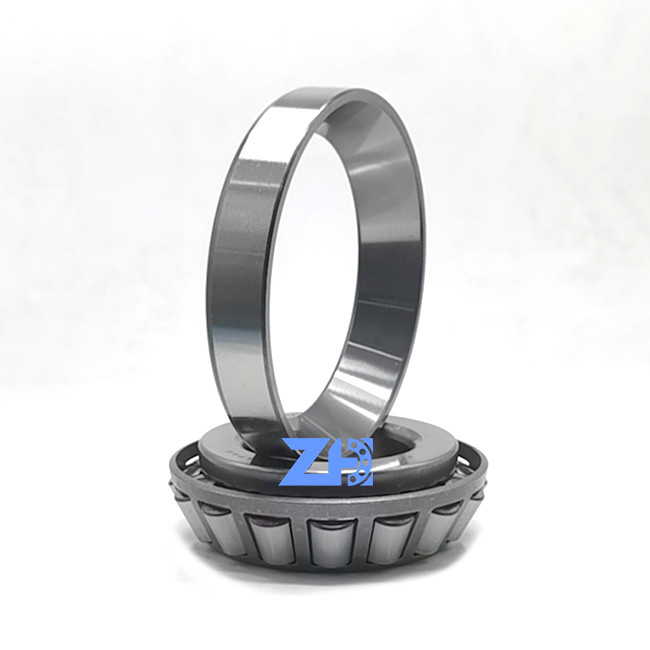

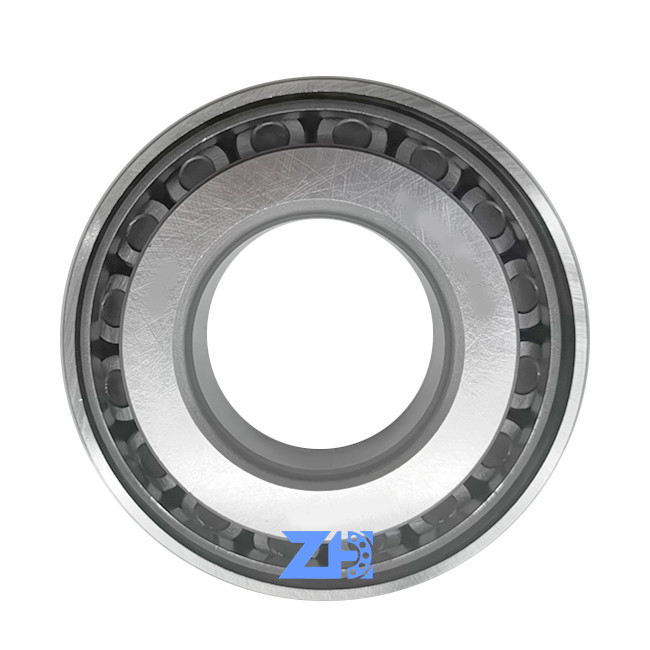

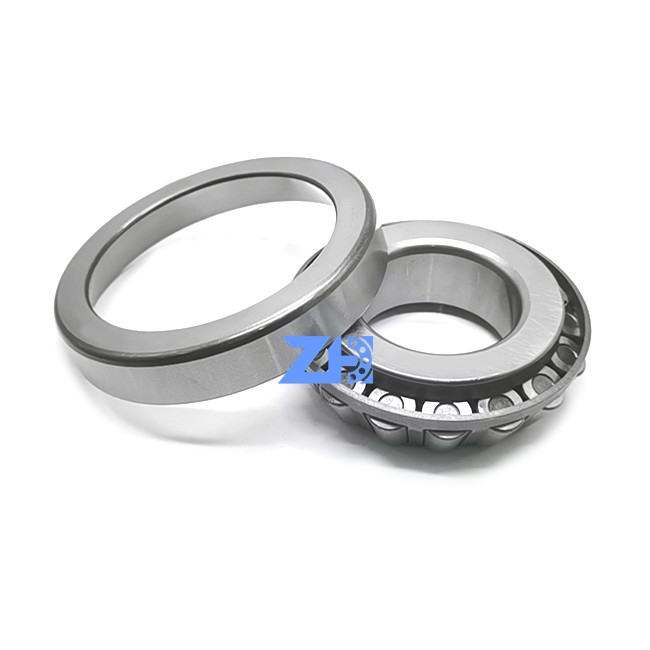

120x55x29 mm 30311D 30311C3 30311V2 Taper Roller Bearing P0 P4 P2 Quality Level
Product introduction
| d |
55 mm
|
Bore diameter |
|---|---|---|
| D |
120 mm
|
Outside diameter |
| T |
63 mm
|
Total width |
| 2B |
58 mm
|
Width of inner rings |
| b |
8 mm
|
Width of lubrication groove |
| K |
4.5 mm
|
Diameter of lubrication hole |
| r3,4 |
min.2 mm
|
Chamfer dimension |
| r5 |
min.0.6 mm
|
Chamfer dimension |
| da |
max.72 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
min.104 mm
|
Diameter of housing abutment |
| Da |
max.110.5 mm
|
Diameter of housing abutment |
| Ca |
min.4 mm
|
Minimum width of space required in housing on large side face |
| ra |
max.2.5 mm
|
Radius of fillet |
| rc |
max.0.6 mm
|
Radius of fillet |
| D(mm) | d(mm) | B(mm) | Weight(kg) | |
| 30306 | 72 | 30 | 19 | 0.398 |
| 30306D | 72 | 30 | 19 | 0.398 |
| 32306 | 72 | 30 | 27 | 0.592 |
| 320/32X | 58 | 32 | 17 | 0.181 |
| 332/32 | 65 | 32 | 26 | 0.395 |
| 323/32C | 75 | 32 | 28 | 0.659 |
| 32907XU | 55 | 35 | 14 | 0.121 |
| 32007X | 62 | 35 | 18 | 0.224 |
| 33007 | 62 | 35 | 21 | 0.263 |
| 30207 | 72 | 35 | 17 | 0.344 |
| 32207 | 72 | 35 | 23 | 0.457 |
| 32207C | 72 | 35 | 23 | 0.461 |
| 32207CR | 72 | 35 | 23 | 0.461 |
| 33207 | 72 | 35 | 28 | 0.531 |
| 30307 | 80 | 35 | 21 | 0.54 |
| 30307C | 80 | 35 | 21 | 0.517 |
| 30307D | 80 | 35 | 21 | 0.53 |
| 32307 | 80 | 35 | 31 | 0.787 |
| 32307C | 80 | 35 | 31 | 0.797 |
| 32908XU | 62 | 40 | 15 | 0.161 |
| 32008X | 68 | 40 | 19 | 0.273 |
| 33008 | 68 | 40 | 22 | 0.312 |
| 33108 | 75 | 40 | 26 | 0.494 |
| 30208 | 80 | 40 | 18 | 0.435 |
| 32208 | 80 | 40 | 23 | 0.558 |
| 33208 | 80 | 40 | 32 | 0.728 |
| T2EE040 | 85 | 40 | 32.5 | 0.907 |
| 30308 | 90 | 40 | 23 | 0.769 |
| 30308C | 90 | 40 | 23 | 0.728 |
| 30308D | 90 | 40 | 23 | 0.738 |
| 32308U | 90 | 40 | 33 | 1.08 |
| 32308C | 90 | 40 | 33 | 1.1 |
| 32909XU | 68 | 45 | 15 | 0.188 |
| 32009X | 75 | 45 | 20 | 0.346 |
| 33009 | 75 | 45 | 24 | 0.398 |
| 33109 | 80 | 45 | 26 | 0.542 |
| 30209 | 85 | 45 | 19 | 0.495 |
| 32209 | 85 | 45 | 23 | 0.607 |
| 33209 | 85 | 45 | 32 | 0.783 |
| 30309 | 100 | 45 | 25 | 1.01 |
| 30309D | 100 | 45 | 25 | 0.958 |
| 32309U | 100 | 45 | 36 | 1.46 |
| 32910XU | 72 | 50 | 15 | 0.191 |
| 32910 | 72 | 50 | 14 | 0.192 |
| 32010X | 80 | 50 | 20 | 0.366 |
| 33010 | 80 | 50 | 24 | 0.433 |
| 33110 | 85 | 50 | 26 | 0.58 |
| 30210 | 90 | 50 | 20 | 0.563 |
| 32210 | 90 | 50 | 23 | 0.648 |
| 33210 | 90 | 50 | 32 | 0.852 |
| T2ED050 | 100 | 50 | 35 | 1.31 |
| T7FC050 | 105 | 50 | 29 | 1.23 |
| 30310 | 110 | 50 | 27 | 1.31 |
| 30310D | 110 | 50 | 27 | 1.25 |
| 32310U | 110 | 50 | 40 | 1.92 |
| 32911XU | 80 | 55 | 17 | 0.274 |
| 32011X | 90 | 55 | 23 | 0.563 |
| 33011 | 90 | 55 | 27 | 0.643 |
| 33111 | 95 | 55 | 30 | 0.846 |
| 30211 | 100 | 55 | 21 | 0.74 |
| 32211 | 100 | 55 | 25 | 0.876 |
| 33211 | 100 | 55 | 35 | 1.15 |
| 30311 | 120 | 55 | 29 | 1.66 |
| 30311D | 120 | 55 | 29 | 1.59 |
| 32311U | 120 | 55 | 43 | 2.44 |
| 32912XA | 85 | 60 | 17 | 0.296 |
| 32012X | 95 | 60 | 23 | 0.576 |
| 33012 | 95 | 60 | 27 | 0.684 |
| 33112 | 100 | 60 | 30 | 0.912 |
| d |
55 mm
|
Bore diameter |
|---|---|---|
| D |
120 mm
|
Outside diameter |
| T |
63 mm
|
Total width |
| 2B |
58 mm
|
Width of inner rings |
| b |
8 mm
|
Width of lubrication groove |
| K |
4.5 mm
|
Diameter of lubrication hole |
| r3,4 |
min.2 mm
|
Chamfer dimension |
| r5 |
min.0.6 mm
|
Chamfer dimension |
| Basic dynamic load rating | C |
302 kN
|
|---|---|---|
| Basic static load rating | C0 |
325 kN
|
| Fatigue load limit | Pu |
39 kN
|
| Reference speed |
3 800 r/min
|
|
| Limiting speed |
5 600 r/min
|
|
| Limiting value | e |
0.35
|
| Calculation factor | Y1 |
1.9
|
| Calculation factor | Y2 |
2.9
|
| Calculation factor | Y0 |
1.8
|
30311D Collection
| I84M5X130 | 30314D | NUP309 | 30312D=155 | NUP206=100 |
| M5X180 | 30312D | NUP308 | M2X120 | NUP2208 |
| 32205 | 30309D | GM35VL | 32207 | NUP2211 |
| T7FC060 | NUP2207=140 | NUP2206=130 | NUP205E | HMGC48 |
| M2X150 | 30312D | 6008 | NUP207=120 | NUP309 |
| M2X170 | NUP2209 | NUP307 | NUP2209=160 | 30312D |
| M2X210 | JMF23 | 30210 | 6305 | GM35VA |
| HMGF57 | JMF151 | 30311D | NUP2211=250 | 30312D=155 |
| NUP306 | 11749/11710 | 30210 | KMF160-PC360-7 | SG04 |
| NUP307 | NUP309=180 | KMF125-PC200-8 | MSG-27P | SG025 |
| KMF41-PC60 | NUP309 | M2X96 | NUP207 | HMGC32 |
| NUP308 | NUP206 | MCB172 | HMS072 | HMGF35 |
| JMF29 | 6305M | NUP206E | AP5S67 | M2X63 |
| NUP307 | 4T-30307 | M2X55 | NUP308=140 | NUP2208=210 |
| 30312D | SG08 | NUP307 | T7FC055=300 | NUP307=110 |
| NIP2310 | GM17VA | NUP307 | NUP309 | JMF195 |
| NUP208E | JMV-44/22 | NUP309=180 | JMF250 | NUP2212 |
| NUP308=14 | KMF125-PC200-7 | JMV-53/31 | 15578 | |
| T7FC065 | NUP2310 | NUP310 | MAG85 | NUP306 |
| 30309D=110 | 30309D | KMF90-PC200-6 | 30312 | NUP308 |
| NUP207/NUP306 | NUP2211 | NUP2206 | NUP207 |
