Place of Origin:
CHINA
Brand Name:
ZH
Certification:
IS09001
Model Number:
21320
21320CC 21320 21320E 21320W 21320J2Q 21320ECK 21320ZW 23120-2RS 21320RS 21320RS 21320CA 21320CB
P0 P6 P5 P3 P4 P2 Quality LEVEL CHROME STEEL Spherical Roller Bearing
Product introduct

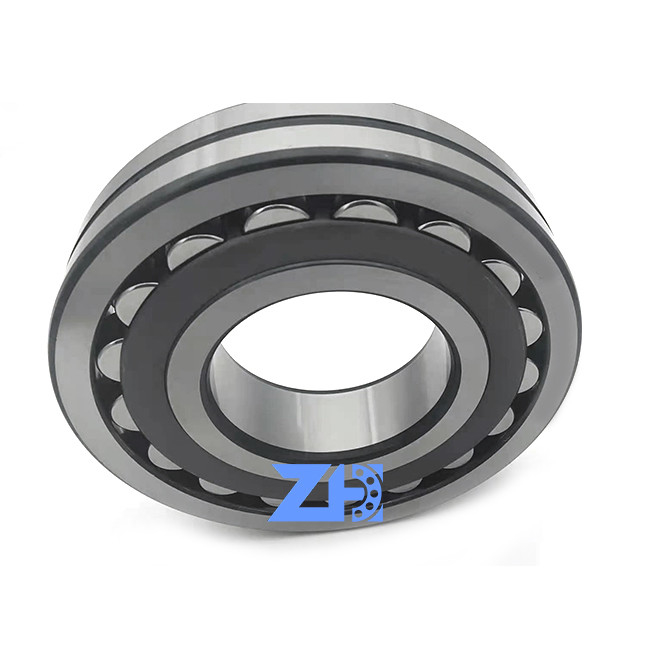

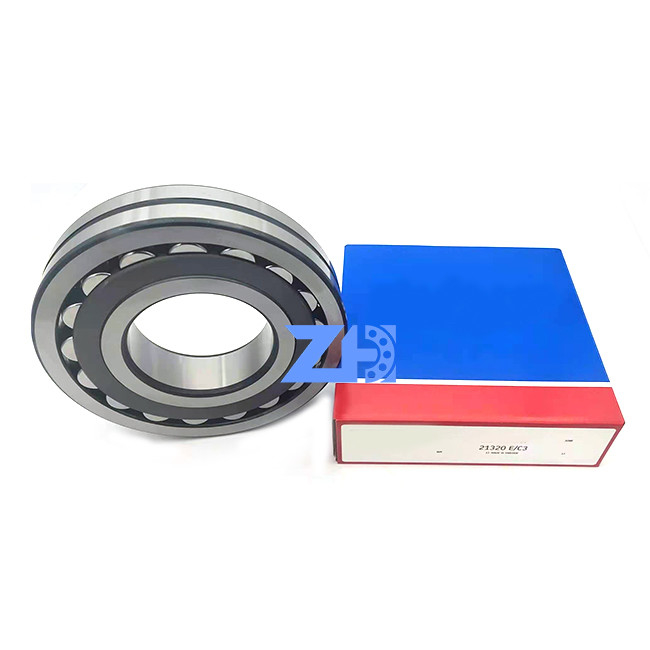

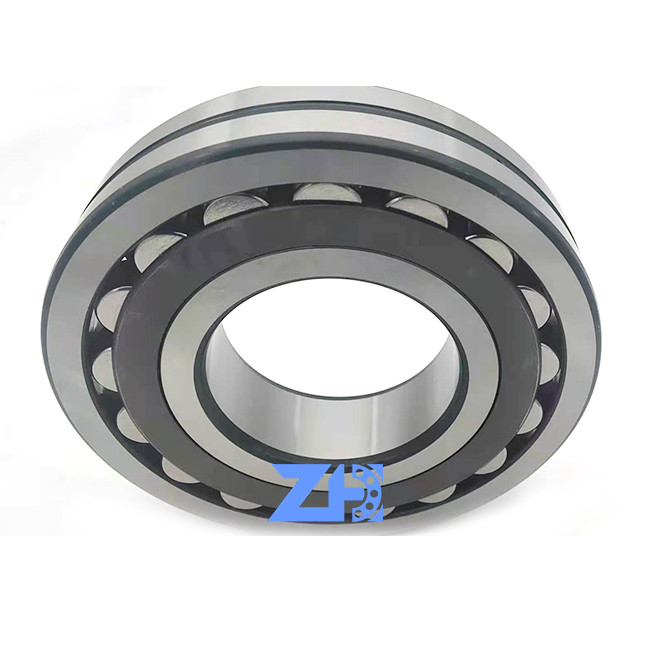

21320CCSpherical roller bearings are dedicated to extremely severe applications and must support high loads, severe misalignment, contaminated environments, shocks, and vibrations. sphericals feature the industry’s highest load rating(Factory price, high quality)
a full 18% higher than a standard spherical roller bearing. This level of quality means at least a 75% extension of service life. The performance of these sphericals is achieved through the use of very high quality raw materials and optimized rolling element geometry.
The unique design also leads to: Reduced friction torque (as much as 30% less), offering lower operating temperature, with lower power and lubricant consumption.
| d |
100 mm
|
Bore diameter |
|---|---|---|
| D |
215 mm
|
Outside diameter |
| B |
47 mm
|
Width |
| d2 |
≈118 mm
|
Shoulder diameter of inner ring |
| D1 |
≈159 mm
|
Shoulder/recess diameter of outer ring |
| b |
8.3 mm
|
Width of lubrication groove |
| K |
4.5 mm
|
Diameter of lubrication hole |
| r1,2 |
min.3 mm
|
Chamfer dimension |
| da |
min.114 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max.201 mm
|
Diameter of housing abutment |
| ra |
max.2.5 mm
|
Radius of fillet |
| Basic dynamic load rating | C |
433 kN
|
|---|---|---|
| Basic static load rating | C0 |
490 kN
|
| Fatigue load limit | Pu |
49 kN
|
| Reference speed |
3 400 r/min
|
|
| Limiting speed |
4 500 r/min
|
|
| Limiting value | e |
0.24
|
| Calculation factor | Y1 |
2.8
|
| Calculation factor | Y2 |
4.2
|
| Calculation factor | Y0 |
2.8
|
