Place of Origin:
CHINA
Brand Name:
ZH
Certification:
IS09001
Model Number:
316977 C

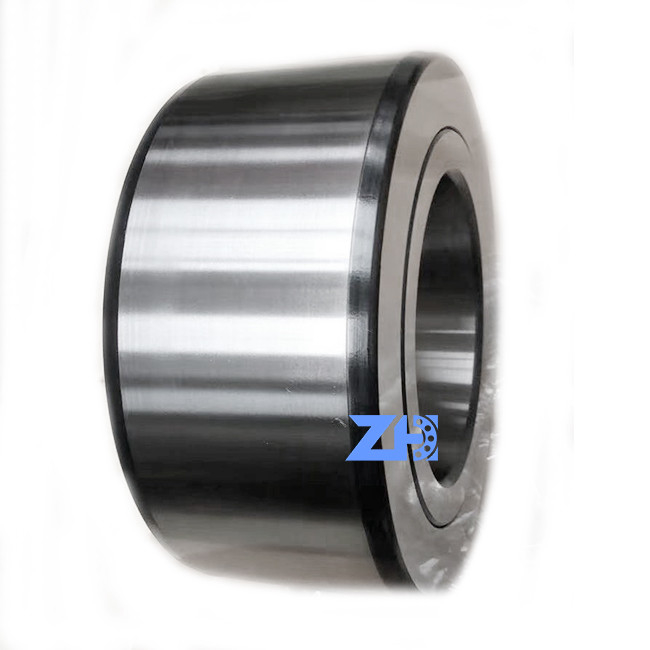

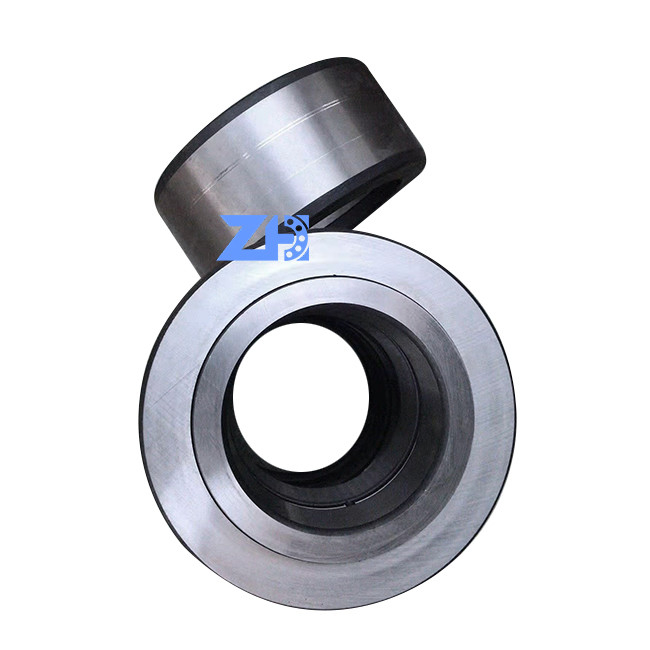

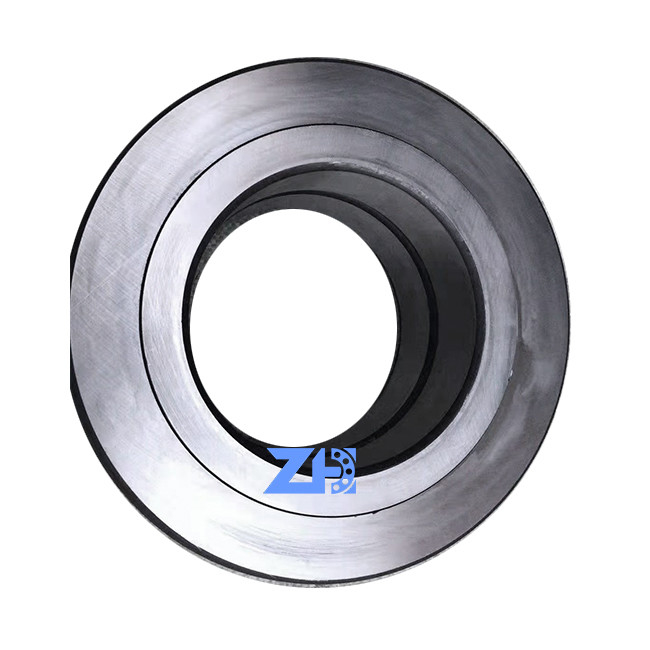

316977C 316977RS 3169J2Q 3169ZZ P6 P5 P3 P4 P2 Quality LEVEL CHROME STEEL Tapered Roller Bearing
Product introduction
316977C Cylindrical roller bearings are separable bearings, which are very convenient to install and disassemble. Cylindrical roller bearings can withstand large radial loads and are suitable for use in high-speed operating situations.
(Good quality looking ZH, good price looking ZH)
This type of bearing allows the Angle error (inclination) between the inner ring axis and the outer ring axis to be very small, only 2 '~ 4'. Therefore, the machining accuracy of the shaft and bearing seat is relatively high. Otherwise,
it is easy to have uneven load or stress concentration in the raceway contact part. However, the stress concentration can be reduced by modifying the roller or raceway contact busbar.
| d |
140 mm
|
Bore diameter |
|---|---|---|
| D |
250 mm
|
Outside diameter |
| B |
114 mm
|
Overall bearing width |
| d1 |
≈187.3 mm
|
Shoulder diameter inner ring |
| D1 |
≈188.05 mm
|
Shoulder diameter outer ring |
| r1,2 |
min.3 mm
|
Chamfer dimension inner ring |
| r3,4 |
min.13.5 mm
|
Chamfer dimension outer ring |
| β |
17 °
|
Chamfer angle outer ring |
| Basic dynamic load rating | C |
528 kN
|
|---|---|---|
| Basic static load rating | C0 |
765 kN
|
| Fatigue load limit | Pu |
86.5 kN
|
| Maximum dynamic radial loads | Fr |
max.335 kN
|
| Maximum static radial loads | F0r |
max.480 kN
|
| Bearing part | Complete bearing |
| Number of rows | 2 |
| Bore type | Cylindrical |
| Cage | Without |
| Number of flanges, outer ring | 3 |
| Number of flanges, inner ring | 2 |
| Loose flange | None |
| Radial internal clearance | C3 |
| Coating | Without |
| Sealing type | O-rings |
| Lubricant | Grease |
| Relubrication feature | With |
Treasure knife with hero, bearing with parts, in order to cast brilliant achievements
| NUP207 | T7FC055 | NUP308=140 | NUP307 | NUP2212 | NUP309 |
| NUP2206 | NUP206 | NUP2208=210 | NUP207 | NUP207/NUP306 | NUP310 |
| NUP2207 | 6305M | NUP307=110 | NUP307 | 30309D | T7FC065 |
| NUP2207 | 4T-30307 | NUP207=120 | NUP307 | 30312D | 30312D |
| NUP2209 | HMK3525+IR | NUP2206=130 | NUP308 | 30312D | |
| NUP2209 | NUP307 | NUP2207=140 | NUP2211 | 30312D | |
| NUP2209 | NUP306 | NUP2209=160 | NUP2208 | 30312 | |
| NUP2212 | 30309D | NUP309=180 | NUP309 | NUP310 | |
| NUP2212 | 30210 | NUP309=180 | NUP309 | NUP308 | |
| NUP2211 | 30210 | 30312D=155 | 30314D | NUP306 |
