Place of Origin:
CHINA
Brand Name:
ZH
Certification:
IS09001
Model Number:
22316CC
22316CC 22316CCK 22316CCW 22316J2Q 22316W 22316J 22316CCA 22316W 222316ECA 22316ECK 22316L P0 P6 P5 P3 P4 P2 Quality LEVEL CHROME STEEL Spherical Roller Bearing
Production introduction

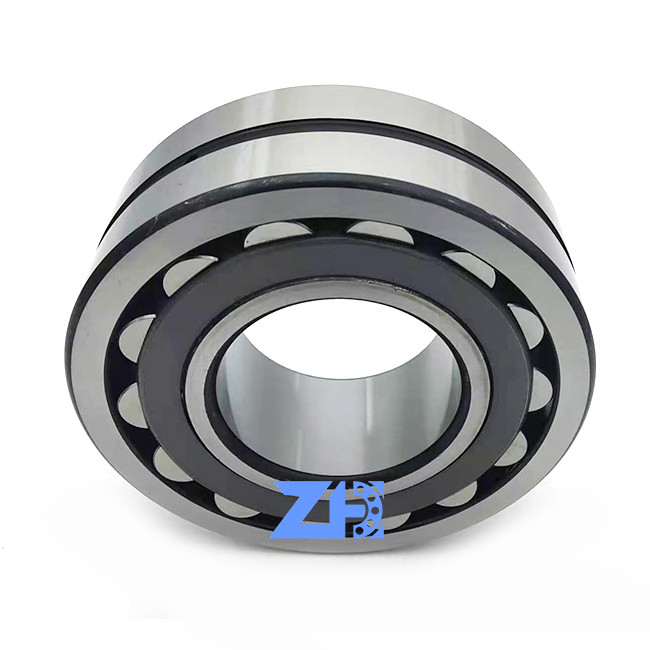

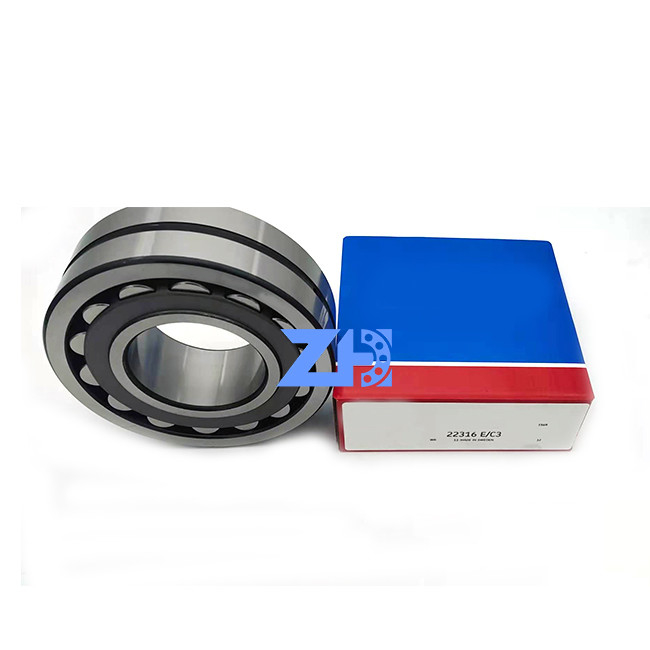

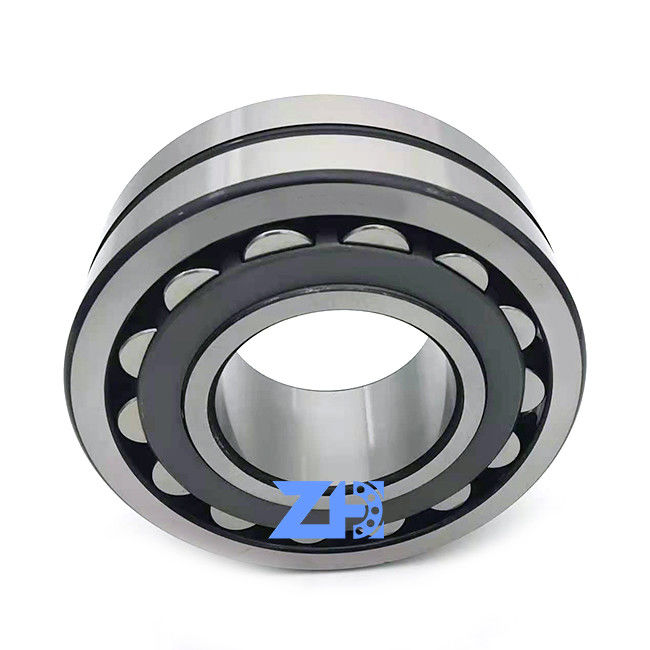

22316 CC Spherical Roller Bearing are dedicated to extremely severe applications and must support high loads, severe misalignment, contaminated environments, shocks, and vibrations.
(Everyone wants to buy low price, buy high quality products, I'm the right person)
The performance of these spherical is achieved through the use of very high quality raw materials and optimized rolling element geometry. The unique design also leads to:
Reduced friction torque (as much as 30% less), offering lower operating temperature, with lower power and lubricant consumption. Appreciably increased operating speed, allowing an extended scope of applications.
| d |
80 mm
|
Bore diameter |
|---|---|---|
| D |
170 mm
|
Outside diameter |
| B |
58 mm
|
Width |
| d2 |
≈98.3 mm
|
Shoulder diameter of inner ring |
| D1 |
≈143 mm
|
Shoulder/recess diameter of outer ring |
| b |
8.3 mm
|
Width of lubrication groove |
| K |
4.5 mm
|
Diameter of lubrication hole |
| r1,2 |
min.2.1 mm
|
Chamfer dimension |
| Da |
max.158 mm
|
Diameter of housing abutment |
|---|---|---|
| ra |
max.2 mm
|
Radius of fillet |
| Basic dynamic load rating | C |
516 kN
|
|---|---|---|
| Basic static load rating | C0 |
540 kN
|
| Fatigue load limit | Pu |
54 kN
|
| Reference speed |
3 000 r/min
|
|
| Limiting speed |
4 000 r/min
|
|
| Limiting value | e |
0.35
|
| Calculation factor | Y1 |
1.9
|
| Calculation factor | Y2 |
2.9
|
| Calculation factor | Y0 |
1.8
|
We can also provide it for good use
