Place of Origin:
CHINA
Brand Name:
ZH
Certification:
IS09001
Model Number:
30218

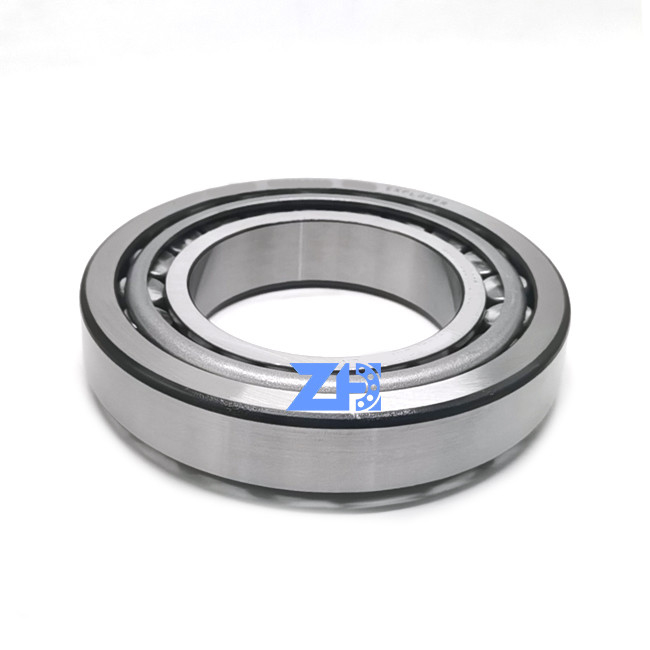

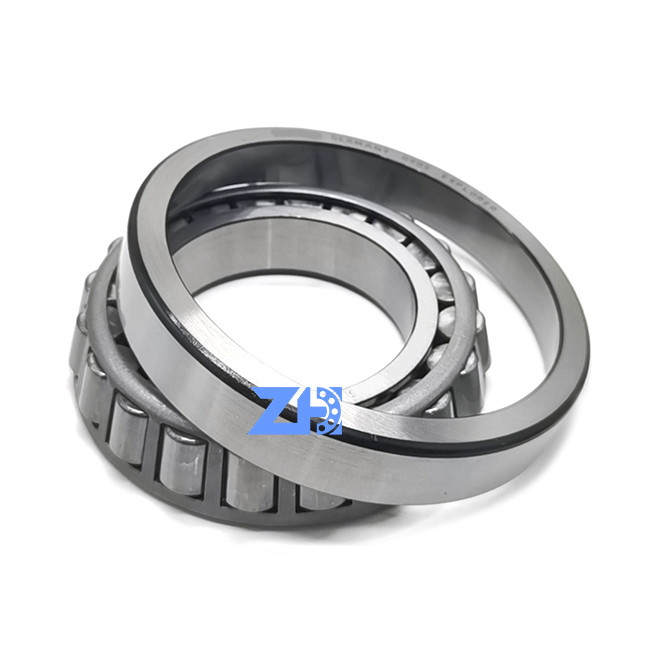

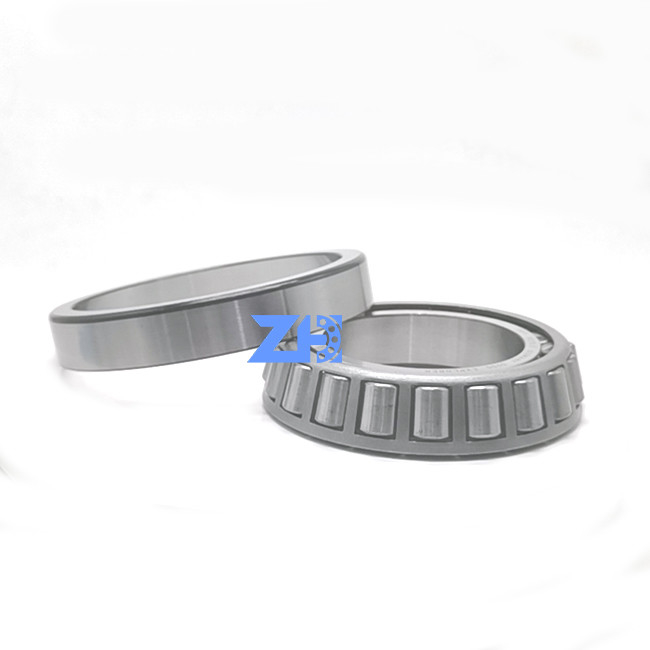

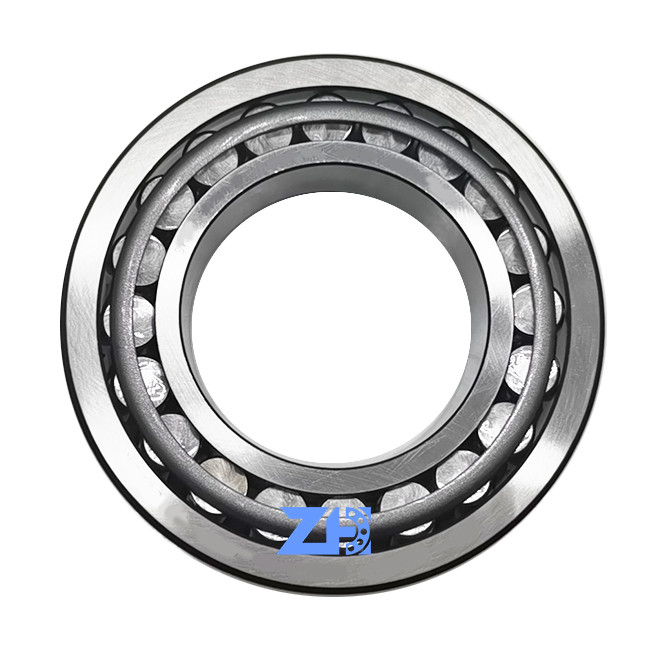

30218 30218 30218 P0 P5 P TAPPER ROLLER BEARING CHROME STEEL 90*160*32.5mm
Product introduction
Tapered roller bearings are mainly used to bear radial and axial combined loads based on radial loads, generally not suitable to bear axial loads alone, such bearings can be installed respectively the inner ring (with a full set of rollers and retainers) and the outer ring.
| d |
90 mm
|
Bore diameter |
|---|---|---|
| D |
160 mm
|
Outside diameter |
| T |
32.5 mm
|
Total width |
| d1 |
≈120.38 mm
|
Shoulder diameter of inner ring |
| B |
30 mm
|
Width of inner ring |
| C |
26 mm
|
Width of outer ring |
| r1,2 |
min.2.5 mm
|
Chamfer dimension of inner ring |
| r3,4 |
min.2 mm
|
Chamfer dimension of outer ring |
| a |
31.033 mm
|
Distance side face to pressure point |
| da |
max.104 mm
|
Diameter of shaft abutment |
|---|---|---|
| db |
min.102 mm
|
Diameter of shaft abutment |
| Da |
min.140 mm
|
Diameter of housing abutment |
| Da |
max.150 mm
|
Diameter of housing abutment |
| Db |
min.150 mm
|
Diameter of housing abutment |
| Ca |
min.5 mm
|
Minimum width of space required in housing on large side face |
| Cb |
min.6.5 mm
|
Minimum width of space required in housing on small side face |
| ra |
max.2.5 mm
|
Radius of shaft fillet |
| rb |
max.2 mm
|
Radius of housing fillet |
| Basic dynamic load rating | C |
240 kN
|
|---|---|---|
| Basic static load rating | C0 |
245 kN
|
| Fatigue load limit | Pu |
28.5 kN
|
| Reference speed |
3 400 r/min
|
|
| Limiting speed |
4 000 r/min
|
|
| Limiting value | e |
0.43
|
| Calculation factor | Y |
1.4
|
| Calculation factor | Y0 |
0.8
|
