Place of Origin:
CHINA
Brand Name:
ZH
Certification:
IS09001
Model Number:
6205-ZZ

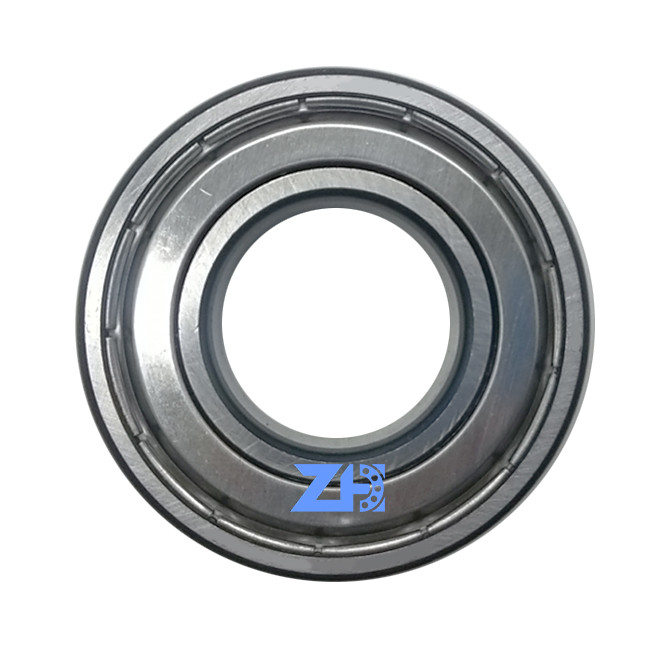

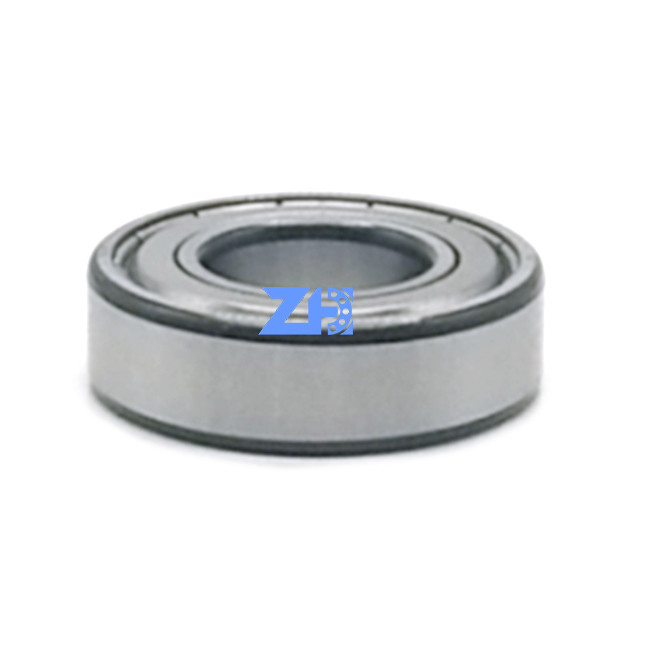

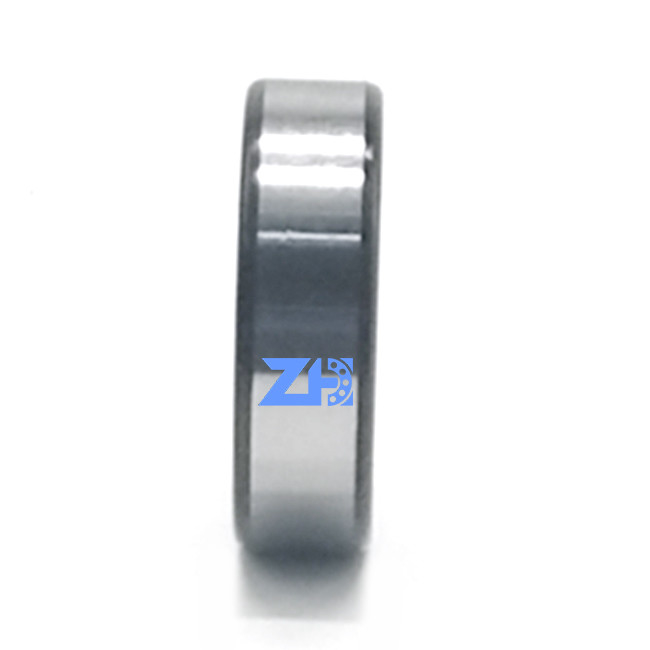

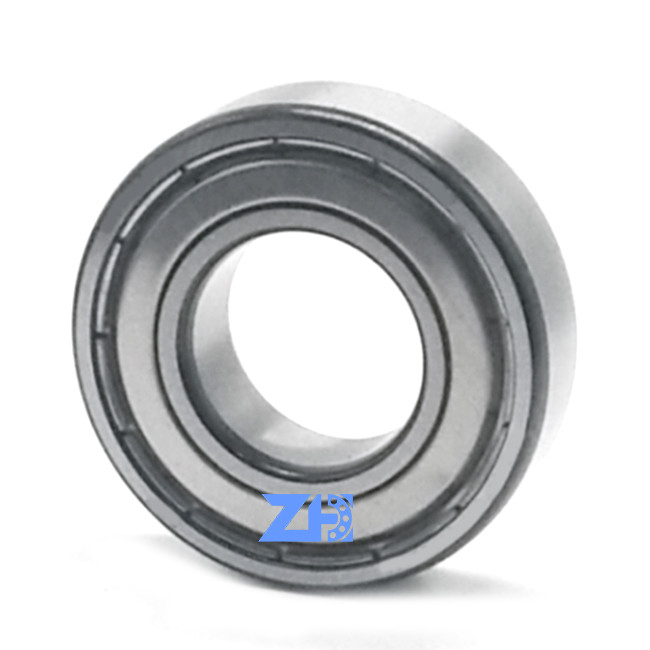

Deep Groove Ball Bearing 25*52*15mm 6205-ZZ 6205-ZZ 6205-ZZ CHROME STEEL Material
Production introduction(High quality bearings give you peace of mind, low prices make your business prosperous)
6205-ZZ Deep groove ball bearing are the most common type and are used in a wide variety of applications. Not only are they capable of supporting radial loads but also moderate axial loads in either direction. Due to their low torque, they are suitable for applications where high speed and low power loss is required
| d |
25 mm
|
Bore diameter |
|---|---|---|
| D |
52 mm
|
Outside diameter |
| B |
15 mm
|
Width |
| d1 |
≈34.35 mm
|
Shoulder diameter |
| D2 |
≈46.21 mm
|
Recess diameter |
| r1,2 |
min.1 mm
|
Chamfer dimension |
| da |
min.30.6 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max.46.4 mm
|
Diameter of housing abutment |
| ra |
max.1 mm
|
Radius of shaft or housing fillet |
| Basic dynamic load rating | C |
14.8 kN
|
|---|---|---|
| Basic static load rating | C0 |
7.8 kN
|
| Fatigue load limit | Pu |
0.335 kN
|
| Reference speed |
28 000 r/min
|
|
| Limiting speed |
18 000 r/min
|
|
| Minimum load factor | kr |
0.025
|
| Calculation factor | f0 |
14
|
| Products name | Top quality high temperature resistance stainless steel bearings 6203 6204 6205 6300 6301 6305 ball bearing price list |
| Brand name | all brands or OEM |
| ID size | Standard and non-standard sizes available |
| Material | Chrome Steel, stainless steel |
| Closures | Open, metal Sealed, rubber sealed, Nylon sealed |
| Types |
Open,Z,ZZ,RS,2RS,RZ,2RZ. For non standard bearing,there are many different types with various sizes for our clients and we can alsodesign or develop customized products as per the samples or drawings provided by our clients. |
| Delivery date | Normal within 3 days |
| Payment terms |
A: 30% T/T in advance .70% against copy of B/L B.30% T/T in advance .70% against L/C at sight C.Western union D.Paypal |
| Package |
A.Polybag +Box+Carton B.Tube+Box+Carton C.As per customer's request Attention pls |
6205-ZZ Collection
| NUP306 | KMF160-PC360-7 | NUP310 | 11749/11710 | M2X96 | M2X120 |
| NUP307 | MSG-27P | NUP207 | KMF41-PC60 | MCB172 | 32207 |
| HMK3525+IR | GM38VB | 6213 | T7FC055 | HMT36FA | NUP207 |
| HMGC32 | MAG150 | NUP308 | DNB50/60 | NUP2209 | HMS072 |
| HMGF35 | TM09 | JMF29 | NUP308 | NUP2209 | AP5S67 |
| 6305 | NUP2212=220 | NUP309=180 | 30314D=250 | NUP2212 | NUP308=140 |
| NUP2211=250 | 6008 | NUP309 | NUP309 | M2X146 | T7FC055=300 |
| NUP207 | NUP307 | NUP206 | NUP207=120 | NUP309 | NUP309 |
| NUP307 | 30311D | 6305M | NUP2209=160 | NUP2212 | JMF250 |
| NUP307 | T7FC055 | 4T-30307 | NUP2207=140 | M5X130 | JMV-53/31 |
| NUP2208 | M5X180 | SG08 | 30312D | MAG85 | 30312 |
| NUP2211 | 32205 | GM17VA | 30312D | NUP206E | KMF90-PC200-6 |
| HMGC48 | T7FC060 | JMV-44/22 | 30309D | 15578 | NUP2206 |
| NUP309 | M2X150 | KMF125-PC200-7 | 6209 | NUP306 | NUP308 |
| M2X170 | NUP2209 | NUP2310 | MAG120 | 30312D | 30309D=110 |
| 30210 | NUP2207 | NUP307 | MAG150 | NUP308 | M2X63 |
| 30311D | NUP2207 | NUP205E | NUP309 | JMF29 | NUP2208=210 |
| SG04 | NUP309=180 | T7FC055 | NUP308 | NUP307 | NUP307=110 |
| SG025 | NUP309=180 | 30312D | GM18VL | NUP205E | HMGF36 |
| SG02 | NUP310 | 30314D | AP5S53 | T7FC055 | NUP206=100 |
| SG15 | GM35VL | 30312D | NUP207 | 30312D | 30312D |
| SG20 | NUP2206=130 | 30309D | 6213 | 30314D | M2X55 |
| NIP2310 | NUP207/NUP306 | 30309D | NUP208E | T7FC065 | NUP308=14 |
FAQ:
Q1: I want to buy your products, how can I pay?
A :You can pay via T/T , L/C , WEST UNION , ESCROW , PAYPAL , ETC. Especially ESCROW, which is guaranteed by Alibaba.com. It is safe and effective.
Q2: How can you guarantee the quality?
A: If you meet with quality problem, we promise to replace goods or return your funds.
Q3: If we don’t find what we want on your website, what should we do?
A: You can email us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month, and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.
Q4: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to send 1pc for quality testing if we have the item you need in stock.
Why choose us? 1. Let’s talk—we have NO barrier in language.
2. Request for more item information---there are nearly 2000 products for your option!
3. Write us for quotation---reply you within 24 hours,one quotation could be ready in 2mins for a ready product.
