Place of Origin:
CHINA
Brand Name:
QIEAL ZH
Model Number:
UCF206

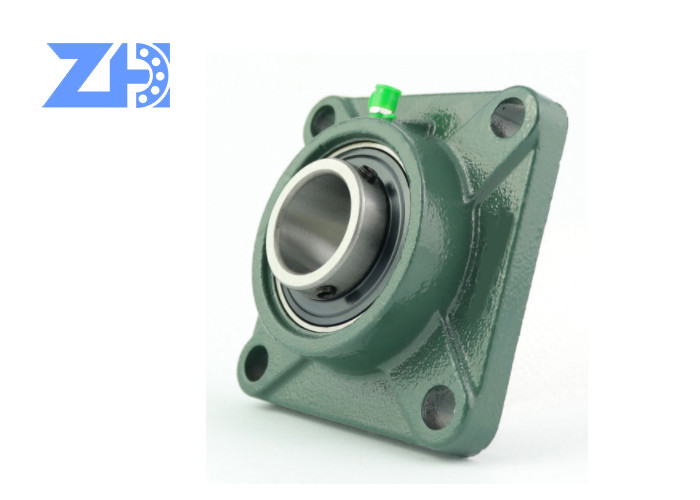

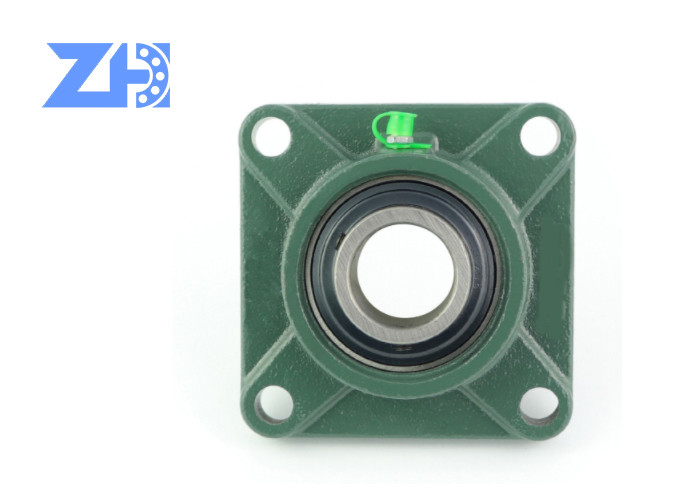

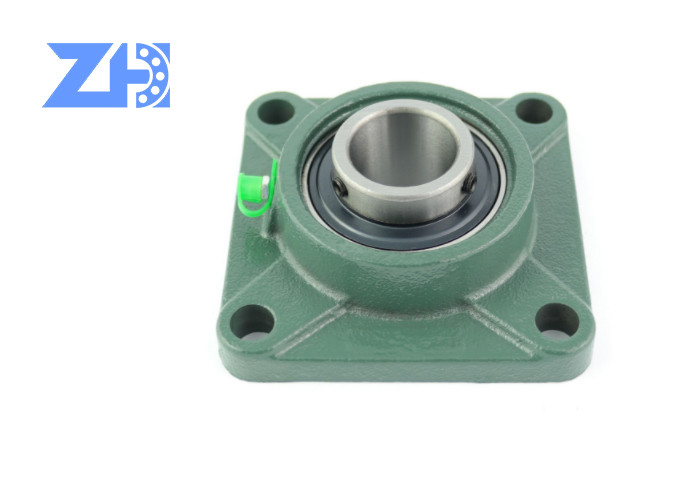

Insert Ball Bearing UC206 Pillow Block Bearing UCF206 Bearing Units UCF206
UCFC SERIES, UCP SEREIS, UCF SERIES, UCFL SERIES, UKP SERIES, UKF SERIES, UKFC SERIES, UKFL SERIES, UC SERIES, UK SERIES
DETAILS:
UCFC: 200.300 SERIES
UCP: 200.300 SERIES
UCF: 200 300 SERIES
UCFL: 200.300 SERIES
UKP: 200 300 SERIES
UKF: 200 300 SERIES
UKFC: 200 300 SERIES
UKFL: 200 300 SERIES
UC: 200 300 SERIES
SB: 200 300 SERIES
UK: 200 300 SERIES
Pillow block bearing is combination of a radial ball bearing, seal, and a housing of high-grade cast iron or pressed steel, which comes in various shapes.
The outer surface of the bearing and the internal surface of the housing is spherical, so that the unit is self-aligning. The inside construction of ball bearing for the unit is such that steel balls and retainers of the same type as in series 62 and 63 of the deep groove ball bearing are used. A duplex seal consisting of a combination of an oil-proof synthetic rubber seal and a slinger is provided on both sides.
Depending on the type, the following methods of fitting to the shaft are employed:
(1) The inner ring is fastened onto the shaft in two places by set screws.
(2) The inner ring has a tapered bore and is fitted to the shaft by means of an adapter.
(3) In the eccentric locking collar system the inner ring is fastened to the shaft by means of eccentric grooves provided at the side of the inner ring and on the collar.
Pillow block bearing of Appliexcavatorions: Marine, automobile, agriculture machine, farm machinery, conveyors, construction machinery, etc.
| Quality standard | ISO-9001 |
| Precision | P0, P6, P5 |
| Clearance | C0,CM,C2, C3, C4 |
| Vibration & Noisy | Z1,Z2,Z3 & V1,V2,V3,V4 |
| Delivery date | Depend On The Quantity |
| Shipping Terms |
All Express is available. Fedex, TNT, UPS, DHL, EMS and so on; And you can choose to ship them by sea or air. |
| Payment Term 1 | 30% T/T in advance, 70% T/T against copy of B/L |
| Payment Term 2 | 100% L/C at sight |
| Service |
OEM & ODM service; Provide a certain number of free samples to support the customer after-sales service and warranty |
| Packing |
Single Box or plastic tube package (10pcs/tube or 5pcs/tube); Carton: Standard export carton box (Size: 300X260X180MM) or as your needPallet: Wooden or Iron pallet with plastic film against moisture 1200X900X750(mm), 0.81CBM, according to the buyer requests for packaging |
Pillow block bearing UCF relative series
| Shaft Dia | Boundary dimensions(mm) | Bolt Size | Bearing No. | Housing No. | Mass | Bearing Number | |||||||||
| in. | mm | a | e | i | g | l | s | z | Bi | n | Kg | ||||
| 1/2 | 86 | 63.5 | 15 | 11 | 25.4 | 12 | 33.3 | 31 | 12.7 | 3/8 | UC201-8 | F204 | 0.7 | UCF201-8 | |
| 5/8 | 86 | 63.5 | 15 | 11 | 25.4 | 12 | 33.3 | 31 | 12.7 | 3/8 | UC202-10 | F204 | 0.7 | UCF202-10 | |
| 20 | 86 | 63.5 | 15 | 11 | 25.4 | 12 | 33.3 | 31 | 12.7 | M10 | UC204 | F204 | 0.7 | UCF204 | |
| 3/4 | 86 | 63.5 | 15 | 11 | 25.4 | 12 | 33.3 | 31 | 12.7 | 3/8 | UC204-12 | F204 | 0.7 | UCF204-12 | |
| 25 | 95 | 70 | 16 | 13 | 27 | 12 | 35.7 | 34 | 14.3 | M10 | UC205 | F205 | 0.8 | UCF205 | |
| 7/8 | 95 | 70 | 16 | 13 | 27 | 12 | 35.7 | 34 | 14.3 | 3/8 | UC205-14 | F205 | 0.8 | UCF205-14 | |
| 15/16 | 95 | 70 | 16 | 13 | 27 | 12 | 35.7 | 34 | 14.3 | 3/8 | UC205-15 | F205 | 0.8 | UCF205-15 | |
| 1 | 95 | 70 | 16 | 13 | 27 | 12 | 35.7 | 34 | 14.3 | 3/8 | UC205-16 | F205 | 0.8 | UCF205-16 | |
| 30 | 108 | 83 | 18 | 13 | 31 | 12 | 40.2 | 38.1 | 15.9 | M10 | UC206 | F206 | 1.0 | UCF206 | |
| 1-1/16 | 108 | 83 | 18 | 13 | 31 | 12 | 40.2 | 38.1 | 15.9 | 3/8 | UC206-17 | F206 | 1.0 | UCF206-17 | |
| 1-1/8 | 108 | 83 | 18 | 13 | 31 | 12 | 40.2 | 38.1 | 15.9 | 3/8 | UC206-18 | F206 | 1.0 | UCF206-18 | |
| 1-3/16 | 108 | 83 | 18 | 13 | 31 | 12 | 40.2 | 38.1 | 15.9 | 3/8 | UC206-19 | F206 | 1.0 | UCF206-19 | |
| 1-1/4 | 108 | 83 | 18 | 13 | 31 | 12 | 40.2 | 38.1 | 15.9 | 3/8 | UC206-20 | F206 | 1.0 | UCF206-20 | |
| 35 | 117 | 92 | 19 | 15 | 34 | 14 | 44.4 | 42.9 | 17.5 | M12 | UC207 | F207 | 1.4 | UCF207 | |
| 1-1/4 | 117 | 92 | 19 | 15 | 34 | 14 | 44.4 | 42.9 | 17.5 | 7/1 | UC207-20 | F207 | 1.4 | UCF207-20 | |
| 1-5/16 | 117 | 92 | 19 | 15 | 34 | 14 | 44.4 | 42.9 | 17.5 | 7/1 | UC207-21 | F207 | 1.4 | UCF207-21 | |
| 1-3/8 | 117 | 92 | 19 | 15 | 34 | 14 | 44.4 | 42.9 | 17.5 | 7/1 | UC207-22 | F207 | 1.4 | UCF207-22 | |
| 1-7/16 | 117 | 92 | 19 | 15 | 34 | 14 | 44.4 | 42.9 | 17.5 | 7/1 | UC207-23 | F207 | 1.4 | UCF207-23 | |
| 40 | 130 | 102 | 21 | 15 | 36 | 16 | 51.2 | 49.2 | 19 | M14 | UC208 | F208 | 1.8 | UCF208 | |
| 1-1/2 | 130 | 102 | 21 | 15 | 36 | 16 | 51.2 | 49.2 | 19 | 1/2 | UC208-24 | F208 | 1.8 | UCF208-24 | |
| 1-9/16 | 130 | 102 | 21 | 15 | 36 | 16 | 51.2 | 49.2 | 19 | 1/2 | UC208-25 | F208 | 1.8 | UCF208-25 | |
| 45 | 137 | 105 | 22 | 16 | 38 | 16 | 52.2 | 49.2 | 19 | M14 | UC209 | F209 | 2.2 | UCF209 | |
| 1-5/8 | 137 | 105 | 22 | 16 | 38 | 16 | 52.2 | 49.2 | 19 | 1/2 | UC209-26 | F209 | 2.2 | UCF209-26 | |
| 1-11/16 | 137 | 105 | 22 | 16 | 38 | 16 | 52.2 | 49.2 | 19 | 1/2 | UC209-27 | F209 | 2.2 | UCF209-27 | |
| 1-3/4 | 137 | 105 | 22 | 16 | 38 | 16 | 52.2 | 49.2 | 19 | 1/2 | UC209-28 | F209 | 2.2 | UCF209-28 | |
| 50 | 143 | 111 | 22 | 16 | 40 | 16 | 54.6 | 51.6 | 19 | M14 | UC210 | F210 | 2.4 | UCF210 | |
| 1-7/8 | 143 | 111 | 22 | 16 | 40 | 16 | 54.6 | 51.6 | 19 | 1/2 | UC210-30 | F210 | 2.4 | UCF210-30 | |
| 1-15/16 | 143 | 111 | 22 | 16 | 40 | 16 | 54.6 | 51.6 | 19 | 1/2 | UC210-31 | F210 | 2.4 | UCF210-31 | |
| 2 | 143 | 111 | 22 | 16 | 40 | 16 | 54.6 | 51.6 | 19 | 1/2 | UC210-32 | F210 | 2.4 | UCF210-32 | |
| 55 | 162 | 130 | 25 | 18 | 43 | 19 | 58.4 | 55.6 | 22.2 | M16 | UC211 | F211 | 3.6 | UCF211 | |
| 2 | 162 | 130 | 25 | 18 | 43 | 19 | 58.4 | 55.6 | 22.2 | 5/8 | UC211-32 | F211 | 3.6 | UCF211-32 | |
| 2-1/8 | 162 | 130 | 25 | 18 | 43 | 19 | 58.4 | 55.6 | 22.2 | 5/8 | UC211-34 | F211 | 3.6 | UCF211-34 | |
| 2-3/16 | 162 | 130 | 25 | 18 | 43 | 19 | 58.4 | 55.6 | 22.2 | 5/8 | UC211-35 | F211 | 3.6 | UCF211-35 | |
| 60 | 175 | 143 | 29 | 18 | 48 | 19 | 68.7 | 65.1 | 25.4 | M16 | UC212 | F212 | 4.4 | UCF212 | |
| 2-1/4 | 175 | 143 | 29 | 18 | 48 | 19 | 68.7 | 65.1 | 25.4 | 5/8 | UC212-36 | F212 | 4.4 | UCF212-36 | |
| 2-3/8 | 175 | 143 | 29 | 18 | 48 | 19 | 68.7 | 65.1 | 25.4 | 5/8 | UC212-38 | F212 | 4.4 | UCF212-38 | |
| 2-7/16 | 175 | 143 | 29 | 18 | 48 | 19 | 68.7 | 65.1 | 25.4 | 5/8 | UC212-39 | F212 | 4.4 | UCF212-39 | |
| 65 | 187 | 149 | 30 | 22 | 50 | 19 | 69.7 | 65.1 | 25.4 | M16 | UC213 | F213 | 5.5 | UCF213 | |
| 2-1/2 | 187 | 149 | 30 | 22 | 50 | 19 | 69.7 | 65.1 | 25.4 | 5/8 | UC213-40 | F213 | 5.5 | UCF213-40 | |
| 70 | 193 | 152 | 31 | 22 | 54 | 19 | 75.4 | 74.6 | 30.2 | M16 | UC214 | F214 | 6.1 | UCF214 | |
| 2-11/16 | 193 | 152 | 31 | 22 | 54 | 19 | 75.4 | 74.6 | 30.2 | 5/8 | UC214-43 | F214 | 6.1 | UCF214-43 | |
| 2-3/4 | 193 | 152 | 31 | 22 | 54 | 19 | 75.4 | 74.6 | 30.2 | 5/8 | UC214-44 | F214 | 6.1 | UCF214-44 | |
| 75 | 200 | 159 | 34 | 22 | 56 | 19 | 78.5 | 77.8 | 33.3 | M16 | UC215 | F215 | 6.9 | UCF215 | |
| 2-15/16 | 200 | 159 | 34 | 22 | 56 | 19 | 78.5 | 77.8 | 33.3 | 5/8 | UC215-47 | F215 | 6.9 | UCF215-47 | |
| 3 | 200 | 159 | 34 | 22 | 56 | 19 | 78.5 | 77.8 | 33.3 | 5/8 | UC215-48 | F215 | 6.9 | UCF215-48 | |
ZhongHong bearing Co., Ltd. is a professional bearing manufacturer. We are engaged in producing high quality bearings. We can supply various kinds of bearings according to customers' requirements. Our products enjoy great popularity in the worldwide markets Asia, Europe and USA and so on.
Our products includ Deep groove ball bearings, Angular contact ball bearing, Thrust ball bearing, Taper roller bearings, Cylindrical roller bearings, Spherical roller bearings, Thrust roller bearings. We also supply special linear bearing, ceramic bearing, plastic bbearings, textile bearing rotor bearing complete, excavator bearing and so on.
Products are extensively used in machinery, excavator, hydropower, engineering, railways, automobiles, electric power, textiles, metallurgy, mine, papermaking, sports equipment and precision instruments.
Our Service
1.Customer service:
Any questions to be sent will get response within 24 hours.
2.Lead Time:
Sample Lead-times: generally 1-3 workdays.
Production Lead-times: 17 workdays after getting your deposit.According to the model and quantity.
3.Delivery
For small weight or Urgent, goods will be sent by Express DHL/FedEX/UPS/TNT/EMS
For max production,goods will be shipped by sea/by air.
According to client’s requirements.
After-sales service:
Before shippment ,products will be strictly inspection on our factory QC Process System.Just in case,there is abnormal.Please contact us at first time, Customer Complaint handling procedure will be boot at once.Implementation of the scheme will be come out within 48 hours.We will negotiate with customer to find a reasonable way to resolve and compensate.
Our Advantage
1. More than ten years Bearing exporting experiences.
2. OEM and non-standard Bearing Reqirement acceptable.
3. within 24 hours delivery after deposit or full payment for most Bearing Items
4. All products, we provide our customer one year warranty.
Our main product
We specialized in deep groove ball bearings, self-aligning ball bearing, cylindrical roller bearings, spherical roller bearings, tapered roller bearings, angular contact ball bearings,thrust ball bearing,thrust roller bearing,wheel bearings,pillow block bearings,rolling mill bearings,linear guide bearings,ball screw bearings etc.
1.Industrial package+outer carton+pallets.
2.Single box+outer carton+pallets.
3.Tube package+middle box+outer carton+pallets.
4.According to your's requirement.
We are sure to package carefully,to make sure you could get completely cleanly bearings.that’s what we hope and win-win each other.
A: We are Factory + trade
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
