Place of Origin:
CHINA
Brand Name:
NTN
Model Number:
23134CA/W33/C3

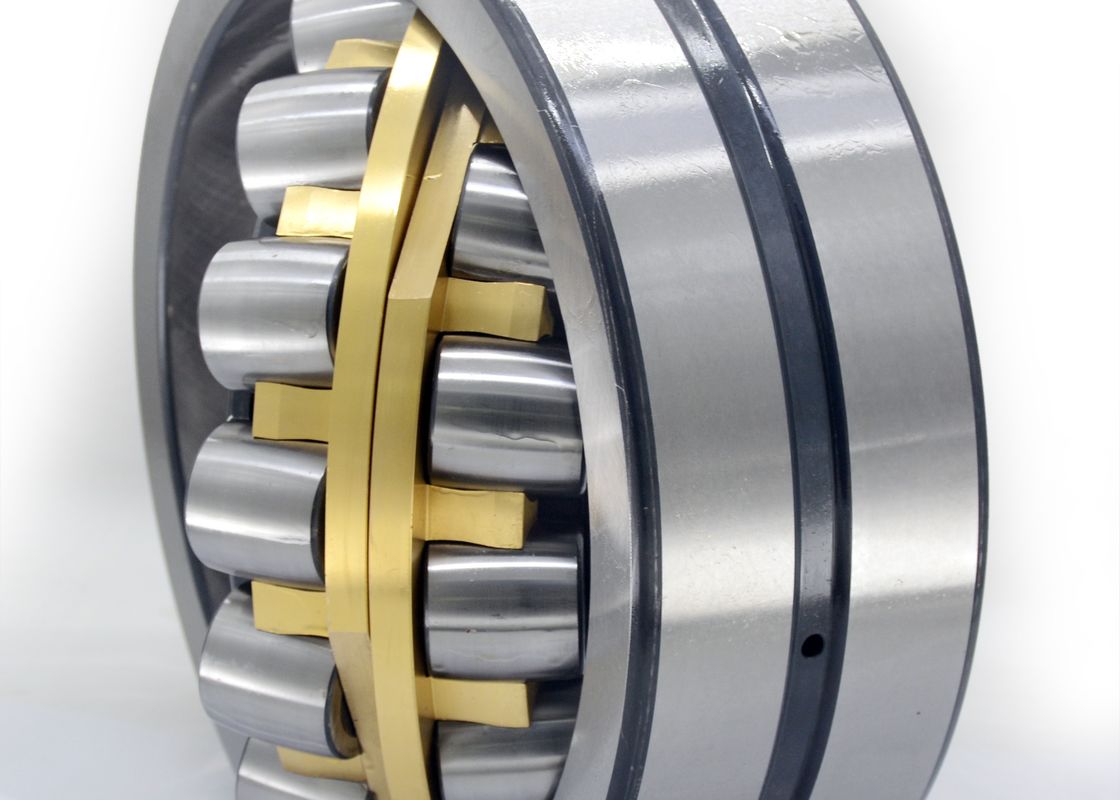

Original Motor bearing 23134CA/W33/C3 low noise
Spherical roller thrust bearings
| Product name |
Spherical roller bearing 23134 CA MB W33
|
| Brand |
NSK NTN and other brand
|
|
Basic size mm |
Inner diameter:160 Outer diameter:270 Width:86 |
| Material |
Chrome Steel ,Carbon steel,Stainless steel
|
| Number of Row |
Single Row
|
| Place of Origin |
China (Mainland)
|
| Clearance |
C0, C2, C3, C4, C5
|
1.Spherical Roller Bearing Information:
Roller bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads.
These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All roller bearings are open, shielded,
or sealed.Sealed bearings are lubriexcavatored with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubriexcavatored in place,
with periodic reappliexcavatorion of lubriexcavatorion, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan.
2.Appliexcavatorion:
Mixing equipment, industrial control systems and equipment manufacturing equipment, refrigeration compressors, micro-motors, steel, boring machines, petroleum equipment, milling and drilling machines, mining construction equipment, metallurgy, CNC milling machines, automobiles, etc
3.Features:
Support radial and oscillating axial loads
C3 radial clearance allows thermal expansion for continuous operating temperatures up to 200 degrees C/392 degrees
Tapered bore with 1:12 taper for compensating for a flexing shaft or fitting to a tapered shaft
Roller-guided brass cage evenly spaces rollers for reduced friction, vibration, and noise
Open design, circumferential groove and three lubriexcavatorion holes in the outer ring allow for lubriexcavatorion in place
4.Quality&Services
Products process: Advanced producing equipment, inspection equipment and good control system to keep the product produce smoothly.
Quality guaranty: Product quality assurance period is over year 2000 miles.
Superficial finish: Carefully work in the assembly line to confirm the products in perfect appearance.Products can also be manufactured according to drawings and samples with customers requirement. We sincerely welcome our friends to visit and negotiate business.
Meanwhile, we are looking forward to finding long-term partners..
2 . Other size :
| Bearing No. | Boundary dimensions | Basic load ratings(kN) | Limiting speeds | Mass | |||||
| mm | Dynamic | Static | rpm | Kg | |||||
| d | D | B | rs min | Cr | Cor | Grease | Oil | ||
| 23130 | 150 | 250 | 80 | 2.1 | 730 | 1,190 | 1,100 | 1,700 | 15.6 |
| 23130K | 150 | 250 | 80 | 2.1 | 730 | 1,190 | 1,100 | 1,700 | 15.1 |
| 23130KW33C3 | 150 | 250 | 80 | 2.1 | 730 | 1,190 | 1,100 | 1,700 | 15.1 |
| 23130W33C3 | 150 | 250 | 80 | 2.1 | 730 | 1,190 | 1,100 | 1,700 | 15.6 |
| 23132 | 160 | 270 | 86 | 2.1 | 840 | 1,370 | 1,000 | 1,600 | 19.8 |
| 23132K | 160 | 270 | 86 | 2.1 | 840 | 1,370 | 1,000 | 1,600 | 19.2 |
| 23132KW33C3 | 160 | 270 | 86 | 2.1 | 840 | 1,370 | 1,000 | 1,600 | 19.2 |
| 23132W33C3 | 160 | 270 | 86 | 2.1 | 840 | 1,370 | 1,000 | 1,600 | 19.8 |
| 23134 | 170 | 280 | 88 | 2.1 | 885 | 1,490 | 960 | 1,500 | 21.5 |
| 23134K | 170 | 280 | 88 | 2.1 | 885 | 1,490 | 960 | 1,500 | 20.8 |
| 23134KW33C3 | 170 | 280 | 88 | 2.1 | 885 | 1,490 | 960 | 1,500 | 20.8 |
| 23134W33C3 | 170 | 280 | 88 | 2.1 | 885 | 1,490 | 960 | 1,500 | 21.5 |
| 23136 | 180 | 300 | 96 | 3 | 1,030 | 1,730 | 900 | 1,400 | 25.1 |
| 23136K | 180 | 300 | 96 | 3 | 1,030 | 1,730 | 900 | 1,400 | 24.2 |
3 . CONPANY PROFILE
ZhongHong Bearing Manufacturing Co. Ltd is a bearing production, sales - based company,
the company in the industrial field has many years of bearing supporting and industrial service experience.
Types involved: deep groove ball bearings, joint bearings, conical bearings, cylindrical bearings and so on Our products are widely used in machine tools,
coal mine, railway, petroleum printing, power plant, ship, aviation, automobile and other industries
WORKSHOP
WAREHOUSE
4. PACKAG and SHIPPING
1.Single box packing, then in carton then in Pallet.
2.Standard export packing.
3. According customer demand.
4. Negotiable
5 . FAQ
Send your inquiry directly to us
