Place of Origin:
China
Brand Name:
ZH
Certification:
IS09001
Model Number:
32207

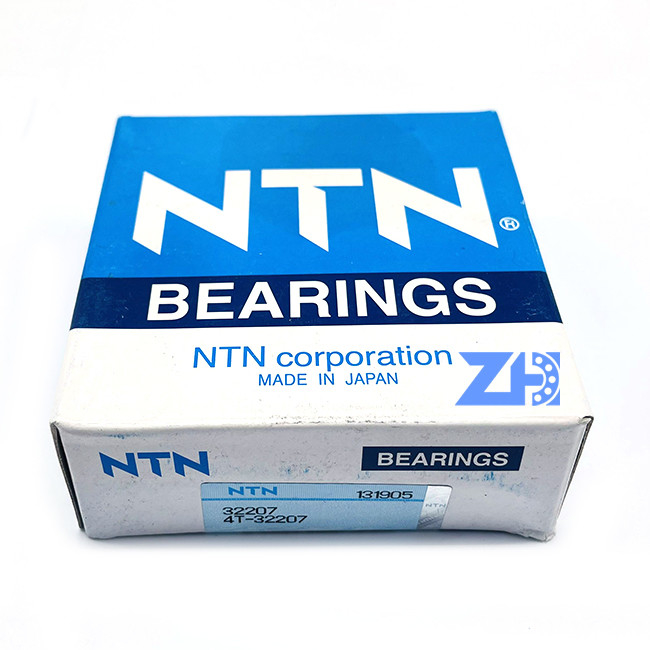

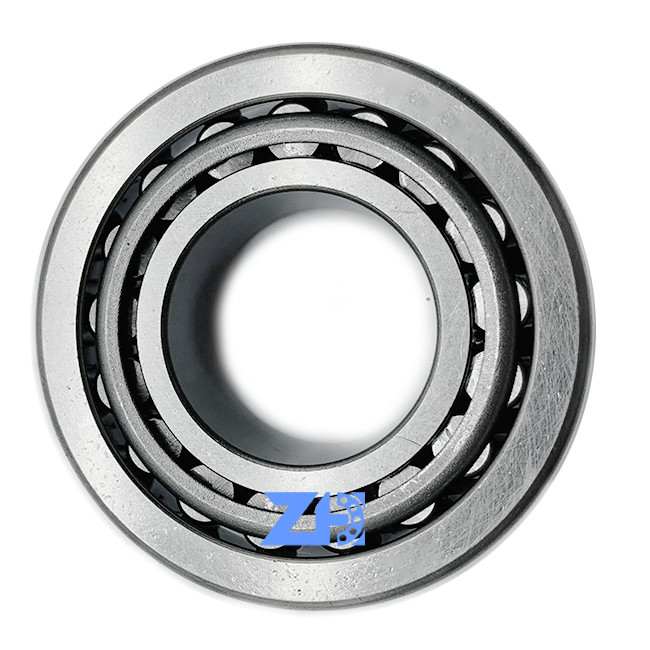

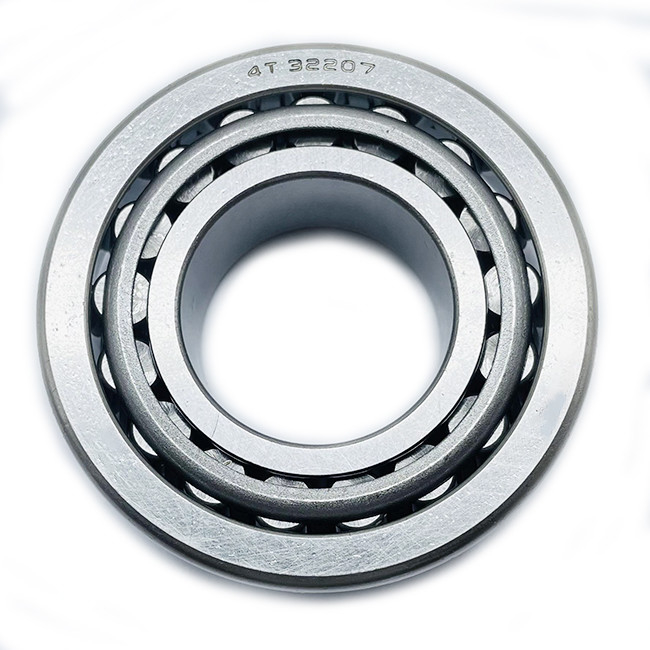

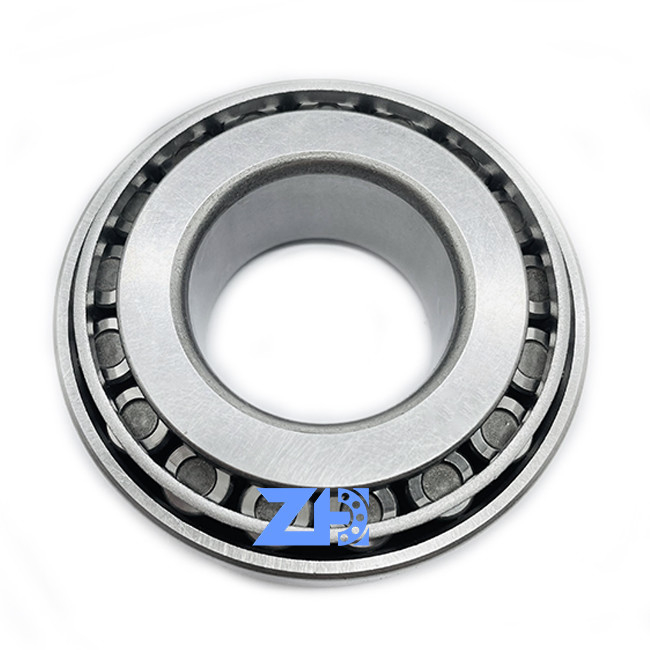

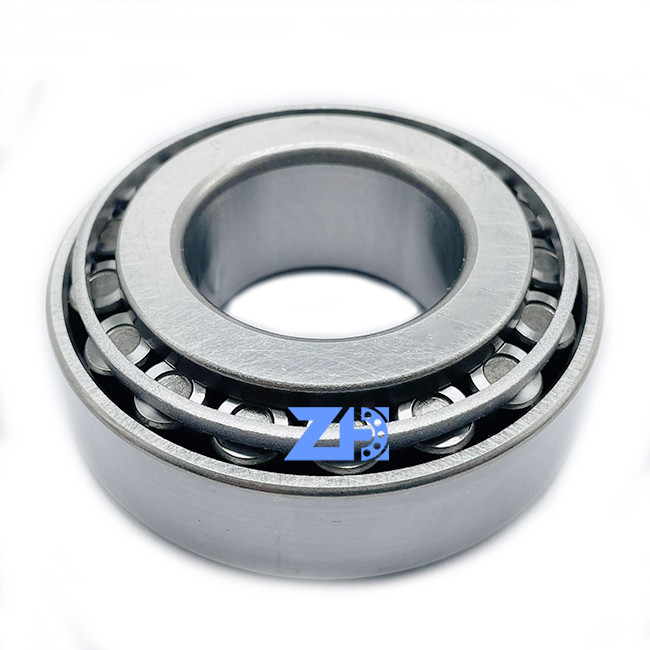

P0 P6 P5 P4 P3 QUAITY LEVER 32207 32207D 32207P6X 32207X2B 32207JR 32207DJR CHROME STEEL TAPPER ROLLER BEARING
32207 tapered roller bearings use a wide range, bearing 32207 tapered roller bearings are mainly used in transmission devices, construction machinery, vibrating screen, machine tools, automobile, metallurgy, mining, petroleum, machinery, electric power, motor, fan, railway and other industries, the company sold 32207 tapered roller bearings at a reasonable price, Quality assurance, all aspects of service, do everything to meet customer needs.
| PRODUCT DEFINITION | |
|---|---|
| Brand | ZH |
| d - Internal diameter | 35 mm |
| D - External diameter | 72 mm |
| B - Bearing/Inner ring width | 17mm |
| C - Outer ring width | 19 mm |
| T - Total width | 24,25 mm |
| d1 - External diameter inner ring | 52,4 mm |
| a - Charge load application point | 18,25 mm |
| rs - Min fillet radius | 1,5 mm |
| r1s - Min fillet radius | 1,5 mm |
| Mass | 0,31 kg |
| ISO 355 reference | T3DC035 |
| PRODUCT PERFORMANCE | |
|---|---|
| C - Dynamic load | 70 kN |
| A2 - Rating life coefficient | 1 |
| C0 - Static load | 80 kN |
| Cu - Fatigue limit load | 9,8 kN |
| e - Coefficient | 0.37 |
| Y0 - Static axial load coefficient | 0.88 |
| Y2 - Upper axial load coefficient | 1.6 |
| Nref - Reference thermal speed | 6100 tr/min |
| Nlim - Mechanical Limit Speed | 10000 tr/min |
| Tmin - Min operating temperature | -40 °C |
| Tmax - Max operating temperature | 120 °C |
| BEARING FREQUENCIES | |
|---|---|
| BPFO - Characteristic outer ring frequency (60 rpm) | 7,119 Hz |
| BPFI - Characteristic inner ring frequency (60 rpm) | 9,88 Hz |
| FTF - Characteristic cage frequency (60 rpm) | 0,418 Hz |
| BSF - Characteristic rolling element frequency (60 rpm) | 5,813 Hz |
| ABUTMENT | |
|---|---|
| da max - Max shoulder diameter IR | 43 mm |
| db min - Min IR shoulder diameter | 43,5 mm |
| Da min - Min shoulder diameter OR | 61 mm |
| Da max - Max shoulder diameter OR | 63,5 mm |
| Db min - Min OR shoulder diameter | 67 mm |
| Ca - Min clearance | 3 mm |
| Cb - Min clearance | 5 mm |
| ra max - Max fillet radius | 1,5 mm |
| r1a - Max fillet radius | 1,5 mm |
WE CAN OFFER THESE 3220- MODEL
| 32201 | 33202 | 32203 |
| 32204 | 32205 | 32206 |
| 32207 | 32208 | 32209 |
Additive standard
| 2RS | Z | W | X2B |
| ZZ | Q | M | X |
| ZN | JQ | D | JR |
WE CAN OFFER THESE MODEL HYDRAILIC PUMP BEARINGS :
| HPV55 | VRD63 | K3VL80DTP | HPV160 | SBS120 | A8V0107 | K5V160DTP | HPV091DS | |
| NVK45 | PVK-2B-505 | K5V80DTP | HPV132 | SBS80 | A8V0140 | K5V160DP | HPV091ES | |
| A8V055 | PVB92 | K3V112DT | HPV140 | AP2D25 | A8V0160 | K5V200DTH | HPV091/102 | |
| A8V86 | PSVD2-27 | K3V112DP | HPV165 | AP2D36 | A8V0200 | K5V200DPH | HPV0102 | |
| A8V0107 | K5V80 | K3V112BDP | HPK055K | A10VD17 | A10VO28 | NV111 | HPV0118 | |
| K3SP36C | A10VS071 | K3V140DT | HPV050 | A10VD43 | PSVD2-55 52 | K7V63 | HPV116 |
FOR MORE DETAIL PLS CONTACT US
